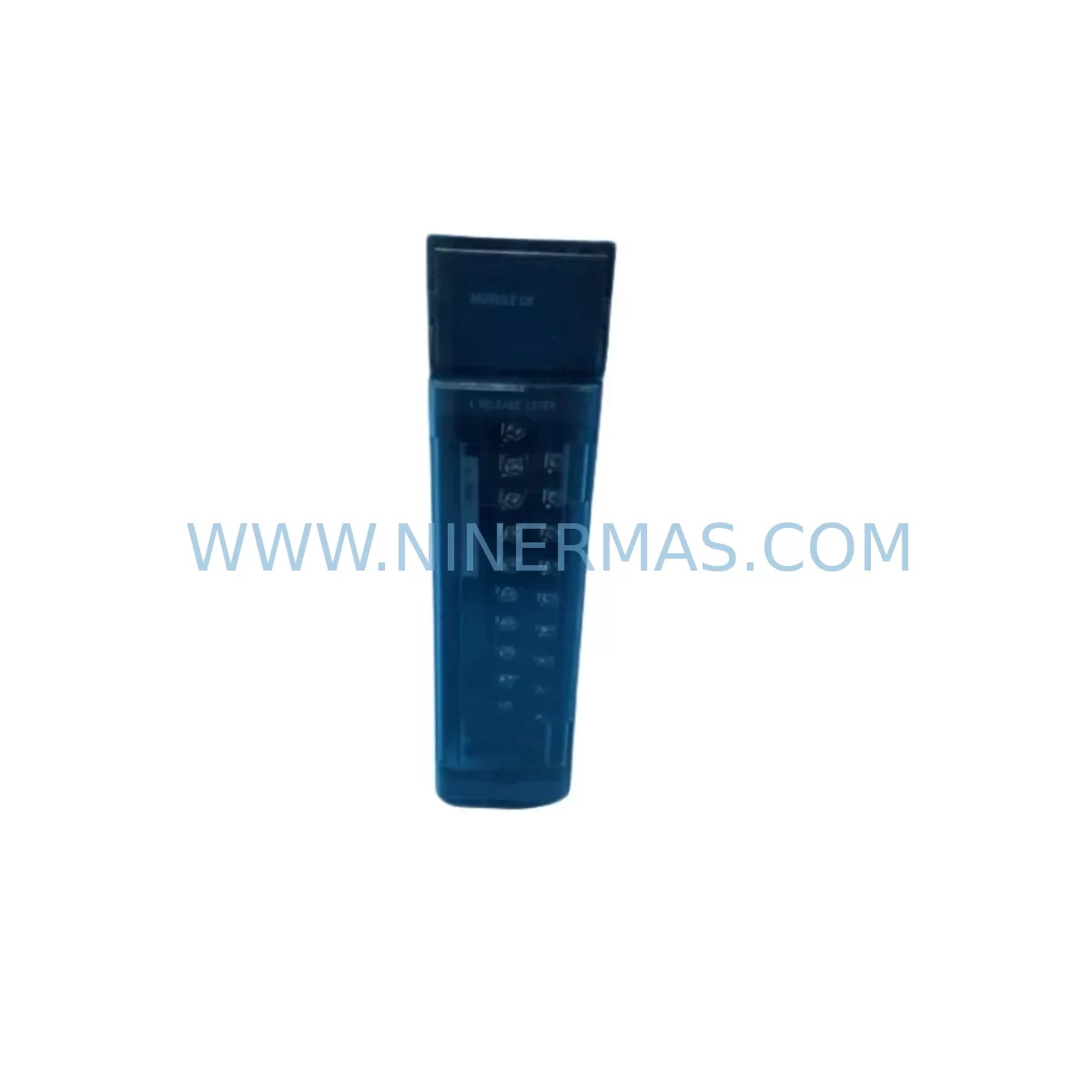

GE IC694ALG391A Safety-Reliable Analog Output Module

GE IC694ALG391A Safety-Reliable Analog Output Module for Critical Control Sites

The GE IC694ALG391A is a high-density analog output module engineered for the GE Series 90-30 PLC platform, one of the most widely deployed programmable logic controller families in continuous process industries. Designed to deliver stable, drift-free 4–20 mA and 0–10 V analog signals to field actuators, the IC694ALG391A is a cornerstone component in control loops where signal integrity directly determines process safety and uptime. Whether installed in a petrochemical DCS cabinet, a power plant auxiliary control panel, or a water treatment SCADA rack, this module provides the output accuracy and environmental resilience that critical industrial sites demand.

At NINERMAS, every IC694ALG391A unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain ready stock to support emergency replacements, planned maintenance windows, and long-term spare parts programs for facilities that depend on the Series 90-30 architecture.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered Series 90-30 control cabinet, the IC694ALG391A does not operate in isolation — its reliability is interdependent with the quality and condition of every adjacent component in the power, communication, and I/O chain. Signal drift on an analog output channel is rarely caused by the output module alone; it is often the downstream symptom of upstream power instability, backplane degradation, or communication faults that propagate through the rack.

A robust risk reduction strategy begins at the power layer. The GE IC693PWR330 high-capacity power supply provides the stable 5 VDC and 24 VDC rails that the IC694ALG391A requires for consistent D/A conversion. Pairing it with a quality 24 VDC field power distribution module ensures that loop-powered transmitters and actuators connected to the analog outputs receive clean, regulated excitation voltage — eliminating one of the most common sources of 4–20 mA signal error in field wiring.

On the communication side, the GE IC693CMM321 communications coprocessor and IC694CMM321 Ethernet interface module maintain the data integrity between the CPU and the I/O subsystem. When the CPU — typically a GE IC693CPU374 or IC694CPU315 — issues setpoint updates to the IC694ALG391A, any communication anomaly or bus timeout can cause the output to hold its last value or default to a safe state. Ensuring the CPU firmware and the CMM module firmware are aligned is a critical preventive maintenance step.

Surge and transient protection is equally important in heavy industrial environments. Installing DIN-rail surge protection devices (SPDs) on the 24 VDC supply lines feeding the analog output field wiring protects the IC694ALG391A output circuits from voltage spikes induced by large motor starts, welding equipment, or nearby lightning strikes. In mining and port crane applications, where cable runs to actuators can exceed 200 meters, surge coupling is a documented failure mode that proper SPD selection eliminates.

For applications requiring discrete safety interlocks alongside analog control — common in chemical reactor and boiler management systems — the GE IC693MDL940 relay output module and IC694MDL660 discrete input module are frequently installed in the same rack as the IC694ALG391A. This combination allows the PLC program to simultaneously modulate a control valve via the analog output and monitor the valve’s limit switches via discrete inputs, creating a closed-loop verification that the actuator has responded correctly to the setpoint command.

Finally, maintaining a documented spare parts inventory that includes the IC694ALG391A alongside the IC693CPU374 CPU module, IC693PWR321 power supply, and key IC694MDL series I/O modules is the single most effective strategy for minimizing mean time to repair (MTTR) after an unplanned failure. Sites that carry zero local spares routinely experience 48–72 hour production outages waiting for emergency shipments; sites with a structured spare parts program restore control within hours.

Critical Industrial Safety Applications

The GE IC694ALG391A is deployed across a broad spectrum of safety-critical and continuous-process industries where analog output accuracy and module availability are non-negotiable.

Petrochemical and Refining: In crude distillation units and catalytic cracker control systems, the IC694ALG391A drives control valve positioners that regulate feed rates, reflux ratios, and product draw-off flows. A failed or drifting analog output in these loops can trigger emergency shutdowns, flare events, or off-spec product — all of which carry significant safety and financial consequences. The module’s optical isolation prevents ground loops from corrupting setpoint signals in environments where multiple earthing systems coexist.

Electric Power Generation and Transmission: Auxiliary control systems in coal, gas, and hydroelectric power plants use Series 90-30 PLCs to manage cooling water flow, fuel gas pressure, and turbine lube oil temperature. The IC694ALG391A provides the analog output signals that position these critical actuators. Its 12-bit resolution ensures fine control authority, reducing hunting and overshoot in temperature and pressure loops that directly affect turbine efficiency and longevity.

Mining and Mineral Processing: Conveyor speed control, flotation cell reagent dosing, and crusher load management in mining operations demand analog output modules that withstand extreme dust, vibration, and temperature cycling. The IC694ALG391A’s robust construction and compatibility with enclosed, climate-controlled control rooms makes it a reliable choice for these demanding environments. Planned replacement cycles using pre-tested spare modules prevent unscheduled conveyor stoppages that cascade into lost production tonnage.

Water and Wastewater Treatment: Municipal water treatment facilities rely on analog outputs to control chemical dosing pumps, aeration blower VFDs, and filter backwash valve actuators. The IC694ALG391A’s stable 4–20 mA outputs ensure that dosing rates remain within regulatory compliance limits even during power fluctuations. Its compatibility with the broader Series 90-30 ecosystem simplifies integration with existing SCADA systems without requiring controller replacement.

Metallurgy and Steel Production: Electric arc furnace electrode positioning, continuous caster mold level control, and rolling mill tension regulation all depend on high-accuracy analog outputs. In these applications, the IC694ALG391A is often installed in thermally managed cabinets with forced-air cooling, operating continuously at elevated ambient temperatures. Pre-shipment testing at NINERMAS verifies that each module meets its full accuracy specification across the operating temperature range before it reaches the customer’s facility.

Port and Marine Automation: Ship-to-shore crane drives, bulk material handling conveyors, and vessel mooring systems increasingly use PLC-based control with analog output modules to manage variable-speed drives and hydraulic proportional valves. The IC694ALG391A’s EMI resistance is particularly valuable in port environments where high-power crane drives generate significant conducted and radiated interference on shared power distribution systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the GE IC694ALG391A?
The 12-month warranty covers functional failure of the IC694ALG391A under normal operating conditions — including D/A conversion accuracy loss, channel output failure, and backplane communication faults attributable to the module itself. Physical damage caused by incorrect installation voltage, reverse polarity, or external surge events beyond the module’s rated tolerance is excluded. Warranty claims are processed promptly with replacement units dispatched from in-stock inventory to minimize your downtime.

Q2: What pre-shipment testing is performed on each IC694ALG391A unit?
Every IC694ALG391A unit undergoes a full functional verification before dispatch. This includes powering the module in a Series 90-30 rack, exercising all 8 analog output channels across their full 4–20 mA and 0–10 V ranges, verifying output accuracy against calibrated reference instruments, and confirming backplane communication integrity. Only units that pass all test criteria are released for shipment. A test record is maintained for traceability.

Q3: Is the IC694ALG391A compatible with all GE Series 90-30 rack configurations?
Yes. The IC694ALG391A is compatible with all standard GE Series 90-30 base units and expansion racks, including 5-slot and 10-slot configurations. It operates with all Series 90-30 CPU modules, including the IC693CPU374, IC693CPU364, IC694CPU315, and IC694CPU320. No firmware modification is required for standard installations. For systems running older CPU firmware revisions, we recommend verifying the module’s hardware revision compatibility with your site’s configuration documentation.

Q4: Can NINERMAS support long-term supply of IC694ALG391A for ongoing maintenance programs?
Yes. NINERMAS maintains a dedicated inventory of GE Series 90-30 spare modules, including the IC694ALG391A, to support both emergency replacement orders and structured annual maintenance programs. We can provide volume pricing for facilities that wish to pre-position spares on-site, and we offer lead-time commitments for repeat customers with documented maintenance schedules. Contact our technical sales team to discuss your site’s long-term spare parts strategy.
