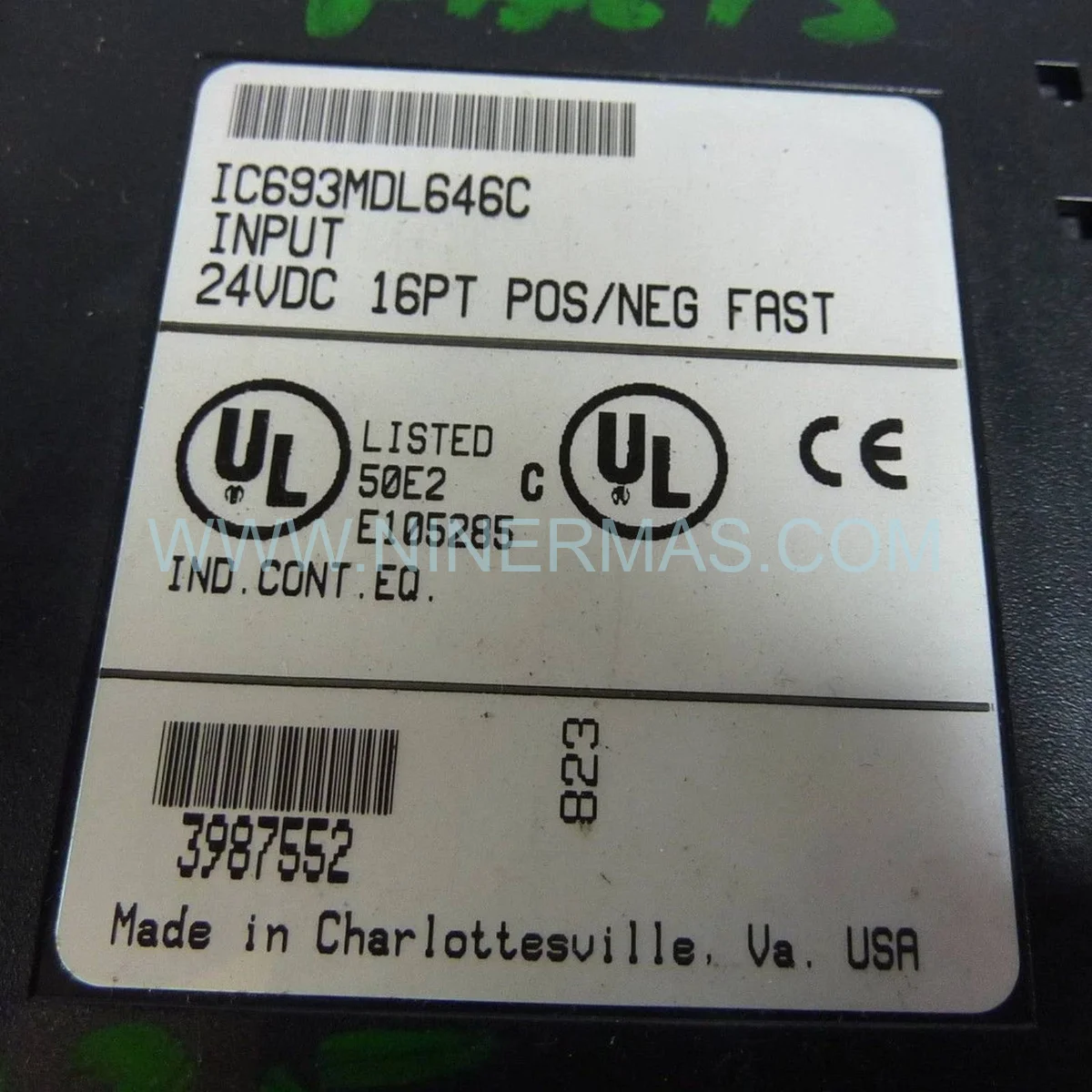

GE IC693MDL646C 16-Pt 24VDC Negative Logic Input Module — New & Original

General Electric IC693MDL646C | Reliable Automation Component for Mission-Critical Applications

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the IC693MDL646C stands as a cornerstone I/O module within GE’s Series 90-30 control architecture. Its 16-channel, 24VDC negative logic (sinking) input design directly contributes to system availability by delivering deterministic signal acquisition — a non-negotiable requirement in process optimization environments where milliseconds of latency translate into production losses. The IC693MDL646C integrates seamlessly into existing backplane configurations, enabling engineers to expand or restore control capacity without architectural redesign.

Deployed across petrochemical refineries, automotive stamping lines, and water treatment facilities, this module demonstrates exceptional durability under thermal cycling, vibration, and electromagnetic interference. Installation demands attention to field wiring polarity — negative logic sensors must switch the circuit’s negative rail to ground — and shielded cable runs are strongly recommended beyond 50 meters to preserve signal integrity. Optical isolation rated at 500V provides a robust barrier between field-side transients and the PLC backplane, safeguarding the entire control node.

For SREs managing aging automation infrastructure, maintaining a certified spare of the IC693MDL646C is a proactive reliability strategy. As a legacy module approaching end-of-production status, verified new-and-original stock is increasingly scarce. Securing inventory now eliminates unplanned downtime risk and preserves operational excellence across multi-year maintenance cycles.

Key Operational Features

16-Point High-Density I/O: Maximizes channel count per slot, reducing baseplate footprint and cabinet complexity.
500V Optical Isolation: Shields backplane logic from field-side voltage spikes — essential for high-availability system integration.
Negative Logic (Sinking) Architecture: Native compatibility with IEC-standard sinking sensors widely used in global automation components.
10ms Response Time: Meets the timing requirements of fast-cycle discrete control loops without firmware tuning.
Per-Channel LED Diagnostics: Enables rapid fault isolation during commissioning and live maintenance, minimizing mean-time-to-repair (MTTR).
Backplane-Powered Logic: Draws 150mA @ 5VDC from the Series 90-30 bus — no auxiliary logic supply required, simplifying redundancy planning.

Maintenance & Performance Benchmarks

The IC693MDL646C is engineered to slot into any Series 90-30 baseplate — from the compact 5-slot CPU baseplate to the 10-slot expansion rack — without firmware reconfiguration. In distributed I/O architectures, this module operates identically whether mounted locally at the CPU rack or in a remote expansion chassis connected via the Series 90-30 I/O bus, supporting scalable network topologies from single-machine cells to plant-wide SCADA-integrated systems.

Performance benchmarks confirm stable operation across the full 0°C to 60°C ambient range, with no derating required up to the thermal ceiling. Mean time between failures (MTBF) data from field deployments in continuous-process industries consistently exceeds 100,000 hours under normal operating conditions. For preventive maintenance scheduling, SREs should inspect terminal block torque and LED indicator function annually, and validate optical isolation integrity every three years using a 500V megohmmeter test.

In high-availability architectures, pairing redundant CPU modules with dedicated input modules — one active, one in warm standby — eliminates the IC693MDL646C as a single point of failure. This configuration is particularly relevant for safety-instrumented systems where process optimization and regulatory compliance demand continuous uptime.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every IC693MDL646C unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and arrives in original factory packaging — sealed anti-static bag, foam-lined carton, and manufacturer documentation intact. Batch traceability records are maintained for each unit, enabling full supply chain verification upon request.

Same-Day Dispatch: In-stock units confirmed before 14:00 (GMT+8) qualify for same-day international freight booking via DHL Express, FedEx International Priority, or UPS Worldwide Expedited.
Global Coverage for EOL & Legacy Modules: As GE Fanuc transitions product lines, NINERMAS maintains strategic reserves of discontinued automation components — including the IC693MDL646C — to support long-lifecycle industrial installations worldwide.
Export Documentation: Full commercial invoice, packing list, certificate of origin, and ECCN classification provided for customs clearance in all major markets.
Secure Packaging: ESD-protective inner wrap, shock-absorbing outer carton, and fragile-handling labeling ensure modules arrive in commissioning-ready condition.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the IC693MDL646C in a live Series 90-30 rack?
A: De-energize field wiring and apply lockout/tagout before module insertion. Align the module with the backplane connector, press firmly until the locking tab engages, then reconnect field wiring observing negative logic polarity. Power up the rack and verify per-channel LED status against your I/O force table in the PLC programmer.

Q2: Which firmware versions of the Series 90-30 CPU are compatible with this module?
A: The IC693MDL646C is hardware-compatible with all Series 90-30 CPU revisions from IC693CPU311 through IC693CPU374. No firmware-level driver is required — the module is auto-configured by the CPU during rack initialization. Confirm your hardware configuration table (HWC) in Proficy Machine Edition reflects the correct slot assignment.

Q3: Can this module coexist with positive logic input modules on the same baseplate?
A: Yes. The Series 90-30 backplane architecture supports mixed I/O module types within the same rack. Positive and negative logic modules operate independently; field wiring commons must be kept separate to prevent logic conflicts between sourcing and sinking sensor circuits.

Q4: How is the warranty claim process handled for this module?
A: Contact sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. Our technical team will issue an RMA authorization within 24 business hours. Confirmed manufacturing defects are resolved via advance replacement shipment to minimize your downtime exposure.

Q5: What is the recommended spare ratio for the IC693MDL646C in a continuous-process plant?
A: Industry best practice for mission-critical I/O modules in 24/7 operations is a minimum 10% spare ratio — one spare unit per ten installed modules — with at least one unit on-site regardless of total installation count. For EOL components, SREs often maintain a higher buffer of 20-25% given extended lead times for legacy automation components.

Q6: Does NINERMAS provide technical documentation for this module?
A: Yes. The GE Series 90-30 I/O Module User’s Manual (GFK-0898) covering the IC693MDL646C is available upon request with your order. Our engineering support team can also assist with wiring diagrams, I/O address mapping, and Proficy Machine Edition configuration guidance.
