GE IC693CBL316 Retrofit-Compatible Programming Cable Series 90-30

GE IC693CBL316 Retrofit-Compatible Programming Cable for Legacy Series 90-30 Systems

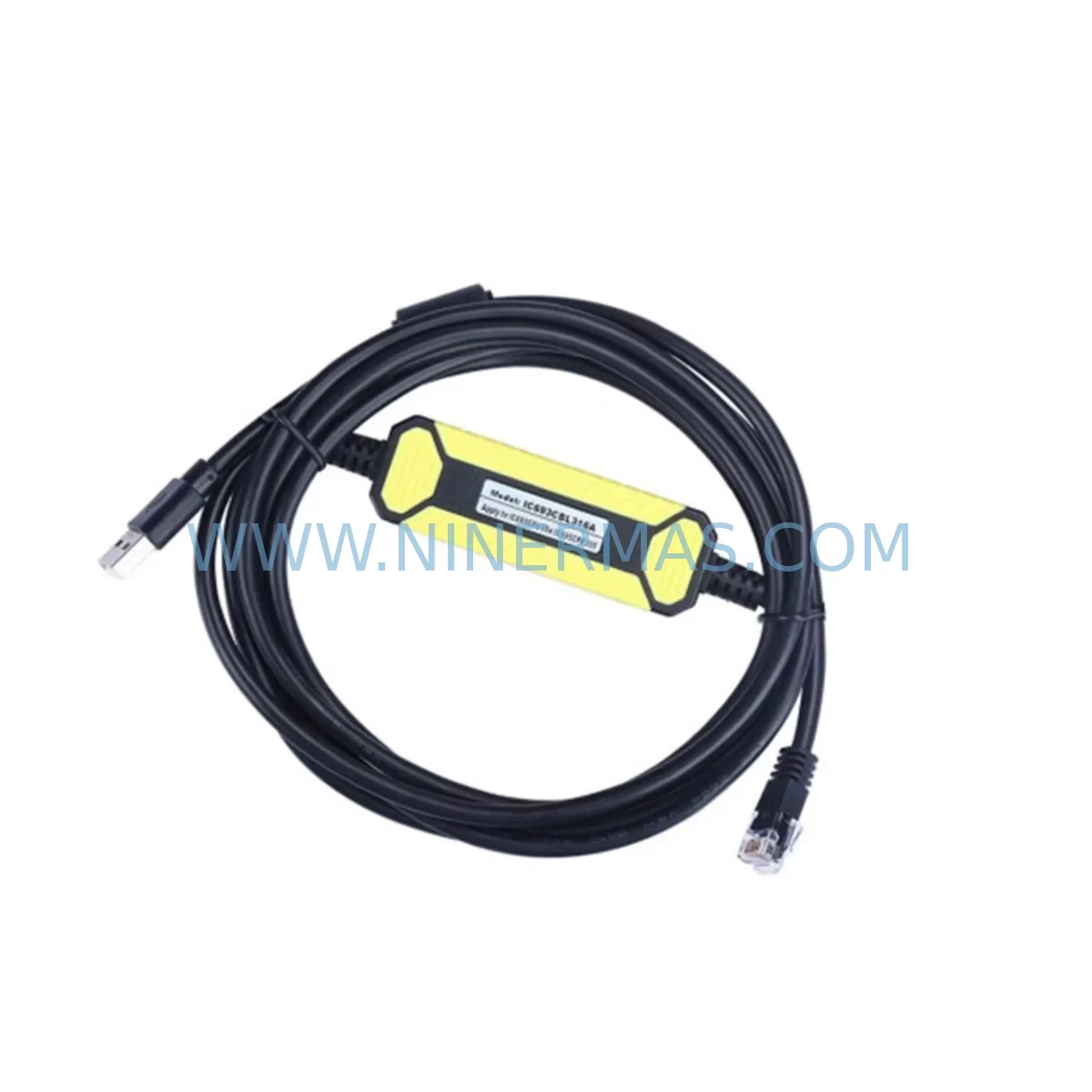

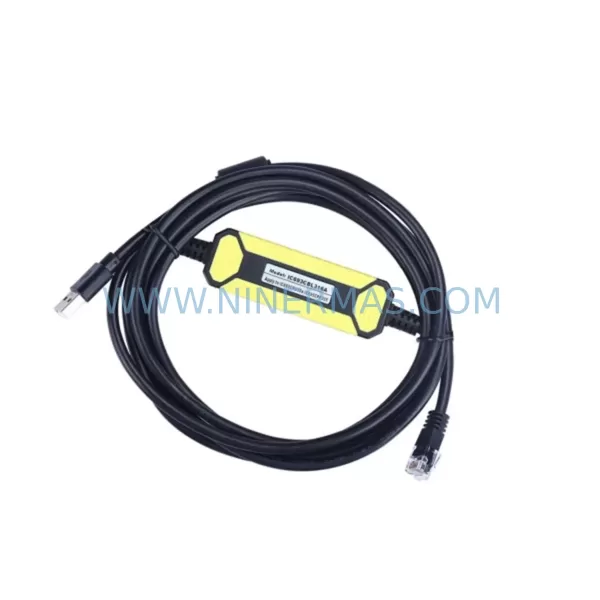

The GE IC693CBL316 is a dedicated programming cable designed for the GE Fanuc Series 90-30 PLC platform — one of the most widely deployed legacy control systems in continuous manufacturing, utilities, and process automation. As original equipment reaches end-of-life and spare parts become increasingly difficult to source, the IC693CBL316 remains a critical interface component for engineers managing system retrofits, program backups, firmware updates, and diagnostic routines on aging control infrastructure.

At NINERMAS, we maintain verified in-stock inventory of the IC693CBL316 to support customers who are actively upgrading or maintaining Series 90-30-based control cabinets. Every unit is subject to pre-shipment functional testing and ships with a 12-month warranty, giving procurement and maintenance teams confidence in both delivery timelines and post-installation reliability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When undertaking a retrofit or program migration on a Series 90-30 system, the IC693CBL316 is typically the first tool a controls engineer reaches for. Before any logic modification, firmware update, or program backup can begin, a reliable physical connection between the programming workstation and the CPU must be established — and this cable provides exactly that interface.

In a typical Series 90-30 control cabinet, the IC693CBL316 connects directly to the serial port on CPUs such as the IC693CPU364 or IC693CPU374, which are among the most commonly encountered units in legacy retrofit projects. Engineers running Proficy Machine Edition on a modern laptop will often pair this cable with a USB-to-RS232 adapter to bridge the interface gap, since native RS-232 COM ports are no longer standard on current hardware.

During a full cabinet upgrade, the IC693CBL316 is used alongside other Series 90-30 components that may also require replacement or verification. The IC693PWR321 and IC693PWR322 power supply modules are frequently inspected for output voltage stability before any programming session begins, as an unstable power rail can corrupt program uploads or cause unexpected CPU faults during commissioning. Similarly, the IC693MDL645 discrete input module and IC693MDL740 discrete output module are often reconfigured or replaced as part of the same retrofit scope, requiring the programming cable to remain connected throughout the I/O address remapping process.

For systems that include analog signal handling, the IC693ALG221 analog input module and IC693ALG390 analog output module may need scaling parameter updates that are only accessible through a live programming connection via the IC693CBL316. In installations where the Series 90-30 communicates over a legacy network, the IC693CMM321 communications module settings — including station address, baud rate, and protocol configuration — must also be verified and updated through the programming interface before the retrofit is considered complete.

Rack and backplane integrity is another key consideration. The IC693CHS391 9-slot rack and IC693CHS397 10-slot rack are commonly found in larger Series 90-30 installations, and any slot reassignment or module relocation during a retrofit requires a corresponding update to the hardware configuration file — a task performed directly through the IC693CBL316 connection. Engineers should also confirm that the CPU’s battery-backed RAM is intact before initiating any program transfer, as a depleted IC693ACC301 memory backup battery can result in program loss during power cycling.

Terminal wiring adaptation is another area that demands attention during retrofit planning. When replacing failed I/O modules, engineers must verify that existing field wiring terminations are compatible with the replacement module’s terminal block layout. In some cases, IC693ACC300 series terminal block adapters are used to maintain wiring continuity without re-terminating field cables — reducing retrofit downtime significantly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy system migration, and the IC693CBL316 plays a central role in achieving that goal. Before any physical changes are made to the control cabinet, engineers should use this cable to perform a full program backup from the existing CPU to a secure offline storage location. This backup serves as the recovery baseline if any step in the migration process introduces unexpected behavior.

With the program safely archived, the retrofit can proceed in a structured sequence: power supply verification, rack inspection, module replacement, I/O address confirmation, and finally, program reload and functional test. The IC693CBL316 remains connected throughout this process, allowing the engineer to monitor CPU status, force I/O points for loop testing, and verify that all analog scaling and discrete logic functions are operating correctly before the system is returned to production.

For sites where continuous operation is critical — such as water treatment facilities, chemical dosing systems, or power generation auxiliaries — a staged migration approach is recommended. This involves replacing and testing one subsystem at a time while keeping the remainder of the control system live. The IC693CBL316 supports this approach by enabling selective program segment uploads and downloads without requiring a full CPU restart, provided the CPU firmware version supports online editing.

NINERMAS maintains ready stock of the IC693CBL316 specifically to support time-sensitive retrofit projects. When a controls engineer arrives on site and discovers that the original programming cable is missing, damaged, or incompatible with the available hardware, a replacement unit can be dispatched immediately. Pre-shipment testing ensures that every cable delivered is fully functional, eliminating the risk of receiving a defective unit during a critical maintenance window. All units are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the IC693CBL316 a direct drop-in replacement for the original GE Fanuc programming cable?
Yes. The IC693CBL316 is the original GE Fanuc part number for the Series 90-30 programming cable. It connects directly to the CPU serial port without any adapter or configuration change, making it a true drop-in replacement for units that have been lost, damaged, or worn out over years of field use.

Q2: What programming software is compatible with the IC693CBL316?
The IC693CBL316 is compatible with both Proficy Machine Edition (the current GE/Emerson programming environment) and the legacy Logicmaster 90-30 software. Engineers using modern laptops without a native RS-232 port should use a quality USB-to-RS232 adapter and confirm that the correct COM port and baud rate are configured in the programming software before attempting to connect.

Q3: How does NINERMAS verify the IC693CBL316 before shipment?
Every IC693CBL316 unit in our inventory undergoes a pre-shipment functional test to confirm electrical continuity and signal integrity across all conductors. Units that do not pass this test are quarantined and not shipped. This process ensures that customers receive a fully operational cable, reducing the risk of commissioning delays caused by defective hardware.

Q4: What warranty and long-term supply support does NINERMAS provide for the IC693CBL316?
NINERMAS provides a 12-month warranty on all IC693CBL316 units from the date of shipment. In the event of a warranty claim, we offer direct replacement support without requiring customers to navigate complex RMA processes. We maintain ongoing inventory of this part to support customers with long-term maintenance contracts, multi-site retrofit programs, and emergency spare requirements. For volume pricing or scheduled delivery arrangements, contact our team directly.
