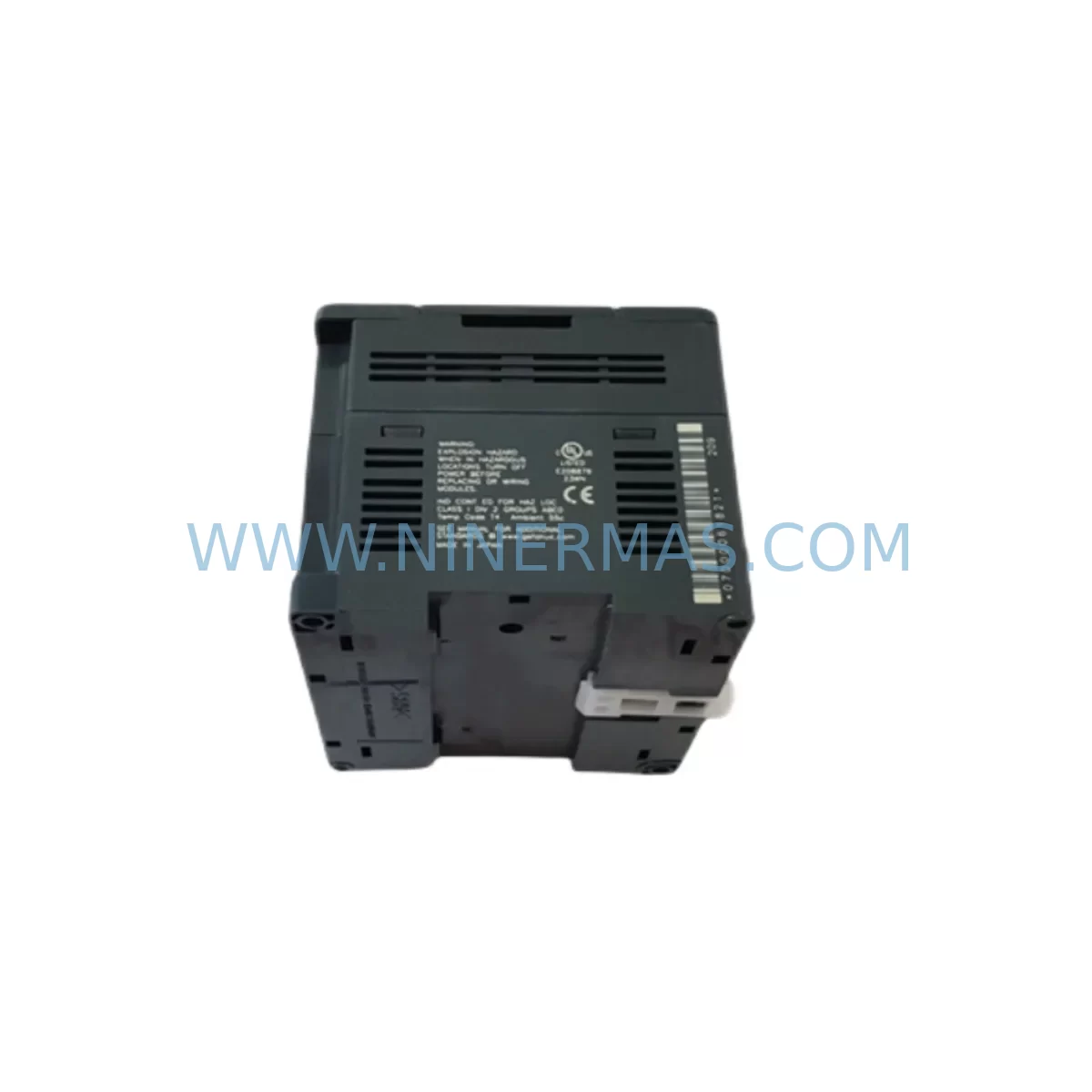

GE IC200UDD104-BG Safety I/O Module VersaMax Micro

GE IC200UDD104-BG Safety I/O Module VersaMax Micro: Safety Control for Critical Industrial Sites

The GE IC200UDD104-BG is a high-reliability discrete I/O module designed for the GE Fanuc VersaMax Micro PLC series, engineered to deliver uninterrupted control performance in the most demanding industrial environments. Whether deployed in petrochemical processing, power generation, water treatment, metallurgical plants, or continuous discrete manufacturing lines, this module provides the signal integrity, electrical isolation, and environmental resilience required to protect critical control loops and prevent unplanned downtime.

At NINERMAS, every IC200UDD104-BG unit undergoes rigorous pre-shipment functional testing, verifying I/O channel response, power rail stability, and communication handshake with the VersaMax Micro CPU before dispatch. This ensures that replacement and upgrade deployments proceed without commissioning delays or field failures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving continuous production lines, a single I/O module failure can cascade into full process shutdown, safety interlock activation, or uncontrolled equipment rundown. The IC200UDD104-BG is engineered to minimize these risks through optical isolation, transient suppression, and robust signal conditioning that maintains channel integrity even under heavy inductive load switching.

When integrated into a VersaMax Micro control architecture, this module works in close coordination with the GE IC200UDR002 or IC200UDR020 CPU module, which handles ladder logic execution and scan cycle management. Power stability for the entire rack is typically provided by a GE IC200PWR002 24 VDC power supply module, which must maintain tight voltage regulation to prevent I/O signal drift or false triggering on the IC200UDD104-BG’s input channels.

For applications requiring analog process variable monitoring alongside discrete control — such as pressure interlocks combined with valve position feedback — the GE IC200ALG260 analog input module is commonly deployed in the same expansion rack. In high-EMI environments such as variable frequency drive (VFD) panels or arc furnace control rooms, shielded field wiring and proper grounding of the VersaMax Micro chassis are essential to prevent common-mode noise from corrupting the IC200UDD104-BG’s 24 VDC input signals.

Communication integrity between the VersaMax Micro system and upstream SCADA or DCS platforms is often maintained through a GE IC200SET001 Ethernet interface module or a GE IC200PBI001 PROFIBUS DP adapter, ensuring that I/O status data from the IC200UDD104-BG is transmitted reliably to the control room without packet loss or latency spikes. In safety-critical interlock loops, a dedicated GE IC200MDL650 relay output module may be used in parallel for hardwired emergency stop circuits, providing a redundant de-energize path independent of the PLC scan cycle.

Surge protection at the field terminal level — using DIN-rail mounted surge arrestors rated for 24 VDC signal lines — further reduces the risk of transient-induced channel damage to the IC200UDD104-BG, particularly in outdoor substations, pump stations, or motor control centers exposed to lightning or capacitor bank switching events. Pairing this module with a GE IC200CHS022 expansion chassis allows system integrators to scale I/O capacity without compromising the electrical isolation architecture of the base VersaMax Micro platform.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The IC200UDD104-BG is deployed in emergency shutdown (ESD) pre-logic circuits, monitoring valve position feedback, pump run/stop status, and pressure switch inputs. Its optical isolation prevents ground loop interference from high-voltage motor starters from corrupting safety interlock signals.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric facilities, this module handles turbine auxiliary control I/O — including lube oil pump status, cooling fan control, and generator breaker position monitoring — where signal reliability directly impacts unit availability and grid stability.

Mining & Mineral Processing: Deployed in conveyor belt control systems, crusher interlock panels, and ventilation fan control circuits in underground and open-pit mining operations. The module’s wide operating temperature range and vibration resistance make it suitable for harsh pit environments where standard I/O modules fail prematurely.

Water & Wastewater Treatment: Used in pump station automation, chlorination dosing control, and SCADA-connected remote I/O panels. The IC200UDD104-BG’s compact form factor and 24 VDC compatibility align with standard water utility control panel designs, simplifying spare parts management across multiple pump stations.

Metallurgy & Steel Manufacturing: In rolling mill auxiliary control, ladle transfer car positioning, and continuous casting machine I/O panels, this module provides the fast scan response and output current capacity needed to drive solenoid valves and pilot relays in high-cycle-rate applications.

Port & Marine Terminal Automation: Crane PLC control systems, ship-to-shore loader interlocks, and conveyor sequencing panels in port environments benefit from the IC200UDD104-BG’s resistance to salt-air humidity and vibration, reducing maintenance intervals and unplanned crane downtime.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the IC200UDD104-BG?
All IC200UDD104-BG units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and priority replacement dispatch to minimize control system downtime.

Q2: How is the IC200UDD104-BG tested before shipment?
Every unit undergoes a full pre-shipment functional test including I/O channel activation verification, power rail voltage measurement, and communication handshake confirmation with a compatible VersaMax Micro CPU. Only units passing all test criteria are released for shipment, ensuring zero-defect delivery to critical control sites.

Q3: Is the IC200UDD104-BG compatible with all VersaMax Micro CPU variants?
The IC200UDD104-BG is designed for use with the GE Fanuc VersaMax Micro PLC family, including CPU models such as IC200UDR002, IC200UDR005, IC200UDR020, and IC200UDR040. Compatibility with specific firmware revisions or expansion chassis configurations should be confirmed against the GE VersaMax Micro hardware reference manual. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: Can NINERMAS support long-term or bulk supply of the IC200UDD104-BG for lifecycle extension programs?
Yes. NINERMAS operates a long-term spare parts supply program specifically designed for industrial facilities managing GE Fanuc VersaMax Micro systems beyond their original production lifecycle. Bulk stock commitments, scheduled delivery programs, and multi-year supply agreements are available to ensure uninterrupted spare parts availability for critical control infrastructure.
