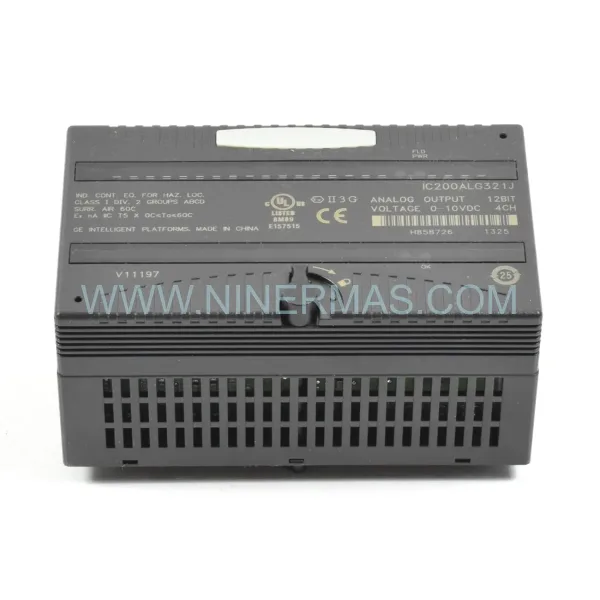

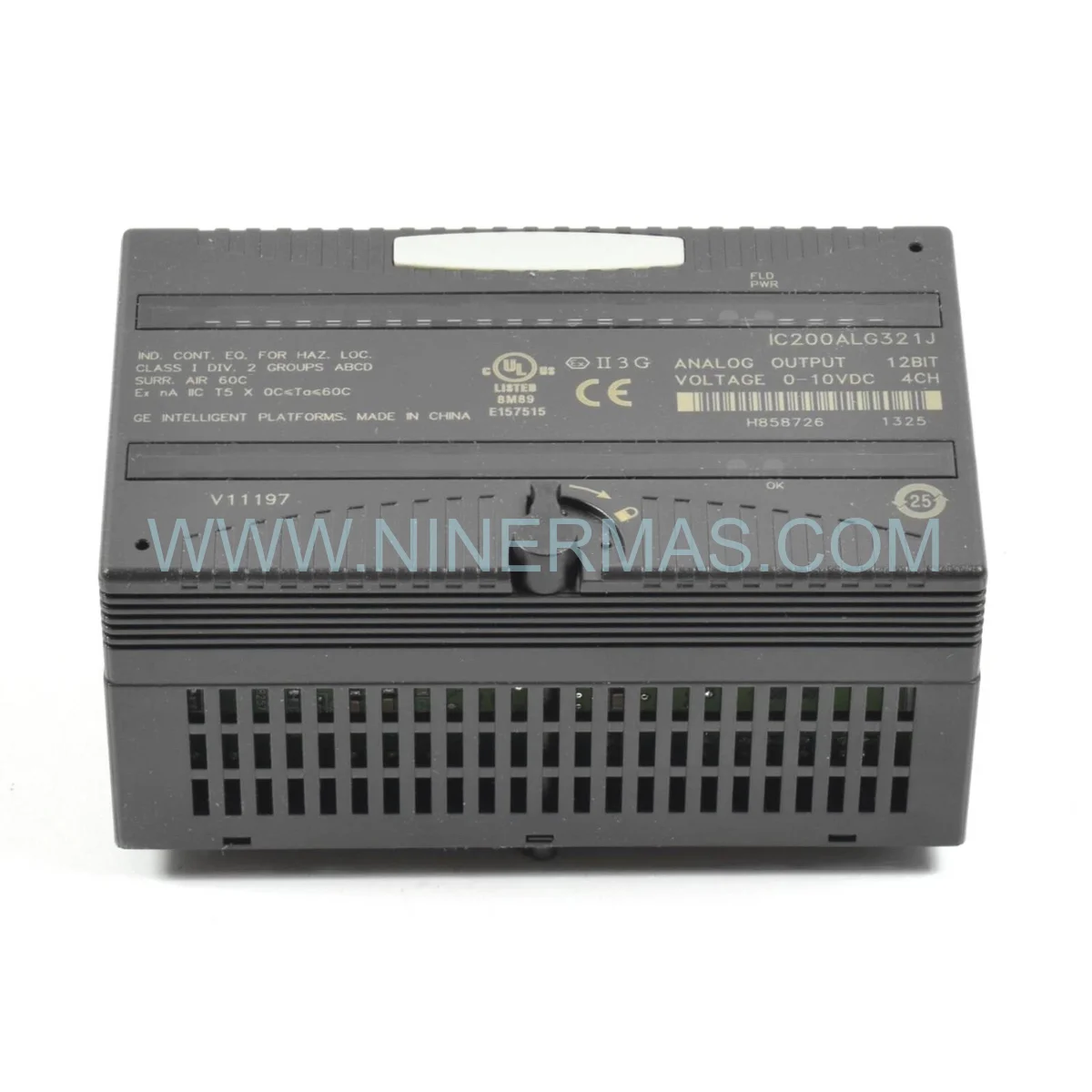

GE IC200ALG321J | VersaMax 4-Ch Analog Voltage Output Module

GE IC200ALG321J — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the GE IC200ALG321J occupies a foundational role in preserving the operational integrity of distributed control architectures. As a factory-certified analog voltage output module within the VersaMax I/O platform, the IC200ALG321J ensures deterministic signal delivery across four independent channels, each configurable for 0-10V DC or ±10V DC output — a critical requirement in safety-sensitive process environments where signal deviation directly impacts system compliance and personnel protection.

Within the framework of Industry 4.0 and long-cycle asset management, the GE IC200ALG321J demonstrates sustained compatibility with legacy VersaMax backplane architectures while supporting integration into modernized supervisory control layers. Its 12-bit resolution (1 in 4096) and ±0.5% full-scale accuracy at 25°C establish a performance baseline that satisfies the stringent demands of ISO 9001-aligned quality systems and IEC 61131-compliant PLC environments. Asset managers operating across multi-decade infrastructure lifecycles recognize this module as a low-risk, high-continuity component selection.

As a certified original equipment component, the IC200ALG321J undergoes rigorous factory-level quality validation prior to release. Its UL, CE, and CSA certifications confirm adherence to international electrical safety standards, making it a defensible choice for regulated industries where component traceability and original documentation are mandatory audit requirements.

Compliance & Safety Benchmarks

✅ Multi-Standard Certification: UL, CE, and CSA listings confirm conformance with North American and European electrical safety directives, supporting cross-border deployment in globally distributed facilities.

✅ Electrical Isolation Architecture: 500V channel-to-backplane isolation eliminates ground loop interference and protects control system integrity from field-side transient events — a non-negotiable requirement in high-voltage industrial environments.

Thermal Durability & Environmental Resilience: Rated for continuous operation from 0°C to 60°C (32°F to 140°F), the IC200ALG321J maintains specification compliance across ambient temperature variations typical of industrial plant floors and outdoor enclosures.

✅ Hot-Swap Capability for Zero-Downtime Maintenance: Module replacement without system power-down supports maintenance compliance protocols that prohibit unplanned production interruptions in critical process environments.

Removable Terminal Block Design: Field-wiring terminal blocks are removable without disturbing signal wiring, reducing installation error risk and supporting IEC 60364-compliant wiring practices.

✅ Original Documentation Traceability: Each unit ships with factory-issued documentation supporting component lifecycle records, audit trails, and regulatory compliance submissions.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: Precision analog output control is essential in semiconductor fabrication for managing gas flow regulators, temperature controllers, and electrostatic chuck power supplies. The IC200ALG321J’s 12-bit resolution and low drift characteristics support the sub-percent process tolerances required in cleanroom automation, where signal instability translates directly to yield loss and compliance failures.

Pharmaceutical & Bioprocess Engineering: FDA 21 CFR Part 11 and GMP-regulated environments demand verifiable, traceable control components. The IC200ALG321J’s certified original status and documented calibration traceability make it a compliant selection for bioreactor control, sterile filling lines, and HVAC validation systems where component substitution requires formal change control procedures.

Chemical Processing & Petrochemical Refining: In hazardous area process control, analog output modules must deliver consistent performance under thermal cycling, vibration, and electromagnetic interference. The IC200ALG321J’s isolated output architecture and robust VersaMax carrier mounting system provide the mechanical and electrical stability required for proportional valve control, flow regulation, and pressure management in ATEX-adjacent control panel installations.

Food & Beverage Automation: Hygienic process control for pasteurization, CIP systems, and filling lines requires analog outputs with repeatable accuracy across production shifts. The IC200ALG321J supports temperature setpoint transmission to SCR controllers and speed reference generation for sanitary pump drives, contributing to HACCP-compliant process consistency.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on analog output modules for dosing pump control, aeration blower speed regulation, and valve positioning. The IC200ALG321J’s dual voltage range flexibility accommodates the diverse field device specifications encountered in legacy treatment plant upgrades.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every GE IC200ALG321J unit is supplied in original factory packaging with intact tamper-evident seals, ensuring component authenticity and protecting against electrostatic discharge damage during transit. Original documentation — including factory test records and certification declarations — accompanies each shipment to support incoming inspection and asset registration procedures.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to industrial facilities across Asia-Pacific, Europe, the Middle East, and the Americas. Priority dispatch protocols are available for critical maintenance scenarios where extended downtime carries significant operational or contractual risk. All shipments are tracked end-to-end with commercial invoice documentation suitable for customs clearance in regulated import environments.

12-Month Quality Guarantee for Legacy Systems: The IC200ALG321J is backed by a comprehensive 12-month quality guarantee covering manufacturing defects, workmanship failures, and performance non-conformance against published specifications. This extended coverage period is specifically structured to support legacy system operators who require long-term component reliability assurance without the cost burden of full system modernization. Technical support is available for configuration guidance, compatibility verification, and integration troubleshooting throughout the warranty period.

Expert Technical FAQ

Q: Does the IC200ALG321J comply with IEC 61131-2 standards for programmable controller I/O modules?
A: Yes. The IC200ALG321J is designed and tested in conformance with IEC 61131-2 requirements for analog output modules used in industrial programmable controller systems. This compliance ensures interoperability within IEC 61131-3 programming environments and supports system-level certification submissions for regulated installations.

Q: What firmware or configuration tool version is required for full IC200ALG321J functionality?
A: The IC200ALG321J is configured through GE’s VersaMax configuration software (Machine Edition Logic Developer or equivalent). Channel range selection (0-10V or ±10V) is performed at the software configuration level. No firmware updates are required for standard operation; however, users should verify configuration tool compatibility with their specific CPU firmware revision prior to deployment in validated systems.

Q: How does the 500V isolation rating of the IC200ALG321J protect system integrity in electrically noisy environments?
A: The 500V channel-to-backplane isolation barrier prevents common-mode voltage transients and ground potential differences from propagating from field wiring into the control backplane. This isolation architecture is essential in environments with variable-frequency drives, high-current switching equipment, or long cable runs where induced noise can compromise signal accuracy and, in extreme cases, damage non-isolated I/O modules.

Q: Can the IC200ALG321J be installed in applications requiring SIL (Safety Integrity Level) certification?
A: The IC200ALG321J is a standard-grade analog output module and is not independently SIL-rated. For SIL 1 or SIL 2 applications, a formal functional safety assessment (per IEC 61508 or IEC 61511) must be conducted at the system level, incorporating the module’s published failure rate data and diagnostic coverage characteristics. Consult your functional safety engineer for application-specific guidance.

Q: What environmental storage conditions are required to maintain IC200ALG321J compliance and warranty validity?
A: Modules should be stored in original factory packaging within a temperature range of -40°C to 85°C and relative humidity not exceeding 95% non-condensing. Exposure to corrosive atmospheres, conductive contaminants, or electrostatic discharge without proper ESD protection may void warranty coverage and compromise long-term reliability. Storage in climate-controlled, ESD-safe environments is strongly recommended for spare parts inventory management.

Q: How is calibration traceability maintained for the IC200ALG321J in ISO 9001-certified facilities?
A: Factory calibration of the IC200ALG321J is performed against NIST-traceable reference standards, with calibration records maintained as part of the manufacturing quality record. For ISO 9001-certified end users, the module’s factory calibration certificate serves as the baseline calibration record. Periodic field verification against a calibrated reference source is recommended at intervals defined by the facility’s quality management system, typically annually or following any maintenance event that may affect signal path integrity.
