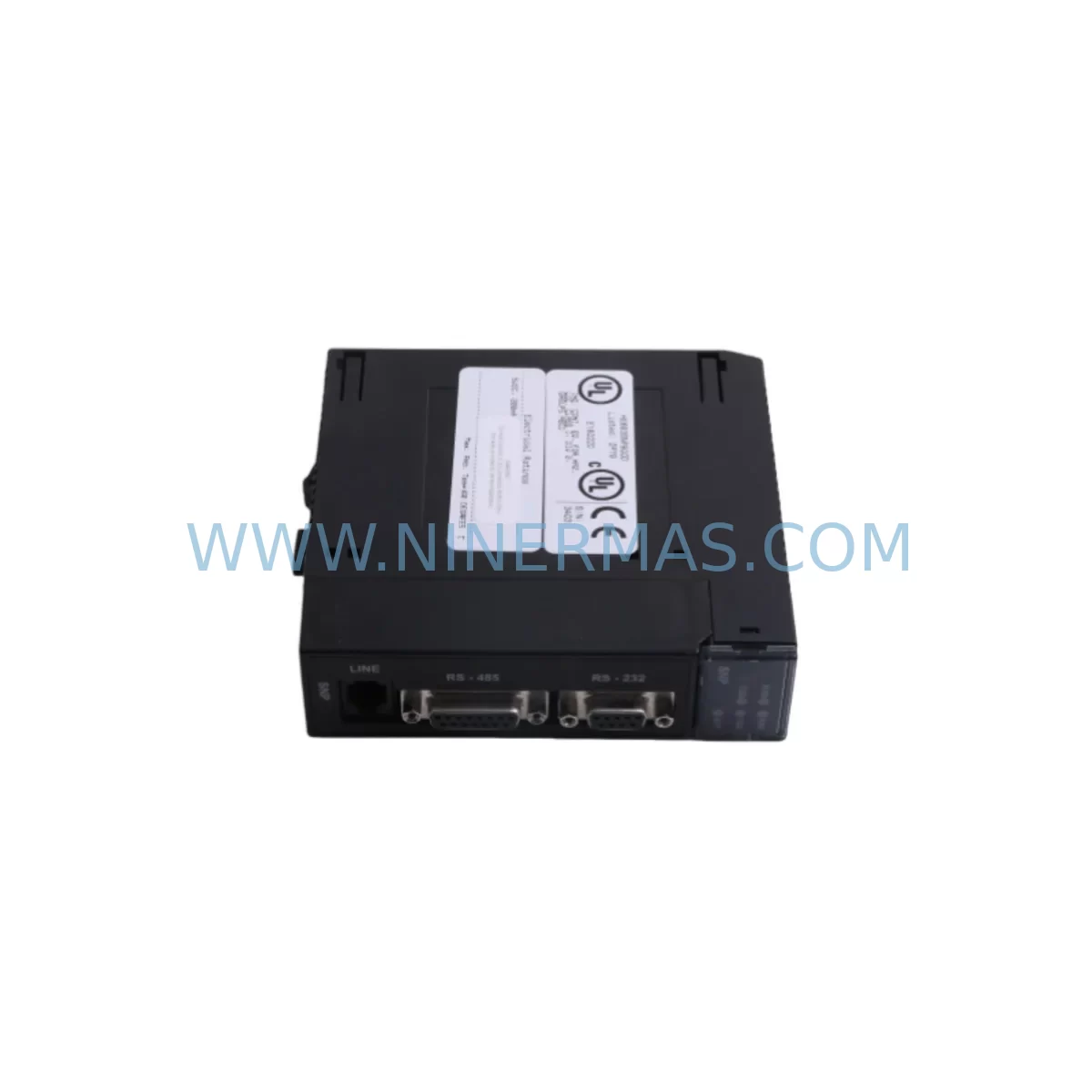

The GE HE693SNP900 is a Series 90-30 SNP (Series Ninety Protocol) Serial Communications Module engineered for mission-critical industrial control environments where communication integrity directly impacts process safety. Designed for GE Fanuc Series 90-30 PLC racks, this module provides deterministic, noise-immune serial data exchange between the PLC CPU and host supervisory systems, SCADA platforms, HMI panels, and remote programming devices. In facilities where a single communication dropout can trigger unplanned shutdowns, cascade faults, or safety interlock failures, the HE693SNP900 delivers the stable, low-latency serial link that keeps control loops closed and production running.

Industrial environments are inherently hostile to electronics. High electromagnetic interference from variable frequency drives, arc welders, and large motor starters; airborne conductive dust in cement plants and grain handling facilities; condensation and humidity in coastal or outdoor installations; and mechanical vibration from compressors and conveyors all conspire to corrupt serial data streams and destabilize PLC communications. The HE693SNP900 is built to withstand these conditions, maintaining reliable SNP protocol communication even when the surrounding electrical environment is far from ideal. Its ruggedized design and conformal-coated PCB construction provide a meaningful layer of protection against the environmental stressors that cause premature failure in standard commercial-grade modules.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Reliable PLC communication is never the result of a single module working in isolation — it is the outcome of a carefully integrated control cabinet architecture where every component contributes to system stability. The HE693SNP900 performs at its best when paired with a properly specified power supply such as the IC693PWR330, GE’s 120/240 VAC input power supply for the Series 90-30 rack. Voltage sags, transients, and brownouts are among the leading causes of communication module resets and data corruption; a stable, regulated backplane voltage from the IC693PWR330 eliminates this risk category entirely.

At the CPU level, the IC693CPU374 — a high-performance Series 90-30 CPU with embedded Ethernet and serial ports — works in concert with the HE693SNP900 to provide redundant communication pathways. In architectures where the embedded CPU port handles Ethernet SRTP traffic to the SCADA layer, the HE693SNP900 can be dedicated to SNP programming access or to a secondary HMI panel, ensuring that a failure on one communication path does not blind the operator to process status.

For facilities requiring expanded I/O capacity, the IC693BEM331 Bus Expansion Module allows the Series 90-30 system to span multiple racks while maintaining a single coherent backplane. Communication integrity across the bus expansion link is critical; any noise-induced data error on the expansion bus can cause the CPU to fault the entire I/O tree. Pairing the BEM331 with shielded expansion cables and proper cabinet grounding — alongside the HE693SNP900 for host communications — creates a layered defense against communication-induced process trips.

Discrete I/O modules such as the IC693MDL740 (24 VDC discrete input) and IC693MDL646 (relay output module) form the field interface layer of the control cabinet. When these modules report field device status to the CPU via the backplane, and the CPU relays that status to the SCADA host via the HE693SNP900, the entire chain must be free of latency spikes and data dropouts. A communication fault at the HE693SNP900 level can cause the SCADA system to display stale or incorrect field status, leading operators to make incorrect control decisions — a scenario with serious safety implications in interlock-critical applications.

Analog process variables — temperatures, pressures, flow rates, and levels — are handled by modules like the IC693ALG220 analog input module. Signal drift and noise on analog channels are common in high-EMI environments. When analog values are transmitted to the host SCADA via the HE693SNP900 SNP link, any communication instability introduces additional uncertainty into already noise-susceptible measurements. Maintaining a clean, stable SNP communication channel is therefore directly linked to the accuracy and reliability of analog process monitoring.

For applications requiring motion coordination or high-speed pulse counting, the IC693APU305 Analog Processor Unit integrates into the Series 90-30 rack and communicates via the backplane. Its data must reach the host system reliably through the HE693SNP900 link. Similarly, the IC693CMM321 Communications Coprocessor Module can be deployed alongside the HE693SNP900 to handle additional communication protocols — Modbus RTU, for example — while the HE693SNP900 maintains the primary SNP host link, providing protocol diversity without sacrificing communication reliability on either channel.

Finally, proper chassis selection — whether the IC693CHS391 5-slot or IC693CHS397 10-slot rack — determines the physical foundation of the entire control system. A well-grounded, properly ventilated rack with correctly seated modules and secure backplane connectors is the first line of defense against the vibration-induced contact failures and ground loops that degrade serial communication quality over time.

Critical Industrial Safety Applications

The GE HE693SNP900 has established a proven track record across the most demanding industrial sectors where communication reliability is inseparable from operational safety.

In petrochemical and refinery operations, Series 90-30 PLC systems equipped with the HE693SNP900 manage burner management sequences, emergency shutdown (ESD) pre-alarm communications, and compressor control interlocks. The SNP link to the DCS or SCADA layer must remain stable during process upsets — precisely the moments when communication is most critical and electrical noise is at its worst.

In electric power generation and substation automation, the HE693SNP900 provides the serial communication backbone between Series 90-30 PLCs and energy management systems. Transformer protection relay status, breaker position feedback, and load-shedding command acknowledgment all transit this link. A communication dropout during a grid disturbance event can delay protective action by seconds — an eternity in power system terms.

In mining and mineral processing, conveyor control systems, crusher interlocks, and ventilation fan management rely on Series 90-30 PLCs communicating via SNP to surface control rooms. The HE693SNP900’s resistance to the extreme dust loading, vibration, and electrical noise characteristic of underground and open-pit mining environments makes it the preferred communications module for these applications.

In water and wastewater treatment, pump station PLCs use the HE693SNP900 to report flow rates, tank levels, and alarm conditions to central SCADA systems. Continuous, uninterrupted communication is essential for regulatory compliance and for preventing overflow events that carry environmental and public health consequences.

In metallurgical and steel mill applications, the extreme thermal and electromagnetic environment — arc furnaces, induction heaters, and high-current bus bars — creates one of the most challenging communication environments in industry. The HE693SNP900’s robust design allows it to maintain reliable SNP communication even in close proximity to these powerful interference sources.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the HE693SNP900?
All HE693SNP900 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Units are pre-shipment tested to verify SNP communication functionality, backplane interface integrity, and port operation before dispatch.

Q2: How is the HE693SNP900 tested before shipment?
Each unit undergoes a structured pre-shipment functional test protocol that includes backplane power-up verification, SNP port communication handshake testing, and visual inspection for physical damage, corroded contacts, or component anomalies. Test results are logged and traceable to the specific unit shipped. This process ensures that every HE693SNP900 leaving our facility is confirmed operational — not merely assumed to be so based on visual inspection alone.

Q3: Is the HE693SNP900 compatible with all Series 90-30 CPU modules?
The HE693SNP900 is compatible with the full range of GE Series 90-30 CPU modules, including the IC693CPU374, IC693CPU372, IC693CPU360, and IC693CPU350, as well as earlier CPU variants. It occupies a standard Series 90-30 I/O slot and communicates via the backplane SNP interface. Compatibility with specific firmware revisions should be verified against the GE Series 90-30 Hardware Reference Manual for the target CPU version.

Q4: Can NINERMAS support long-term supply of the HE693SNP900 for ongoing maintenance programs?
Yes. NINERMAS maintains reserved inventory agreements and proactive procurement strategies specifically for end-of-life and legacy GE Series 90-30 components. We understand that industrial facilities cannot simply upgrade their PLC infrastructure on short notice — maintenance engineers need reliable access to spare parts for the life of the installed system. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments for your facility’s ongoing spare parts program.
