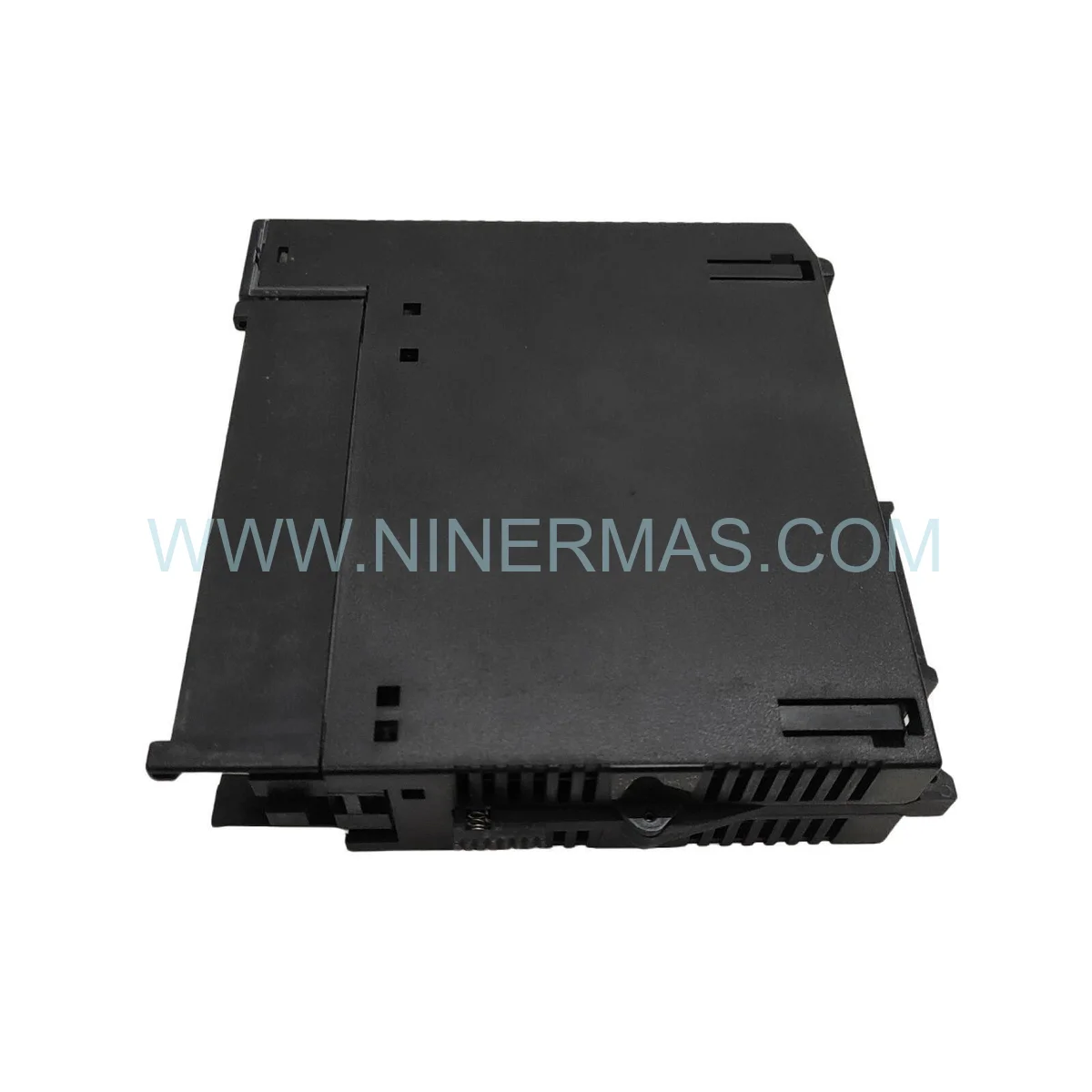

GE Fanuc IC693ALG220G Analog Input Module (Series 90-30) – New & Original

GE Fanuc IC693ALG220G | Reliable Automation Component for Series 90-30 PLC

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the IC693ALG220G stands as a cornerstone I/O module for sustaining system availability in mission-critical automation architectures. Engineered for the GE Fanuc Series 90-30 platform, this 4-channel analog voltage input module delivers 12-bit resolution signal acquisition that directly supports process optimization across chemical, energy, and discrete manufacturing environments. Its deterministic 20 ms per-channel update cycle ensures that control loops receive timely, accurate data — a non-negotiable requirement when operational excellence depends on millisecond-level responsiveness.

Deployed across harsh industrial environments, the IC693ALG220G demonstrates exceptional durability with a 500 V channel-to-backplane isolation barrier that shields sensitive measurement circuits from ground loops and transient surges common on plant floors. Installation teams should note that the module must be seated into a Series 90-30 baseplate with power removed; hot-insertion is not supported. Shielded twisted-pair wiring up to 91 meters (300 ft) is recommended to maintain signal integrity in high-EMI zones such as motor control centers and variable-frequency drive enclosures.

For maintenance planners and procurement engineers, stocking the IC693ALG220G as a critical spare is a proven strategy to minimize mean time to repair (MTTR). As a legacy yet widely deployed automation component, sourcing original factory-sealed units from a verified global distributor eliminates the risk of counterfeit parts entering the control system — a risk that can cascade into unplanned downtime and safety incidents.

Key Operational Features

4 Differential Voltage Input Channels — Simultaneous acquisition eliminates multiplexing delays in multi-loop control schemes
12-Bit Resolution (4096 Counts) — Fine-grained measurement accuracy of ±0.1% full scale supports tight process optimization tolerances
500 V Channel-to-Backplane Isolation — Robust galvanic separation ensures high availability even in electrically noisy environments
Seamless Integration with Series 90-30 Ecosystem — Drop-in compatibility with existing baseplates and Logicmaster/Proficy ME programming environments
Configurable 0-10 VDC Input Range — Adapts to pressure transducers, level sensors, and position feedback devices without external signal conditioning
Compact Single-Slot Form Factor — Maximizes rack density in space-constrained control panels while preserving system integration flexibility

Maintenance & Performance Benchmarks

The IC693ALG220G is engineered to operate continuously within industrial network architectures ranging from small standalone Series 90-30 racks to large distributed control systems spanning multiple remote I/O drops. Its 20 ms per-channel scan rate aligns with the typical PLC sweep times of Series 90-30 CPUs (IC693CPU364, IC693CPU374), ensuring no bottleneck is introduced at the analog acquisition layer.

In multi-rack configurations, the module communicates transparently over the Series 90-30 backplane bus, requiring no additional configuration beyond standard I/O table mapping in the programming software. For facilities undergoing digital transformation, the module’s data can be surfaced to SCADA and historian platforms via the CPU’s Ethernet or serial communications ports, enabling real-time performance benchmarking without hardware modification.

Preventive maintenance intervals for this module class are typically aligned with annual control system audits. Key checks include terminal block torque verification, wiring insulation resistance testing, and calibration drift assessment using a precision voltage source. Modules exhibiting drift beyond ±0.5% of full scale should be scheduled for replacement to maintain process optimization targets.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every IC693ALG220G unit shipped by our team is sourced directly from authorized distribution channels and arrives in original factory packaging with full traceability documentation. For urgent plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for in-stock units — contact our team before 14:00 (GMT+8) to qualify.

As a globally recognized automation component, the IC693ALG220G is classified as an end-of-life (EOL) / legacy module by GE Fanuc. Our global supply network maintains dedicated buffer stock to support facilities that cannot migrate to newer platforms due to validation, certification, or capital expenditure constraints. We serve clients across North America, Europe, Southeast Asia, and the Middle East with express logistics options including DHL Express, FedEx International Priority, and UPS Worldwide Expedited.

All units undergo pre-shipment inspection including visual examination, packaging integrity verification, and label authenticity checks. Counterfeit-free sourcing is our baseline commitment — not an upsell.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the IC693ALG220G?
A: Power down the Series 90-30 baseplate completely before insertion. Align the module with the slot guides and press firmly until the connector seats. Secure the retaining latch. After power-up, verify the module status LED (green = healthy). Map the 4 analog input channels in your I/O configuration table within Logicmaster 90 or Proficy Machine Edition before downloading the program.

Q2: Which firmware versions and CPU models are compatible with this module?
A: The IC693ALG220G is compatible with all Series 90-30 CPUs including IC693CPU311, IC693CPU313, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, and IC693CPU374. No firmware-specific restrictions apply to this analog input module — compatibility is governed by the Series 90-30 hardware platform, not CPU firmware revision.

Q3: Can the IC693ALG220G accept 4-20 mA current signals?
A: No. This module is designed exclusively for voltage inputs (0-10 VDC). For 4-20 mA current signal acquisition on the Series 90-30 platform, a dedicated current input module is required. Contact our engineering team for the correct part number recommendation based on your channel count requirements.

Q4: How is the warranty claim process handled?
A: Our 1-year warranty covers manufacturing defects and performance deviations from published specifications. To initiate a claim, contact sale@ninermas.com with your order number, a description of the fault symptom, and photographic evidence of the module and packaging. Our technical team will respond within 24 business hours with an RMA authorization and return shipping instructions.

Q5: Is calibration required after installation?
A: The IC693ALG220G is factory-calibrated and does not require field calibration upon initial installation. However, for applications demanding measurement traceability (e.g., pharmaceutical, custody transfer), periodic calibration verification against a NIST-traceable voltage reference is recommended annually or per your site’s instrumentation maintenance schedule.

Q6: What are the lead times for non-stock or bulk orders?
A: Standard in-stock orders ship within 1-3 business days. For bulk procurement (5+ units) or non-stock sourcing, lead times range from 5-15 business days depending on global supply chain availability. Contact our team early to lock in pricing and reserve inventory for planned maintenance outages or capital projects.
