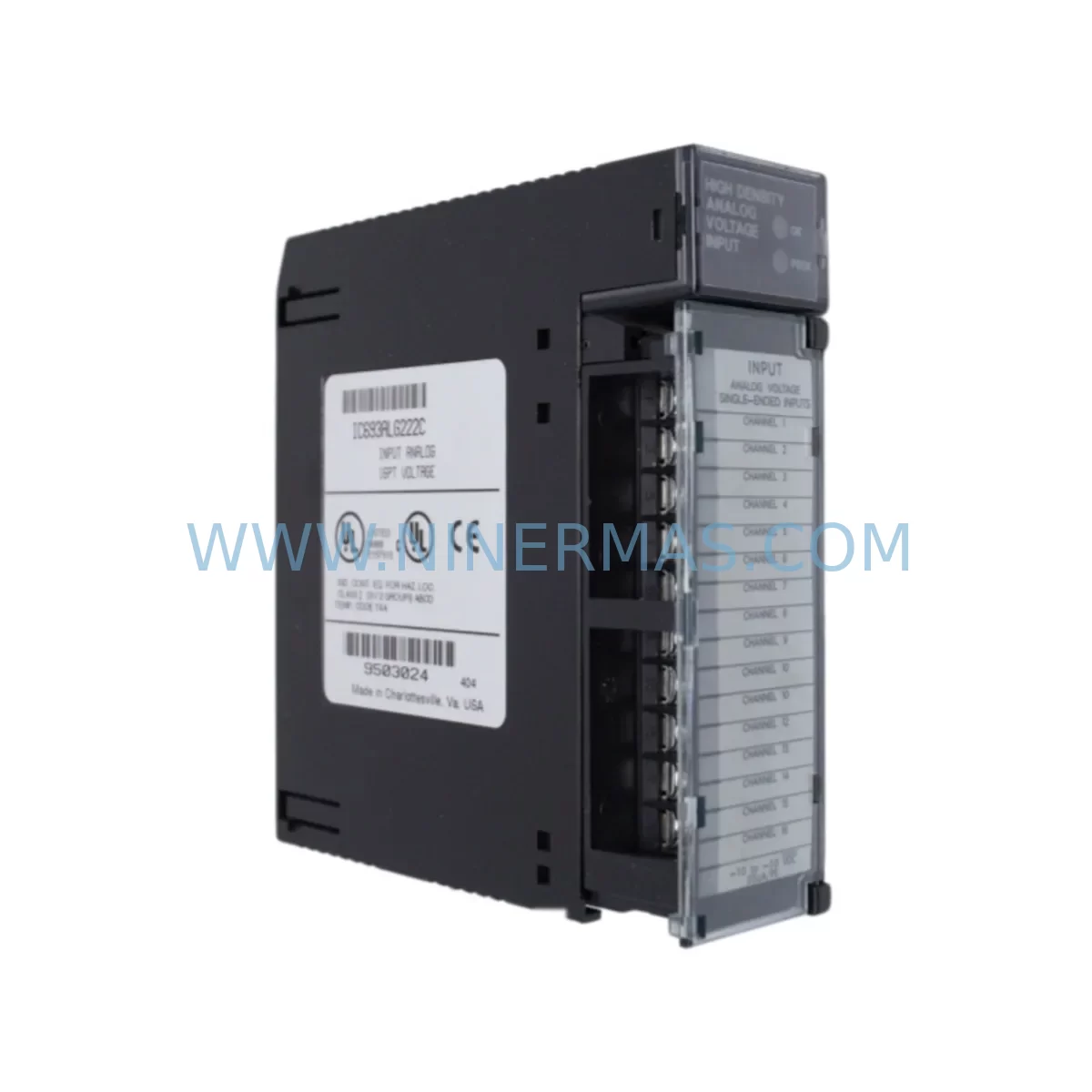

GE IC693ALG222C Retrofit-Compatible Analog Input Module

GE IC693ALG222C Retrofit-Compatible Analog Input Module: Legacy System Compatibility & Smooth Upgrade

The GE IC693ALG222C is a high-density analog input module designed for the GE Series 90-30 PLC platform. As legacy automation systems age and original spare parts become increasingly difficult to source, the IC693ALG222C has become a critical component in retrofit projects, discontinued model replacements, and control cabinet upgrades across process manufacturing, utilities, oil & gas, and discrete automation industries. NINERMAS maintains verified in-stock inventory of the IC693ALG222C to support urgent replacement needs, planned system migrations, and long-term spare parts lifecycle management.

Whether you are replacing a failed module on an aging production line, upgrading a control cabinet to extend its operational life, or migrating from an obsolete I/O architecture to a more maintainable platform, the IC693ALG222C provides a direct, rack-compatible solution within the Series 90-30 ecosystem. Its compatibility with the IC693CHS391 and IC693CHS392 baseplate racks, combined with support for standard 4–20 mA and 0–10 V analog signal ranges, makes it a preferred choice for engineers managing brownfield retrofit projects where minimizing downtime and preserving existing wiring infrastructure are top priorities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IC693ALG222C into an existing Series 90-30 control system requires careful pre-installation planning. Before removing the failed or obsolete module, engineers should document the current I/O table configuration, channel scaling parameters, and alarm setpoints stored in the CPU — typically an IC693CPU364 or IC693CPU374 — to ensure that the replacement module is configured identically and that no process variable references are lost during the swap.

Terminal wiring compatibility is a key consideration. The IC693ALG222C uses a standard 20-pin terminal block connector. If the existing field wiring was terminated on an earlier revision such as the IC693ALG222A or IC693ALG222B, the terminal block pinout is preserved across revisions, allowing direct reconnection without rewiring. However, engineers should verify signal polarity, shielding continuity, and ground loop isolation — particularly in environments with high electromagnetic interference — before restoring power to the analog input circuits.

Backplane slot assignment must be confirmed against the existing rack layout. In systems using the IC693CHS391 five-slot rack or the IC693CHS392 ten-slot rack, the IC693ALG222C can be installed in any available I/O slot. The module address is determined by its physical slot position and must match the address configured in the CPU’s I/O table. If the system also includes an IC693MDL655 discrete output module, IC693MDL645 discrete input module, or IC693ALG390 analog output module sharing the same rack, slot addressing conflicts must be resolved before commissioning.

For systems that include an IC693CMM321 Ethernet communications module or an IC693CMM311 serial communications module, no changes to the communication configuration are required when replacing an analog input module. The IC693ALG222C communicates exclusively over the Series 90-30 backplane bus and does not affect the network topology or protocol settings. However, if the retrofit project also involves migrating from SNP/SRTP to Ethernet-based SRTP communications, the IC693CMM321 configuration should be updated in Proficy Machine Edition before the system is returned to service.

In control cabinet upgrade projects where the Series 90-30 rack is being relocated or the power supply is being replaced, engineers should verify that the IC693PWR321 or IC693PWR330 power supply module provides sufficient current capacity for the updated I/O configuration. The IC693ALG222C draws approximately 250 mA from the 5 V backplane bus. Adding multiple analog modules to a rack can approach the power supply’s rated output, and a power budget calculation should be completed before finalizing the retrofit bill of materials.

HMI screen updates may also be required if the retrofit project involves replacing a failed module that was mapped to specific tag names or data register addresses in a Cimplicity or iFIX SCADA system. Tag database exports should be backed up before any hardware changes are made, and analog input scaling values should be verified against the new module’s channel configuration after commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy system retrofit involving the IC693ALG222C. NINERMAS recommends a structured hot-swap preparation process: before the maintenance window begins, the replacement module should be bench-tested using a portable Series 90-30 rack and a known-good CPU to verify that the module powers up correctly, responds to I/O forcing commands, and reports no hardware fault codes.

During the actual replacement, the CPU should be placed in STOP mode before the module is removed from the rack. This prevents the CPU from generating I/O fault alarms that could trigger downstream safety interlocks or process shutdowns. After the IC693ALG222C is installed and the terminal block is reconnected, the CPU should be returned to RUN mode with the I/O table fault enable bits cleared, and each analog input channel should be verified against a known process signal source before the system is handed back to operations.

For systems where continuous process control is required and a cold swap is not acceptable, a parallel installation strategy can be used: a second Series 90-30 rack containing the IC693ALG222C and a standby IC693CPU364 can be pre-configured and tested offline, then switched into service during a brief controlled transfer. This approach preserves the original program logic, retains all PID tuning parameters, and reduces the active maintenance window to the time required for a single rack changeover — typically under 30 minutes for an experienced controls engineer.

All retrofit projects supported by NINERMAS include pre-shipment functional testing of the IC693ALG222C against a live Series 90-30 backplane. Each module is verified for correct channel response across the full 4–20 mA and 0–10 V input ranges before dispatch, and a test report is available upon request. Modules are shipped with ESD-protective packaging and are covered by a 12-month warranty from the date of delivery.

Retrofit Support FAQ

Q1: Is the IC693ALG222C a direct replacement for the IC693ALG222B?
Yes. The IC693ALG222C is the current production revision of the IC693ALG222 series and is fully backward compatible with the IC693ALG222B and IC693ALG222A. The terminal block pinout, backplane connector, slot addressing, and channel configuration parameters are identical across all revisions. No program changes are required when substituting the C revision for an earlier revision in an existing Series 90-30 system.

Q2: What commissioning steps are required after installing the IC693ALG222C?
After physical installation, connect to the CPU using Proficy Machine Edition or Logicmaster 90-30 and verify that the module appears in the I/O configuration table at the correct slot address. Confirm that each channel’s input type (current or voltage), scaling range, and alarm limits match the original configuration. Apply a known reference signal to each active channel and verify that the CPU registers the correct engineering unit value before returning the system to automatic control.

Q3: Does NINERMAS provide wiring diagrams or terminal block pinout documentation for the IC693ALG222C?
Yes. NINERMAS can provide the GE Series 90-30 Analog Input Module installation manual, including terminal block pinout diagrams, signal wiring guidelines, and shield grounding recommendations, upon request. Contact sale@ninermas.com with your project details and a documentation package will be provided with your order.

Q4: What is the warranty coverage and what does NINERMAS’s in-stock supply guarantee?
All IC693ALG222C modules supplied by NINERMAS are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failure under normal operating conditions. NINERMAS maintains verified in-stock inventory and can confirm availability and lead time before order placement. For urgent retrofit requirements, expedited dispatch is available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock levels and shipping options.
