GE Fanuc IC660BRD024C1 Retrofit-Compatible Bus Interface Module

GE Fanuc IC660BRD024C1 Retrofit-Compatible Bus Interface Module for Legacy Systems

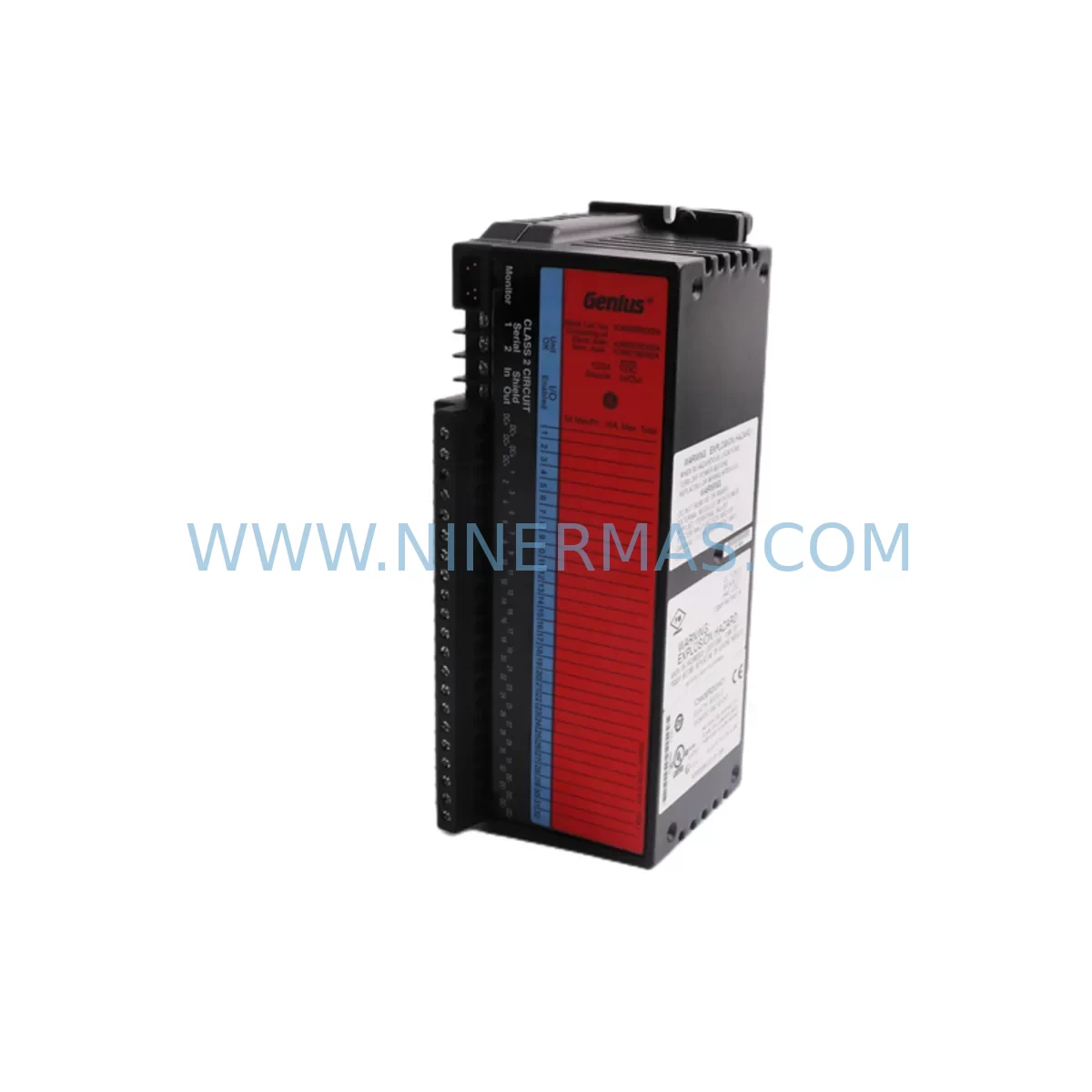

The GE Fanuc IC660BRD024C1 is a Bus Interface Module (BIM) designed for the Genius I/O series — one of the most widely deployed distributed I/O platforms in process and discrete manufacturing environments. As GE Fanuc’s Genius I/O product line has reached end-of-life status, maintenance engineers and procurement teams managing legacy automation systems face increasing pressure to source reliable, tested replacement units that can be installed without disrupting existing control architecture. The IC660BRD024C1 addresses this challenge directly, offering a retrofit-compatible solution that preserves the original Genius Bus communication structure, I/O addressing, and field wiring without requiring a full system redesign.

At NINERMAS, every IC660BRD024C1 unit is sourced, inspected, and functionally tested prior to shipment. We maintain long-term inventory of Genius I/O series components to support customers through planned shutdowns, emergency replacements, and multi-year maintenance contracts. Each unit ships with a 12-month warranty and full documentation support.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IC660BRD024C1 in a live or recently shut-down system requires a structured approach that accounts for the full Genius I/O communication chain. Before removing the existing BIM, maintenance engineers should document the rotary device number switch position — this setting maps directly to the I/O table in the host PLC, whether that is a GE Series 90-30, Series 90-70, or a PACSystems RX3i controller. Mismatching the device number will cause the host to fail to recognize the replacement module, resulting in I/O faults that can cascade across the production line.

The Genius Bus cable itself — typically IC660CBL501 shielded twisted-pair — should be inspected for continuity and termination resistance at both ends of the bus segment. A missing or degraded bus terminator (IC660ACC001) is a common cause of intermittent communication faults that are often misdiagnosed as BIM failures. If the bus segment serves multiple Genius I/O blocks such as IC660BBD024 discrete input blocks, IC660BBD025 discrete output blocks, or IC660BBA020 analog input blocks, the entire segment should be verified for correct device numbering and bus loading before the replacement BIM is powered up.

On the power supply side, confirm that the 24 VDC rail feeding the IC660BRD024C1 and its associated I/O block carrier (IC660CBB900 or IC660CBB902) is within specification. Aging power supply modules in legacy control cabinets — particularly older GE Fanuc IC693PWR321 or IC693PWR330 units — may exhibit voltage droop under load, which can cause the BIM to reset intermittently. A power quality check with a calibrated meter before and after module replacement is strongly recommended.

For systems where the Genius Bus connects to a Series 90-70 host via a Bus Controller module such as the IC697BEM731, verify that the Bus Controller firmware revision is compatible with the replacement BIM. In some retrofit scenarios, a firmware update to the Bus Controller is required to ensure stable communication with later-revision BIM hardware. Similarly, if the control system includes a GE Fanuc HMI such as a QuickPanel or CIMPLICITY workstation, confirm that the I/O tags mapped to the Genius block’s device number remain intact after the replacement — tag mismatches can cause HMI display errors even when the PLC program is functioning correctly.

Signal isolation should also be reviewed when the IC660BRD024C1 is installed in environments with high electrical noise. If the Genius Bus segment passes through areas with variable frequency drives, large motor starters, or welding equipment, additional signal isolators or ferrite cores on the bus cable may be required to maintain communication integrity. Procurement engineers sourcing the IC660BRD024C1 as part of a broader spare parts strategy should also consider stocking the associated IC660CBB900 block carrier and IC660ACC001 bus terminator to ensure a complete replacement kit is available for emergency use.

Downtime Control During System Migration

Minimizing downtime during a Genius I/O BIM replacement begins with pre-staging the replacement IC660BRD024C1 with the correct device number switch setting before the maintenance window opens. This allows the swap to be completed in minutes rather than hours, reducing the risk of extended production loss. Where possible, the replacement should be performed during a planned shutdown rather than an emergency response — this allows time for a full bus segment verification, power supply check, and I/O table confirmation in the host PLC before the line is restarted.

For systems where the Genius Bus segment cannot be taken offline without affecting other production areas, a hot-swap procedure may be possible depending on the host controller configuration. Consult the GE Fanuc Genius I/O System User’s Manual and the host PLC programming software — Proficy Machine Edition or Logicmaster 90 — to confirm whether the host supports online I/O replacement for the affected device number. If online replacement is not supported, coordinate with the production scheduler to identify the shortest available maintenance window and prepare all replacement components, tools, and documentation in advance.

After the replacement IC660BRD024C1 is installed and powered, verify that the Genius Bus communication LED indicators show normal operation before re-enabling the I/O block in the PLC program. A forced I/O test of all discrete and analog channels served by the block should be performed to confirm that field wiring connections to the terminal blocks are intact and that signal levels are within expected ranges. Document the replacement in the site maintenance log, including the unit serial number, installation date, and any observations about the condition of the removed module.

Retrofit Support FAQ

Q: Is the IC660BRD024C1 a direct drop-in replacement for the IC660BRD024 and IC660BRD024B?
A: In most applications, yes. The IC660BRD024C1 is a later revision of the same Bus Interface Module and is functionally compatible with the same Genius I/O block carriers and bus configurations. However, we recommend verifying the device number switch setting and bus termination before powering up the replacement unit, and confirming firmware compatibility with your host Bus Controller if applicable.

Q: How is the IC660BRD024C1 tested before shipment?
A: Every unit shipped by NINERMAS undergoes functional testing that includes power-up verification, communication interface check, and visual inspection for physical damage. Units that do not pass testing are not shipped. A test report is available upon request for critical applications.

Q: Can NINERMAS supply the IC660BRD024C1 as part of a long-term spare parts agreement?
A: Yes. We maintain ongoing inventory of Genius I/O series components and can support blanket purchase orders, scheduled deliveries, and emergency stock reservations. Contact our sales team to discuss a supply agreement tailored to your maintenance cycle and production risk profile.

Q: What warranty does the IC660BRD024C1 carry?
A: All IC660BRD024C1 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers functional defects and communication failures under normal operating conditions. Our technical team is available to support troubleshooting and, if necessary, arrange a replacement unit with priority shipping.
