GE Fanuc A06B-6290-H106 Service-Ready Spare Part

GE Fanuc A06B-6290-H106 Service-Ready Spare Part for Industrial Maintenance

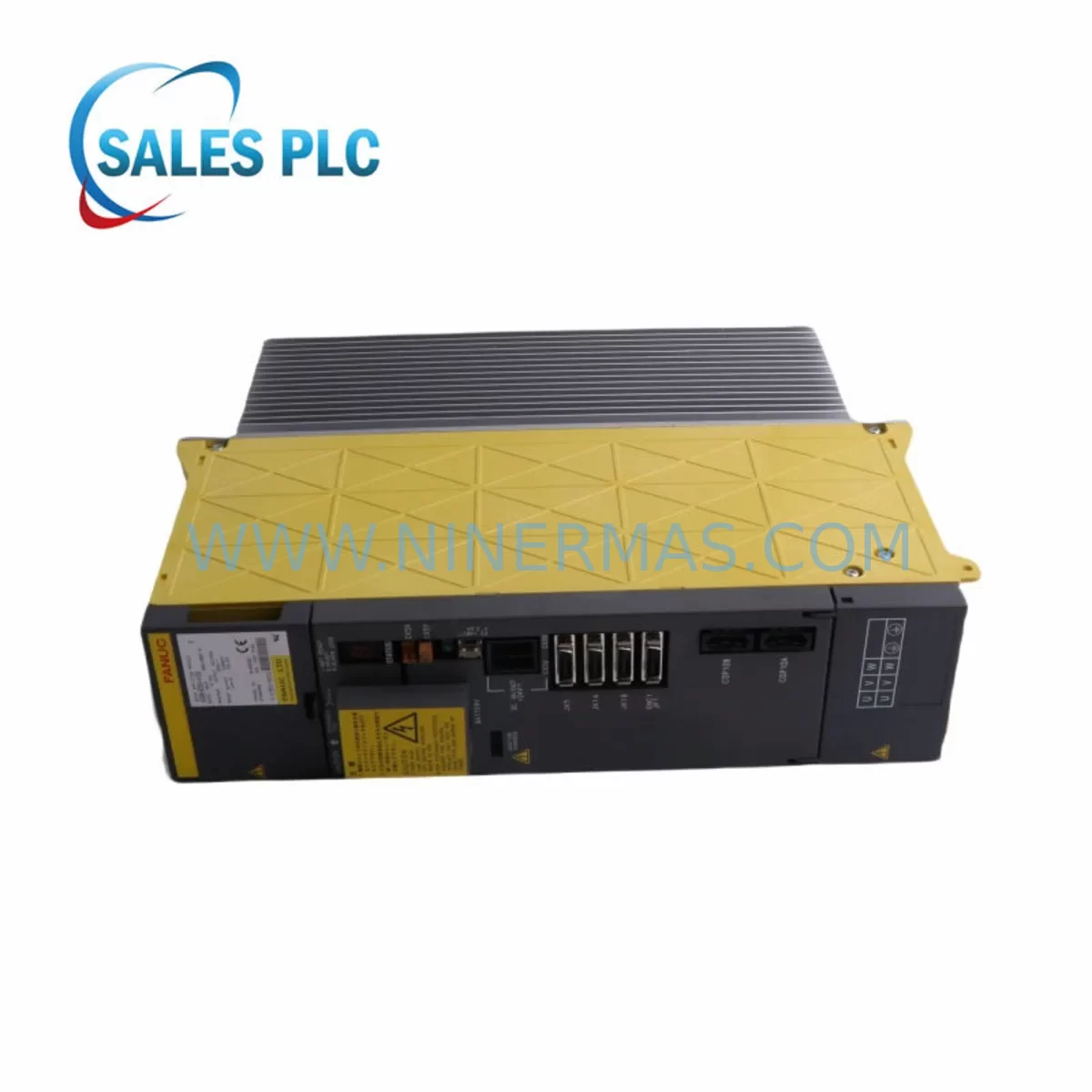

The GE Fanuc A06B-6290-H106 is a ruggedized servo drive module engineered for demanding industrial environments where vibration, temperature extremes, and continuous duty cycles are the norm. For maintenance engineers managing CNC machining centers, robotic welding lines, or multi-axis motion control systems built on the FANUC platform, this module represents a critical node in the servo loop — and its failure means immediate production stoppage. NINERMAS stocks the A06B-6290-H106 as a verified, tested spare, ready for same-week dispatch to minimize your downtime exposure.

Whether you are executing a planned annual overhaul, responding to an unscheduled fault alarm, or building out a strategic spare parts inventory for a legacy FANUC system, the A06B-6290-H106 delivers the original performance specification your machine was commissioned with. Every unit shipped from NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement engineers the confidence to approve the purchase order without secondary sourcing risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A servo drive module does not operate in isolation. When the A06B-6290-H106 is flagged for replacement — whether triggered by an SV alarm, an overcurrent fault, or a scheduled PM cycle — a disciplined maintenance engineer will treat the event as an opportunity to audit the entire servo axis and its surrounding electrical infrastructure.

Begin with the servo motor power cable and feedback cable (A06B-series motor cables). Insulation breakdown or connector corrosion on the encoder feedback line is a frequent root cause of drive faults that are misdiagnosed as drive failures. Inspect the A06B-series FANUC servo motor paired to this axis for bearing wear, winding resistance, and encoder signal integrity before reinstalling a new drive.

The A06B-6200 or A06B-6240 series PSM (Power Supply Module) feeding the servo amplifier bus should be checked for DC bus voltage stability and capacitor health. A degraded PSM will cause premature failure of a newly installed A06B-6290-H106. Similarly, inspect the A06B-6110 series spindle amplifier module if the machine shares a common DC bus architecture — bus voltage ripple from a failing spindle drive can stress servo amplifier input stages.

Within the control cabinet, verify the condition of the A02B-series CNC main board or CPU module that issues position commands to the drive. A corrupted FSSB (FANUC Serial Servo Bus) signal from a degraded main board can produce erratic drive behavior that mimics hardware failure. Check the FSSB fiber optic cable connecting the CNC to the amplifier — these cables are sensitive to bending radius violations and cabinet vibration.

For machines operating in harsh or high-humidity environments, inspect the cabinet cooling fan units and heat exchanger filters. Thermal stress is the leading cause of electrolytic capacitor degradation inside servo drives. If the A06B-6290-H106 is being replaced due to thermal-related failure, address the root cause in the cooling system before commissioning the replacement unit.

Procurement engineers building a strategic spare parts list around the A06B-6290-H106 should also consider stocking the A06B-6093 series servo amplifier for older FANUC 16i/18i systems on the same production floor, as well as A20B-series FANUC I/O modules that interface digital signals between the CNC and peripheral equipment. Terminal blocks, fuse holders, and 24VDC control power supplies within the cabinet should be part of any annual inspection checklist — these low-cost components are disproportionately responsible for nuisance faults that trigger unnecessary drive replacements.

Site Replacement Workflow

Step 1 — Fault Isolation: Before ordering a replacement A06B-6290-H106, confirm the fault is drive-originated. Check the FANUC diagnostic screen for the specific alarm code (e.g., SV0401, SV0436, SV0466). Cross-reference with the FANUC Servo Amplifier Maintenance Manual to rule out motor, cable, or CNC-side causes.

Step 2 — Safe Isolation: De-energize the machine following your site LOTO procedure. Discharge the DC bus capacitors per OEM guidelines (typically wait 5 minutes after power-off before opening the cabinet). Verify zero voltage with a calibrated meter before touching any bus bar or drive terminal.

Step 3 — Module Removal: Photograph the existing wiring and cable routing before disconnection. Label all connectors. Remove the A06B-6290-H106 by releasing the DIN rail locking tab or panel mount screws. Note the axis number and parameter settings displayed on the CNC before shutdown — these will be needed during recommissioning.

Step 4 — Compatibility Verification: Confirm the replacement unit’s hardware revision and software version are compatible with your CNC controller series. NINERMAS technical support can assist with cross-referencing if you provide your CNC model and existing drive label information.

Step 5 — Installation and Parameter Restore: Install the A06B-6290-H106, reconnect all cables in the documented order, and restore servo parameters from your CNC backup. Perform a low-speed jog test on the axis before returning the machine to full production speed. Monitor for alarm recurrence over the first 30 minutes of operation.

Step 6 — Documentation: Update your CMMS (Computerized Maintenance Management System) with the replacement date, unit serial number, and any observations. This data supports future predictive maintenance scheduling and warranty claim processing if required.

Spare Parts Support FAQ

Q1: Is the A06B-6290-H106 a direct drop-in replacement for my existing unit?
Yes, in the vast majority of FANUC αi-B series installations, the A06B-6290-H106 is a direct physical and electrical replacement. However, hardware revision levels can affect parameter compatibility. NINERMAS recommends providing your CNC controller model and existing drive label details so our technical team can confirm compatibility before shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. All units are functionally tested prior to dispatch, and a test report is available on request.

Q3: Can NINERMAS support long-term supply for legacy FANUC systems?
Yes. NINERMAS maintains ongoing inventory of A06B-series servo drive modules and related FANUC components to support customers managing legacy CNC and robotic systems beyond the OEM’s active production period. We recommend establishing a blanket purchase agreement or preferred supplier arrangement if your facility operates multiple FANUC axes, to ensure priority allocation during high-demand periods.

Q4: How should I store a spare A06B-6290-H106 in my parts room?
Store the unit in its original anti-static packaging in a dry, temperature-controlled environment (typically 0–40°C, <75% RH non-condensing). Avoid stacking heavy items on top of the module. Inspect the unit annually if it remains in storage, and rotate stock on a first-in, first-out basis. NINERMAS can advise on optimal inventory levels based on your machine count and historical failure rates.
