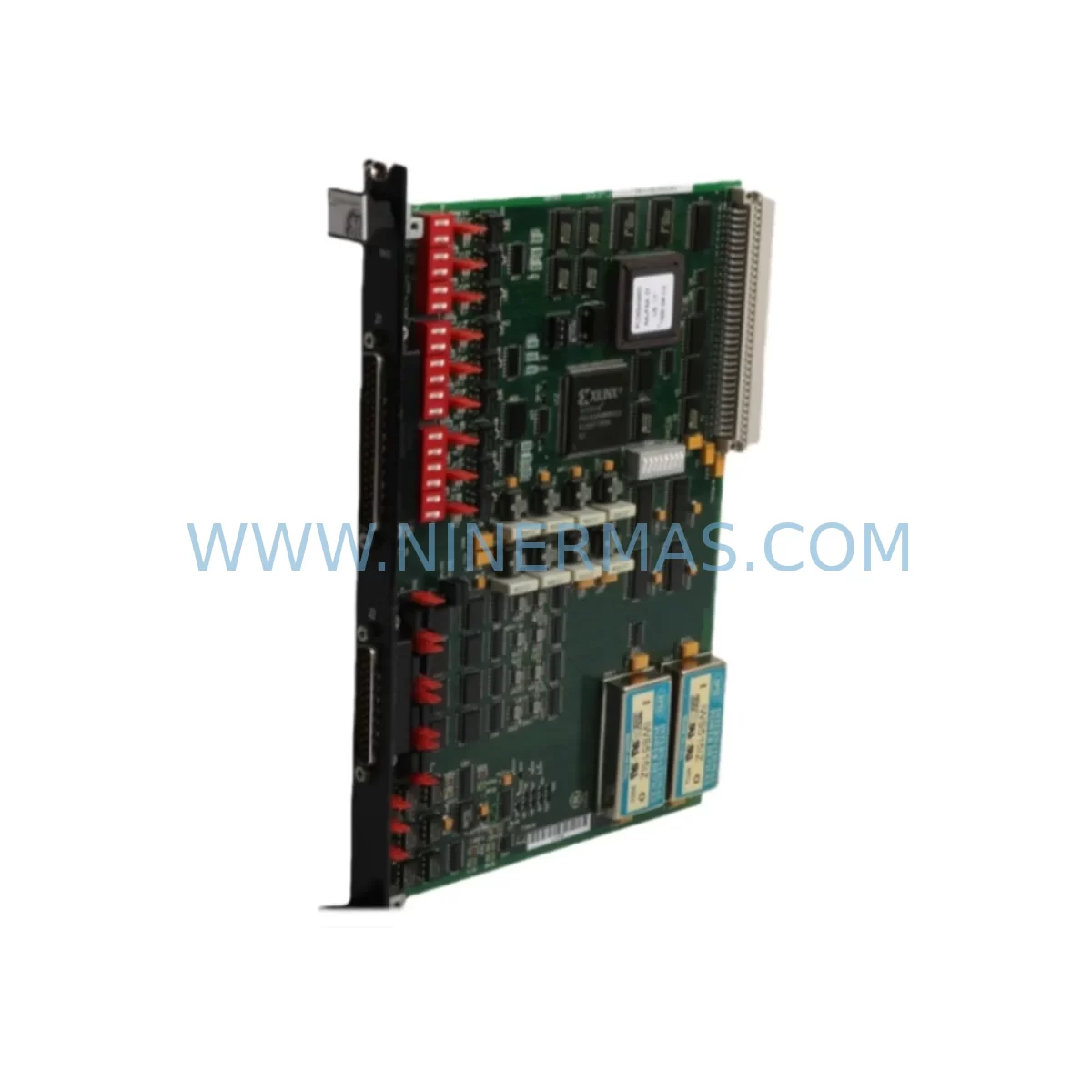

The GE DS200SIOBH1A is a critical I/O interface board designed for the General Electric Mark V Speedtronic turbine control system — one of the most widely deployed gas turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. When this board fails or degrades, the consequences are immediate: unplanned turbine shutdown, lost production, and costly emergency procurement under pressure. Stocking a verified, service-ready DS200SIOBH1A spare is the single most effective way to compress mean time to repair (MTTR) and restore turbine operation within hours rather than days.

At NINERMAS, every DS200SIOBH1A unit is sourced from original GE manufacturing channels or certified refurbishment pipelines, individually inspected, function-tested, and shipped with a 12-month warranty. Our inventory is maintained specifically for maintenance engineers and procurement teams who cannot afford counterfeit or untested boards in safety-critical turbine control cabinets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that the DS200SIOBH1A rarely fails in isolation. The Mark V Speedtronic control system is a tightly integrated architecture, and a fault on the serial I/O board often signals stress across adjacent components in the same control cabinet or electrical loop. When replacing the DS200SIOBH1A, a disciplined site inspection should extend to the following areas:

Power Supply and Distribution: Verify the Mark V panel’s internal DC power supply rails — typically the DS200DPBG1A power distribution board — are delivering stable voltage within specification. A degraded power supply is a common root cause of I/O board failure and will destroy a replacement board if not corrected first. Check fuse blocks and terminal strips on the 28 VDC and 5 VDC rails before re-energizing.

Backplane and Rack Integrity: Inspect the Mark V backplane connectors for corrosion, bent pins, or thermal damage. The DS200SIOBH1A interfaces directly with the backplane bus; poor contact resistance at the edge connector will cause intermittent faults that are difficult to diagnose. Clean connectors with approved contact cleaner and verify seating torque on all adjacent boards, including the DS200TCQAG1B I/O terminal board and any installed DS200SDCCG1A or DS200SDCIG1A control cards.

I/O Wiring and Terminal Blocks: Inspect field wiring terminations at the associated I/O terminal boards. Loose or corroded terminals on analog input, digital input, and relay output circuits are a frequent source of nuisance trips that are misdiagnosed as board failures. Verify wire ferrule integrity and re-torque all terminal screws to specification.

Communication and Signal Integrity: The Mark V relies on serial communication between the three redundant R, S, and T processors (housed on boards such as the DS200TCDAG1A and DS200TCEAG1A). After replacing the DS200SIOBH1A, confirm that serial communication diagnostics show no parity errors or timeout faults. If communication errors persist, inspect the DS200IOCAG1A I/O communication board and associated ribbon cables for damage.

Relay and Protection Circuits: Review the status of output relay modules connected to the I/O board’s digital outputs. Relay contacts in Mark V systems accumulate wear over years of turbine start/stop cycling. Inspect relay coil resistance and contact resistance on any DS200RTBAG1A relay terminal board in the same cabinet section. Replace relay modules showing contact resistance above 0.5 Ω.

HMI and Operator Interface: After board replacement, perform a full HMI diagnostic from the Mark V operator workstation (OWS) or connected SCADA system. Confirm that all I/O points previously mapped to the DS200SIOBH1A are reading correctly and that no latched alarms remain from the fault event. If the site uses a GE Cimplicity or third-party HMI, verify tag mapping integrity before returning the turbine to service.

Signal Isolation and Grounding: Check signal isolation barriers on any 4–20 mA analog loops connected through the I/O board. Degraded isolation can introduce ground loops that corrupt analog readings and accelerate board wear. Signal isolators in the same cabinet should be inspected and replaced on a 5–7 year cycle regardless of apparent condition.

Proactive spare parts inventory for the Mark V platform should include at minimum: one DS200SIOBH1A, one power distribution board, one set of I/O terminal boards, and a selection of common relay modules. This baseline kit allows most single-board fault events to be resolved within a single maintenance shift without waiting for emergency freight.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the Mark V diagnostic display or connected HMI to confirm the DS200SIOBH1A as the faulted board. Document all active alarms and I/O fault codes before de-energizing the panel. Photograph the board position and wiring for reference during reinstallation.

Step 2 — Safe De-energization: Follow site lockout/tagout (LOTO) procedures. De-energize the Mark V panel per GE’s published maintenance procedures. Allow capacitors to discharge for a minimum of 5 minutes before handling boards. Use ESD wrist straps and anti-static mats throughout the replacement procedure.

Step 3 — Board Removal and Inspection: Remove the DS200SIOBH1A by releasing the board retaining hardware and carefully extracting it from the backplane. Inspect the removed board for visible burn marks, swollen capacitors, cracked traces, or connector damage. Retain the failed board for failure analysis if required by your maintenance management system.

Step 4 — Replacement Installation: Install the new DS200SIOBH1A, ensuring full seating on the backplane connector. Secure all retaining hardware. Reconnect any field wiring or ribbon cables that were disconnected during removal. Verify that the board’s DIP switch or jumper configuration matches the original board’s settings — refer to GE Mark V documentation (GEH-6195 or equivalent) for configuration details.

Step 5 — Power-Up and Verification: Re-energize the panel and observe the Mark V diagnostic display for board recognition and self-test completion. Confirm that all I/O points are reading correctly and that no new fault codes are present. Perform a controlled turbine start sequence under supervision before returning the unit to full automatic operation.

Step 6 — Documentation: Update your CMMS (Computerized Maintenance Management System) with the replacement event, new board serial number, and any observations from the inspection. Schedule a follow-up inspection at 30 days to verify stable operation.

Spare Parts Support FAQ

Q1: Is the DS200SIOBH1A a direct drop-in replacement for all Mark V Speedtronic configurations?
The DS200SIOBH1A is designed for the GE Mark V Speedtronic platform and is compatible across the majority of Mark V panel configurations. However, some site-specific firmware versions or hardware revisions may require configuration verification before installation. NINERMAS technical support can assist with compatibility confirmation based on your panel serial number and software version prior to shipment.

Q2: What testing is performed before shipment, and what does the 12-month warranty cover?
Every DS200SIOBH1A shipped by NINERMAS undergoes functional testing that verifies board power-up, communication interface integrity, and I/O channel operation. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating environment. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q3: Can NINERMAS support long-term supply for Mark V spare parts programs?
Yes. NINERMAS maintains ongoing inventory of DS200 series boards and related Mark V components to support annual maintenance contracts, outage kits, and multi-site spare parts programs. We offer reserved stock agreements for high-volume customers and can provide certificates of conformance and test reports to satisfy procurement and quality audit requirements.

Q4: What should I do if the replacement board does not resolve the fault?
If installing a new DS200SIOBH1A does not clear the fault, the root cause is likely in an adjacent component — most commonly the backplane connector, power supply, or a connected I/O terminal board. Contact NINERMAS technical support with your fault codes and diagnostic log. Our engineers can assist with remote fault analysis and, if necessary, arrange for additional replacement components to be shipped on an expedited basis.
