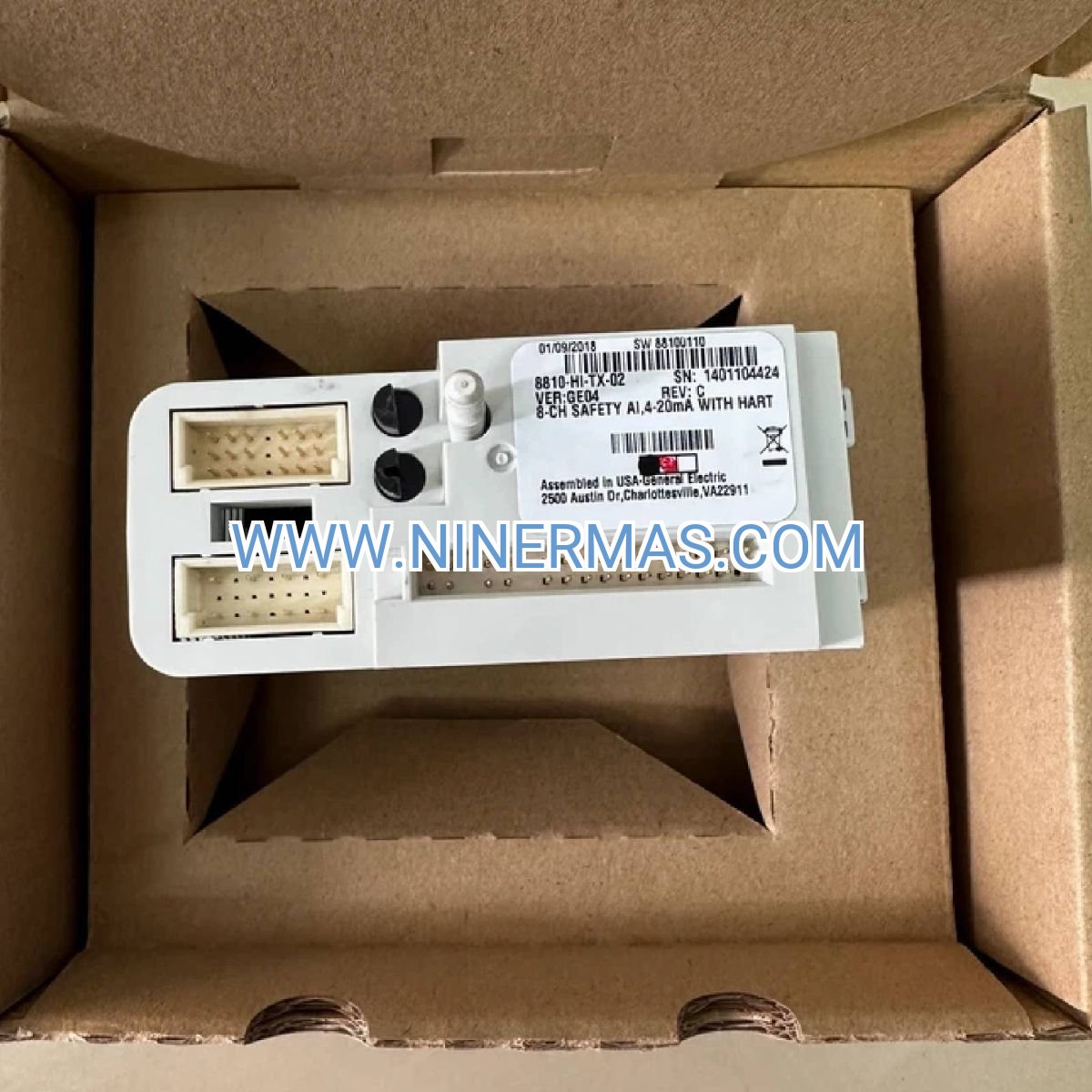

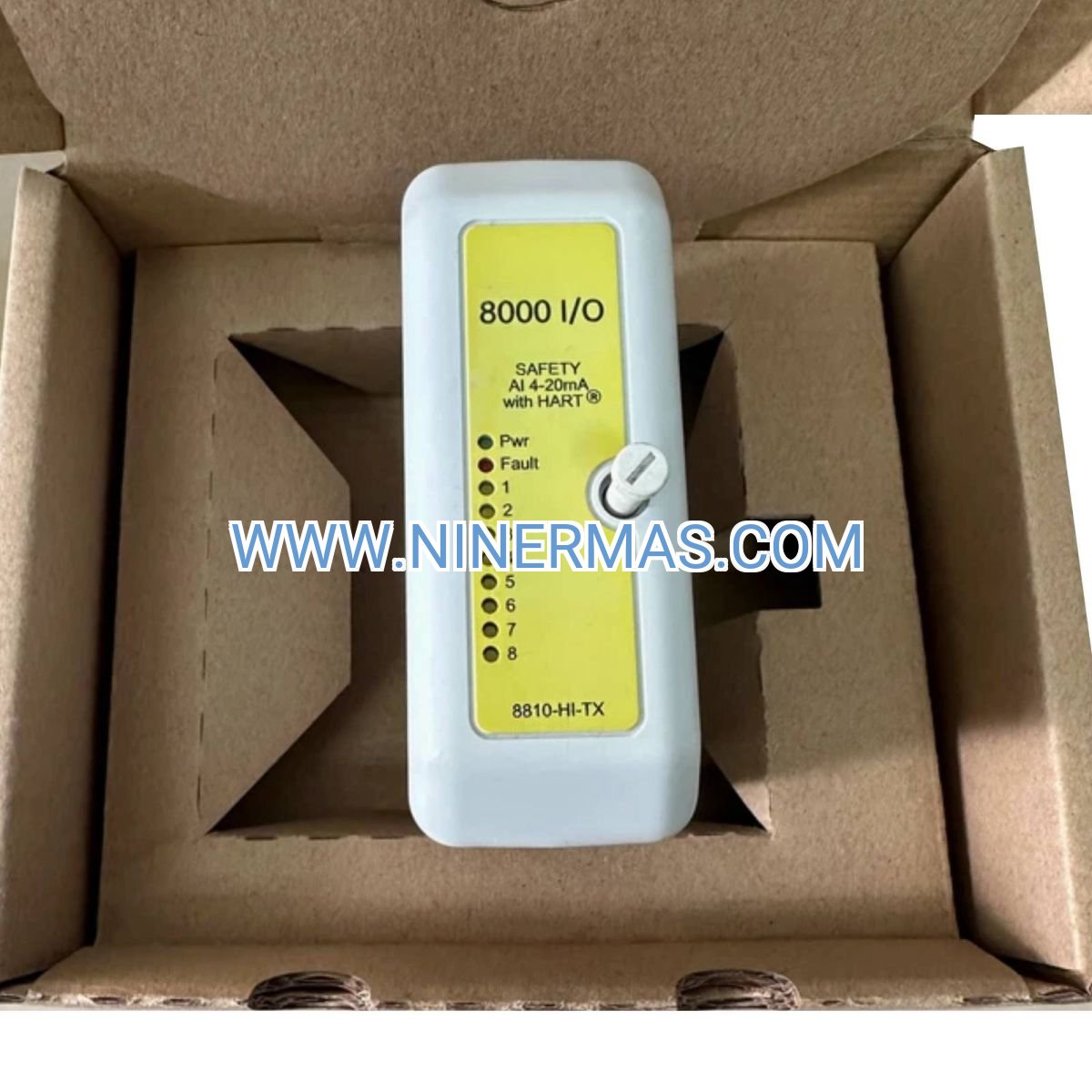

8810-HI-TX Safety Analog Input Module (Industrial-Grade SIL 2 Control System)

The 8810-HI-TX is an industrial safety analog input module designed for critical process control applications, delivering precise 4-20 mA signal acquisition through HART communication protocol. Engineered for PAC8000 distributed I/O systems, this 8-channel module ensures reliable data collection with 16-bit resolution and ±0.1% accuracy, enabling real-time monitoring and fault detection in safety-instrumented systems up to SIL 2 level.

Ideal for oil & gas facilities, chemical processing plants, power generation stations, pharmaceutical manufacturing, and water treatment systems where pressure, temperature, flow, and level transmitters require continuous monitoring with safety integrity. This module addresses common challenges including signal drift, communication failures, environmental interference, and the need for redundant safety architectures in hazardous locations.

Through standardized PAC8000 platform compatibility and field-proven design, the 8810-HI-TX delivers fast 25 ms update cycles, non-incendive field circuit protection, and ATEX/IECEx certification for explosive atmospheres. Suitable for system integrators, control panel builders, EPC contractors, and end-user maintenance teams. Contact our application engineers for system configuration guidance and technical specifications.

Core Functions & Advantages

High-Precision Signal Acquisition
Captures 4-20 mA analog signals with 16-bit resolution and ±0.1% span accuracy, ensuring reliable process variable measurement from 2-wire transmitters while minimizing signal noise and drift over extended operating periods.

HART Communication Integration
Embedded HART protocol support (0.75 s per point) enables digital communication overlay on analog signals, allowing remote device configuration, diagnostics, and calibration without interrupting process control loops.

Safety Integrity Level 2 Certification
SIL 2 certified design meets IEC 61508 functional safety standards, providing systematic capability and proven-in-use reliability for safety-instrumented systems requiring risk reduction factors up to 100, with comprehensive diagnostic coverage.

Hazardous Area Approval
ATEX and IECEx certified for Zone 2/Division 2 installations with non-incendive field circuits, enabling safe operation in explosive atmospheres containing flammable gases, vapors, or combustible dust without requiring intrinsic safety barriers.

Robust Environmental Performance
Operates reliably across -40°C to +70°C ambient temperature range with IP20 protection rating, withstanding industrial vibration, electromagnetic interference, and harsh process environments typical in heavy industry applications.

Rapid System Response
25 ms update time ensures fast process response for dynamic control loops, critical alarm functions, and emergency shutdown sequences, reducing reaction delays in time-sensitive safety applications.

Simplified System Integration
Direct mounting on PAC8000 carriers with plug-in connectivity, hot-swappable replacement capability, and compatibility with major fieldbus protocols (PROFIBUS, Modbus, Foundation Fieldbus) through system controllers, reducing installation time and commissioning complexity.

Typical Application Scenarios

This module serves industries demanding continuous process monitoring with safety integrity, particularly in:

Oil & Gas Production and Refining
Monitors pressure transmitters on separator vessels, temperature sensors in distillation columns, and flow meters on pipeline systems. Provides safety-critical input for emergency shutdown systems (ESD) and fire & gas detection, ensuring personnel protection and asset integrity in offshore platforms and onshore facilities.

Chemical and Petrochemical Processing
Acquires signals from reactor temperature sensors, batch vessel level transmitters, and toxic gas concentration analyzers. Supports SIS logic solver inputs for runaway reaction prevention, overpressure protection, and hazardous material containment in ATEX-classified production areas.

Power Generation and Utilities
Interfaces with boiler pressure transmitters, turbine vibration sensors, and cooling water flow meters. Enables burner management systems (BMS), turbine protection systems, and auxiliary equipment monitoring in coal-fired, gas-fired, and combined-cycle power plants.

Pharmaceutical and Biotechnology Manufacturing
Collects data from clean room differential pressure sensors, bioreactor temperature probes, and sterile filtration flow transmitters. Maintains GMP compliance through validated measurement chains and audit-trail-capable HART diagnostics for critical process parameters.

Water and Wastewater Treatment
Processes signals from clarifier level transmitters, chlorine residual analyzers, and pump discharge pressure sensors. Supports SCADA integration for municipal treatment plants, industrial effluent systems, and desalination facilities requiring continuous regulatory compliance monitoring.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive specifications for the 8810-HI-TX module. Custom configurations are available for specific project requirements.

Selection Recommendations
When specifying the 8810-HI-TX module, consider: total number of analog transmitters requiring monitoring, required safety integrity level (SIL 1/2/3), hazardous area classification (Zone/Division), ambient temperature extremes, available DC power budget, fieldbus protocol requirements, and physical space constraints in control cabinets. For applications requiring higher channel density, redundant architectures, or extended temperature ranges, consult our engineering team with process & instrumentation diagrams (P&IDs), loop drawings, and environmental specifications.

Extended Capabilities

Redundancy and Fault Tolerance
Supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting configurations when deployed in redundant PAC8000 systems, enabling continuous operation during module replacement and achieving SIL 3 capability through architectural constraints.

Advanced Diagnostics
Provides comprehensive self-diagnostics including open circuit detection, short circuit identification, out-of-range signal alerts, power supply monitoring, and HART communication status, with diagnostic data accessible through system controllers and asset management software.

Calibration and Maintenance
Factory-calibrated with traceable certificates; supports in-situ verification through HART commands without loop disconnection; hot-swappable design enables replacement without system shutdown; configuration data stored in module for automatic parameter restoration.

Delivery, Service & Quality Assurance

Lead Time
Standard catalog items: typically 2-4 weeks from stock or factory. Custom-configured systems with specific certifications or extended testing: 6-8 weeks. Expedited delivery available for critical project schedules.

Warranty Coverage
12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Extended warranty programs available for long-term projects and installed base support.

Technical Support
Comprehensive documentation package includes installation manual, wiring diagrams, HART device description files (DD), safety manual per IEC 61508, and configuration examples. Remote technical assistance and on-site commissioning support available (region-dependent).

Quality Certifications
Manufactured under ISO 9001 quality management system with full traceability. Each module undergoes factory acceptance testing (FAT) including functional verification, environmental stress screening, and safety function validation per IEC 61508 requirements.

Frequently Asked Questions (FAQ)

Q: How does the 8810-HI-TX safety analog input module integrate with existing PAC8000 systems?
A: The module mounts directly onto PAC8000 carrier assemblies using standardized rail connectors with automatic backplane communication. It requires 24 V DC field power supply and connects to your existing PAC8000 controller via the system bus. Configuration is performed through standard engineering software (e.g., GE ToolboxST or compatible platforms). Verify controller firmware compatibility and available I/O addressing space before ordering.

Q: What is the maximum number of 8810-HI-TX modules supported in a single PAC8000 system?
A: A single PAC8000 carrier typically supports up to 8-12 I/O modules depending on carrier model and power budget. For larger systems requiring more than 64 analog inputs, multiple carriers can be networked through fieldbus connections. Total system capacity depends on controller processing power, communication bandwidth, and safety system architecture (simplex vs. redundant).

Q: What energy savings or efficiency improvements can be achieved with the 8810-HI-TX module?
A: While the module itself is an I/O device rather than a power-saving component, its high-accuracy signal acquisition (±0.1% span) and fast update rate (25 ms) enable tighter process control loops. This precision can reduce raw material waste by 2-5%, minimize energy consumption in heating/cooling processes by 3-8%, and decrease product quality variations, with actual savings dependent on specific process optimization strategies.

Q: What are the installation environment requirements for the 8810-HI-TX? What is its protection rating?
A: The module is rated IP20, suitable for installation in enclosed control cabinets or marshalling panels with protection from direct water spray and solid objects larger than 12.5 mm. Ambient operating temperature range is -40°C to +70°C. For hazardous area installations, the module is certified for Zone 2/Division 2 locations when properly installed per ATEX/IECEx guidelines. Ensure adequate ventilation to prevent heat buildup in densely populated cabinets.

Q: Does the 8810-HI-TX support remote monitoring and data acquisition? Which protocols are compatible?
A: Yes, the module supports HART protocol overlay on 4-20 mA signals, enabling remote device configuration, diagnostics, and secondary process variable access without additional wiring. System-level connectivity depends on the PAC8000 controller and can include PROFIBUS DP, Modbus RTU/TCP, Foundation Fieldbus H1, or Ethernet/IP through appropriate communication modules. OPC UA and MQTT gateways can be implemented at the SCADA/DCS level for cloud connectivity and IIoT applications.

Q: What documentation and certification packages are provided with the 8810-HI-TX module?
A: Each module ships with installation instructions, wiring diagrams, technical datasheet, HART device description files, and safety manual per IEC 61508. SIL 2 certification documentation includes failure mode effects analysis (FMEA), proof test procedures, and safety function validation reports. ATEX/IECEx certificates and declarations of conformity are provided for hazardous area installations. CAD drawings and 3D STEP files available upon request for panel design.

Contact & Ordering

For detailed selection assistance, custom configuration, technical specifications, or quotation requests, please provide the following project information: application description and industry sector, number of analog input channels required, transmitter types and signal ranges, safety integrity level requirements (SIL 1/2/3), hazardous area classification (if applicable), ambient temperature range, available power supply specifications, preferred communication protocol, and installation timeline. Our application engineers will provide tailored recommendations and competitive pricing within 24-48 hours.
