FUJI E189010 4P101C01001 Retrofit-Compatible PCB for Legacy Systems

FUJI E189010 4P101C01001 Retrofit-Compatible PCB Board for Legacy Systems

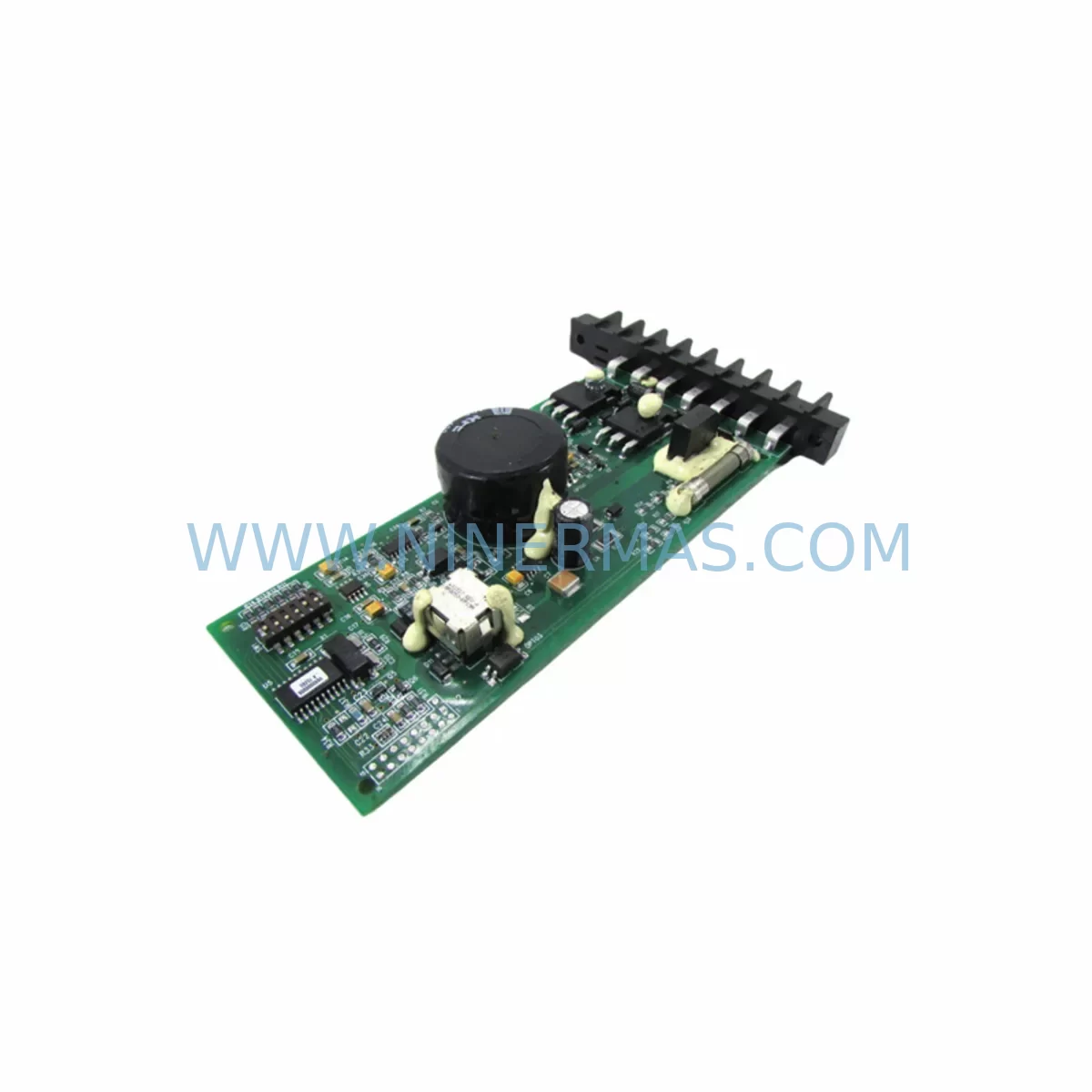

The FUJI E189010 4P101C01001 is a critical PCB control board designed for use in FUJI industrial automation systems, widely deployed across process control, discrete manufacturing, and motion control applications. As original equipment reaches end-of-life and OEM support is discontinued, this board serves as a verified retrofit-compatible replacement that enables engineers and maintenance teams to extend the operational life of existing control architectures without committing to a full system overhaul. Each unit supplied by NINERMAS is pre-shipment tested, documented, and backed by a 12-month warranty, ensuring field-ready reliability from day one.

Industrial facilities running legacy FUJI control platforms frequently encounter the challenge of sourcing discontinued PCB assemblies when a board failure causes unplanned downtime. The E189010 4P101C01001 addresses this directly — it is compatible with the original mounting footprint, connector pinout, and backplane interface of the target control cabinet, allowing maintenance personnel to execute a board swap without redesigning the surrounding control architecture. This makes it particularly valuable in applications where the cost of a full platform migration far exceeds the cost of a targeted spare parts strategy.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FUJI E189010 4P101C01001 into an existing control system requires a structured retrofit assessment. Before initiating the board swap, maintenance engineers should audit the host control cabinet to confirm available rack space, backplane slot assignment, and power supply capacity. FUJI control systems in this class typically draw regulated DC power from a dedicated power supply module — confirm that the existing supply can sustain the additional load introduced by the replacement board without voltage droop under peak I/O demand.

Terminal wiring must be verified against the original wiring diagram. In many legacy FUJI installations, field wiring is connected through terminal blocks mounted adjacent to the I/O modules. If the original board was part of a multi-slot assembly sharing a common backplane with analog input modules, digital output modules, or communication interface cards, each of these adjacent modules must be inspected for compatibility with the replacement board’s signal levels and addressing scheme.

In systems where the E189010 4P101C01001 interfaces with a FUJI programmable controller or motion controller, the program logic stored in the CPU module must be reviewed to confirm that I/O addresses, function block assignments, and interrupt routines remain valid after the board replacement. If the host system uses a FUJI MICREX-SX or MICREX-F series PLC, the ladder program or function block diagram should be backed up prior to any hardware change. Communication links between the PCB board and upstream SCADA systems or HMI panels — including RS-485, Ethernet/IP, or proprietary FUJI bus connections — must be re-verified after installation to confirm that data exchange resumes correctly.

For facilities upgrading from older FUJI drive control platforms, the E189010 4P101C01001 may also appear in the context of AC drive retrofit projects, where the control board within a FUJI FRENIC or Alpha series inverter requires replacement due to component aging, capacitor degradation, or firmware incompatibility. In these cases, the surrounding power stage — including the IGBT module, gate driver board, and DC bus capacitor bank — should be inspected simultaneously to avoid repeat failures. Signal isolators between the PCB board and field sensors may also require recalibration after a board swap to maintain measurement accuracy.

Where the retrofit involves migrating from a legacy serial communication protocol to a modern fieldbus such as PROFIBUS-DP or Modbus TCP, a communication gateway module may be required to bridge the existing FUJI control bus to the new network infrastructure. This is particularly relevant in projects where the E189010 4P101C01001 is being retained as part of a hybrid architecture while upstream systems are upgraded to Ethernet-based control platforms.

Downtime Control During System Migration

Minimizing production downtime during a PCB board replacement is a primary concern for any maintenance team operating in a continuous process or high-throughput discrete manufacturing environment. The FUJI E189010 4P101C01001 is supplied in tested condition, which eliminates the risk of receiving a defective board and reduces the time required for on-site commissioning. A structured replacement procedure should include the following steps to protect program integrity and maintain control continuity.

Prior to shutdown, capture a full backup of the PLC program, HMI screen configurations, and any drive parameter sets stored in connected FUJI inverter units. Document the current I/O status, analog signal levels, and communication link states so that post-replacement verification can be completed against a known baseline. If the system supports hot-standby or redundant control, activate the standby path before removing the failed board to maintain process supervision during the swap.

During installation, follow ESD precautions appropriate for sensitive PCB assemblies. Seat the replacement board firmly into the backplane connector, confirm that all locking mechanisms are engaged, and restore field wiring connections in the sequence specified by the original wiring diagram. After power-up, verify that the board initializes correctly, that all I/O channels report expected states, and that communication links to the PLC CPU, HMI, and SCADA system are re-established before returning the system to automatic control mode.

NINERMAS maintains stock of the FUJI E189010 4P101C01001 to support urgent replacement requirements. For time-critical situations, contact our team directly to confirm availability and arrange expedited dispatch. All units are shipped with test documentation and are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the FUJI E189010 4P101C01001 a direct replacement for the original board?
Yes. The E189010 4P101C01001 is supplied as a retrofit-compatible replacement for the original FUJI board of the same part number. It matches the original connector layout, backplane interface, and mounting dimensions. Customers should verify the wiring diagram and module address configuration against their specific installation before commissioning.

Q2: What commissioning steps are required after installation?
After seating the replacement board, confirm that the module address matches the original configuration, verify I/O channel mapping in the PLC program, check HMI tag assignments, and re-establish all communication links. A functional test under controlled conditions is recommended before returning the system to full automatic operation.

Q3: Has the board been tested before shipment?
Yes. Every FUJI E189010 4P101C01001 unit supplied by NINERMAS undergoes pre-shipment functional testing. Test results are documented and available upon request. This ensures that the board is field-ready upon arrival and reduces on-site commissioning risk.

Q4: What warranty and supply terms apply?
All units are covered by a 12-month warranty from the date of shipment. NINERMAS maintains inventory of long-lifecycle industrial spare parts to support ongoing maintenance programs. For bulk orders, scheduled delivery programs, or long-term supply agreements, contact our sales team to discuss terms.
