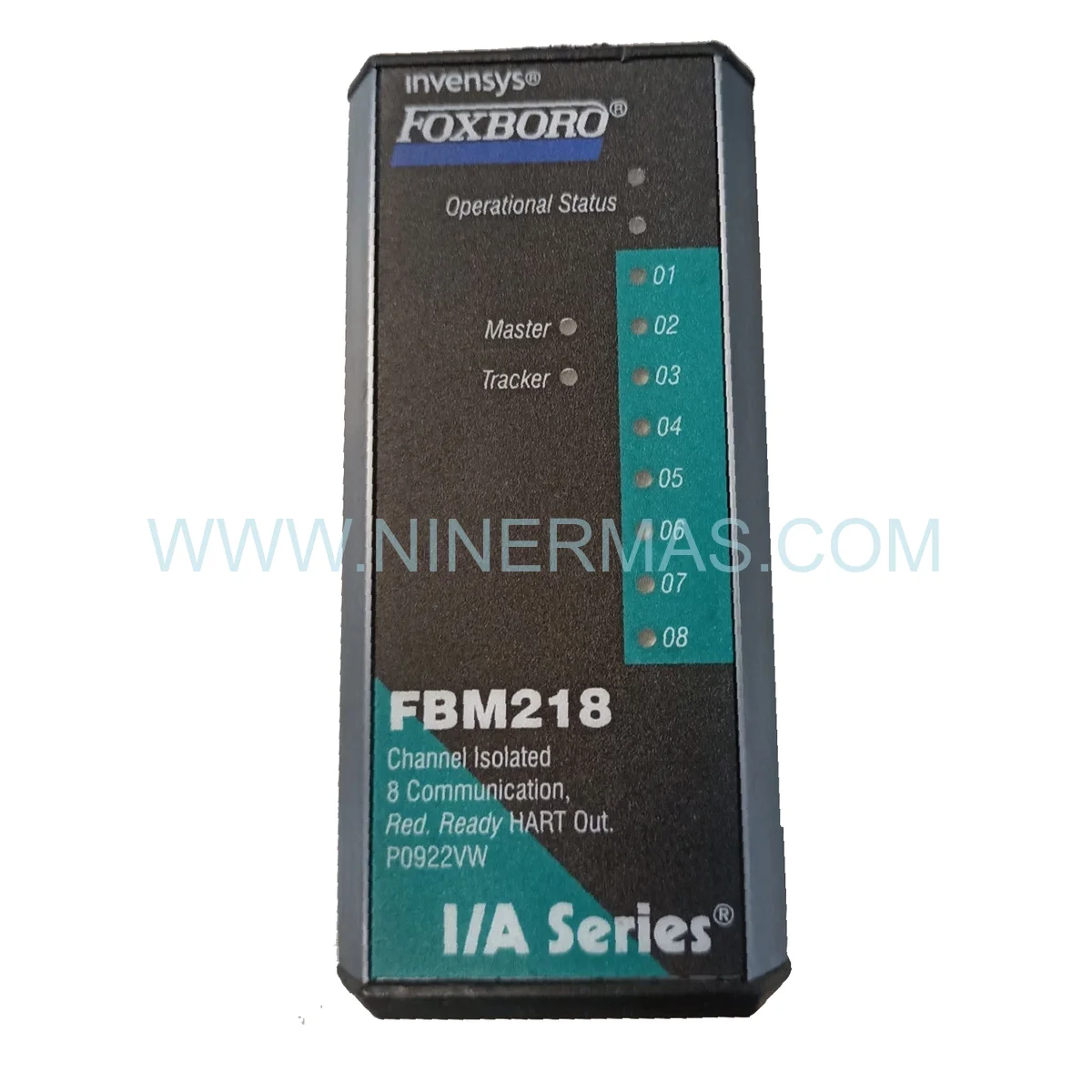

Foxboro P0922VW | 8-Ch Redundant Analog Output HART Module

Foxboro P0922VW – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Foxboro P0922VW represents a cornerstone component in maintaining the operational integrity of mission-critical process automation infrastructures. Engineered as a redundant analog output module within the Foxboro Evo Process Automation System, the Foxboro P0922VW delivers eight galvanically isolated 4-20 mA output channels with full HART communication protocol support — a configuration that directly addresses the zero-tolerance requirements of high-availability industrial environments. Its dual-channel redundant architecture ensures automatic failover in under 50 milliseconds, eliminating single points of failure that could compromise system safety or regulatory compliance.

Within the framework of Industry 4.0 architecture, this module demonstrates exceptional long-term compatibility across distributed control ecosystems. Its HART 5, 6, and 7 multi-version support enables seamless integration with both legacy field instrumentation and next-generation smart devices, preserving Asset Optimization investments across extended operational lifecycles. The module’s configurable update rate and wide operating temperature range (-40°C to +70°C) further reinforce its suitability for sustained deployment in thermally demanding environments.

As a certified original component, the P0922VW carries CE, UL, CSA, and ATEX/IECEx certifications — credentials that are non-negotiable for installations in hazardous classified areas. Sourcing factory-sealed, authenticated units is a fundamental prerequisite for maintaining System Integrity and satisfying audit requirements under IEC 61511 and ISA-84 functional safety frameworks.

Compliance & Safety Benchmarks

✅ Multi-Standard Certification: CE, UL, CSA, ATEX/IECEx — validated for hazardous area installation and global regulatory adherence.
? Galvanic Channel Isolation: Channel-to-channel and channel-to-system isolation eliminates ground loop interference, a critical Compliance Standard for precision analog signal integrity.
? Redundant Failover Architecture: Automatic switchover in <50 ms ensures uninterrupted control signal delivery, meeting Safety Integrity requirements for SIL-rated process loops.
Firmware Version Traceability: Each unit ships with Original Documentation confirming firmware revision, calibration records, and factory test reports — essential for lifecycle audit trails.
Environmental Durability: Rated for -40°C to +70°C operation with EMC-hardened design, ensuring Standard Adherence in electrically noisy industrial environments.
? Hot-Swap Capability: Online module replacement without process interruption supports maintenance compliance without scheduled downtime.

Vertical Industry Integration & Optimization

The P0922VW’s engineering profile makes it uniquely suited for precision-driven industries where process deviations carry significant safety and financial consequences:

• Semiconductor Manufacturing: Ultra-precise 4-20 mA output (±0.1% span accuracy) supports sub-micron process control in diffusion furnaces and chemical vapor deposition systems, where signal drift directly impacts yield rates and wafer quality.
• Pharmaceutical & Biotech: Meets FDA 21 CFR Part 11 traceability requirements through HART-enabled digital audit trails. Supports CIP/SIP cycle automation and sterile fermentation control with validated signal fidelity.
• Chemical Processing: Redundant output architecture eliminates single-channel failure risk in exothermic reactor temperature control and high-pressure flow regulation — applications where a control signal loss can trigger emergency shutdown sequences.
• Oil & Gas Upstream/Midstream: ATEX/IECEx certification enables direct deployment in Zone 1/Zone 2 classified areas. Supports offshore platform separator control, pipeline pressure management, and wellhead automation with full Lifecycle Management documentation.
• Power Generation: Interfaces with turbine governor systems and boiler feedwater control loops, where the module’s rapid failover capability directly supports grid stability and emissions compliance reporting.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Foxboro P0922VW unit is dispatched in its original manufacturer packaging with intact tamper-evident seals, ensuring authenticity verification upon receipt. Factory test reports and calibration certificates are included as part of the Original Documentation package, supporting regulatory audit requirements and system commissioning records.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to over 80 countries, with DHL Express, FedEx Priority, and freight forwarding options available. Export documentation — including commercial invoices, packing lists, and certificates of origin — is prepared in compliance with international trade regulations to minimize customs clearance delays.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a comprehensive 12-Month Quality Guarantee addressing manufacturing defects, component integrity, and performance conformance to published specifications. For legacy Foxboro Evo installations requiring long-term spares management, we offer reserved inventory agreements and priority fulfillment SLAs to support your Asset Optimization strategy.

Technical Support: Pre-sales engineering consultation is available to confirm compatibility with your existing Evo system configuration, firmware revision requirements, and I/O mapping. Post-delivery support includes installation guidance, diagnostic assistance, and escalation pathways to certified Foxboro system integrators.

Expert Technical FAQ

Q: How does the P0922VW satisfy IEC 61511 functional safety compliance requirements for SIL-rated loops?
A: The Foxboro P0922VW’s dual-channel redundant architecture, combined with its continuous self-diagnostic monitoring and automatic failover capability, supports the hardware fault tolerance (HFT) requirements specified under IEC 61511 for SIL 1 and SIL 2 process safety instrumented functions. Compliance validation requires integration with a certified Safety Instrumented System (SIS) and documented proof-test procedures per your site’s Safety Requirements Specification (SRS).

Q: What firmware version is required for full HART 7 compatibility, and how is version verification performed?
A: HART 7 protocol support is available from firmware revision 3.x onwards on the Foxboro P0922VW. Firmware version verification is performed via the Evo Control Builder IDE under the module’s diagnostic properties panel. Each unit shipped includes Original Documentation confirming the installed firmware revision at time of factory test, enabling traceability for validation and change control records.

Q: Can the P0922VW be installed in ATEX Zone 1 classified areas without additional barriers?
A: The Foxboro P0922VW carries ATEX/IECEx certification for hazardous area installation. However, Zone 1 deployment requirements depend on the specific gas group and temperature class of your installation environment. Review the module’s ATEX certificate and associated installation drawing for approved mounting configurations. In most Zone 1 applications, the module is installed in a purged and pressurized enclosure (Ex p) or behind certified Zener barriers/galvanic isolators at the field wiring interface.

Q: What is the recommended procedure for hot-swapping the P0922VW in a live process environment?
A: Prior to initiating a hot-swap, confirm that the redundant channel is active and carrying the control signal via the Evo system’s I/O health dashboard. Follow the module extraction sequence documented in Foxboro’s Evo I/O Module Replacement Procedure (document FoxRef-IO-MRP). The backup channel maintains uninterrupted 4-20 mA output to all field devices during the swap. Post-installation, the system automatically re-synchronizes both channels within one scan cycle.

Q: How does galvanic isolation in the P0922VW protect against ground loop interference in multi-vendor field device installations?
A: Each of the eight output channels in the Foxboro P0922VW incorporates full galvanic isolation — both channel-to-channel and channel-to-system — with isolation voltages rated to industry Compliance Standards. This architecture prevents ground potential differences between field devices from inducing common-mode currents on the 4-20 mA loop, a critical System Performance requirement in multi-vendor installations where grounding practices may vary across equipment boundaries.

Q: What environmental conditioning standards does the P0922VW meet for offshore and marine installations?
A: The Foxboro P0922VW is designed to meet IEC 60068 environmental conditioning standards, including vibration, shock, humidity, and salt atmosphere resistance testing. Its operating temperature range of -40°C to +70°C and EMC-hardened design comply with IEC 61000 series electromagnetic compatibility requirements. For offshore applications, verify that your specific installation’s environmental classification (e.g., DNV GL, ABS, or Lloyd’s Register type approval) is satisfied through your system integrator’s certification documentation.
