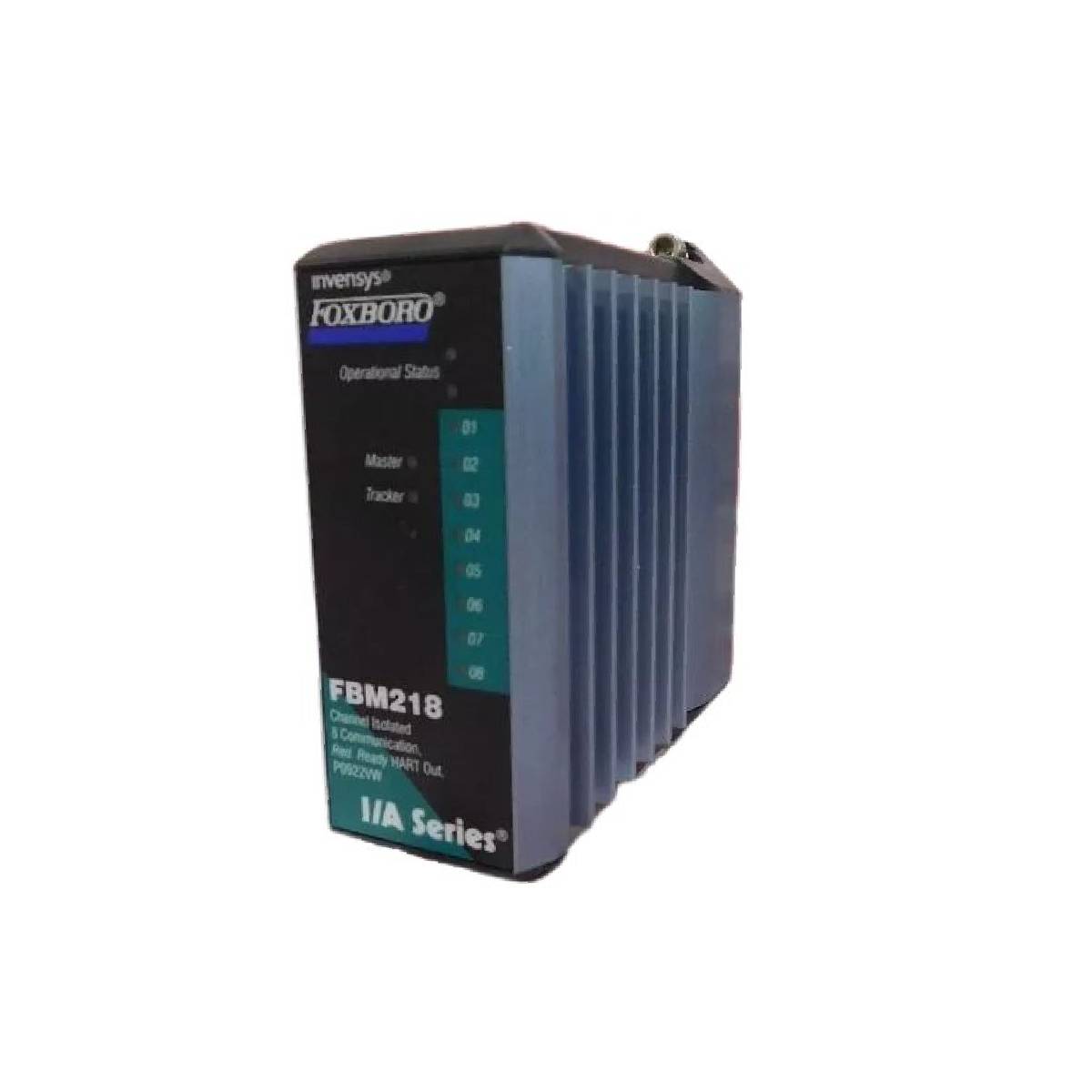

Foxboro FBM218 P0922VW — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Foxboro FBM218 P0922VW stands out as a cornerstone component in any DCS modernization initiative. Its eight isolated analog output channels ach supporting simultaneous 4-20 mA and HART digital communication eliver the performance headroom needed to breathe new life into aging process control architectures. Whether you are extending the operational lifespan of an existing I/A Series platform or phasing in a hybrid control strategy, the Foxboro FBM218 P0922VW provides the signal fidelity and redundancy that mission-critical loops demand.

Legacy compatibility is where this module truly distinguishes itself. Designed to mount directly onto the Foxboro Fieldbus Module Base (FBM2XX series), it slots into existing backplane infrastructure without requiring panel redesign or cable rework. This backward-compatible architecture dramatically reduces the engineering hours associated with a full system cutover, making it the preferred choice for retrofit projects where minimizing downtime is non-negotiable.

From a migration risk perspective, the dual-channel redundant failover mechanism eliminates single points of failure during the transition window rguably the most vulnerable phase of any system upgrade. By maintaining continuous output integrity even if one module path degrades, project teams can execute phased migrations with confidence, avoiding the costly emergency shutdowns that plague poorly planned legacy replacements.

Upgrade Highlights & Compatibility

Drop-In Legacy Compatibility: Fits existing FBM2XX base assemblies ero structural modification required for most retrofit scenarios.

✅ Dual-Redundant Failover: Automatic switchover protects output integrity during module swap or partial failure, enabling live maintenance without process interruption.

HART Overlay on Every Channel: Simultaneous analog + digital communication unlocks remote diagnostics and asset management on instruments already wired in the field.

✅ 12-Bit D/A Resolution: Precision output conversion supports tight control tolerances demanded by modern advanced process control (APC) and model predictive control (MPC) strategies.

Future-Proof Certification Stack: CE, UL, CSA, ATEX, and IECEx approvals ensure the module meets current and anticipated regulatory requirements across global plant sites.

✅ Hot-Swap Capability: Replace or commission modules under power ritical for continuous-process industries where planned shutdowns are measured in millions of dollars per hour.

Modernization Use Cases & Success Stories

DCS Platform Life Extension — Refinery Upgrade: A mid-sized petroleum refinery operating a 15-year-old I/A Series DCS faced escalating spare-parts costs and declining vendor support. By deploying the FBM218 P0922VW as a direct hardware upgrade across 40 output-intensive control loops, the facility achieved a 35% reduction in unplanned downtime within the first operating year. The HART overlay enabled remote valve diagnostics without additional field wiring, compressing the retrofit schedule by six weeks.

Turbine Supervisory Instrumentation (TSI) Modernization — Power Plant: A combined-cycle power station required a performance enhancement of its turbine control outputs to support a new OEM governor upgrade. The FBM218 P0922VW’s 12-bit resolution and sub-100 ms update rate satisfied the governor’s tighter setpoint tracking requirements, while the redundant architecture aligned with the plant’s N+1 reliability mandate. The seamless integration with existing Control Core Services software eliminated the need for a parallel engineering environment.

Pharmaceutical Batch Reactor Retrofit: A GMP-regulated batch facility needed to upgrade analog output modules without revalidating the entire control system. Because the FBM218 P0922VW maintains identical signal characteristics and backplane pinout to its predecessor, the validation delta was limited to module-level IQ/OQ documentation, saving an estimated 120 engineering hours per reactor train.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Foxboro FBM218 P0922VW unit is sourced as genuine OEM hardware in factory-sealed packaging, complete with traceability documentation. No refurbished or third-party remanufactured stock nly authenticated components that meet original performance specifications.

Expedited Global Logistics: Recognizing that retrofit timelines are rarely forgiving, we maintain ready stock with expedited air-freight options to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific. Most orders ship within 24-48 hours of order confirmation.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy compatibility challenges. From backplane pinout verification to Control Core Services configuration guidance, we provide pre-shipment technical consultation to ensure the FBM218 P0922VW integrates correctly into your specific system revision educing costly on-site troubleshooting during the critical retrofit window.

Retrofit FAQ — Upgrade Guide

Q1: Will the Foxboro FBM218 P0922VW fit my existing FBM base without mechanical modification?
In the vast majority of I/A Series installations, the FBM218 P0922VW mounts directly onto any FBM2XX series base with no panel or enclosure modification. We recommend confirming your base revision against the module’s compatibility matrix prior to ordering ur technical team can assist with this verification at no charge.

Q2: How does the redundant architecture handle communication between old and new system segments during a phased migration?
The dual-channel redundancy operates transparently at the module level, independent of the controller topology. During a phased cutover, the primary and secondary module paths maintain synchronized output states, allowing engineers to transition controller segments one at a time without exposing the field devices to output transients or signal interruptions.

Q3: Can the FBM218 P0922VW replace an older single-channel output module as a direct spare?
Yes. The FBM218 P0922VW is designed as a hardware upgrade path for earlier-generation Foxboro output modules sharing the same base footprint. While the redundant capability adds value, the module operates in simplex mode if only one controller path is connected, preserving backward compatibility with non-redundant controller configurations.

Q4: What HART revision does the module support, and does it affect legacy field instruments?
The FBM218 P0922VW supports HART revision 5 and above, with backward compatibility for HART 5 devices already installed in the field. No field instrument replacement is required solely due to HART version differences, making it a low-disruption performance enhancement for existing wiring infrastructure.

Q5: Is revalidation required when replacing an existing FBM output module in a regulated environment?
Regulatory requirements vary by industry and jurisdiction. However, because the FBM218 P0922VW maintains identical signal characteristics and backplane pinout to its predecessor modules, many facilities classify the swap as a like-for-like replacement, limiting revalidation scope to module-level IQ/OQ documentation rather than a full system requalification.

Q6: What is the recommended spare-parts strategy for a retrofit project using the FBM218 P0922VW?
For retrofit projects involving 20 or more output loops, we recommend maintaining a minimum 10% hot-spare inventory on-site. Given the module’s hot-swap capability, spares can be swapped during operation without process interruption. Contact our team for volume pricing and consignment stock arrangements tailored to your project timeline.
