Foxboro FBM211 P0914TN Retrofit-Compatible Safety Module

Foxboro FBM211 P0914TN Retrofit-Compatible Safety Module for Legacy I/A Series Systems

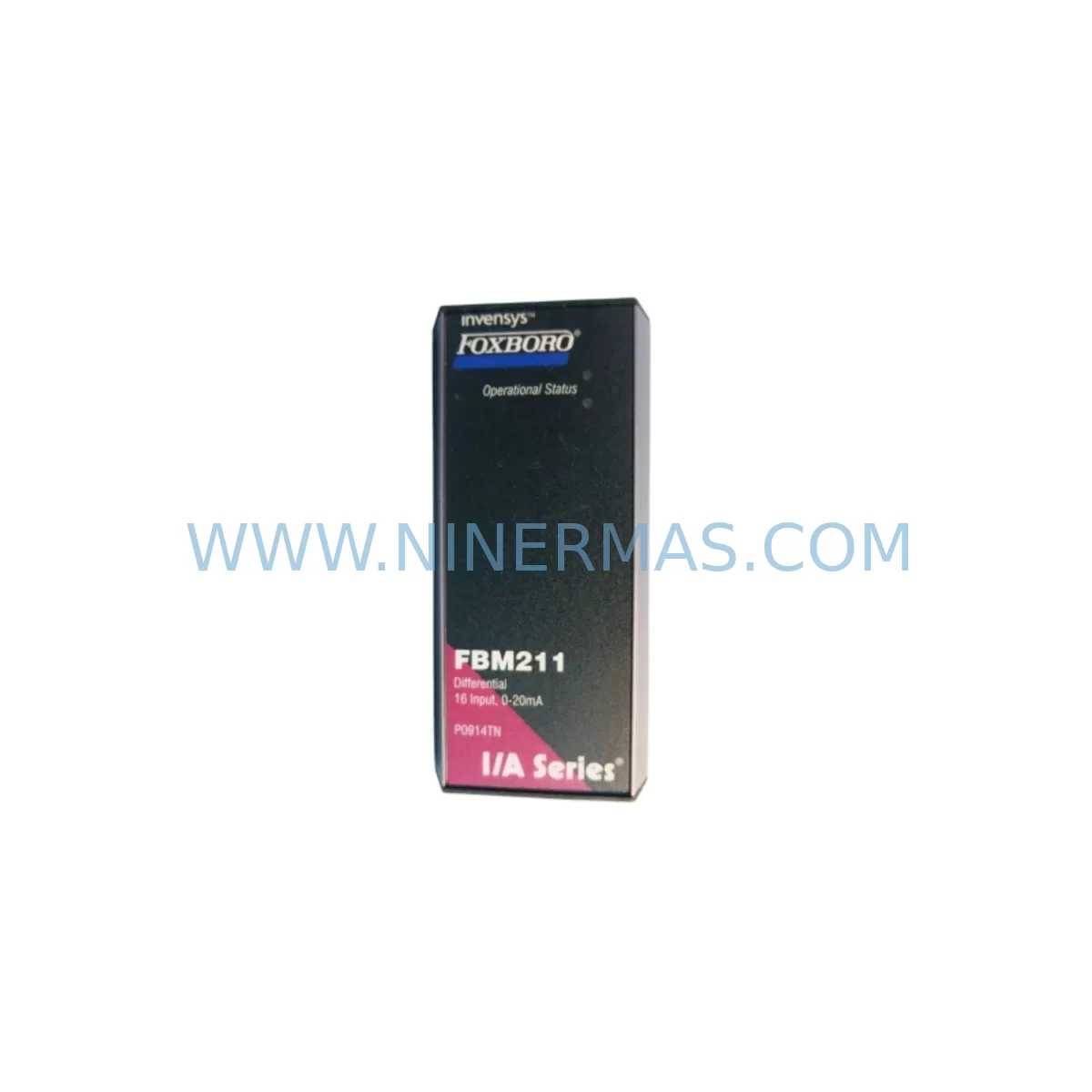

The Foxboro FBM211 P0914TN is a ruggedized differential input safety module designed for use within the Foxboro I/A Series Distributed Control System (DCS). As legacy automation infrastructure ages and original spare parts become increasingly scarce, the FBM211 P0914TN has become a critical component in plant-wide retrofit programs, safety system upgrades, and end-of-life module replacement projects across the process industries. NINERMAS maintains verified stock of this module to support unplanned shutdowns, scheduled turnarounds, and long-term spare parts strategies for facilities operating Foxboro I/A Series control platforms.

The FBM211 belongs to Foxboro’s FBM (Fieldbus Module) series — a family of I/O modules that interface field instrumentation with the I/A Series control processors via the Nodebus or Fieldbus communication architecture. The P0914TN variant is the ruggedized version, built to withstand elevated ambient temperatures, vibration, and humidity conditions common in petrochemical, refining, power generation, and offshore environments. Its differential input configuration supports high common-mode rejection, making it well-suited for safety-critical measurement loops where signal integrity is non-negotiable.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FBM211 P0914TN within an operating I/A Series DCS environment requires a structured approach that accounts for the interdependencies between field wiring, module addressing, control database configuration, and upstream processor communication. Before initiating a module swap, maintenance engineers should audit the existing FBM baseplate to confirm that the carrier assembly — typically a Foxboro FBM Baseplate P0916AQ or equivalent — is in serviceable condition and that the backplane connectors show no signs of oxidation or mechanical wear.

The FBM211 P0914TN interfaces with the I/A Series control processors, such as the Foxboro CP60 or CP270 controller modules, via the Nodebus communication path. During a retrofit, it is essential to verify that the Nodebus segment loading remains within specification after the module replacement, particularly in high-density I/O cabinets where multiple FBM modules — including FBM201 analog input modules, FBM204 analog output modules, and FBM217 discrete input modules — share the same communication segment. Exceeding segment capacity can introduce latency or communication faults that affect the entire control loop group.

Terminal wiring compatibility is another critical checkpoint. The FBM211 P0914TN uses a field termination assembly (FTA) for signal connection, and the corresponding FTA — such as the Foxboro FTA P0916BV or a functionally equivalent termination panel — must be verified against the existing field cable schedule. Differential input wiring polarity, shield grounding practice, and cable routing should be confirmed before the new module is powered. In safety-instrumented loop applications, the signal chain from the field transmitter through the FTA to the FBM211 must be validated against the Safety Requirement Specification (SRS) to ensure that the replacement module meets the required SIL integrity level.

Power supply capacity within the control cabinet deserves careful attention during any FBM retrofit. The I/A Series power distribution system — typically fed by a Foxboro FPS Power Supply P0922AX or redundant equivalent — must have sufficient headroom to support the FBM211 P0914TN’s operating current draw alongside all co-located modules. In aging cabinets where the power supply has been in continuous service for a decade or more, a load audit prior to the retrofit is strongly recommended to avoid nuisance trips or undervoltage conditions during the commissioning phase.

For facilities that are simultaneously upgrading their HMI infrastructure, the FBM211 replacement often coincides with a migration from legacy Foxboro Workstation I/A operator stations to modern SCADA or DCS console environments. In these cases, the control database — including all FBM211-associated function blocks, alarm limits, and engineering unit conversions — must be exported, validated, and re-imported into the updated system. The Foxboro ICC (Integrated Control Configurator) software is the standard tool for this process, and engineers should confirm that the ICC version in use supports the FBM211 P0914TN module definition file before proceeding.

Where communication protocol migration is part of the broader upgrade scope — for example, transitioning from legacy Nodebus to a FOUNDATION Fieldbus or HART-enabled architecture — the FBM211 P0914TN may serve as an interim solution while the new I/O infrastructure is staged and validated in parallel. Signal isolators, such as inline DIN-rail mounted signal conditioners compatible with the existing FTA wiring, can be used to bridge legacy and modern signal standards during the transition period without requiring a full cutover in a single maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any FBM211 P0914TN replacement project. The most effective strategy is to pre-stage the replacement module — bench-test it against a known-good configuration, verify the firmware revision, and confirm that all module diagnostics pass before the scheduled maintenance window opens. NINERMAS performs pre-shipment functional testing on all FBM modules to reduce the risk of receiving a non-functional unit during a time-critical outage.

Where the process permits, a hot-standby approach can be used: the replacement FBM211 P0914TN is installed in an adjacent spare slot on the baseplate, the control database is updated to reference the new slot address, and the cutover is executed as a controlled switchover rather than a hard replacement. This approach preserves the original module’s wiring and configuration as a fallback until the new module has been validated in service. For safety loops, the switchover procedure must be reviewed and approved under the facility’s Management of Change (MOC) process before execution.

Protecting the original program logic is equally important. Before any physical module swap, a full backup of the I/A Series control database — including all compound and block definitions associated with the FBM211 — should be archived to a secure location. The backup should be verified by restoring it to an offline engineering workstation and confirming that all FBM211-related function blocks load without errors. This step ensures that if the replacement module introduces unexpected behavior, the original configuration can be restored within the same maintenance window without requiring an extended outage.

Field control continuity during the migration can be maintained by placing affected control loops in manual mode at the DCS console prior to the module swap, ensuring that final control elements — valves, drives, and other actuators — hold their last commanded position. Once the FBM211 P0914TN replacement is confirmed in service and all loop diagnostics are clear, the loops can be returned to automatic control in a controlled sequence, starting with the least safety-critical loops and progressing to the safety-instrumented functions after full validation.

Retrofit Support FAQ

Q1: Is the FBM211 P0914TN a direct replacement for the standard FBM211?
The P0914TN is the ruggedized variant of the FBM211 and is functionally equivalent to the standard module in terms of I/O configuration and communication interface. It can be used as a direct replacement in standard-environment installations, and it is the preferred replacement in high-temperature or high-vibration environments. Confirm the module address and baseplate slot assignment before installation to ensure the control database references the correct hardware location.

Q2: What commissioning steps are required after installing the FBM211 P0914TN?
After physical installation, the module must be recognized by the I/A Series control processor via the Nodebus. Use the ICC to verify that the module definition is correctly assigned to the target slot, then download the relevant compound and block configuration to the module. Perform a loop check on all differential input channels to confirm signal integrity, verify alarm setpoints, and validate engineering unit scaling before returning loops to automatic control.

Q3: Can the FBM211 P0914TN be used in a safety-instrumented system (SIS)?
The FBM211 P0914TN is designed for use in safety-critical measurement applications within the I/A Series DCS architecture. For formal SIS applications governed by IEC 61511, the module’s use must be validated against the Safety Requirement Specification, and the installation must comply with the facility’s functional safety management procedures. Contact NINERMAS for documentation support if required for your MOC or HAZOP review process.

Q4: What is NINERMAS’s warranty and supply commitment for the FBM211 P0914TN?
NINERMAS provides a 12-month warranty from the date of shipment on all FBM211 P0914TN modules. Each unit undergoes pre-shipment functional testing before dispatch. We maintain ongoing inventory of this module to support both planned maintenance programs and emergency breakdown requirements. For lead time confirmation, volume pricing, or long-term supply agreements, contact our team directly.
