Fireye 95UVS2-1 Service-Ready Spare for Industrial Maintenance

Fireye 95UVS2-1 Service-Ready Spare for Industrial Maintenance: Spare Part Replacement and Downtime Risk Control

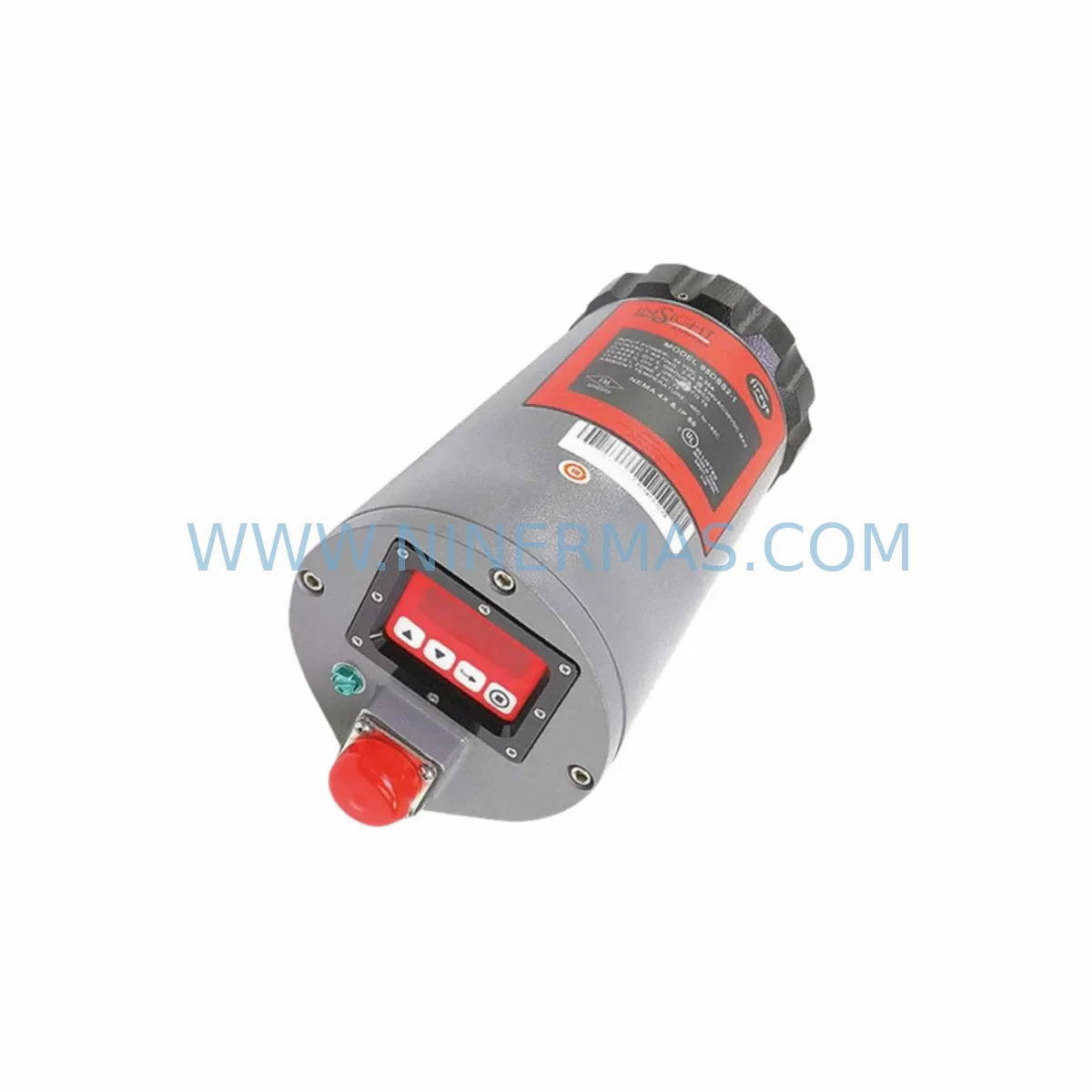

The Fireye 95UVS2-1 is a ruggedized ultraviolet (UV) flame scanner engineered for reliable flame detection in demanding industrial combustion environments. Designed for use with Fireye’s 95UVS series flame safeguard systems, this scanner provides fast, accurate UV-based flame sensing across a wide range of burner applications — including industrial boilers, process heaters, kilns, and thermal oxidizers. For maintenance engineers managing aging combustion control infrastructure, keeping a service-ready 95UVS2-1 in the spare parts inventory is a critical strategy for minimizing unplanned downtime and ensuring continuous safe operation.

The 95UVS2-1 is built to withstand harsh site conditions including high ambient temperatures, vibration, and contaminated atmospheres. Its ruggedized housing and UV sensing tube make it suitable for direct installation in environments where standard scanners would fail prematurely. When a flame scanner fails during operation, the combustion management system will typically initiate a safety lockout, halting production until the fault is cleared. Having a pre-tested, in-stock 95UVS2-1 on hand allows maintenance teams to execute a rapid swap and restore operation within minutes rather than waiting days or weeks for a replacement to arrive.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Fireye 95UVS2-1 in the field, a thorough inspection of the surrounding combustion control circuit is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat a scanner replacement as an opportunity to audit the full flame safeguard loop.

Begin by inspecting the Fireye ED510 or ED500 flame amplifier module, which processes the UV signal from the 95UVS2-1. A degraded amplifier can cause nuisance lockouts even with a new scanner installed. Check the amplifier’s sensitivity setting and verify that the flame signal strength falls within the manufacturer’s recommended range after scanner replacement.

Next, examine the Fireye 60-1290 or 60-2204 scanner cable assembly connecting the 95UVS2-1 to the amplifier. Cracked insulation, loose connectors, or moisture ingress in the cable are common causes of intermittent flame signal loss. Replace the cable if any damage is found — a new scanner paired with a degraded cable will not deliver reliable performance.

The Fireye MEP100 or MEC120 programmer/controller should also be checked for fault history and relay output integrity. These units manage the burner startup sequence and safety lockout logic. If the programmer has logged repeated flame failure faults, the root cause may lie in the amplifier or wiring rather than the scanner itself.

Inspect the Fireye 72DIR1 or 72DIRM1 relay module for contact wear and proper operation. Relay contacts that have experienced repeated switching under load may exhibit high contact resistance, leading to unreliable output signals to the burner management system (BMS) or distributed control system (DCS).

For systems integrated with a PLC or DCS, verify the discrete I/O wiring between the Fireye controller and the plant control system. Loose terminal connections at the I/O marshalling panel or corroded terminal blocks can introduce signal errors that mimic scanner faults. Tighten all terminals and apply contact cleaner where corrosion is present.

Check the 24VDC or 120VAC power supply feeding the flame safeguard system. Voltage sag or ripple on the supply rail can cause false lockouts and premature component wear. Use a calibrated multimeter to verify supply voltage under load before and after scanner replacement.

If the combustion system includes a Fireye 45UV5-1010 or 45UV3-1010 UV scanner on an adjacent burner, compare its signal strength with the newly installed 95UVS2-1 as a cross-reference benchmark. Significant discrepancy may indicate a sight tube alignment issue or contamination on the scanner window.

Finally, inspect the Fireye 129-161-2 sight pipe and purge air assembly. A blocked or contaminated sight pipe will attenuate the UV signal reaching the scanner, reducing detection reliability. Clean the sight pipe and verify that purge air flow is within specification to prevent combustion gas backflow onto the scanner lens.

Site Replacement Workflow

Replacing the Fireye 95UVS2-1 on-site is a straightforward procedure when the correct spare is available and the system has been properly isolated. Follow this workflow to minimize downtime and ensure a safe, verified return to service:

Step 1 — Isolate and Lock Out: Follow site LOTO (Lockout/Tagout) procedures. De-energize the burner management system and confirm that the burner is in a safe, purged state before accessing the scanner.

Step 2 — Remove the Faulty Scanner: Disconnect the scanner cable from the 95UVS2-1. Unscrew the scanner from the sight tube port. Inspect the sight tube for contamination or blockage before installing the replacement.

Step 3 — Install the Replacement 95UVS2-1: Thread the new scanner into the sight tube port and tighten to the specified torque. Reconnect the scanner cable, ensuring the connector is fully seated and the locking collar is engaged.

Step 4 — Verify Signal Strength: Re-energize the flame safeguard system and initiate a controlled burner light-off. Monitor the flame signal strength on the Fireye amplifier or programmer display. Confirm the signal exceeds the minimum threshold specified in the system documentation.

Step 5 — Document and Return to Service: Record the replacement date, new scanner serial number, and measured flame signal strength in the site maintenance log. Update the spare parts inventory to reflect the consumed unit and initiate a reorder to maintain minimum stock levels.

This workflow is compatible with all Fireye 95UVS series installations and supports a seamless transition from legacy scanner models to the current 95UVS2-1 specification without requiring system reconfiguration.

Spare Parts Support FAQ

Q1: Is the Fireye 95UVS2-1 compatible with older 95UVS series installations?
Yes. The 95UVS2-1 is designed as a direct replacement for earlier 95UVS series scanners. It maintains the same mechanical interface and electrical compatibility with Fireye 95UVS flame safeguard systems, allowing drop-in replacement without system modification. Always verify the amplifier sensitivity setting after installation to confirm optimal signal performance.

Q2: What pre-shipment testing is performed on the 95UVS2-1?
Each unit undergoes functional verification prior to dispatch, including UV sensing response testing and connector integrity checks. Units are shipped with individual test records available upon request. This ensures that the scanner arrives in verified working condition, reducing the risk of installation delays caused by defective components.

Q3: What is the recommended spare parts stocking strategy for the 95UVS2-1?
For facilities operating multiple burners or combustion systems equipped with Fireye 95UVS scanners, we recommend maintaining a minimum of one to two 95UVS2-1 units in the on-site spare parts store. For larger installations or sites with extended lead times from local distributors, a standing inventory agreement with reserved stock ensures availability during annual shutdowns and emergency breakdowns.

Q4: What warranty coverage applies to the 95UVS2-1 supplied by NINERMAS?
All Fireye 95UVS2-1 units supplied by NINERMAS COMPANY LIMITED are covered by a 12-month warranty from the date of shipment. Warranty coverage includes defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period will be replaced or credited at our discretion. Warranty claims should be submitted with the original invoice and a description of the failure mode.
