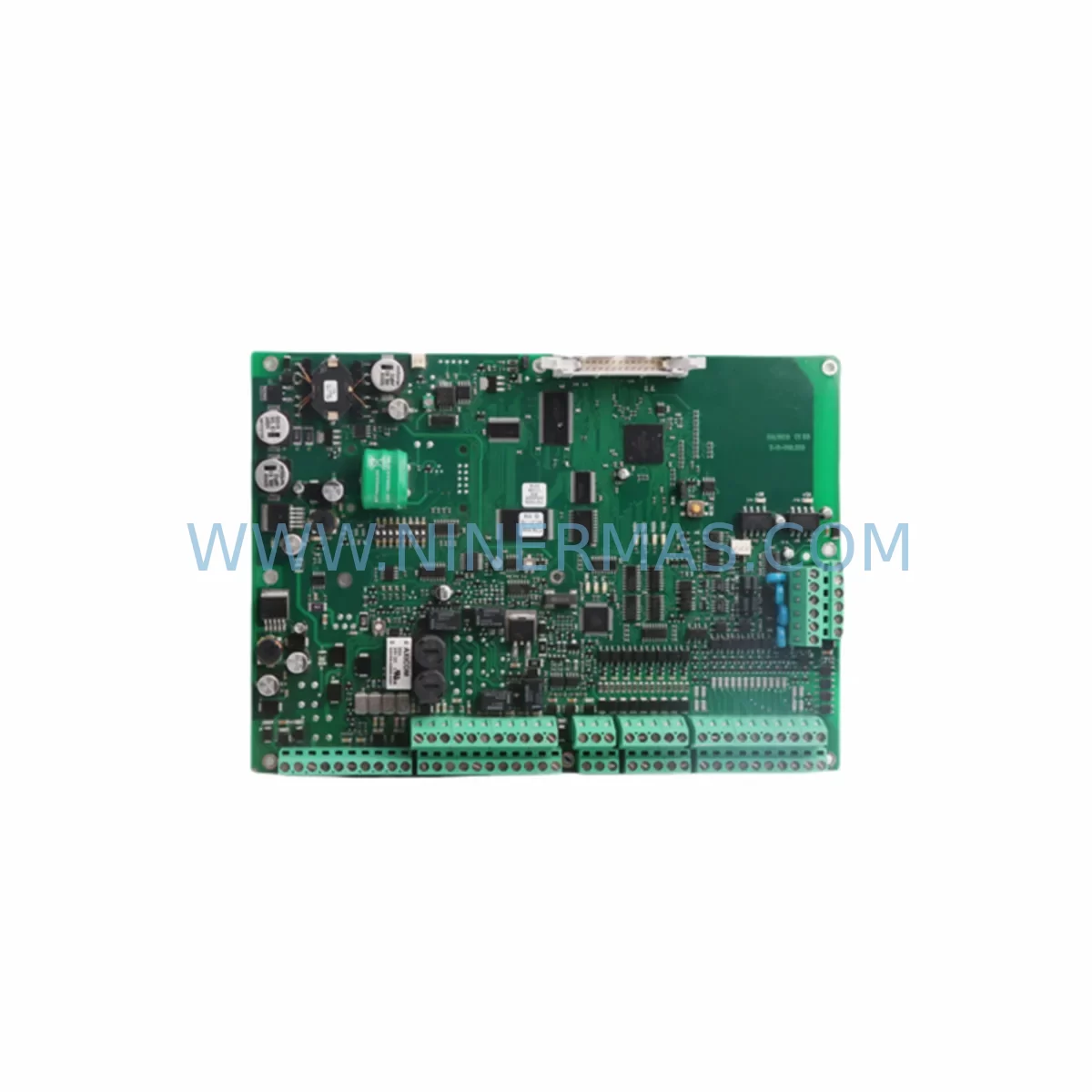

FAIVELEY S-D-010.355 Service-Ready Spare Part for Industrial Maintenance

FAIVELEY S-D-010.355 Service-Ready Spare Part for Industrial Maintenance

The FAIVELEY S-D-010.355 is an original analog input module engineered for continuous-duty industrial environments where signal accuracy, system uptime, and long-term spare parts availability are non-negotiable. Designed for integration within FAIVELEY control architectures, this module supports precision analog signal acquisition across a wide range of process automation, railway traction control, and industrial safety applications. Whether you are executing a planned annual overhaul, responding to an unscheduled fault, or building a strategic spare parts inventory, the S-D-010.355 delivers the compatibility and reliability that maintenance engineers and procurement teams depend on.

Sourced directly from verified supply channels, every unit shipped by NINERMAS undergoes pre-dispatch functional verification and is backed by a 12-month warranty. Our long-term supply commitment ensures that even as OEM production cycles wind down, critical installed base assets remain supportable for years ahead.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault or degradation in the FAIVELEY S-D-010.355 analog input module, best practice demands a systematic inspection of the surrounding electrical circuit before and after replacement. Isolating the module alone rarely resolves root-cause issues if upstream or downstream components have been stressed by the same fault event.

Begin by inspecting the 24 VDC power supply rail feeding the analog input section — voltage ripple or transient spikes are a leading cause of premature module failure. Verify the associated signal isolator or signal conditioner (commonly a DIN-rail mounted unit such as a PHOENIX CONTACT MCR or WAGO 857 series) to confirm it is passing clean 4–20 mA or 0–10 V signals without offset. Check the terminal blocks and field wiring at the I/O marshalling panel; corroded or loose terminations introduce noise that degrades analog accuracy and can trigger false alarms.

For systems where the S-D-010.355 interfaces with a PLC or DCS backplane, inspect the backplane bus connector and adjacent I/O modules — particularly any digital output modules or relay output cards sharing the same rack, as ground loops between analog and digital sections are a common source of interference. If the system includes a FAIVELEY communication module or fieldbus gateway (Profibus, CANopen, or MVB for railway applications), verify that the network is free of CRC errors before returning the system to service.

Procurement engineers building a spare parts kit for FAIVELEY S-D-010 Series panels should consider stocking companion items including: a replacement power supply module for the control rack, a set of fuse holders and fuse links rated for the analog circuit, spare terminal block connectors (Phoenix Contact or equivalent), a signal isolator for each critical analog loop, and at minimum one spare CPU or controller module if the system is no longer in active OEM production. For railway traction applications, an MVB or WTB communication card and a spare HMI operator panel are also recommended as part of the long-term lifecycle kit.

Maintaining a minimum buffer stock of two S-D-010.355 units per installed system significantly reduces mean time to repair (MTTR) during unscheduled outages, particularly for remote or offshore installations where lead times from standard distribution channels can exceed acceptable downtime windows.

Site Replacement Workflow

Step 1 – Isolation: De-energize the control cabinet and lock out / tag out (LOTO) the affected panel section. Confirm zero voltage on the analog input circuit using a calibrated multimeter.

Step 2 – Documentation: Photograph the existing wiring configuration and record the module slot position, terminal assignments, and any DIP switch or jumper settings on the outgoing S-D-010.355 unit.

Step 3 – Removal: Disconnect field wiring at the terminal block. Release the module from the backplane or DIN rail mount. Inspect the slot connector for damage or contamination.

Step 4 – Inspection: Before installing the replacement, verify that the power supply voltage is within specification and that no upstream fault condition (short circuit, overload) remains active. Replace any blown fuse links in the analog circuit.

Step 5 – Installation: Seat the new FAIVELEY S-D-010.355 firmly into the backplane slot or DIN rail position. Reconnect field wiring per the documented terminal assignment. Replicate any DIP switch or jumper configuration from the outgoing unit.

Step 6 – Commissioning: Re-energize the panel. Verify analog input readings against known process values or a calibrated signal source. Confirm no fault alarms are active on the PLC/DCS or HMI. Log the replacement in the site maintenance record.

This workflow minimizes system downtime, preserves configuration integrity, and ensures the replacement module is validated before the system returns to production service.

Spare Parts Support FAQ

Q1: Is the FAIVELEY S-D-010.355 still available for long-term procurement?
Yes. NINERMAS maintains dedicated stock of legacy FAIVELEY S-D-010 Series components to support installed base systems beyond OEM active production. We offer long-term supply agreements for customers requiring guaranteed availability over multi-year maintenance contracts.

Q2: How is compatibility verified before shipment?
Each S-D-010.355 unit is cross-referenced against the customer’s system documentation (panel drawing, BOM, or part number confirmation) prior to dispatch. Pre-shipment functional testing is performed on every unit, and a test report is available upon request.

Q3: What is covered under the 12-month warranty?
NINERMAS provides a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. The warranty covers direct replacement of the defective unit. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Q4: Can the S-D-010.355 replace older or superseded FAIVELEY analog input variants?
In many cases, yes — subject to hardware revision compatibility and backplane interface verification. Our technical team can assist with cross-reference analysis based on your existing panel documentation. Contact us with your system details for a compatibility assessment before ordering.
