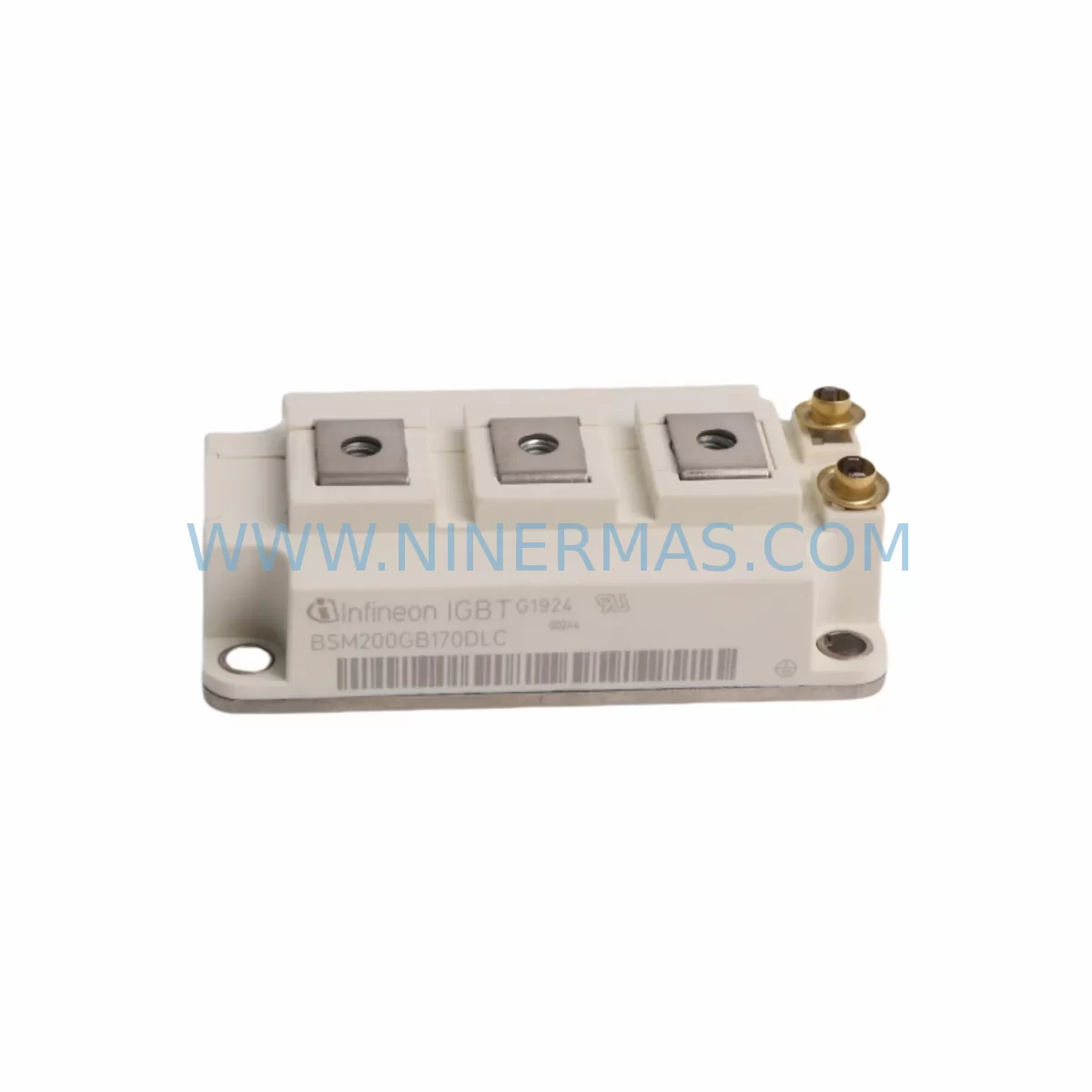

The EUPEC BSM200GB170DLC is a high-power IGBT module rated at 200A / 1700V, originally engineered under the EUPEC brand — now part of the Infineon Technologies power semiconductor portfolio. This module is a critical switching component in medium-to-high voltage industrial drives, servo inverters, UPS systems, and traction converters. When a BSM200GB170DLC fails in service, unplanned downtime can halt entire production lines. Sourcing a verified, original-spec replacement quickly is the single most effective way to restore operation and protect your maintenance budget.

At NINERMAS, every BSM200GB170DLC unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain long-term inventory of EUPEC and Infineon IGBT modules to support both emergency breakdown orders and planned annual overhaul procurement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a BSM200GB170DLC in the field is rarely an isolated task. Experienced maintenance engineers know that an IGBT module failure is often symptomatic of stress across the entire power conversion stage. A thorough site inspection during the replacement window significantly reduces the risk of repeat failures and secondary damage.

When servicing the drive or inverter cabinet housing the BSM200GB170DLC, the following components should be inspected or replaced as part of a complete maintenance cycle:

DC Bus Capacitors and Pre-charge Resistors: High ripple current from a failing IGBT module accelerates capacitor aging. Inspect the DC link capacitors for bulging, leakage, or elevated ESR. Pre-charge resistors should be checked for thermal discoloration.

Gate Driver Board: The gate driver circuit directly interfaces with the BSM200GB170DLC. A damaged gate resistor, optocoupler, or bootstrap capacitor on the driver board can cause the replacement module to fail prematurely. Always verify gate drive voltage (typically +15V / -8V) before powering up.

Current Sensing and Protection Modules: Hall-effect current sensors or shunt-based measurement circuits in the same phase leg should be verified for accuracy. Overcurrent protection thresholds must be confirmed against the new module’s short-circuit rating.

Thermal Interface and Heatsink: Remove old thermal compound completely and apply fresh, high-conductivity thermal paste. Inspect the heatsink for clogged fins or fan failure — inadequate cooling is a leading cause of IGBT module degradation in the BSM 1700V class.

Input Rectifier Bridge and AC Fuses: Upstream rectifier diodes (such as those in a companion SKiiP or SEMIKRON rectifier module) and AC-side semiconductor fuses should be tested. A blown fuse or degraded rectifier can impose abnormal stress on the new BSM200GB170DLC.

Snubber Capacitors and Bus Bars: Stray inductance in the DC bus causes voltage spikes that stress the 1700V blocking voltage of the module. Inspect snubber capacitors and ensure bus bar connections are tight and corrosion-free.

Control Power Supply (SMPS): The 24VDC or 15VDC auxiliary power supply feeding the gate driver and control board should be load-tested. A drooping control supply causes erratic switching behavior that can destroy a new IGBT module within hours.

PLC or DCS I/O Interface Cards: If the drive is controlled via a PLC or DCS, verify that the enable signal, speed reference, and fault reset I/O channels are functioning correctly. A stuck fault output or floating analog reference can prevent the drive from restarting after module replacement.

Communication Modules (PROFIBUS, PROFINET, CANopen): Fieldbus communication cards fitted to the drive should be checked for firmware version compatibility and cable integrity. A communication timeout during startup can be misdiagnosed as a hardware fault.

Terminal Blocks and Power Wiring: Inspect all power and signal terminal blocks for loose connections, oxidation, or heat damage. Re-torque motor output terminals to specification — loose connections cause arcing that generates EMI and can trigger nuisance trips on the new module.

Building a recommended spare parts kit around the BSM200GB170DLC — including at least one spare gate driver board, a set of DC bus capacitors, and a replacement control power supply — is a best practice for facilities running continuous or critical processes.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the drive, discharge the DC bus to below 50V (verify with a calibrated meter), and apply LOTO. Allow the heatsink to cool to ambient temperature before handling the module.

Step 2 — Documentation: Photograph the existing wiring, gate driver connections, and module orientation before disassembly. Record the drive firmware version and parameter set if accessible.

Step 3 — Module Removal: Remove collector and emitter bus bar connections. Unscrew the module mounting bolts in the sequence specified by the drive manufacturer. Lift the BSM200GB170DLC straight up to avoid bending the power terminals.

Step 4 — Surface Preparation: Clean the heatsink contact surface with isopropyl alcohol. Apply a thin, even layer of thermal interface material to the new BSM200GB170DLC baseplate.

Step 5 — Installation: Position the replacement module, hand-tighten mounting screws, then torque to specification (typically 3–5 Nm for M5 screws in this module class). Reconnect bus bars and gate driver harness.

Step 6 — Pre-Power Verification: Measure gate-emitter resistance on all switching elements. Verify no short circuit between collector and emitter. Confirm gate driver supply voltages before enabling the drive.

Step 7 — Commissioning: Power up at reduced load. Monitor module temperature, DC bus voltage, and output current waveform for the first 30 minutes of operation. Log all parameters for the maintenance record.

This workflow applies equally when upgrading from an older EUPEC module variant or migrating from a discontinued part number to the current BSM200GB170DLC specification. The DLC package footprint maintains backward compatibility with earlier BSM GB series mounting patterns, simplifying like-for-like replacement without cabinet modification.

Spare Parts Support FAQ

Q1: Is the BSM200GB170DLC still in production, and can NINERMAS guarantee long-term supply?
The BSM200GB170DLC is a mature EUPEC/Infineon product. NINERMAS maintains strategic inventory of this module and monitors lifecycle status to provide advance notice of any end-of-life changes. We support long-term procurement agreements for facilities that require guaranteed availability over multi-year maintenance cycles.

Q2: How is each BSM200GB170DLC tested before shipment?
Every unit undergoes electrical parameter verification including Vce(sat), leakage current, and gate threshold voltage checks. Modules are packed in ESD-safe anti-static bags with foam cushioning and shipped with a test report. A 12-month warranty covers any verified manufacturing or functional defect.

Q3: Can the BSM200GB170DLC replace other modules in the BSM GB DLC family?
Compatibility depends on the current rating and voltage class required by the specific drive design. The BSM200GB170DLC (200A / 1700V) may be interchangeable with adjacent current ratings in the same series if the drive’s gate driver and thermal design support the substitution. NINERMAS technical support can assist with compatibility verification before purchase.

Q4: What is the recommended spare holding quantity for a facility running multiple drives with this module?
Industry best practice for critical process equipment is to hold a minimum of one spare module per installed drive, with an additional buffer of 10–20% for facilities with more than five units in service. For plants with long lead-time procurement cycles or remote locations, holding two units per drive is advisable. NINERMAS offers volume pricing and consignment stock arrangements for qualified customers.
