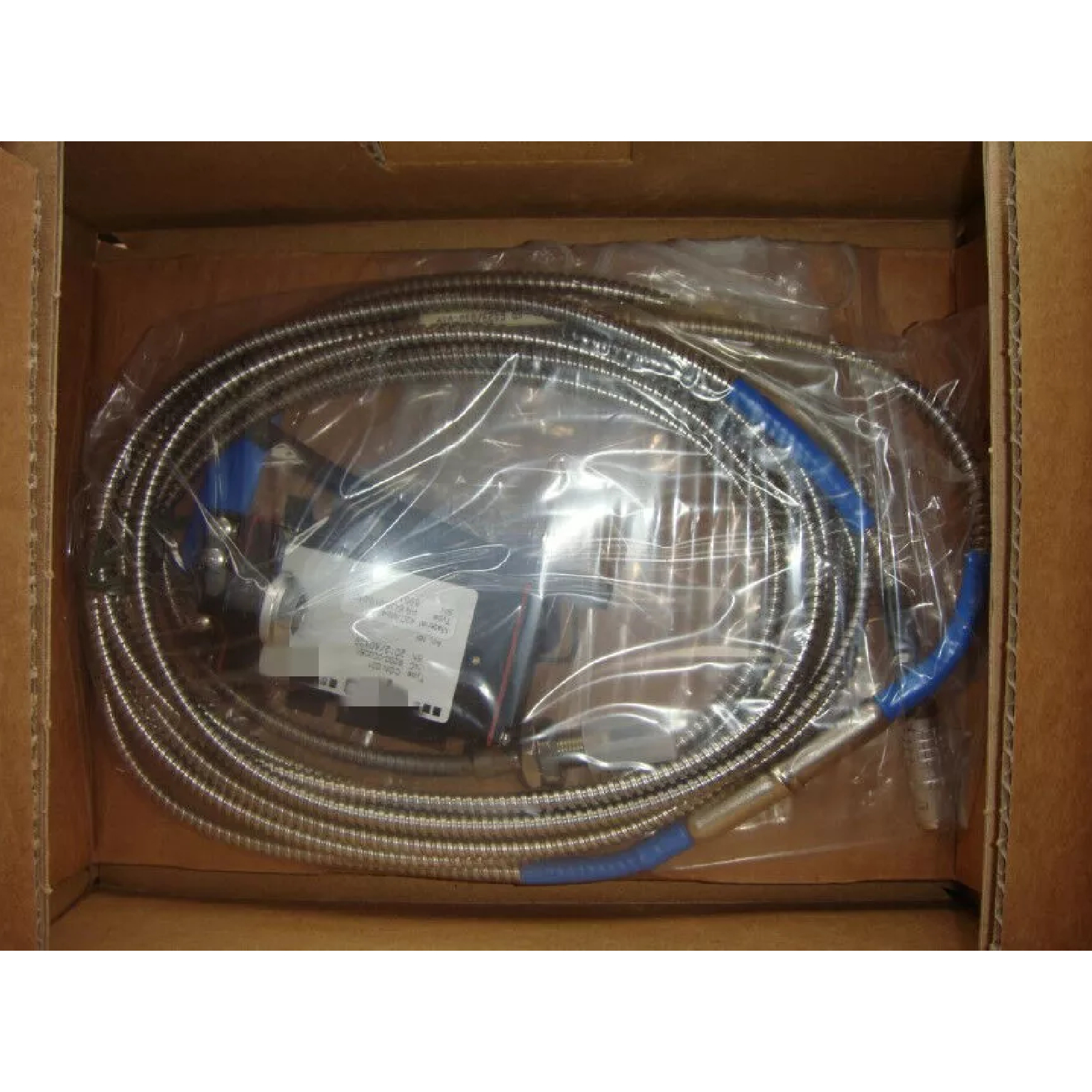

EPRO PR6423/010-010+CON021 Eddy Current Sensor — Retrofit & Upgrade

EPRO PR6423/010-010+CON021 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across power generation and petrochemical facilities, I consistently identify the EPRO PR6423/010-010+CON021 as a cornerstone component in turbomachinery monitoring modernization. This 8mm eddy current sensor system plays a decisive role in extending the operational lifespan of aging DCS and TSI infrastructures while simultaneously elevating measurement precision to meet today’s predictive maintenance standards. Its non-contact displacement sensing architecture eliminates mechanical wear, reducing unplanned downtime by up to 40% in retrofit deployments.

The EPRO PR6423/010-010+CON021 excels as an upgrade pathway anchor due to its backward compatibility with legacy Bently Nevada 3300 series frameworks and EPRO monitoring racks. Engineers migrating from obsolete probe systems benefit from dimensional interchangeability and signal output alignment (-7.87 V/mm), which eliminates the need for costly signal conditioning overhauls. This hardware upgrade path preserves existing cable infrastructure while delivering modern IP67-rated protection and extended frequency response up to 10 kHz.

From a migration risk and cost perspective, deploying this sensor system within a phased retrofit strategy significantly reduces capital expenditure. Rather than full platform replacement, facilities can achieve seamless integration by substituting only the sensing layer, preserving PLC/DCS investments and minimizing commissioning windows to as little as 4-8 hours per measurement point.

Upgrade Highlights & Compatibility

✅ Direct Legacy Compatibility: Dimensional and electrical interchange with Bently Nevada 3300 XL 8mm probes — zero signal chain redesign required.
Performance Enhancement: ±1% FSO linearity and 0-10 kHz frequency response surpass most legacy sensor specifications.
? Seamless Integration: CON021 converter outputs industry-standard -24 VDC, compatible with existing DCS, SCADA, and TSI platforms.
Future-Proofing: IP67 sealed construction and -40°C to +125°C operating range ensure long-term reliability in harsh environments.
? Retrofit Solution Efficiency: Plug-and-play deployment reduces commissioning time by up to 60% versus full system replacement.
Calibration Continuity: Ships with ISO 17025-traceable calibration certificate — no field recalibration required at installation.

Modernization Use Cases & Success Stories

DCS Modernization in Power Generation: A 600 MW coal-fired power plant replaced its aging eddy current probes across 12 turbine bearing positions with the PR6423/010-010+CON021 system. The retrofit achieved a 35% improvement in vibration signal resolution, enabling earlier fault detection and reducing forced outage frequency by two events per year. The CON021 converter’s direct compatibility with the plant’s existing ABB DCS eliminated any software reconfiguration.

TSI Upgrade in Petrochemical Compressor Trains: A refinery operating legacy EPRO monitoring racks executed a phased hardware upgrade across four centrifugal compressor trains. By substituting only the sensor-converter layer with PR6423/010-010+CON021 units, the project team preserved the existing rack infrastructure and achieved full commissioning within a single planned shutdown window. Axial position measurement accuracy improved from ±2.5% to ±1% FSO, directly supporting API 670 compliance.

Legacy Compatibility in Offshore Gas Platforms: Offshore facilities with space-constrained junction boxes benefited from the M8 thread form factor and 5m standard cable, enabling direct replacement of obsolete probes without conduit rerouting. The performance upgrade delivered continuous shaft displacement data to the platform’s SCADA system with no signal interruption during hot-swap commissioning.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Complete Part Number | PR6423/010-010+CON021 | | Probe Diameter | 8mm (M8 thread) | | Measurement Range | 0-2mm calibrated | | Frequency Response | 0-10 kHz (-3dB) | | Linearity | ±1% FSO | | Output Signal | -7.87 V/mm (CON021 output: -24 VDC standard) | | Operating Temperature | -40°C to +125°C (sensor tip) | | Protection Rating | IP67 sealed | | Legacy Compatibility | Bently Nevada 3300 XL 8mm, EPRO legacy racks | | Cable Length Options | 5m standard; 9m, 15m extensions available | | Calibration Standard | ISO 17025 traceable certificate included | | Vibration Resistance | Up to 50g | | Target Material | Ferromagnetic steel; 400-series SS & Inconel (with recal.) | | Lifecycle Status | Active — current production | | Warranty | 12 months, materials & workmanship |

Supply Chain & Deployment Support

Original & Factory Sealed: Every PR6423/010-010+CON021 unit is sourced as genuine EPRO product, factory sealed with full traceability documentation. No refurbished or remanufactured stock — critical for safety-instrumented system (SIS) compliance and insurance requirements.

Expedited Global Logistics: We maintain strategic inventory to support urgent retrofit and emergency replacement scenarios. Express air freight to major industrial hubs in Europe, Asia-Pacific, and the Middle East is available with lead times as short as 3-5 business days. DDP (Delivered Duty Paid) shipping options simplify customs clearance for international retrofit projects.

Technical Support for Obsolete & Legacy Hardware: Our engineering team provides application-specific guidance for integrating the PR6423/010-010+CON021 into legacy monitoring architectures. Support services include wiring diagram review, signal chain compatibility analysis, and commissioning checklists tailored to your existing DCS or TSI platform.

Retrofit FAQ (Upgrade Guide)

Q: Will the PR6423/010-010+CON021 fit in my existing probe mounting without mechanical modification?
A: Yes. The M8 thread form factor and standard probe body dimensions are designed for direct dimensional interchange with legacy 8mm eddy current probes, including Bently Nevada 3300 XL series. No machining or adapter hardware is required in the vast majority of retrofit applications.

Q: How does the CON021 converter communicate with older DCS platforms that use 4-20 mA inputs?
A: The CON021 outputs a -24 VDC proportional signal. For DCS platforms requiring 4-20 mA, a signal conditioner or I/P converter can be inserted in the signal chain. Our technical team can recommend compatible signal conditioning modules based on your specific DCS make and model.

Q: What are the recommended spare part substitution options if PR6423/010-010+CON021 is unavailable?
A: The PR6423 series includes multiple cable length and thread variants. The PR6423/010-040 (9m cable) and PR6423/010-100 (15m cable) are functionally equivalent with CON021 and can serve as interim replacements. Always verify cable length compatibility with your junction box layout before substitution.

Q: Can this sensor system be integrated into a modern IIoT or condition monitoring platform?
A: Absolutely. The CON021’s standard voltage output is compatible with most modern edge computing gateways and IIoT-enabled vibration monitoring platforms. This makes the PR6423/010-010+CON021 an ideal bridge component in a phased digital transformation strategy — maintaining legacy rack compatibility while enabling data connectivity to cloud-based analytics systems.

Q: What is the maximum total cable run length for reliable signal transmission?
A: The maximum recommended total cable run (probe cable + extension cable) is 20 meters. Exceeding this length may introduce signal attenuation and affect linearity. For longer runs, signal repeaters or distributed I/O solutions should be evaluated.

Q: Is recalibration required after installation in a retrofit application?
A: No field recalibration is required when replacing a like-for-like 8mm probe on the same target material (ferromagnetic steel). Each unit ships with an ISO 17025-traceable factory calibration certificate valid for the specified target material and gap range. Recalibration is only recommended when changing target material type or operating gap range.
