Bently Nevada 330704-000-026-50-02-CN Spare Part

Bently Nevada 330704-000-026-50-02-CN Service-Ready Spare Part for Industrial Maintenance

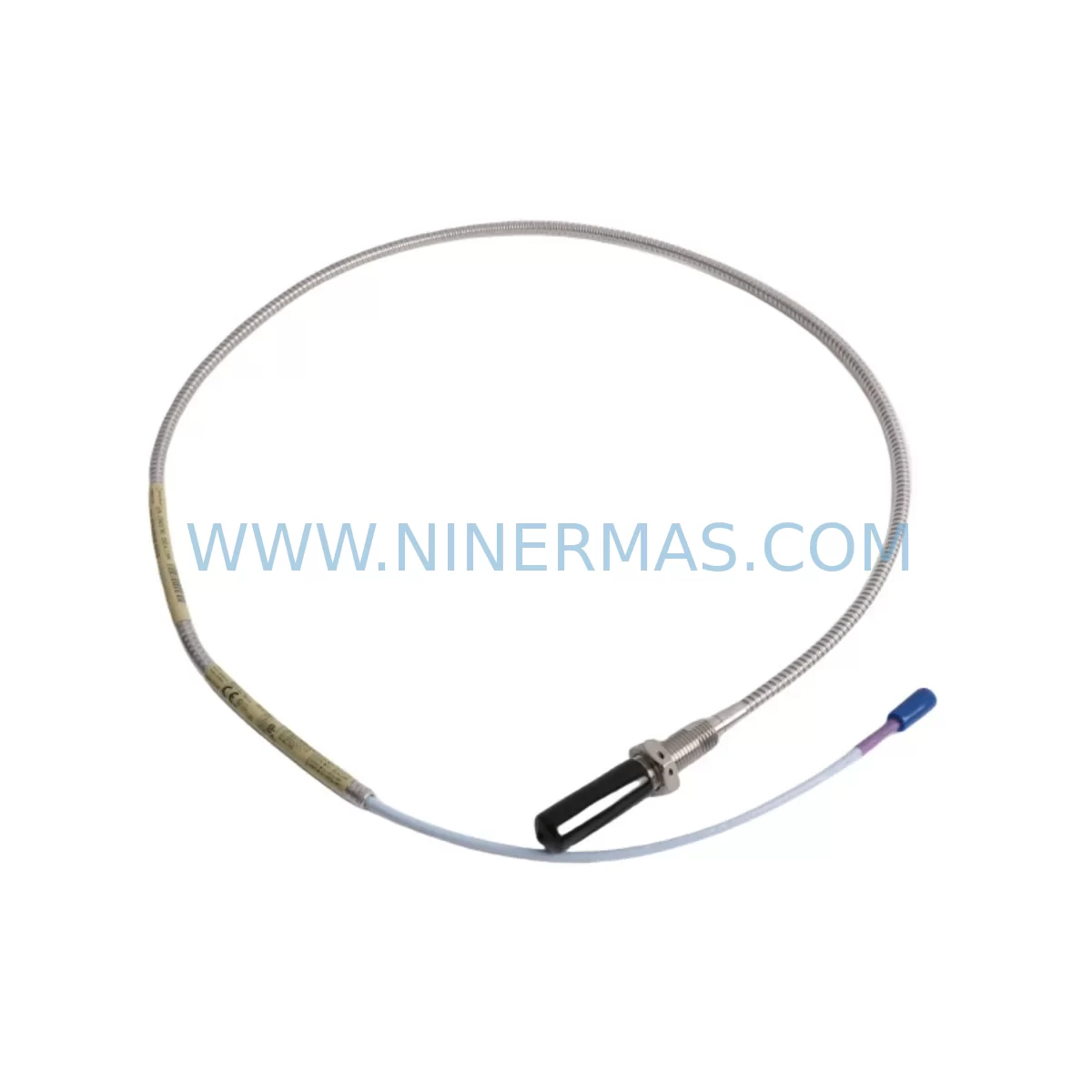

The Bently Nevada 330704-000-026-50-02-CN is a service-ready proximity transducer designed for the Bently Nevada 3300 XL continuous vibration monitoring system. As a direct OEM-equivalent replacement, this unit is engineered to restore full system functionality with minimal downtime — a critical requirement in rotating machinery protection environments such as turbines, compressors, pumps, and gearboxes operating under API 670 standards.

For maintenance engineers managing aging DCS or machinery protection infrastructure, sourcing a verified, tested replacement for the 330704-000-026-50-02-CN is often the fastest path to resuming safe production. This unit ships pre-tested, with full electrical verification, and is backed by a 12-month warranty from NINERMAS COMPANY LIMITED.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330704-000-026-50-02-CN proximity transducer in a 3300 XL monitoring loop, a thorough site inspection goes well beyond swapping the probe. Experienced maintenance engineers know that a single transducer failure often signals stress across the entire measurement chain. Before returning the system to service, the following components should be inspected or replaced as part of a complete maintenance cycle:

• Extension Cable (e.g., Bently Nevada 330130-045-00-CN or equivalent): The probe and extension cable form a matched system. A worn or kinked extension cable will introduce signal noise even with a new probe installed. Always replace the extension cable when the probe is changed.
• Proximitor Sensor / Signal Conditioner (e.g., Bently Nevada 3300 XL 8 mm Proximitor, 330180-X1-05): The Proximitor converts the raw eddy current signal into a usable voltage output. If the probe replacement does not resolve the alarm, the Proximitor is the next component to test and potentially replace.
• 3300/16 Monitor Module: In rack-based 3300 XL systems, the monitor card processes the Proximitor output. Verify that the monitor card is not generating false alarms due to internal component aging or firmware issues.
• Power Supply Module (e.g., Bently Nevada 3300/15 Power Supply): Unstable DC power to the Proximitor is a common root cause of erratic vibration readings. Inspect the rack power supply for output voltage stability and ripple.
• I/O Terminal Blocks and Field Wiring: Corroded or loose terminal connections between the Proximitor and the monitor rack introduce resistance that distorts the gap voltage. Clean and re-torque all field terminals during the replacement procedure.
• Relay Output Module (e.g., 3300/20 Relay Module): If the vibration monitor drives relay-based shutdown logic, verify that the relay contacts are not worn or welded shut — a critical check before re-energizing the protection loop.
• Communication Gateway or Modbus Interface Card: In DCS-integrated installations, confirm that the serial or Modbus communication link between the 3300 XL rack and the plant DCS (e.g., Emerson DeltaV, Honeywell Experion) is re-established after the replacement and that the new probe’s calibration data is correctly reflected in the historian.
• Keyphasor Module (e.g., Bently Nevada 3300/25 Keyphasor Module): For phase-referenced vibration analysis, verify that the Keyphasor signal is clean and properly gapped after any mechanical work near the shaft.
• Signal Isolator or Barrier (e.g., MTL or P+F Zener Barrier for hazardous area installations): In Zone 1 or Zone 2 classified areas, the intrinsic safety barrier in the Proximitor circuit must be inspected for continuity and correct earth bonding.
• Spare Probe Holder / Bracket Hardware: Mechanical wear on the probe bracket or locking nut can cause probe position drift over time. Inspect and replace bracket hardware as needed to maintain consistent gap distance.

Maintaining a pre-kitted spare set — including the 330704-000-026-50-02-CN probe, a matched extension cable, and a tested Proximitor — reduces mean time to repair (MTTR) from hours to minutes during an unplanned shutdown event. Procurement engineers should consider holding at least two matched sets per critical machine train in the site spare parts inventory.

Site Replacement Workflow

Replacing the 330704-000-026-50-02-CN in the field follows a structured procedure to ensure system compatibility and minimize downtime:

1. Isolate and Document: Before removing the existing probe, record the current gap voltage and vibration baseline from the 3300 XL monitor display or DCS historian. This provides a reference for post-installation verification.
2. Remove the Old Probe Assembly: Disconnect the extension cable from the Proximitor. Carefully unthread the probe from the bracket, noting the number of turns to approximate the original gap setting.
3. Install the 330704-000-026-50-02-CN: Thread the new probe into the bracket to the approximate gap position. Connect the matched extension cable. Do not mix probe and extension cable from different calibrated sets.
4. Set and Verify Gap Voltage: Power the Proximitor and measure the gap voltage at the monitor input. Adjust the probe position until the gap voltage falls within the system’s specified operating range (typically -10 VDC to -18 VDC for 8 mm probes). Lock the probe in position with the locking nut.
5. Functional Test: Confirm that the monitor card displays a valid vibration reading with no active alarms. Simulate a trip condition if the plant safety procedure permits, to verify that the relay output and DCS alarm response are functioning correctly.
6. Return to Service and Update Records: Log the replacement in the CMMS (Computerized Maintenance Management System), update the spare parts inventory, and schedule the next inspection interval per the OEM maintenance schedule.

This workflow is compatible with both like-for-like replacement of the 330704-000-026-50-02-CN and cross-upgrade scenarios where older 3300 series probes are being migrated to the 3300 XL platform. The CN connector variant is specifically suited for installations in Chinese industrial facilities where local connector standards apply.

Spare Parts Support FAQ

Q1: Is the 330704-000-026-50-02-CN a direct drop-in replacement for older Bently Nevada 3300 series probes?
A: The 330704-000-026-50-02-CN is designed for the 3300 XL system. While it shares the same 8 mm eddy current operating principle as earlier 3300 series probes, the extension cable connector and Proximitor pairing must be verified for compatibility before installation. Always confirm the full system configuration — probe, extension cable, and Proximitor — before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this spare part?
A: Every 330704-000-026-50-02-CN unit shipped by NINERMAS undergoes electrical continuity testing, gap voltage output verification, and insulation resistance checks before dispatch. A test report is available upon request. Units are packaged in anti-static, moisture-resistant packaging to ensure safe transit to site.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
A: The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order number, failure description, and site photos. Replacement units are dispatched within 5 business days of claim approval.

Q4: Can NINERMAS support long-term supply agreements for the 330704-000-026-50-02-CN and related 3300 XL components?
A: Yes. NINERMAS maintains stock of the 330704-000-026-50-02-CN and related 3300 XL spare parts including extension cables, Proximitor sensors, and monitor modules. We support annual blanket purchase orders and consignment stock arrangements for large industrial sites. Contact our procurement team to discuss volume pricing, lead time guarantees, and long-term supply agreements tailored to your maintenance schedule.
