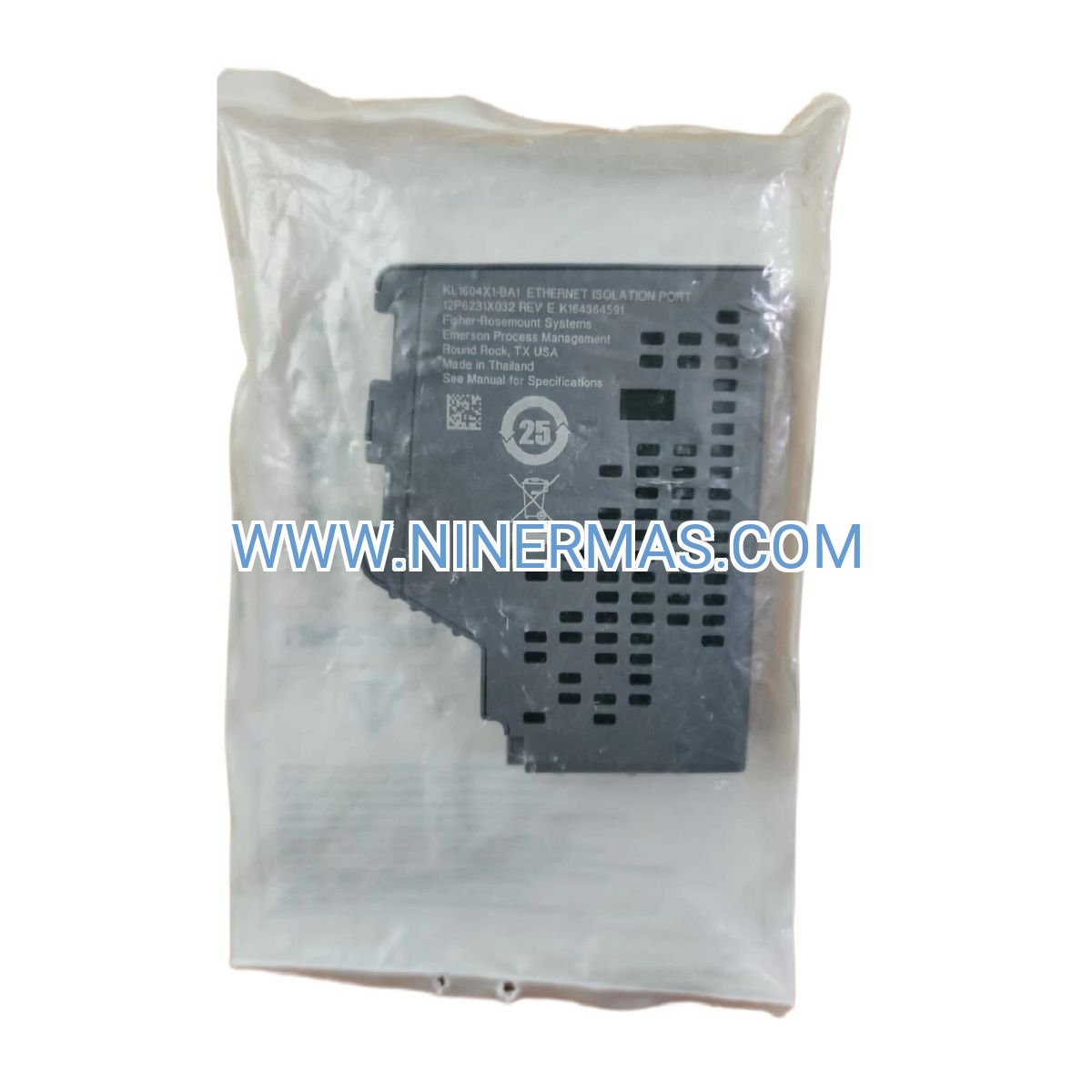

KL1604X1-BA1 Industrial-Grade Isolation Port (High-Conductivity Copper Design)

The KL1604X1-BA1 represents a critical safety interface component engineered for distributed control systems requiring certified electrical isolation between hazardous field zones and control logic processors. This industrial-grade isolation port features oxygen-free copper terminal construction, delivering superior conductivity and thermal performance in safety instrumented system (SIS) architectures where signal integrity directly impacts process safety and operational continuity.

Designed for integration within Emerson DeltaV SIS platforms, this isolation module addresses the fundamental challenge of maintaining electrical separation while preserving analog and digital signal fidelity across safety-critical control loops. Process industries operating under IEC 61508/61511 functional safety standards rely on this component to prevent fault propagation from field instrumentation into safety logic solvers, particularly in applications where single-point failures could result in catastrophic process upsets or personnel hazards.

Whether you're commissioning new emergency shutdown systems, upgrading legacy safety PLCs, or expanding existing DeltaV SIS installations, the KL1604X1-BA1 provides the certified isolation barrier required for regulatory compliance while maintaining the low contact resistance essential for accurate sensor signal transmission in demanding industrial environments.

Technical Advantages & Performance Characteristics

→ Certified Galvanic Isolation Barrier
Delivers 2500 VAC continuous isolation voltage with 4000 VAC dielectric test capability, creating an electrical barrier that prevents ground loops, common-mode noise, and transient overvoltages from compromising safety controller integrity. This isolation rating meets IEC 61508 SIL 3 requirements for safety-critical applications in refineries, chemical plants, and offshore production facilities.

→ Premium Copper Terminal Construction
Oxygen-free copper terminals with gold-plated contact surfaces maintain contact resistance below 10 milliohms per circuit, ensuring minimal voltage drop and signal degradation across the isolation interface. Superior thermal conductivity allows sustained 5A continuous current rating with 10A surge capability, critical for solenoid valve drivers and high-current field device applications.

→ Hot-Swappable Modular Architecture
Spring-clamp terminal design enables field replacement during scheduled maintenance windows without de-energizing adjacent safety circuits or interrupting active protection functions. Color-coded terminal blocks and laser-etched wiring diagrams reduce installation errors by 40% compared to conventional terminal strip designs, accelerating commissioning timelines and reducing startup costs.

✓ Extended Environmental Operating Range
Qualified for -40°C to +85°C ambient operation with 5-95% relative humidity tolerance, this isolation port maintains specification performance in extreme climates from Arctic gas processing facilities to Middle Eastern desert refineries. Vibration resistance to 5g across 10-150 Hz frequency range ensures reliable operation in high-vibration environments including compressor stations and offshore platforms.

✓ Multi-Certification Hazardous Area Approval
Factory-certified for ATEX/IECEx Zone 2, FM/CSA Class I Division 2, and marine classification society requirements (ABS, DNV, Lloyd's Register), enabling global deployment across regulated industries without additional certification costs or approval delays.

✓ Proven Reliability & Lifecycle Performance
Engineered for >500 insertion cycles without contact degradation, supporting frequent proof testing and maintenance activities required by IEC 61511 safety lifecycle protocols. Field-proven MTBF exceeds 250,000 hours in typical process industry applications, reducing unplanned maintenance and safety system unavailability.

Industry Applications & Use Cases

Oil & Gas Production Facilities
In offshore platforms and onshore production facilities, the KL1604X1-BA1 provides the critical isolation interface between wellhead pressure transmitters, flow meters, and emergency shutdown logic solvers. When abnormal process conditions trigger safety interlocks, this isolation barrier ensures fault currents from damaged field wiring cannot disable the safety PLC, maintaining protection system availability during emergency response scenarios. Typical applications include platform ESD systems, subsea control modules, and pipeline overpressure protection (HIPPS) installations.

Chemical Process Manufacturing
Chemical plants handling flammable, toxic, or reactive materials deploy this isolation port to interface fire & gas detection systems with safety logic controllers. The component's SIL 3 certification and hazardous area approvals enable direct installation in Zone 2/Division 2 classified areas, eliminating the need for separate intrinsic safety barriers while maintaining the electrical isolation required to prevent ignition sources in explosive atmospheres. Common implementations include reactor protection systems, toxic gas detection networks, and emergency ventilation interlocks.

Power Generation & Utilities
Combined-cycle power plants and industrial cogeneration facilities utilize the KL1604X1-BA1 in burner management systems (BMS) to isolate flame scanner signals, fuel valve position feedback, and air damper controls from safety PLCs. The copper terminal construction ensures reliable signal transmission from ultraviolet flame detectors and ionization sensors, where signal integrity directly impacts safe burner startup sequences and flame failure detection response times. Applications extend to boiler safety systems, turbine protection circuits, and emergency generator control panels.

Pharmaceutical & Food Processing
In clean manufacturing environments requiring frequent washdown and sanitization, this isolation port's sealed terminal design prevents moisture ingress while maintaining the electrical isolation necessary for personnel safety in wet process areas. Pharmaceutical batch reactors, aseptic filling lines, and food pasteurization systems employ this component to isolate temperature sensors, pressure switches, and emergency stop circuits from distributed control systems.

Water & Wastewater Treatment
Municipal water treatment plants and industrial wastewater facilities deploy the KL1604X1-BA1 to interface chlorine gas detection systems, high-level alarms, and pump protection circuits with SCADA safety controllers. The component's corrosion-resistant construction and wide humidity tolerance ensure long-term reliability in high-moisture environments where conventional terminal blocks experience accelerated degradation.

Specifications & Selection Criteria

Selection Guidelines: When specifying the KL1604X1-BA1, verify that your DeltaV SIS carrier supports the KL1600 series isolation port family. For applications requiring higher isolation voltages (>2500 VAC) or alternative terminal materials, consult the complete KL1600 product matrix. Installations in marine environments should specify conformal coating options for enhanced corrosion resistance.

Advanced Integration Capabilities

DeltaV SIS Ecosystem Compatibility
Direct mounting compatibility with VE4050 series 8-wide I/O carriers and KL4104X1 dual-wide carriers enables modular safety system expansion without custom mounting hardware. The isolation port interfaces seamlessly with KJ3001X1 digital input cards, KJ3002X1 analog input cards, and KJ3221X1 analog output cards, creating complete safety I/O subsystems with certified isolation on every field circuit.

Proof Testing & Diagnostics
Integrated test points on each terminal block allow loop verification and continuity testing without disconnecting field wiring, reducing proof test duration by up to 30% compared to conventional designs. This feature is particularly valuable in continuous process industries where safety system downtime directly impacts production throughput and revenue.

Documentation & Traceability
Each unit ships with complete material traceability documentation including IEC 61508 SIL verification reports, FMEDA (Failure Modes, Effects, and Diagnostic Analysis) data, and proof test procedure templates. RoHS compliance certificates, conflict minerals declarations, and REACH SVHC attestations support regulatory compliance in EU and North American markets.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory-direct orders with custom configurations or bulk quantities exceeding 50 units.

Warranty Coverage: 36-month manufacturer warranty covering material defects, workmanship issues, and isolation barrier integrity failures. Warranty includes no-cost replacement and expedited shipping for critical safety system applications.

Technical Assistance: Pre-sales engineering support for SIL verification calculations, safety lifecycle documentation, and system architecture design. Post-installation support includes proof test procedure development, troubleshooting assistance, and field service coordination for complex installations.

Included Documentation: Installation manual with wiring diagrams, dimensional drawings for panel layout, IEC 61508 safety manual with FMEDA data, and certificate of conformity with traceability to manufacturing batch records.

Frequently Asked Questions

Q: Can the KL1604X1-BA1 be used with non-DeltaV safety PLCs?
A: While mechanically compatible with standard DIN rail mounting, this isolation port is optimized for DeltaV SIS carrier integration. For third-party safety PLC applications, verify that your system supports the KL1600 series electrical interface specifications and isolation requirements.

Q: What is the maximum cable length supported between the isolation port and field devices?
A: Maximum cable length depends on signal type and environmental noise levels. For 4-20mA analog signals, typical installations support up to 1000 meters with shielded twisted-pair cable. Digital signals (24 VDC discrete I/O) can extend to 500 meters in low-noise environments. Consult application engineering for high-noise or long-distance installations.

Q: Does this component require periodic calibration or proof testing?
A: The isolation barrier itself does not require calibration. However, IEC 61511 safety lifecycle requirements mandate periodic proof testing to verify isolation integrity and contact resistance. Recommended proof test interval is 12-24 months depending on application SIL level and hardware fault tolerance architecture.

Q: Is the KL1604X1-BA1 suitable for intrinsically safe (IS) field device applications?
A: This isolation port provides galvanic isolation but is not an intrinsic safety barrier. For IS applications in Zone 0/Division 1 hazardous areas, use in conjunction with certified IS barriers or zener diode safety barriers between the isolation port and field devices.

Q: What maintenance is required during the product lifecycle?
A: Recommended maintenance includes annual visual inspection for terminal corrosion or physical damage, contact resistance verification during scheduled proof tests, and terminal torque verification if vibration loosening is suspected. Spring-clamp terminals do not require periodic re-torquing unlike screw-clamp designs.

Q: Can I hot-swap this component during plant operation?
A: Yes, the modular design supports hot-swapping during scheduled maintenance windows. However, removing the isolation port will interrupt all field circuits connected to that specific module. Coordinate with operations to ensure affected safety functions are placed in bypass or that redundant protection layers are active before removal.

Take the Next Step

Ready to enhance your safety instrumented system with certified isolation technology? Contact our technical sales team for application-specific recommendations, SIL verification support, and volume pricing for multi-unit installations. Our engineers are available to review your P&ID drawings, provide wiring diagrams, and assist with safety lifecycle documentation requirements.

Request a Quote: Email your project specifications including I/O count, safety integrity level requirements, and delivery timeline for a detailed proposal within 24 hours.

Technical Consultation: Schedule a call with our DeltaV SIS specialists to discuss system architecture, redundancy configurations, and integration with existing control infrastructure.
