Emerson KJ4001X1-CA1 12P0623X093 Retrofit I/O Terminal Block

Emerson KJ4001X1-CA1 12P0623X093 Retrofit-Compatible I/O Terminal Block for Legacy Systems

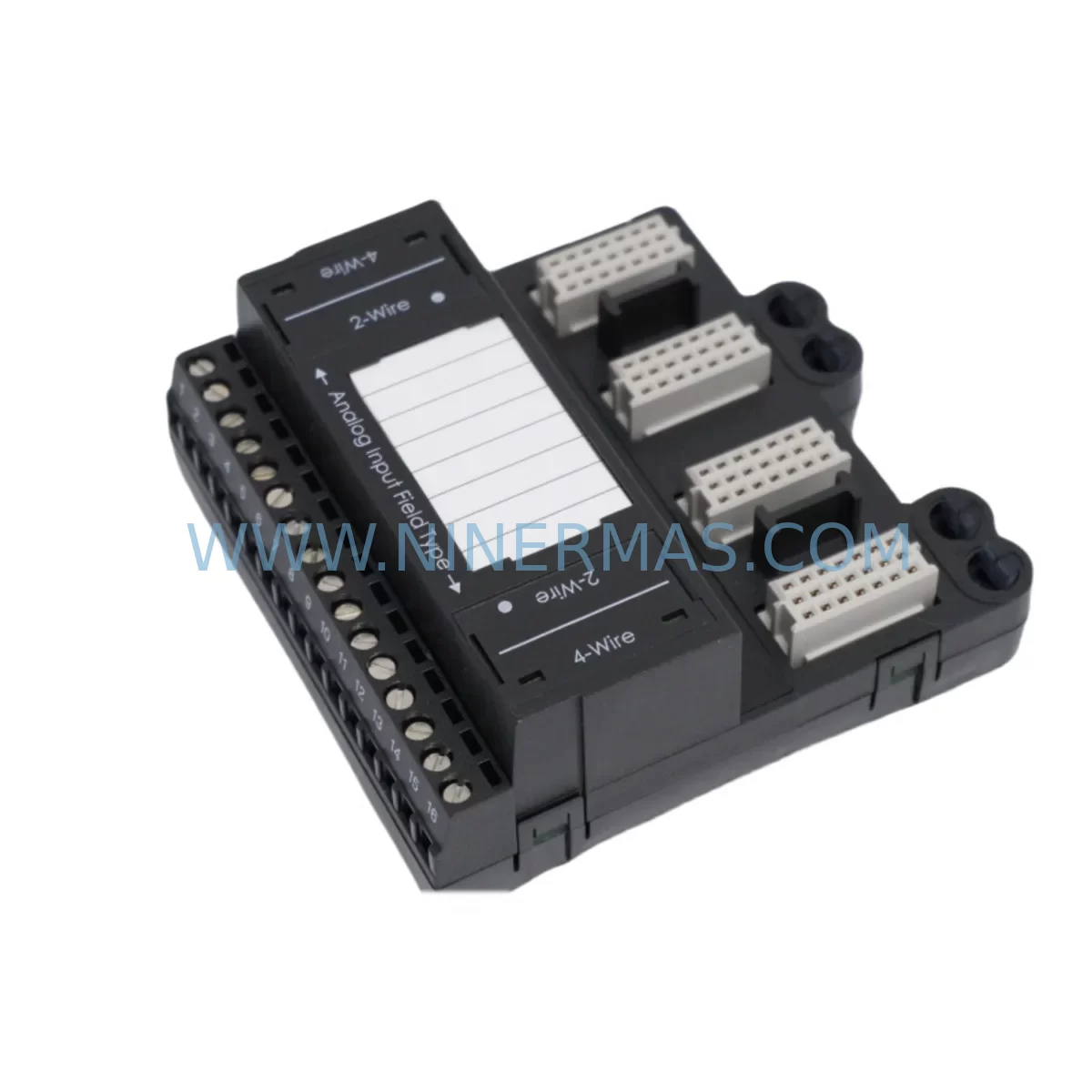

The Emerson KJ4001X1-CA1 12P0623X093 is a retrofit-compatible I/O terminal block engineered for seamless integration into existing DeltaV distributed control system architectures. As legacy automation infrastructure ages and original spare parts reach end-of-life, this module provides a reliable, drop-in replacement path that preserves existing field wiring, minimizes engineering rework, and dramatically reduces planned downtime during control system modernization projects.

Whether you are managing a phased migration from an older DeltaV S-series controller platform, upgrading a control cabinet in a refinery, chemical plant, or power generation facility, or simply restocking critical spare parts to extend the operational life of your current system, the KJ4001X1-CA1 12P0623X093 delivers the compatibility and reliability your team requires. All units are sourced from verified supply channels, undergo pre-shipment functional testing, and are backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the KJ4001X1-CA1 12P0623X093 begins well before the maintenance window opens. Engineers should start by auditing the existing DeltaV I/O subsystem layout, confirming which carrier and backplane slots are occupied, and identifying any adjacent modules that may be affected during removal and reinstallation. In a typical DeltaV cabinet, the terminal block interfaces directly with the I/O card above it — commonly a KJ3002X1-BA1 analog input card or a KJ2201X1-BA1 discrete output card — so confirming the card-to-terminal block pairing is an essential first step.

Power budget verification is equally critical. The control cabinet’s 24 VDC power supply, often a KJ4009X1-EA1 or equivalent redundant power module, must have sufficient headroom to support the replacement terminal block alongside all other active I/O modules in the same chassis. Review the power consumption specifications and compare against the installed power supply’s rated output before proceeding.

Field wiring documentation should be pulled and cross-referenced against the terminal block’s screw terminal layout. In most legacy DeltaV installations, the KJ4001 series terminal blocks use a standardized 12-position terminal arrangement, which means existing cable looms and marshalling panel connections can typically be preserved without modification. However, if the installation has been modified over the years, a point-to-point continuity check is strongly recommended before powering up the replacement module.

For sites running HART-enabled field instruments, confirm that the replacement terminal block supports HART pass-through if the connected I/O card — such as a KJ3222X1-BA1 HART analog input module — relies on this capability for asset management and diagnostics through DeltaV’s AMS Device Manager. Losing HART communication during a retrofit can disrupt predictive maintenance workflows and should be addressed in the pre-outage planning phase.

Backplane slot addressing must also be verified. DeltaV I/O subsystems assign module addresses based on physical slot position within the carrier. After installing the KJ4001X1-CA1 12P0623X093, confirm that the DeltaV controller — whether a KJ4001X1 controller node or an MD-series controller — correctly recognizes the module at the expected address. This is typically confirmed through DeltaV Explorer or the Diagnostics workspace before returning the loop to automatic control.

Sites undergoing broader communication protocol migration — for example, transitioning from legacy serial PROVOX or RS3 I/O networks to DeltaV’s native Ethernet-based architecture — should treat the terminal block replacement as part of a larger I/O marshalling and signal routing review. In these cases, signal isolators, intrinsic safety barriers, and surge protection devices installed between the field junction box and the terminal block may also require evaluation to ensure they remain compatible with the upgraded I/O card’s input impedance and signal conditioning requirements.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any control system retrofit. When replacing the KJ4001X1-CA1 12P0623X093 in a live production environment, the recommended approach is to pre-stage the replacement module, verify its physical condition and terminal labeling, and prepare all tools and documentation before the maintenance window begins.

Where the process permits, place the affected control loop in manual mode at the DeltaV operator workstation before disconnecting the terminal block. This preserves the last known output state at the final control element — typically a control valve or variable speed drive — and prevents uncontrolled process upsets during the swap. If the loop is part of a safety instrumented function, coordinate with the SIS team and follow the site’s management of change procedure before proceeding.

DeltaV’s online download capability means that in most cases, the controller program logic does not need to be modified or re-downloaded after replacing a terminal block. The I/O configuration remains resident in the controller, and once the new terminal block is seated and field wiring is confirmed, the module will be recognized automatically on the next controller scan cycle. This significantly reduces the time required to return the loop to service compared to older PLC-based systems that required full program re-downloads after hardware changes.

HMI faceplate displays and historian tags associated with the affected I/O channel should be monitored during and after the swap to confirm that signal quality indicators return to normal and that no bad PV alarms persist after the module is reinstated. A brief functional test — driving the field instrument through its full range and confirming the DeltaV reading tracks correctly — is the final step before returning the loop to automatic control and closing out the work order.

Retrofit Support FAQ

Q: Is the KJ4001X1-CA1 12P0623X093 a direct replacement for the original Emerson part?
A: Yes. This unit is a retrofit-compatible replacement for the original KJ4001X1-CA1 terminal block. It is designed to fit the same carrier slot, accept the same field wiring terminations, and interface with the same DeltaV I/O cards as the original part, making it suitable for direct substitution without hardware modification in the vast majority of installations.

Q: What pre-shipment testing is performed on this unit?
A: Each KJ4001X1-CA1 12P0623X093 unit undergoes functional verification prior to shipment, including terminal continuity checks and physical inspection for connector integrity. Units are packaged in anti-static protective packaging to prevent damage during transit. A 12-month warranty is included with every unit.

Q: How do I confirm wiring compatibility before installation?
A: Cross-reference your existing field wiring schedule against the terminal block’s pin-out diagram. In standard DeltaV I/O installations, the KJ4001 series terminal blocks follow a consistent terminal numbering convention. If your installation has been modified from the original design, perform a point-to-point continuity test from the marshalling panel to each terminal position before powering up the replacement module.

Q: What is the lead time and stock availability?
A: We maintain inventory of the KJ4001X1-CA1 12P0623X093 to support urgent retrofit and emergency replacement requirements. Standard orders are processed and shipped promptly. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange expedited delivery if required.

—
