Emerson KJ3243X1-BA1 Service-Ready Industrial Spare Part

Emerson KJ3243X1-BA1 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

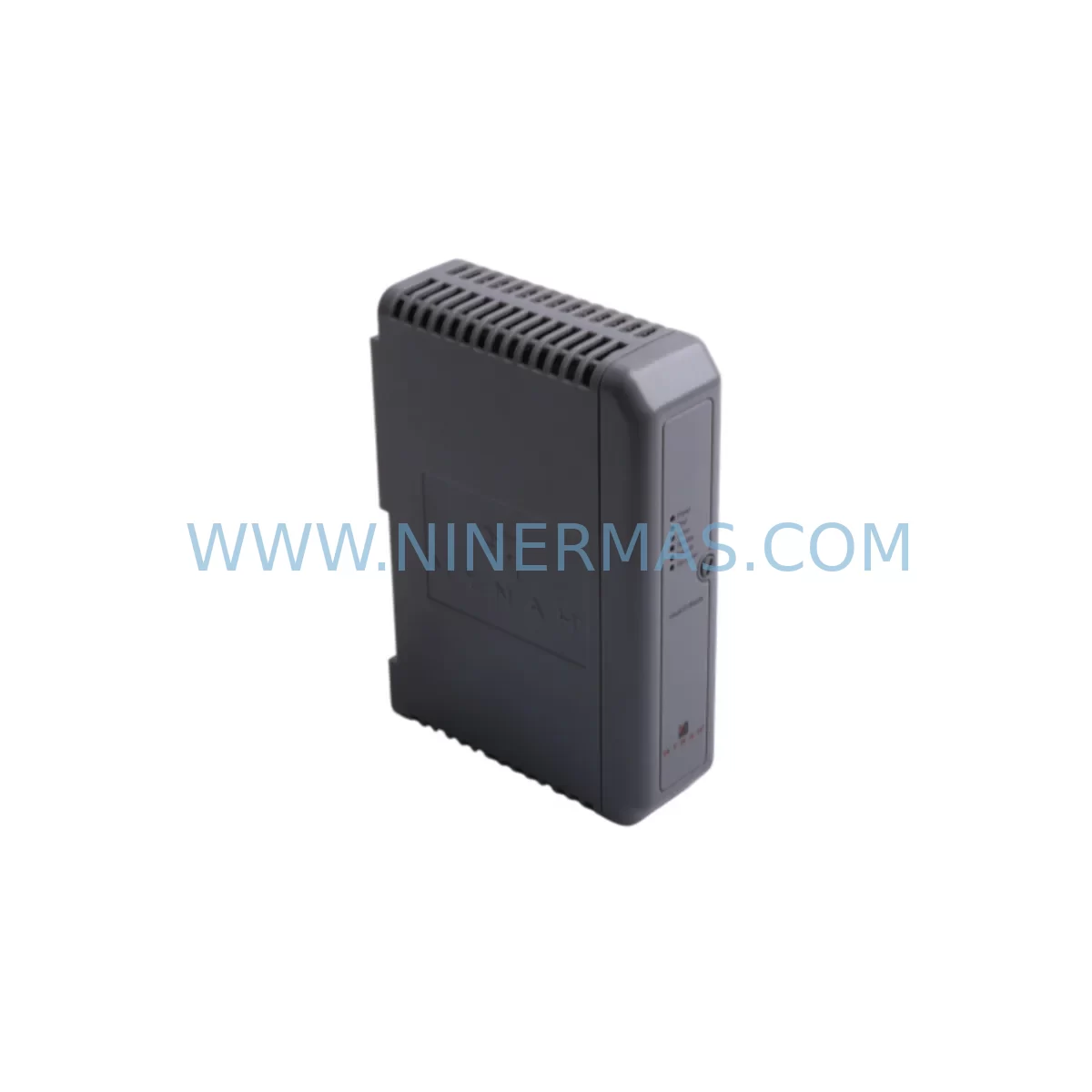

The Emerson KJ3243X1-BA1 is an original Virtual I/O Module (VIM-4201) designed for use within the Emerson DeltaV Distributed Control System (DCS) platform. In process industries where continuous operation is non-negotiable, the availability of a verified, service-ready spare for this module is a critical element of any maintenance strategy. Whether you are managing a petrochemical plant, a pharmaceutical production line, a power generation facility, or a water treatment operation, unplanned downtime caused by a failed VIM-4201 can cascade into significant production losses. Stocking the KJ3243X1-BA1 as a ready-to-install spare eliminates the lead-time risk associated with sourcing end-of-life or low-availability DeltaV components at the moment of failure.

The VIM-4201 Virtual I/O Module serves as a critical communication bridge within the DeltaV S-Series and M-Series controller architecture, enabling virtual I/O channel mapping and system-level integration between the controller subsystem and field I/O networks. Its failure can affect multiple control loops simultaneously, making rapid replacement essential. Maintenance engineers who have experienced a VIM-4201 fault during a production run understand the urgency: without a pre-qualified spare on the shelf, recovery time extends from minutes to days.

This listing provides the KJ3243X1-BA1 as an original Emerson spare part, sourced through established industrial supply channels, individually tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and functional performance. Each unit is verified for compatibility with the DeltaV DCS platform before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a DeltaV system goes well beyond replacing a single module. When a KJ3243X1-BA1 VIM-4201 is identified as a fault point during a control cabinet inspection or a scheduled annual shutdown, experienced maintenance engineers treat the event as a trigger to audit the surrounding system components. A Virtual I/O Module failure rarely occurs in isolation — it is often preceded or accompanied by degradation in adjacent power, communication, or I/O infrastructure.

During a VIM-4201 replacement, the following components should be inspected and, where appropriate, included in the spare parts procurement plan:

The KJ3221X1-BA1 DeltaV power supply module is the first component to verify. A marginal or failing power supply can cause intermittent VIM faults that are misdiagnosed as module failures. Confirm output voltage stability and ripple before installing the replacement KJ3243X1-BA1. Similarly, the KJ3222X1-BA1 controller module should be checked for firmware currency and communication health, as VIM-to-controller link errors can originate from either end of the connection.

I/O carrier integrity is equally important. The KJ3002X1-BG1 carrier that houses the VIM-4201 should be inspected for backplane connector wear, corrosion, or mechanical damage. A worn carrier can cause intermittent contact faults that persist even after a module swap. If the carrier shows signs of degradation, replacement should be scheduled during the same maintenance window.

Field-side wiring and terminal blocks connected to the I/O network should also be reviewed. The KJ3201X1-BA1 terminal block assembly and associated marshalling components are common sources of signal integrity issues that can be misattributed to the VIM module. Inspect for loose terminations, insulation breakdown, and moisture ingress.

For plants running CHARM-based I/O architectures alongside traditional S-Series hardware, the KJ4001X1-CA1 CHARM I/O module and its associated CIOC (CHARM I/O Controller) should be included in the inspection scope. Cross-system communication faults can propagate from CHARM segments into the VIM-4201 virtual channel mapping.

Communication infrastructure components — including the VE4035S2B1 redundant DeltaV controller and any associated SE4002S1T2B6 system power supply units — should be verified for redundancy health. A VIM-4201 replacement is an ideal opportunity to confirm that controller redundancy switchover is functioning correctly and that backup power paths are intact.

Signal isolation barriers and surge protection devices installed between field instruments and the DeltaV I/O network should be tested for leakage and response time. Degraded isolators can introduce noise that destabilizes virtual I/O channel readings, creating false fault conditions that accelerate module wear. Including a set of replacement isolators in the annual spare parts budget alongside the KJ3243X1-BA1 is a recognized best practice in high-availability process plants.

Finally, HMI workstation connectivity and DeltaV operator station software should be verified after any VIM-4201 replacement to confirm that all virtual I/O tags are correctly mapped and that no ghost alarms or unacknowledged faults remain in the system event log.

Site Replacement Workflow

Replacing the KJ3243X1-BA1 VIM-4201 on a live DeltaV system requires a structured approach to minimize control disruption and ensure a clean handover. The following workflow reflects field-proven practice for maintenance engineers managing DeltaV S-Series and M-Series installations:

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the KJ3243X1-BA1 by reviewing DeltaV Diagnostics and the system event log. Verify that the replacement unit’s part number and revision level match the installed module. Check that the carrier (KJ3002X1-BG1 or equivalent) is in serviceable condition.

Step 2 — System State Documentation: Export the current DeltaV configuration and take a snapshot of all active I/O assignments associated with the VIM-4201. This ensures that virtual channel mappings can be verified after replacement without relying on memory or informal records.

Step 3 — Controlled Removal: If the system supports hot-swap for the VIM-4201 in the installed configuration, follow the DeltaV hot-swap procedure. If not, coordinate with operations to place affected control loops in manual mode before removing the module. Label all connections before disconnection.

Step 4 — Module Installation: Insert the replacement KJ3243X1-BA1 into the carrier slot. Allow the DeltaV system to recognize and initialize the new module. Monitor the Diagnostics display for successful module registration and I/O channel assignment.

Step 5 — Post-Replacement Validation: Verify all virtual I/O channels are active and correctly mapped. Confirm that field instrument readings are within expected ranges. Return control loops to automatic mode and monitor for 15–30 minutes before closing the maintenance record.

Step 6 — Spare Parts Replenishment: Immediately initiate procurement of a replacement KJ3243X1-BA1 to restore the on-site spare inventory. A zero-spare condition for a critical DeltaV module represents an unacceptable operational risk in any continuous process environment.

Spare Parts Support FAQ

Q1: Is the KJ3243X1-BA1 still available as a new original spare, or is it only available as refurbished stock?
A: The KJ3243X1-BA1 is available as an original Emerson spare part through established industrial supply channels. Each unit supplied by NINERMAS is individually tested prior to shipment and covered by a 12-month warranty. Where new stock is available, it is supplied as new. Where original surplus stock is supplied, it is fully tested and warranted to the same standard. The warranty period and pre-shipment testing apply regardless of stock origin.

Q2: How do I confirm compatibility between the KJ3243X1-BA1 and my installed DeltaV system version?
A: Compatibility is determined by the DeltaV system version, controller type, and carrier configuration. The KJ3243X1-BA1 VIM-4201 is designed for use with DeltaV S-Series and M-Series platforms. Before ordering, provide your DeltaV system version, controller part number (e.g., KJ3222X1-BA1 or VE4035S2B1), and carrier type (e.g., KJ3002X1-BG1). NINERMAS technical support can confirm compatibility based on this information prior to shipment.

Q3: What is included in the pre-shipment testing process?
A: Each KJ3243X1-BA1 unit undergoes functional verification prior to dispatch. Testing confirms power-up behavior, backplane communication response, and module self-diagnostic status. Units that do not pass functional verification are not shipped. A test report is available upon request for critical procurement applications.

Q4: Can NINERMAS support long-term supply of the KJ3243X1-BA1 for multi-year maintenance contracts?
A: Yes. NINERMAS maintains sourcing relationships across multiple industrial supply channels to support long-term spare parts requirements for end-of-life and low-availability DeltaV components. For customers managing multi-year maintenance contracts or annual shutdown schedules, NINERMAS can provide supply commitment discussions, volume pricing, and staggered delivery arrangements. Contact sale@ninermas.com to discuss long-term supply terms for the KJ3243X1-BA1 and related DeltaV spare parts.
