Emerson KJ3222X1-BA1 Retrofit-Compatible I/O for Legacy Systems

Emerson KJ3222X1-BA1 Retrofit-Compatible I/O for Legacy Systems

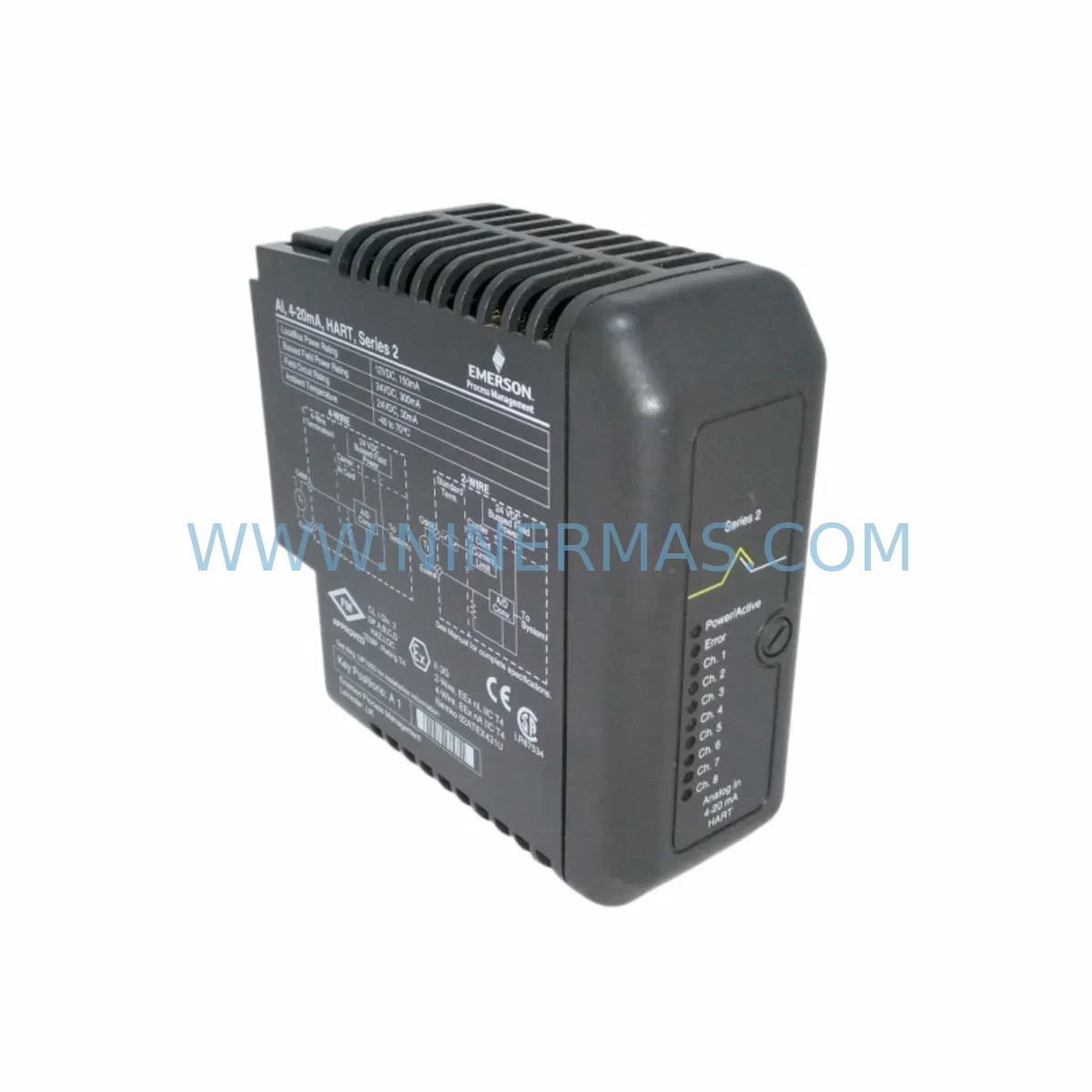

The Emerson KJ3222X1-BA1 12P2532X112 is a DeltaV Series I/O module engineered for seamless integration into existing distributed control system (DCS) architectures. As industrial facilities face increasing pressure to extend the operational life of legacy automation platforms while managing obsolescence risk, this module serves as a verified retrofit-compatible replacement for aging or discontinued DeltaV I/O hardware. Whether you are upgrading a control cabinet, expanding an existing I/O network, or recovering a system after a critical module failure, the KJ3222X1-BA1 provides the electrical and functional compatibility required to restore full system operation with minimal disruption.

NINERMAS maintains ready inventory of the KJ3222X1-BA1 12P2532X112 to support urgent replacement scenarios, planned maintenance shutdowns, and long-term spare parts lifecycle programs. Each unit is sourced, inspected, and dispatched with a 12-month warranty, giving engineering and procurement teams confidence in both quality and supply continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the KJ3222X1-BA1 into a legacy DeltaV environment requires a structured pre-installation review. Engineers should begin by auditing the existing DeltaV controller node — typically a DeltaV MD Plus Controller or DeltaV M5Plus Controller — to confirm available I/O capacity and backplane slot assignments. The carrier or I/O subsystem housing the replacement module must be verified for physical slot compatibility, as DeltaV uses a tiered carrier architecture where module form factor and bus connector alignment are critical.

Field wiring connected to the legacy module’s termination block should be documented before removal. In many retrofit projects, the marshalling cabinet layout was designed around the original module’s channel count and signal type. If the KJ3222X1-BA1 is replacing a module with a different channel density or signal range, the DeltaV CHARM I/O Card or a signal conditioning interface may be required to bridge the wiring difference without re-pulling field cables.

Power budget verification is a frequently overlooked step. The DeltaV carrier draws power from the DeltaV Power Supply — PS2 or equivalent redundant power module. Before inserting the KJ3222X1-BA1, confirm that the total power draw of all installed modules on the carrier does not exceed the supply’s rated output. Overloading the power rail is a common cause of intermittent faults during post-retrofit commissioning.

Communication continuity is another key concern. The KJ3222X1-BA1 communicates over the DeltaV backplane bus, and its module address is assigned through DeltaV Explorer during configuration. If the replacement module is being inserted into a slot previously occupied by a different module type, the existing I/O tag assignments in the control strategy may need to be remapped. Coordinate with the DCS programmer to export and back up the current control module configuration before any hardware change. This protects the original program logic and allows rapid rollback if commissioning issues arise.

For facilities running DeltaV Operate HMI graphics, verify that the faceplate and alarm configurations associated with the replaced I/O channels remain valid after the module swap. In some cases, HMI display elements are bound to specific module slot references, and a slot change will require a corresponding update in the HMI project. This is particularly relevant when the retrofit involves relocating the module to a different carrier position.

If the retrofit is part of a broader migration from a legacy third-party PLC platform — such as a Rockwell ControlLogix or Siemens S7-300 system — to a DeltaV DCS architecture, additional protocol migration planning is required. Communication links using Modbus RTU, PROFIBUS DP, or HART must be mapped to the DeltaV communication infrastructure. The DeltaV HART Interface Module and DeltaV Serial Interface Module (SIM) are commonly deployed in these scenarios to maintain connectivity with existing field instruments during the transition period.

Installation space in the control cabinet should be confirmed before ordering. The KJ3222X1-BA1 occupies a standard DeltaV module slot, but if the retrofit involves adding a new carrier to an existing cabinet, DIN rail space, cable routing clearance, and door closure must all be assessed. In tight cabinet environments, a DeltaV Remote I/O Carrier or distributed I/O node may offer a more practical installation path.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any DCS I/O module replacement. For the KJ3222X1-BA1 retrofit, the recommended approach is to complete all pre-work — wiring documentation, tag mapping review, DeltaV Explorer configuration backup, and HMI verification — during normal production hours, reserving the physical module swap for a planned maintenance window.

Where the process allows, consider placing the affected I/O channels in manual mode within the DeltaV control strategy before removing the legacy module. This prevents automatic control actions from triggering on signal loss during the swap interval. Field operators should be briefed on the expected duration of the maintenance window and the manual override procedures for any affected control loops.

Once the KJ3222X1-BA1 is physically installed and the carrier is powered, DeltaV will automatically detect the new module if the slot configuration matches the existing assignment. If a configuration mismatch is detected, the module will appear in a faulted state in DeltaV Diagnostics, and the engineer must use DeltaV Explorer to assign the correct module type and download the updated configuration. This process typically takes less than 15 minutes for a single module replacement when the pre-work has been completed correctly.

Post-installation, perform a channel-by-channel I/O verification using the DeltaV Operate diagnostic displays or a portable loop calibrator to confirm that all field signals are reading correctly before returning the control loops to automatic mode. Document the as-found and as-left readings for each channel as part of the maintenance record. This verification step is also required to activate the 12-month warranty coverage provided with each KJ3222X1-BA1 unit shipped by NINERMAS.

For critical processes where even a brief manual control period is unacceptable, a hot-standby or redundant I/O architecture using a DeltaV Redundant I/O Module pair should be evaluated as part of the retrofit design. This approach allows the replacement module to be brought online and verified while the legacy module remains active, with a bumpless transfer to the new hardware once commissioning is confirmed.

Retrofit Support FAQ

Q1: Is the KJ3222X1-BA1 12P2532X112 a direct drop-in replacement for my existing DeltaV I/O module?
The KJ3222X1-BA1 is designed for DeltaV Series carrier and backplane compatibility. Before confirming a direct replacement, verify that the module type, channel count, signal type, and slot assignment match your existing DeltaV configuration in DeltaV Explorer. NINERMAS technical support can assist with compatibility verification based on your system’s hardware revision and software version.

Q2: What commissioning steps are required after installing the KJ3222X1-BA1?
After physical installation, open DeltaV Explorer and confirm the module is recognized in the correct slot. Download the I/O configuration to the module, then perform a full channel verification against your field wiring schedule. Check DeltaV Diagnostics for any active faults, and verify HMI faceplate displays are updating correctly before returning control loops to automatic mode.

Q3: Can the KJ3222X1-BA1 be used in a system that is also running legacy PROVOX or RS3 hardware?
The KJ3222X1-BA1 is a DeltaV platform module and is not directly compatible with PROVOX or RS3 backplane architectures. However, in migration projects where DeltaV is being introduced alongside legacy Emerson PROVOX or RS3 systems, DeltaV gateway and interface modules can be used to bridge communication between platforms during the transition period. Contact NINERMAS for migration-specific configuration guidance.

Q4: What does the 12-month warranty cover, and how does NINERMAS handle warranty claims?
Each KJ3222X1-BA1 12P2532X112 shipped by NINERMAS carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com with your order reference and a description of the fault. NINERMAS will arrange inspection and, where applicable, replacement or repair within the warranty period. Units must not have been subjected to physical damage, unauthorized modification, or operation outside specified environmental limits.
