Emerson KJ3202X1-BA1 Retrofit-Compatible Output Module

Emerson KJ3202X1-BA1 Retrofit-Compatible Output Module: Legacy System Compatibility and Smooth Upgrade

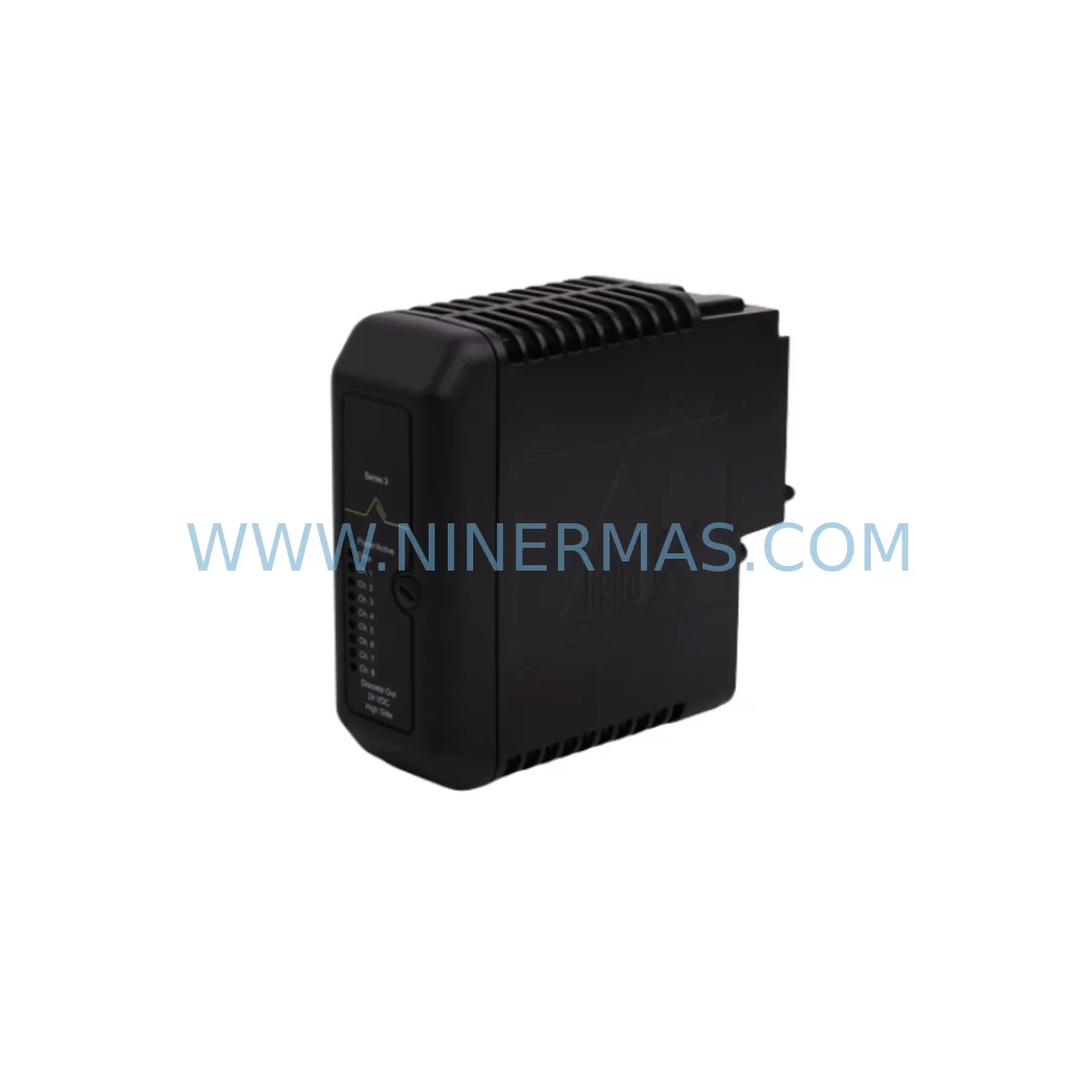

The Emerson KJ3202X1-BA1 (also referenced as 12P2536X042) is a ruggedized high-side digital output module engineered for the Emerson DeltaV SIS (Safety Instrumented System) platform. Designed to operate reliably in harsh industrial environments — including high-vibration, high-humidity, and wide-temperature-range process facilities — this module serves as a direct retrofit solution for aging DeltaV SIS I/O infrastructure. Whether you are replacing a failed module in a running safety loop, upgrading a legacy control cabinet, or extending the operational life of an existing DeltaV SIS architecture, the KJ3202X1-BA1 delivers the electrical compatibility, form factor, and diagnostic capability required for a low-risk, minimum-downtime changeover.

Industrial facilities operating legacy DeltaV SIS installations frequently encounter the challenge of sourcing discontinued or end-of-life output modules. The KJ3202X1-BA1 addresses this directly: it is a tested, pre-shipment-verified spare that integrates into existing DeltaV SIS carrier assemblies and CHARMs-based I/O backplanes without requiring firmware re-flashing or controller reconfiguration in most standard replacement scenarios. Procurement teams and maintenance engineers can treat this module as a like-for-like replacement within the same rack slot, subject to the compatibility verification steps outlined below.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the KJ3202X1-BA1 into an existing DeltaV SIS installation requires a structured pre-replacement assessment. The following workflow reflects best practices for legacy safety system upgrades in process and discrete manufacturing environments.

Power Budget Verification: Before installing the replacement module, engineers should audit the power capacity of the hosting carrier. The Emerson KJ3204X1-BA1 power supply module — commonly installed in the same DeltaV SIS I/O enclosure — must have sufficient headroom to support the new output module without triggering under-voltage alarms. Pull the carrier’s power consumption report from DeltaV Diagnostics and compare against the rated output of the installed power supply.

Terminal Block and Field Wiring Inspection: The KJ3202X1-BA1 connects to field devices through the carrier’s terminal block assembly. During replacement, inspect all field wiring terminations for insulation degradation, loose ferrules, and corrosion — particularly in offshore or chemical plant environments. The Emerson KJ3001X1-BA1 marshalling terminal assembly, if present in the same cabinet, should also be checked for continuity before re-energizing the output loop.

Backplane and Carrier Slot Inspection: Remove the failed module and inspect the carrier slot’s bus connector pins for mechanical damage or oxidation. In high-humidity environments, connector cleaning with approved contact cleaner is recommended before seating the KJ3202X1-BA1. If the carrier itself shows signs of damage, consider replacing the full DeltaV SIS I/O carrier assembly to avoid recurring contact failures.

Module Address and DeltaV Configuration: Unlike older Modicon or Allen-Bradley PLC I/O modules that use physical DIP switches for address assignment, the KJ3202X1-BA1 inherits its logical address from its physical slot position within the DeltaV SIS carrier. Open DeltaV Explorer and confirm that the module’s slot assignment in the configuration database matches the physical installation. If the replacement module is being installed in a different slot than the original, a configuration download to the DeltaV SIS Logic Solver will be required.

Program Logic and HMI Verification: After physical installation, verify that the safety function associated with the output module — typically a final element command such as a solenoid valve or motor contactor — is correctly mapped in the DeltaV SIS Function Block Application. Cross-check the HMI faceplate in the DeltaV Operate environment to confirm that the output status display reflects the correct field state. Any discrepancy between the HMI indication and the field device position should be resolved before returning the safety loop to service.

Communication Link Integrity: The DeltaV SIS architecture relies on a dedicated safety network segment separate from the standard DeltaV process control network. After module replacement, confirm that the DeltaV SIS Controller — such as the KJ3221X1-BA1 SIS Logic Solver — is communicating normally with the replaced I/O module. Check the DeltaV Diagnostics panel for any communication fault alarms on the SIS I/O bus.

Signal Isolation and Grounding: In installations where the output loop interfaces with third-party field devices or crosses into hazardous area zones, a signal isolator or safety barrier may be installed between the KJ3202X1-BA1 output terminal and the field device. Verify that the isolator’s input/output voltage and current ratings remain compatible with the replacement module’s output drive characteristics. Grounding continuity of the cabinet’s DIN rail and the module’s chassis ground path should also be confirmed.

Programming Cable and Diagnostic Access: During commissioning, a DeltaV engineering workstation connected via the plant’s control network — or via a dedicated DeltaV USB/Ethernet programming interface — is required to perform the final configuration download and online diagnostic check. Ensure that the engineering workstation’s DeltaV software version is compatible with the installed SIS controller firmware to avoid version mismatch errors during the download sequence.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing safety I/O modules in a live process environment. The KJ3202X1-BA1 supports a structured hot-swap replacement procedure on compatible DeltaV SIS carriers, allowing the module to be changed without a full safety system shutdown — subject to site-specific safety authority approval and the applicable functional safety standard (IEC 61511 or equivalent).

The recommended approach is to place the affected safety function in manual bypass mode within the DeltaV SIS Logic Solver before removing the failed module. This preserves the process control state and prevents spurious trips to the final element during the physical swap. The bypass should be logged in the site’s Management of Change (MOC) system and approved by the process safety engineer before execution.

Once the KJ3202X1-BA1 is seated and the carrier confirms module recognition, perform a partial stroke test or output function test on the associated final element to verify correct operation before releasing the bypass. The entire replacement sequence — from bypass activation to bypass release — can typically be completed within 30 to 60 minutes by a qualified instrument technician, significantly reducing the exposure window compared to a full system shutdown approach.

For facilities operating under a Proof Test schedule, the module replacement event can be combined with the scheduled proof test of the associated safety function, eliminating a separate maintenance window and reducing total lifecycle maintenance cost. Document the replacement in the site’s SIS maintenance management system, including the new module’s serial number, installation date, and pre-shipment test certificate reference.

All KJ3202X1-BA1 units supplied by NINERMAS are subject to a documented pre-shipment functional test covering output switching, diagnostic self-test response, and backplane communication verification. Test records are available upon request and support IEC 61511 documentation requirements for safety lifecycle management.

Retrofit Support FAQ

Q1: Is the KJ3202X1-BA1 a direct replacement for other KJ32xx series output modules in the same DeltaV SIS carrier?
A: The KJ3202X1-BA1 is designed for the DeltaV SIS platform and shares the same carrier form factor as other modules in the KJ32xx series. However, channel count, output type (high-side vs. low-side), and current rating may differ between specific part numbers. Always verify the exact replacement requirement against the original module’s datasheet and the DeltaV SIS configuration database before ordering. NINERMAS technical support can assist with cross-reference verification.

Q2: What commissioning steps are required after installing the KJ3202X1-BA1?
A: After physical installation, the minimum commissioning steps are: (1) confirm module recognition in DeltaV Diagnostics; (2) verify slot address assignment in DeltaV Explorer; (3) perform a configuration download if the module is installed in a new slot; (4) execute an output function test on the associated final element; and (5) release the safety bypass and confirm normal SIS loop status. A full proof test may be required depending on site safety procedures and the applicable functional safety standard.

Q3: Can the KJ3202X1-BA1 be used in non-SIS DeltaV process control applications?
A: The KJ3202X1-BA1 is rated and certified for DeltaV SIS safety applications. While the module may be physically compatible with standard DeltaV I/O carriers in some configurations, its use outside the SIS platform is not recommended and may not be supported by Emerson. For standard DeltaV process control output requirements, consult the appropriate KJ series process I/O module selection guide.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?
A: All KJ3202X1-BA1 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing before dispatch. In-stock units are typically available for same-week shipment. For bulk orders or long-term supply program commitments, NINERMAS offers inventory reservation agreements to support planned maintenance schedules and lifecycle extension programs. Contact our sales team for current stock status and lead time confirmation.
