Emerson KJ3201X1-BA3 Retrofit-Compatible DI Module

Emerson KJ3201X1-BA3 Retrofit-Compatible DI Module: Legacy System Compatibility & Smooth Upgrade

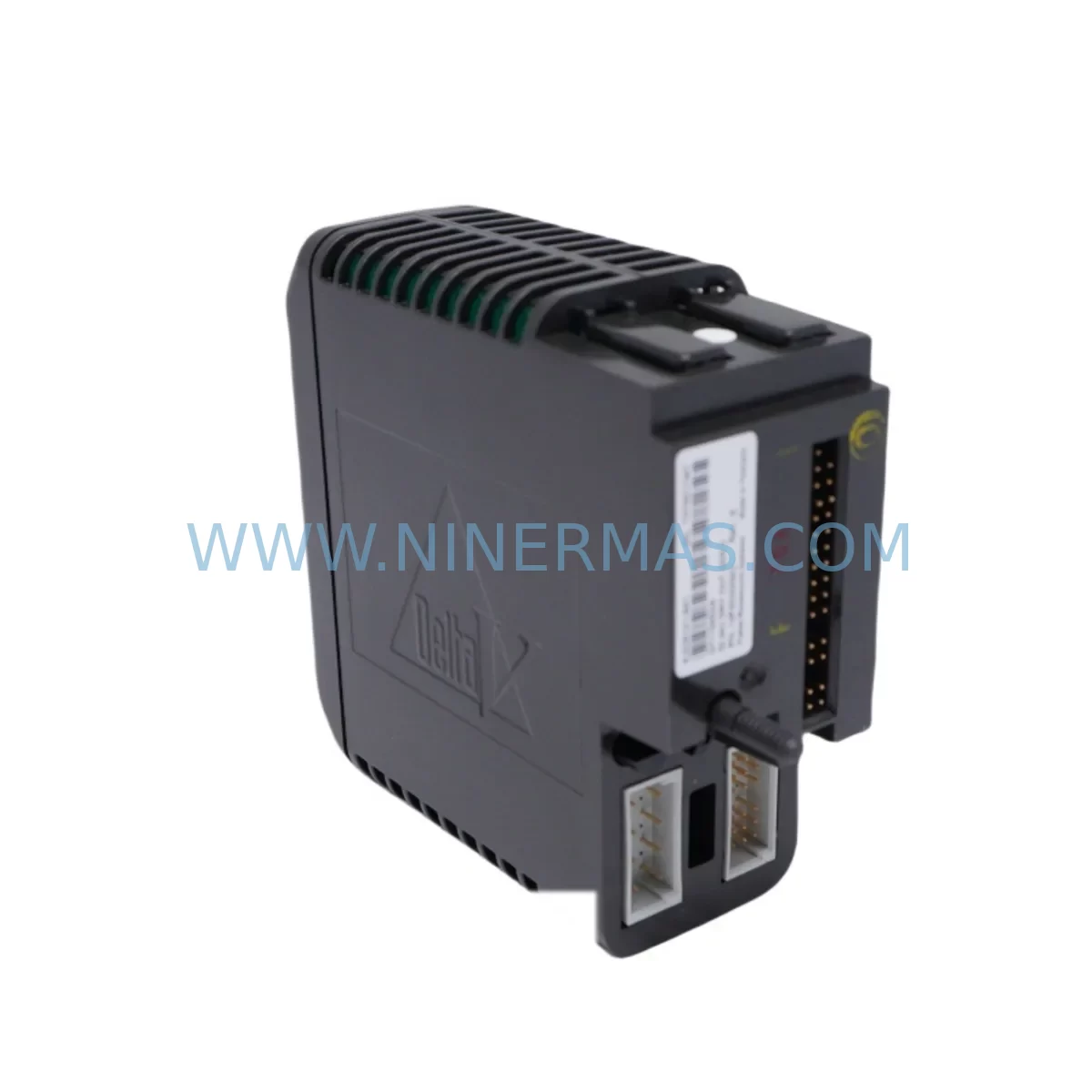

The Emerson KJ3201X1-BA3 is a ruggedized 8-channel Digital Input module designed for the DeltaV distributed control system platform. Built to operate reliably in harsh industrial environments, this module serves as a direct retrofit-compatible replacement for legacy DI modules across aging DeltaV S-series and M-series control architectures. Whether you are managing a planned system upgrade, responding to an end-of-life notification, or sourcing a critical spare to restore production continuity, the KJ3201X1-BA3 delivers the electrical compatibility, mechanical fit, and firmware alignment required for a low-risk, minimal-downtime installation.

In modern industrial facilities, the pressure to extend the operational life of existing automation infrastructure while simultaneously improving reliability and compliance is constant. The KJ3201X1-BA3 addresses this challenge directly. Its ruggedized design tolerates wide temperature ranges, high-vibration environments, and elevated humidity levels — conditions commonly found in oil and gas processing, chemical manufacturing, power generation, and heavy industrial applications. When a legacy DI module fails or reaches end-of-life, replacing it with the KJ3201X1-BA3 allows engineering teams to restore I/O functionality without redesigning the control strategy, rewriting function blocks, or reconfiguring the DeltaV controller.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the KJ3201X1-BA3 into an existing DeltaV control system begins well before the module arrives on site. Engineering teams should start by auditing the current I/O carrier configuration to confirm available slot positions and verify that the carrier’s power budget can accommodate the replacement module. In many aging installations, the KJ3201X1-BA3 is installed alongside other DeltaV I/O modules such as the KJ3202X1-BA1 Digital Output module, the KJ3221X1-BA1 Analog Input module, and the KJ3222X1-BA1 Analog Output module — all of which share the same I/O carrier and backplane architecture. Confirming that the carrier is not already operating at maximum power draw is a critical pre-installation step that is frequently overlooked during emergency spare replacements.

Field wiring compatibility is the next priority. The KJ3201X1-BA3 uses the standard DeltaV terminal block interface, and in most cases existing field cables can be reconnected directly to the replacement module without modification. However, engineers should verify terminal block pitch, wire gauge compatibility, and shield grounding continuity before proceeding. In installations where the original wiring was routed through a marshalling cabinet using a CHARM I/O interface or a traditional hardwired junction box, the wiring path should be traced and documented before the old module is removed.

For systems that include a DeltaV SIS Safety Instrumented System controller or a DeltaV PK Controller managing the affected I/O loop, the safety function associated with the digital input channel must be placed in bypass or manual mode before the module swap is executed. This prevents spurious trips or false safe-state activations during the brief period when the I/O channel is offline. The bypass procedure should be documented in the site’s Management of Change (MOC) process and approved by the process safety engineer before work begins.

Communication link integrity should also be verified as part of the retrofit plan. In DeltaV architectures that use redundant I/O subsystems or that integrate with a third-party SCADA system via OPC DA or OPC UA, the digital input signals carried by the KJ3201X1-BA3 may feed upstream data consumers that require continuous signal availability. Coordinating the module swap with the control room operator and the SCADA system administrator ensures that data historians, alarm management systems, and HMI displays are not left in an indeterminate state during the replacement window. Where the DeltaV system communicates with a Modbus RTU or PROFIBUS DP network through a protocol gateway, the gateway configuration should be reviewed to confirm that the I/O tag mapping remains valid after the module replacement.

Finally, installation space confirmation is essential in densely populated control cabinets. The KJ3201X1-BA3 occupies a standard DeltaV I/O slot, but in cabinets where additional components such as a DeltaV power supply module, a redundant controller carrier, or a network interface card have been added over the years, physical access to the target slot may be restricted. A pre-installation site survey that photographs the cabinet interior and measures available clearance will prevent delays on the day of the actual module swap.

Downtime Control During System Migration

Minimizing production downtime during a KJ3201X1-BA3 module replacement requires a structured approach that protects the existing control program logic, maintains field control continuity, and reduces the risk of introducing new faults during the migration window. The most effective strategy is to treat the module swap as a hot-standby replacement where possible. In DeltaV systems configured with redundant I/O, the failed or end-of-life module can be removed and replaced while the redundant module continues to service the field device — resulting in zero interruption to the control loop. For non-redundant I/O configurations, the replacement window should be scheduled during a planned production pause or a low-throughput period to limit the operational impact of the brief I/O outage.

Before removing the existing module, the current DeltaV configuration should be exported and backed up using DeltaV Diagnostics or the DeltaV configuration database backup utility. This backup preserves the module address assignments, channel configurations, I/O tag definitions, and alarm limits that have been accumulated over the operational life of the system. If the replacement module requires a firmware update to match the controller’s current DeltaV version, the update should be staged and tested on a bench unit before the field installation to avoid unexpected compatibility issues during the live replacement.

Once the KJ3201X1-BA3 is physically installed in the I/O carrier slot, DeltaV Explorer will automatically detect the new module and prompt the engineer to commission it. The module address is assigned through the software interface — no hardware DIP switches or jumper settings are required — which significantly reduces the risk of address conflicts that were common in older PLC-based I/O systems. After commissioning, each digital input channel should be individually verified by applying a known field signal and confirming that the DeltaV controller registers the correct state change. This channel-by-channel verification step, combined with a review of the associated HMI display in DeltaV Operate, confirms that the replacement is complete and that the control system is ready to return to automatic mode.

For sites where the KJ3201X1-BA3 is being installed as part of a broader DeltaV system upgrade — for example, a migration from an older DeltaV version to a current release — the module replacement should be coordinated with the controller firmware upgrade schedule to ensure that all I/O modules in the system are running firmware versions that are mutually compatible with the new controller software. Emerson’s DeltaV upgrade planning tools can assist with generating a compatibility matrix for the specific combination of controllers, I/O modules, and software versions present in the installation.

Retrofit Support FAQ

Q1: Is the KJ3201X1-BA3 a direct drop-in replacement for my existing DeltaV DI module?
In most DeltaV S-series and M-series installations, the KJ3201X1-BA3 is a direct slot-compatible replacement for discontinued DI modules in the KJ3201 series. The module uses the same backplane connector, the same I/O carrier slot format, and the same DeltaV software commissioning process. Before installation, confirm that your DeltaV controller firmware version is compatible with the KJ3201X1-BA3 and that the I/O carrier’s power budget has sufficient headroom for the replacement module.

Q2: What wiring changes are required when installing the KJ3201X1-BA3?
In a like-for-like replacement scenario, no wiring changes are typically required. The existing field cables can be reconnected to the replacement module’s terminal block using the original wiring documentation. If the original terminal block is damaged or if the field wiring gauge does not match the replacement module’s terminal specifications, the terminal block assembly may need to be replaced. Always verify shield grounding continuity and terminal torque specifications after reconnection.

Q3: How is the module tested before shipment, and what does the 12-month warranty cover?
Each KJ3201X1-BA3 unit supplied by NINERMAS undergoes functional testing prior to shipment, including power-on verification, channel-by-channel digital input response testing, and backplane communication confirmation. The 12-month warranty covers manufacturing defects and functional failures that occur under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Warranty claims are processed through NINERMAS directly — contact sale@ninermas.com for support.

Q4: Can NINERMAS confirm stock availability and provide a lead time before I place an order?
Yes. NINERMAS maintains inventory of the KJ3201X1-BA3 and other DeltaV I/O modules to support urgent spare part requirements and planned retrofit projects. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels, lead times, and pricing. For large-quantity orders or multi-module retrofit projects, we can provide a consolidated quotation covering all required I/O modules, power supplies, and accessories.
