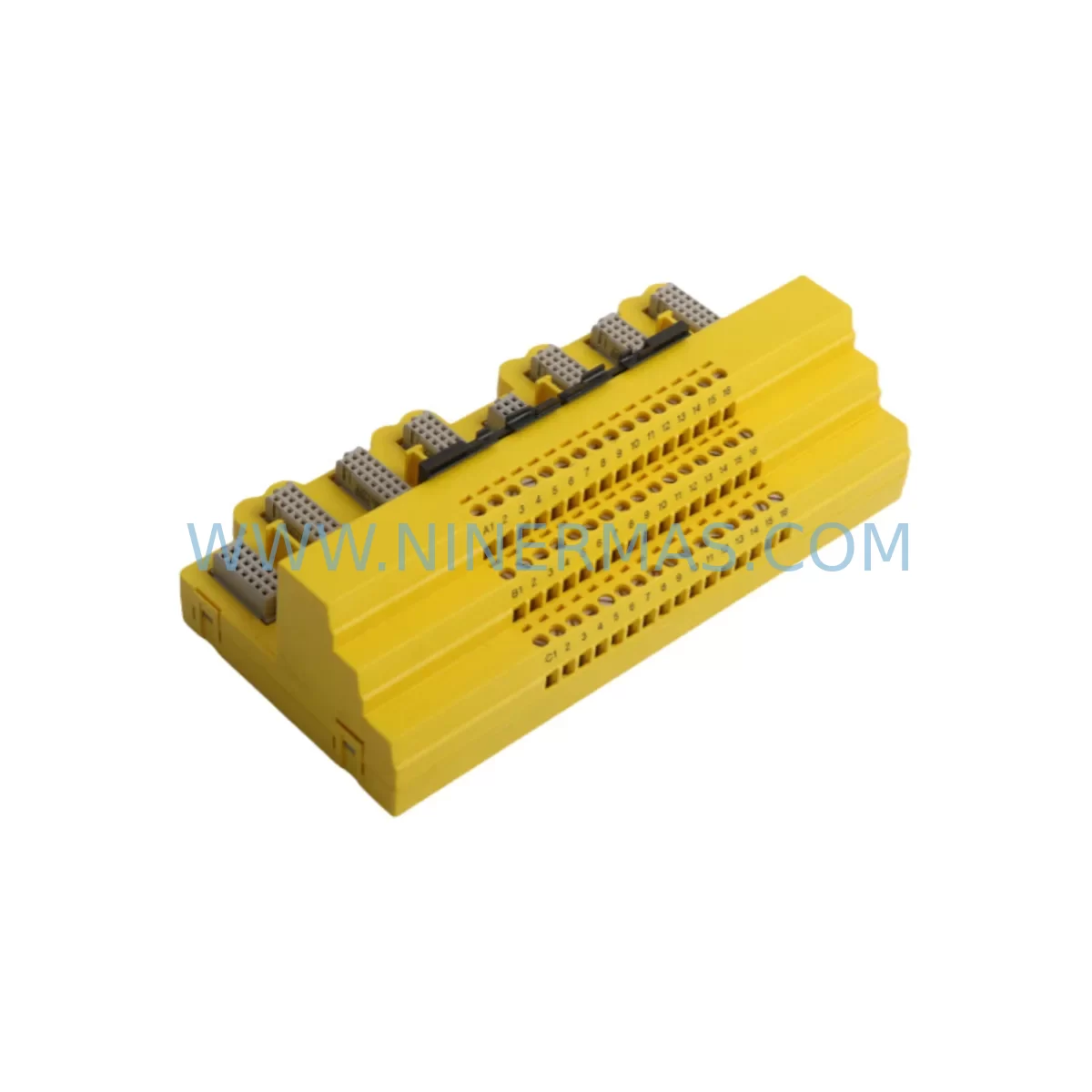

The Emerson KJ2201X1-JA1 (12P3323X042) is an original DeltaV KJ Series I/O module engineered for continuous-process environments where unplanned downtime carries significant operational and financial risk. Sourced directly from verified supply channels, this service-ready spare is fully tested prior to shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to hold it in active standby inventory without concern for shelf-life degradation or compatibility drift.

In modern DCS architectures built around the Emerson DeltaV platform, the KJ-series I/O subsystem forms the backbone of field signal acquisition and control output. A failed or degraded KJ2201X1-JA1 card can interrupt analog input channels across an entire marshalling cabinet, triggering process shutdowns that cascade through upstream and downstream units. Keeping a verified original on the shelf — rather than sourcing reactively during an outage — is the single most effective risk-reduction measure available to a plant maintenance team.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ2201X1-JA1 in a live DeltaV system is rarely an isolated task. Experienced maintenance engineers treat every I/O card swap as an opportunity to audit the surrounding electrical and control infrastructure. Before or during replacement of this module, the following components in the same marshalling cabinet or control loop should be inspected and, where appropriate, held as concurrent spares:

• KJ3001X1-BA1 DeltaV Power Supply Module — Supplies regulated 24 VDC to the KJ-series I/O carrier. A marginal power supply is a common root cause of intermittent I/O card faults; replace proactively if the unit has exceeded five years of continuous service.
• KJ1501X1-BA2 DeltaV Controller Card — The upstream controller that polls the KJ2201X1-JA1 for process values. Firmware version alignment between the controller and I/O module is critical; verify compatibility during the replacement window.
• KJ2211X1-BA1 Analog Output Module — Frequently installed in the same carrier as the KJ2201X1-JA1 to form a complete analog I/O pair for PID control loops. Inspect terminal block connections and channel calibration records simultaneously.
• KJ4001X1-BA1 HART Multiplexer Module — If HART pass-through is enabled on the KJ2201X1-JA1 channels, the HART multiplexer must be verified for correct polling configuration after module replacement to avoid loss of device diagnostics.
• MTL5541 / MTL5544 Zener Barriers or Galvanic Isolators — Field-side signal isolation devices that protect the I/O module from ground loops and transient overvoltage. Degraded barriers are a leading cause of premature I/O card failure in hazardous-area installations.
• Phoenix Contact TRIO-PS/1AC/24DC/10 Power Supply — External 24 VDC DIN-rail power supply feeding the marshalling cabinet. Verify output voltage under full load and check capacitor health if the unit is more than seven years old.
• Weidmüller or Phoenix Contact Terminal Blocks (SAK 4 / UK 4N series) — Inspect for loose ferrules, corrosion, and thermal discoloration at all field-wiring terminations associated with the replaced module’s channels.
• KJ7001X1-BA1 DeltaV Redundancy Switch Module — Where redundant I/O is configured, confirm that the redundancy switch correctly fails over to the standby module after the KJ2201X1-JA1 is reseated and re-commissioned.
• Emerson DeltaV Operator Workstation (OWS) / DeltaV Operate HMI — After module replacement, perform a full channel checkout from the HMI to confirm that all process variable readings are within expected range and that no spurious alarms remain latched.
• Belden 3084A or equivalent shielded instrumentation cable — Inspect cable shield continuity and grounding at the marshalling cabinet end; damaged shielding on HART loops can introduce noise that mimics I/O module faults.

Holding these components as part of a structured critical-spare inventory — rather than sourcing them reactively — reduces mean time to repair (MTTR) from days to hours and eliminates the procurement risk associated with end-of-life DeltaV KJ-series hardware.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number (KJ2201X1-JA1) and reference number (12P3323X042) against the DeltaV hardware inventory database. Cross-check the installed firmware version on the replacement unit against the site’s DeltaV system version to ensure compatibility before removing the faulty card.

Step 2 — Process isolation: Place all affected control loops in manual mode from the DeltaV Operate HMI. Notify the control room operator and document the time of isolation in the maintenance management system (CMMS). For safety-instrumented loops, coordinate with the SIS engineer before proceeding.

Step 3 — Hot-swap removal: The KJ-series I/O carrier supports hot-swap operation. Unlatch the module retaining clip, slide the KJ2201X1-JA1 out of the carrier slot, and immediately insert the replacement unit. The DeltaV system will automatically download the module configuration from the controller database within 60–90 seconds.

Step 4 — Channel checkout: From the DeltaV Operate HMI, verify that all analog input channels associated with the replaced module are reading correctly. Compare live process values against independent field instrumentation (e.g., local gauges or handheld HART communicator readings) to confirm signal integrity.

Step 5 — Return to automatic: Once all channels are verified, return control loops to automatic mode. Document the replacement in the CMMS, update the spare-parts inventory record, and initiate a replenishment order for the KJ2201X1-JA1 to restore the critical-spare buffer.

This workflow minimizes process disruption, maintains system compatibility, and ensures that the DeltaV KJ-series infrastructure continues to operate reliably — even as the original hardware approaches end-of-life. For legacy systems where Emerson has discontinued active manufacturing of KJ-series modules, maintaining a verified original-spare inventory through a specialist supplier is the most cost-effective strategy for extending system life by five to ten years beyond the official support window.

Spare Parts Support FAQ

Q1: Is the KJ2201X1-JA1 (12P3323X042) an original Emerson part or a third-party replacement?
This is an original Emerson DeltaV KJ Series module — not a clone, refurbished unit, or third-party equivalent. Every unit is sourced from verified supply channels, inspected, and functionally tested before shipment to ensure it meets Emerson’s original manufacturing specifications.

Q2: How do I confirm compatibility with my installed DeltaV system version?
The KJ2201X1-JA1 is compatible with DeltaV S-series and M-series controllers running DeltaV v10.3 and later. For sites running earlier versions, contact our technical team with your DeltaV system version and controller type; we will confirm compatibility and advise on any firmware considerations before shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, contact sale@ninermas.com with the order reference and a description of the fault. We will arrange a replacement or repair at no additional cost, with priority dispatch to minimize your downtime exposure.

Q4: Can you support long-term supply for end-of-life DeltaV KJ-series hardware?
Yes. NINERMAS maintains a dedicated inventory of end-of-life and hard-to-source DeltaV KJ-series modules, including the KJ2201X1-JA1. We support annual blanket-order agreements for plants that require guaranteed supply over a 3–5 year maintenance horizon, eliminating the risk of last-time-buy shortfalls for legacy DCS infrastructure.
