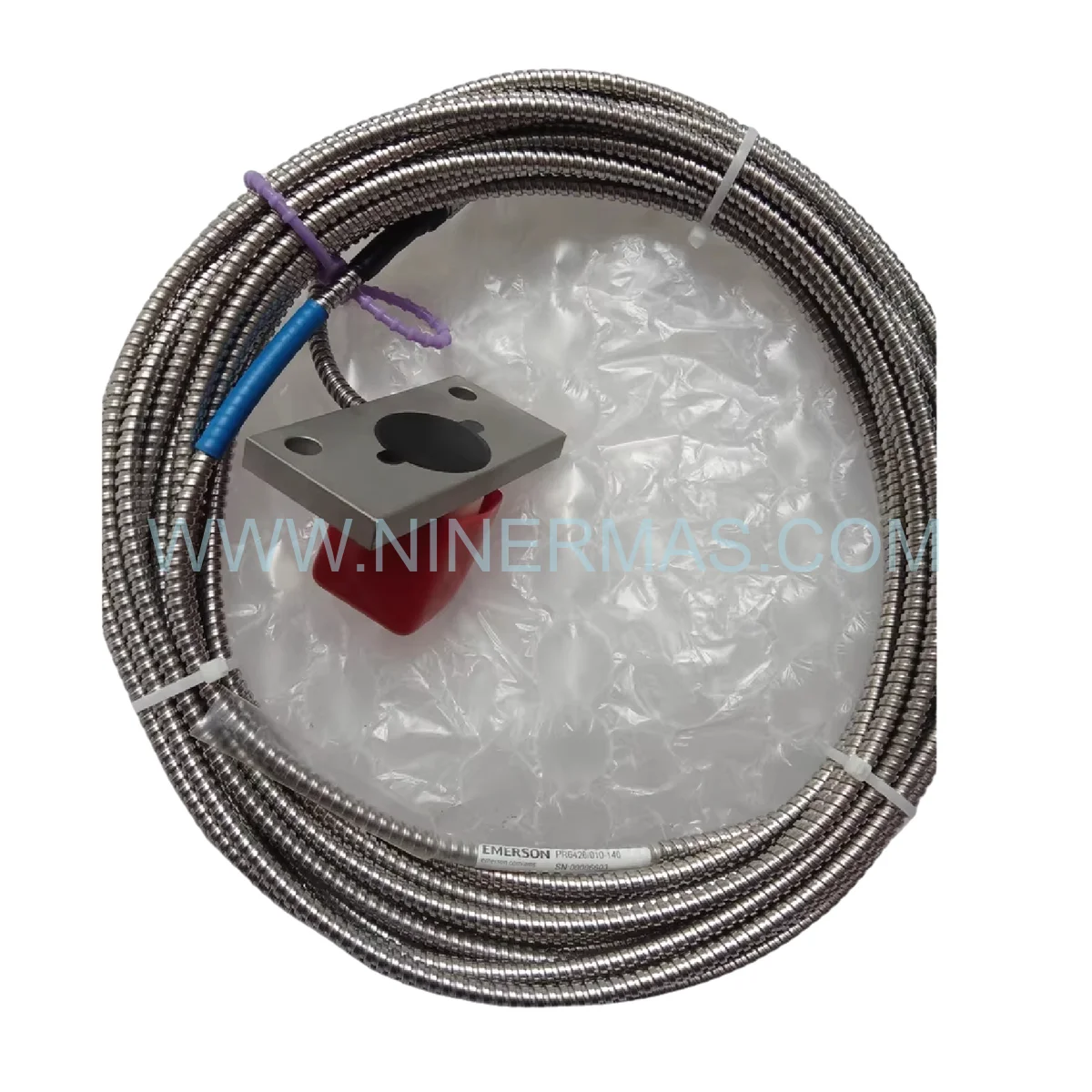

Emerson EPRO PR6423/010-120 Eddy Current Proximity Sensor – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a precision eddy current sensor in a distributed control system. The Emerson EPRO PR6423/010-120 is not merely a measurement device — it is the sensory nerve of rotating machinery protection, translating microscopic shaft displacements into actionable process control signals that safeguard turbines, compressors, and pumps from catastrophic failure. Deployed across Fieldbus-integrated DCS Hardware platforms worldwide, this sensor occupies a mission-critical position in any plant’s safety instrumentation layer.

What distinguishes the PR6423/010-120 from generic proximity sensors is its engineered compatibility with legacy Emerson EPRO signal conditioning chains. While modern DCS Hardware evolves rapidly, the installed base of EPRO-based machinery protection systems remains vast — and sourcing a Factory Sealed, fully calibrated replacement unit is increasingly difficult. This sensor’s 8 V/mm incremental scale factor (ISF) and 2 mm linear measurement range align precisely with CON021/CON011 converter expectations, eliminating the need for recalibration or system reconfiguration during emergency repair scenarios.

Original stock of this model is finite. As an End-of-Life (EOL) adjacent component within the broader EPRO product family, the PR6423/010-120 in Factory Sealed condition represents a scarce asset — one that maintenance engineers and procurement managers must secure proactively rather than reactively.

Key Technical Highlights

Sensing Principle: Non-contact eddy current displacement measurement — zero mechanical wear, infinite operational cycles
Tip Diameter: 8 mm — optimal spatial resolution for shaft diameters — 25 mm in radial and axial configurations
Linear Range: 2.0 mm (80 mils) with ±1.0% full-scale linearity for high-fidelity Process Control output
Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ±5% across 0°C to 45°C — stable, repeatable, Fieldbus-ready
Thread Standard: 3/8″-24 UNF — direct retrofit compatibility with North American machinery housings
Cable Length: 5.0 m with Lemo self-locking connector — vibration-resistant termination for high-cycle environments
Temperature Range: 35°C to +180°C (sensor body); 35°C to +150°C (cable) — suitable for hot-section turbine bays
Protection Rating: IP66 per IEC 60529 — dust-tight and high-pressure water jet resistant
Redundancy Ready: Designed for XY probe-pair configurations supporting full Redundancy in API 670-compliant systems
Materials: PEEK sensing tip, stainless steel housing, PTFE cable insulation — chemical and thermal resilience by design

Vertical Industry Applications

The PR6423/010-120 addresses downtime risk across the most demanding industrial verticals:

Petrochemical & Refining: Installed in centrifugal compressor trains and reactor feed pumps, this sensor continuously monitors radial shaft vibration and axial thrust position. Early detection of bearing degradation or rotor instability prevents unplanned shutdowns that cost refineries hundreds of thousands of dollars per hour. Its chemical resistance to process hydrocarbons and PTFE cable insulation make it the preferred Legacy Component for aging EPRO-based SIS architectures.

Power Generation (Steam & Gas Turbines): Turbine shaft monitoring demands sensors that maintain calibration stability across extreme thermal cycles. The PR6423/010-120’s ±5% ISF temperature coefficient ensures measurement integrity from cold standby through full-load operation, supporting differential expansion tracking and protecting against rotor-stator rubs during startup transients.

Mining & Mineral Processing: Large grinding mills, slurry pumps, and conveyor drive motors operate in environments saturated with dust, moisture, and mechanical shock. The IP66 rating and stainless steel housing of this DCS Hardware component provide the environmental robustness required for continuous, unattended operation in remote mining installations.

Marine & Offshore: Propulsion turbines and auxiliary machinery on LNG carriers and offshore platforms require sensors certified for high-vibration, salt-spray environments. The PR6423/010-120’s construction meets the mechanical demands of marine machinery protection, where sensor failure at sea carries consequences far beyond financial loss.

Pulp & Paper / Chemical Processing: High-speed paper machine rolls and agitator drives benefit from the sensor’s sub-mil resolution for eccentricity and runout monitoring. Integration with Fieldbus-connected Distributed Control System platforms enables real-time condition data to flow directly into plant-wide predictive maintenance programs.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the PR6423/010-120 supplied through our channel is 100% Original Emerson EPRO — sourced directly from authorized distribution networks and stored under controlled conditions to preserve Factory Sealed integrity. We do not supply refurbished, reconditioned, or third-party replicas. Each sensor ships with its original manufacturer packaging, and NIST-traceable calibration certificates are available upon request.

Our 12-Month Comprehensive Warranty covers manufacturing defects and measurement performance deviations from published specifications. Should a unit fail within the warranty period under normal operating conditions, we provide immediate replacement — no lengthy RMA delays that compromise your plant’s uptime.

For Emergency Repair situations, we maintain ready stock and offer same-day dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express. Global delivery to major industrial hubs — Houston, Rotterdam, Singapore, Dubai, Shanghai — typically completes within 24-72 hours. For remote locations, we coordinate with regional freight forwarders to ensure the fastest possible delivery to your site.

This is a Critical Part for Industry Safety. Machinery protection systems without functioning proximity sensors operate blind — unable to detect the shaft excursions that precede bearing failure, seal damage, or rotor-stator contact. Securing Maintenance Stock of the PR6423/010-120 before your current units reach end-of-service is not optional; it is a fundamental risk management decision.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a PR6423/010-120 unit is genuinely original and not a counterfeit?
Authentic Emerson EPRO sensors carry laser-etched serial numbers on the housing that can be cross-referenced with Emerson’s product authentication database. The PEEK tip should be uniformly molded with no surface irregularities, and the Lemo connector should exhibit smooth, positive-locking engagement. Factory Sealed units arrive in original EPRO-branded packaging with a tamper-evident seal. If a supplier cannot provide the original box and documentation, treat the unit with caution.

Q2: Where can I obtain the official datasheet and calibration certificate for the PR6423/010-120?
The official Emerson EPRO datasheet (document reference PR6423 Series) is available through Emerson’s industrial automation documentation portal. When purchasing from us, we provide the datasheet and, upon request, a NIST-traceable calibration certificate issued at the time of manufacture. Contact our technical team with your purchase order number to request documentation.

Q3: Is the PR6423/010-120 compatible with Bently Nevada 3500 series monitoring systems?
The PR6423/010-120 is an Emerson EPRO sensor designed for use with EPRO signal converters (CON021, CON011, CON031). While the output signal from an EPRO converter is a standard voltage signal that can interface with many monitoring systems, direct plug-and-play compatibility with Bently Nevada 3500 systems requires verification of scale factor matching and input impedance compatibility. We recommend consulting your system integrator or our application engineers before cross-platform deployment.

Q4: What is the difference between the /010-120 and /011-120 configurations?
The primary difference lies in the thread standard: the PR6423/010-120 uses 3/8″-24 UNF threading (North American standard), while the /011-120 uses M10-1 metric threading (European/international standard). Both share identical sensing performance specifications. Select the configuration that matches your existing machinery mounting provisions to avoid adapter requirements.

Q5: Can this sensor be used with non-ferromagnetic target materials such as titanium or Inconel?
Yes, but with important caveats. The published ISF of 8 V/mm applies specifically to 42CrMo4 / AISI SAE 4140 ferromagnetic steel targets. Non-ferromagnetic materials (titanium, Inconel, aluminum, stainless steel) produce different eddy current responses, resulting in a different effective scale factor. Custom calibration coefficients for alternative target materials are available from Emerson EPRO. Always specify your target material when ordering for non-standard applications.

Q6: What lead time should I expect for emergency orders?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 local time. DHL Express and FedEx International Priority typically deliver to major global destinations within 24-72 hours. For remote or restricted destinations, we provide realistic delivery estimates at the time of order confirmation. We strongly recommend establishing Maintenance Stock before emergency situations arise — contact us to discuss consignment or buffer stock arrangements.
