Emerson A6500-RC Retrofit-Compatible Output Relay Module

Emerson A6500-RC Retrofit-Compatible Output Relay Module for Legacy Systems

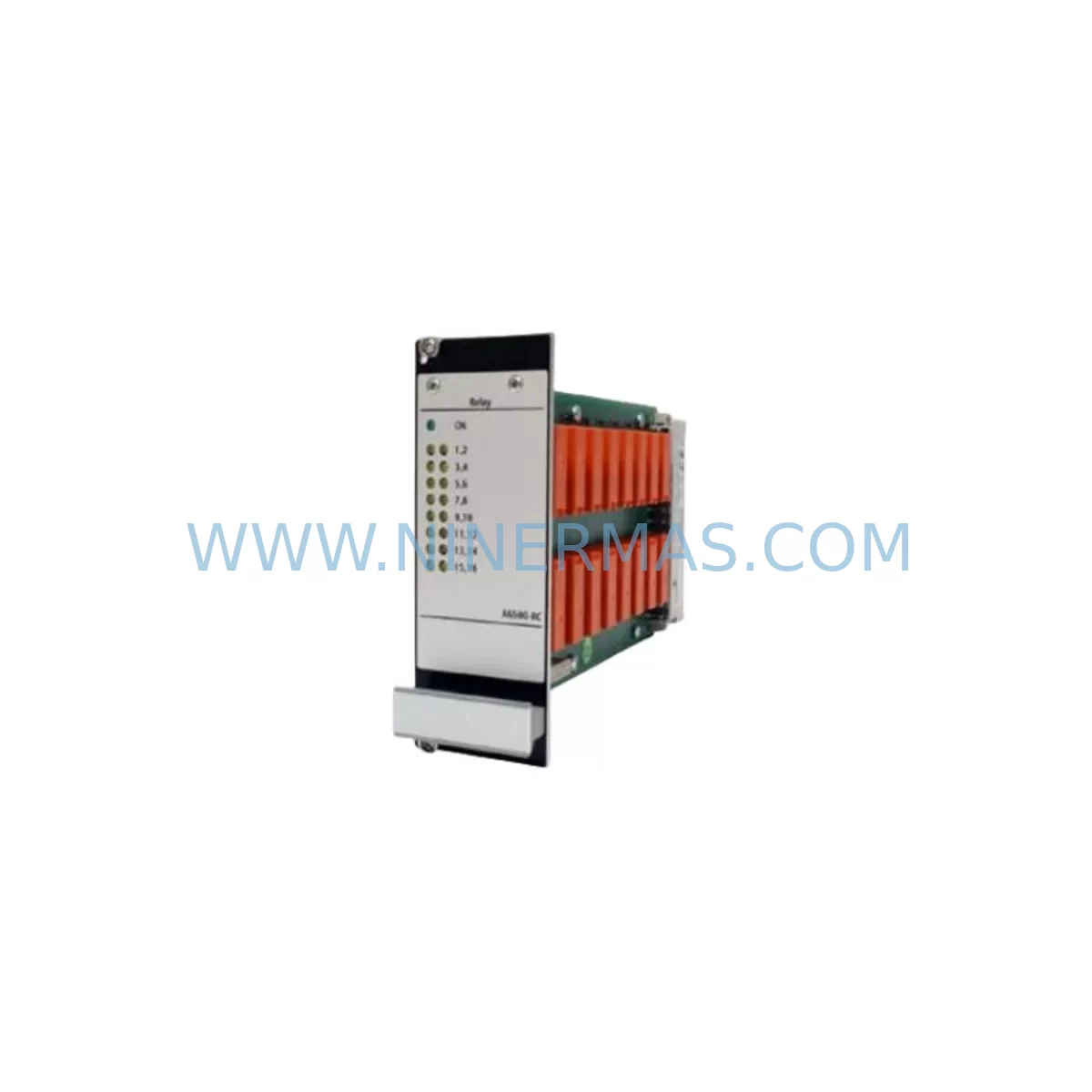

The Emerson A6500-RC is a Channel Output Relay Module designed for the Ovation Distributed Control System (DCS) platform. As legacy Ovation installations continue to operate across power generation, refining, and process industries, the A6500-RC remains a critical spare part for facilities managing aging control architectures. Whether you are executing a planned retrofit, responding to an unplanned module failure, or building a long-term spare parts inventory, the A6500-RC provides a verified drop-in replacement path that minimizes engineering risk and reduces unplanned downtime.

NINERMAS maintains in-stock inventory of the A6500-RC to support urgent procurement requirements. Each unit ships with a 12-month warranty and undergoes pre-shipment functional testing to confirm relay output integrity, backplane communication, and channel addressing before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an Ovation DCS installation requires a structured approach that accounts for the interdependencies between the A6500-RC and the broader control architecture. The relay output module does not operate in isolation — it sits within an Ovation I/O rack alongside companion modules including the A6500-DO Digital Output Module, A6500-DI Digital Input Module, and A6500-AI Analog Input Module, all of which share the same backplane and communicate through the Ovation I/O bus to the rack controller.

Before initiating a swap, engineers should confirm the rack’s Ovation I/O Backplane condition and verify that the backplane connector pins are free of corrosion or mechanical damage. In installations where the rack has been in service for more than ten years, it is common practice to inspect the Ovation Power Supply Module simultaneously, as degraded power supply output voltage can cause intermittent relay faults that are misdiagnosed as module failures. Replacing the A6500-RC without addressing an underlying power supply issue will result in repeat failures.

For sites running the Ovation OCR400 Controller or the newer OCR1100 Controller, the A6500-RC module address is configured within Ovation Developer Studio. Engineers must confirm that the replacement module’s slot address matches the original configuration before energizing the rack. Mismatched addressing will prevent the controller from recognizing the module and will generate a hardware fault alarm on the Ovation HMI workstation. If the site is running an older Ovation release, a Developer Studio version compatibility check is recommended before proceeding.

Field wiring for the A6500-RC terminates at the Ovation marshalling panel rather than directly at the module, which simplifies the physical swap process. However, engineers should verify terminal block torque values and inspect for any signs of thermal stress on the wiring insulation, particularly in high-cycle relay applications where contact wear accelerates over time. In applications where the relay outputs drive motor starters, solenoid valves, or interlock circuits, the replacement module’s contact rating should be confirmed against the load specifications documented in the original loop drawings.

Sites that are simultaneously upgrading their communication infrastructure — for example, migrating from legacy serial links to Ethernet-based Ovation network architecture — should coordinate the A6500-RC replacement with the installation of updated Ovation Network Interface Modules and any required Ovation Communication Cables to avoid creating a mixed-revision rack configuration that complicates future maintenance. Where I/O expansion is planned as part of the retrofit, additional Ovation I/O Expansion Racks and associated backplane assemblies should be staged and tested offline before integration into the live system.

For facilities managing a broader spare parts lifecycle program, NINERMAS recommends maintaining a minimum buffer stock of the A6500-RC alongside related modules such as the A6500-AO Analog Output Module and A6500-TC Thermocouple Input Module to cover the most common failure modes across the Ovation I/O family. This approach reduces mean time to repair and supports the 12-month warranty commitment on all supplied units.

Downtime Control During System Migration

Minimizing control system downtime during an A6500-RC replacement requires pre-staging the replacement module, verifying its configuration offline, and coordinating the physical swap with the site’s operations team to align with a planned maintenance window or a low-production period. Where the relay output controls a critical interlock or safety function, the replacement should be coordinated with the site’s safety management system to ensure that the affected loop is placed in a safe state — typically through a manual bypass or a hardwired override — before the module is removed from the rack.

The Ovation DCS platform supports hot-swap capability on certain I/O module types, but engineers should confirm whether the specific rack configuration and controller firmware version support this feature before attempting a live swap. In configurations where hot-swap is not supported, a controlled shutdown of the affected rack section is required. The original program logic, tag database, and HMI graphic assignments are stored in the Ovation controller and Developer Studio project files, not in the I/O module itself, so replacing the A6500-RC does not require any program re-download or HMI reconfiguration — provided the module address and rack slot position are preserved.

Post-replacement commissioning should include a channel-by-channel output verification using the Ovation Developer Studio diagnostic tools, confirmation of relay contact closure at the field device, and a review of the Ovation alarm log to confirm that no residual hardware fault alarms remain active. Where the relay output drives a critical process actuator, a functional test under controlled conditions is recommended before returning the loop to automatic control.

Retrofit Support FAQ

Q1: Is the A6500-RC a direct drop-in replacement for an existing failed unit in my Ovation rack?
Yes. The A6500-RC is designed for direct slot replacement within the Ovation I/O rack. No backplane modification or field rewiring is required for a like-for-like swap. Module address confirmation in Ovation Developer Studio is the primary commissioning step after physical installation.

Q2: What pre-shipment testing does NINERMAS perform on the A6500-RC?
Each A6500-RC unit undergoes relay output continuity testing, backplane signal integrity verification, and channel addressing confirmation before shipment. Units that do not pass all test criteria are not dispatched. A 12-month warranty is provided from the date of shipment.

Q3: Can the A6500-RC be used in an Ovation rack running an OCR1100 controller?
Yes. The A6500-RC is compatible with both the OCR400 and OCR1100 controller platforms within the Ovation DCS architecture. Engineers should verify the Developer Studio project configuration to confirm module addressing is consistent with the replacement slot position.

Q4: What is the lead time and stock availability for the A6500-RC?
NINERMAS maintains in-stock inventory of the A6500-RC to support urgent and planned procurement requirements. Lead time for in-stock units is typically 1–3 business days for international shipment. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange expedited dispatch if required.
