Emerson 5X00301G01 Safety-Reliable AO for Critical Control Sites

Emerson 5X00301G01 Safety-Reliable AO for Critical Control Sites

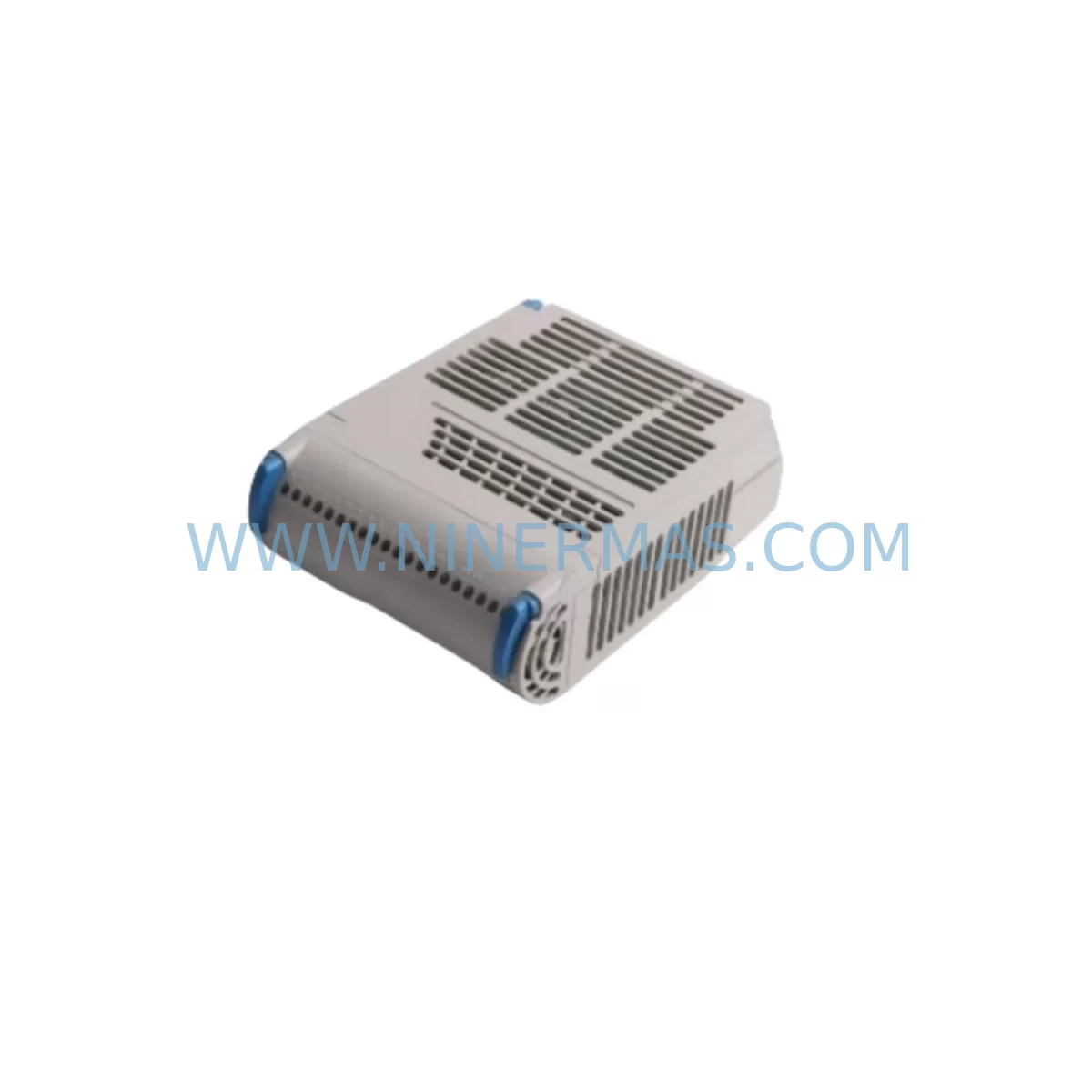

The Emerson 5X00301G01 is a ruggedized analog output module engineered for the Ovation Distributed Control System (DCS), purpose-built to deliver uninterrupted, precision signal control in the most demanding industrial environments. Designed for continuous production facilities where control loop integrity is non-negotiable, this module provides stable 4–20 mA analog output channels that resist signal drift, electromagnetic interference, and power fluctuation — the three leading causes of unplanned process shutdowns in heavy industry. Whether installed in a critical interlock cabinet at a petrochemical refinery, a power generation control room, or a metallurgical process line, the 5X00301G01 maintains output accuracy and loop continuity under conditions that would compromise lesser hardware.

At NINERMAS, every 5X00301G01 unit undergoes rigorous pre-shipment functional testing, including channel-by-channel output verification, isolation resistance checks, and thermal cycling validation. This ensures that each module arrives ready for immediate field installation without the risk of latent defects causing early-life failures in safety-critical loops. All units are backed by a 12-month warranty covering manufacturing defects and functional performance, with long-term inventory reserves maintained to support ongoing spare parts programs for facilities operating Ovation DCS platforms.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered Ovation control cabinet, the 5X00301G01 analog output module does not operate in isolation — its reliability is directly tied to the integrity of every upstream and downstream component in the control loop. Signal integrity begins at the input side: the Emerson 5X00119G01 Ovation Analog Input Module captures field sensor data with high-resolution A/D conversion, feeding conditioned process values to the Ovation controller. Any drift or noise at the input stage will propagate through the control algorithm and manifest as erratic output behavior at the 5X00301G01 — making input module quality inseparable from output module performance.

The controller itself — typically an Emerson 5X00070G04 Ovation Controller Module or the 5X00105G14 Ovation Processor Module — executes the PID and interlock logic that drives the 5X00301G01’s output channels. Controller health directly determines whether the analog output responds correctly to process deviations. In high-availability architectures, redundant controller configurations are paired with the 5X00301G01 to ensure bumpless transfer during controller failover, eliminating the risk of output signal interruption during switchover events.

Digital I/O modules play an equally critical role in the same cabinet. The Emerson 5X00226G02 Ovation Digital Output Module handles discrete actuator commands — valve open/close, pump start/stop — that often operate in parallel with the analog output loops managed by the 5X00301G01. Similarly, the 5X00106G01 Ovation Digital Input Module monitors field device status signals, providing the interlock logic with the discrete feedback needed to validate that analog output commands have been executed correctly by field actuators.

Power quality is a frequently underestimated risk factor in analog output accuracy. The Emerson 1C31234G01 Ovation Power Supply Module provides regulated, filtered DC power to the I/O backplane, suppressing voltage ripple and transient surges that would otherwise introduce noise into the 5X00301G01’s D/A conversion process. In facilities with poor power quality — common in heavy industrial sites near large motor drives or arc furnaces — a dedicated power supply module is the first line of defense against output signal instability.

Communication integrity is maintained by the Emerson 5X00489G01 Ovation Ethernet Module and the 1C31227G01 Ovation Communication Module, which ensure that controller-to-I/O data exchange remains synchronized even under high network load or electromagnetic interference. Loss of communication between the controller and the 5X00301G01 results in the module holding its last output value or driving to a safe-state output — a behavior that must be configured correctly during commissioning to align with the process safety requirements of each loop. The 1C31238H01 Ovation Relay Output Module is often installed in the same cabinet to provide hardwired safety relay outputs for emergency shutdown circuits, complementing the analog output loops managed by the 5X00301G01 with a layer of hardwired protection that remains active even during DCS communication faults. All modules are mounted on the 1C31233G03 Ovation Backplane, which provides the mechanical and electrical backbone for the entire I/O assembly.

Critical Industrial Safety Applications

The Emerson 5X00301G01 is deployed across a wide range of critical industrial sectors where analog output reliability directly impacts process safety and production continuity.

In petrochemical and refining facilities, the 5X00301G01 drives control valve positioners in distillation column pressure control loops, reactor feed flow control, and heat exchanger bypass valve modulation. These are loops where output signal failure can trigger emergency shutdowns, flare events, or — in worst-case scenarios — loss of containment. The module’s channel isolation and EMI resistance are essential in environments where high-voltage motor drives and large transformers generate significant electromagnetic interference.

In thermal and combined-cycle power generation, the 5X00301G01 manages boiler feedwater control valves, turbine governor output signals, and combustion air damper positioning. Power plant control rooms demand the highest levels of output signal stability, as even minor deviations in feedwater flow or fuel-air ratio can affect turbine efficiency and emissions compliance. The module’s 12-bit resolution ensures fine-grained control authority across the full operating range of these critical actuators.

In mining and mineral processing, the 5X00301G01 controls variable-speed drive references for conveyor systems, crusher feed rate control, and flotation cell reagent dosing pumps. These environments are characterized by extreme dust loading, high vibration from crushing and grinding equipment, and frequent power quality disturbances from large motor starts. The ruggedized design of the 5X00301G01 and its compatibility with IP54-rated enclosures make it well-suited for these harsh conditions.

In water and wastewater treatment, the module drives chemical dosing pump speed references, filter backwash valve positioners, and aeration blower output controls. Water treatment facilities often operate continuously with minimal staffing, making the long-term reliability and spare parts availability of control system components a critical operational concern. NINERMAS maintains reserved inventory of the 5X00301G01 specifically to support the spare parts programs of water utility operators.

In metallurgical and steel production facilities, the 5X00301G01 manages furnace temperature control outputs, rolling mill speed references, and cooling water flow control valves. The combination of high ambient temperatures, intense electromagnetic fields from induction furnaces, and continuous 24/7 operation makes this one of the most demanding application environments for any analog output module.

Safety and Quality FAQ

Q1: What does the 12-month warranty on the Emerson 5X00301G01 cover?
The 12-month warranty covers all manufacturing defects and functional performance failures under normal operating conditions. This includes D/A conversion accuracy, channel isolation integrity, backplane interface communication, and output signal stability. Warranty claims are supported with replacement unit dispatch and technical documentation. The warranty period begins from the date of shipment from NINERMAS.

Q2: What pre-shipment testing is performed on each 5X00301G01 unit?
Every unit undergoes a comprehensive pre-shipment test protocol that includes channel-by-channel output signal verification across the full 4–20 mA range, isolation resistance measurement between channels and between channels and the backplane bus, visual inspection for physical damage, and firmware version confirmation. Test records are retained and can be provided upon request for quality-critical procurement programs.

Q3: Is the 5X00301G01 compatible with all versions of the Emerson Ovation DCS platform?
The 5X00301G01 is designed for the Emerson Ovation DCS I/O architecture and is compatible with Ovation 3.x and later controller platforms when used with the appropriate Ovation backplane assembly. Compatibility with specific controller firmware versions and I/O configuration software should be verified against the Emerson Ovation system documentation for the target installation. NINERMAS technical support can assist with compatibility verification for specific site configurations.

Q4: Can NINERMAS support long-term spare parts supply for the 5X00301G01?
Yes. NINERMAS maintains reserved inventory of the 5X00301G01 and other Ovation I/O modules specifically to support long-term spare parts programs for facilities operating Emerson Ovation DCS platforms. For facilities with critical spare parts requirements, NINERMAS can discuss reserved stock agreements and priority fulfillment arrangements to ensure that replacement modules are available when needed, minimizing the risk of extended unplanned downtime due to spare parts unavailability.
