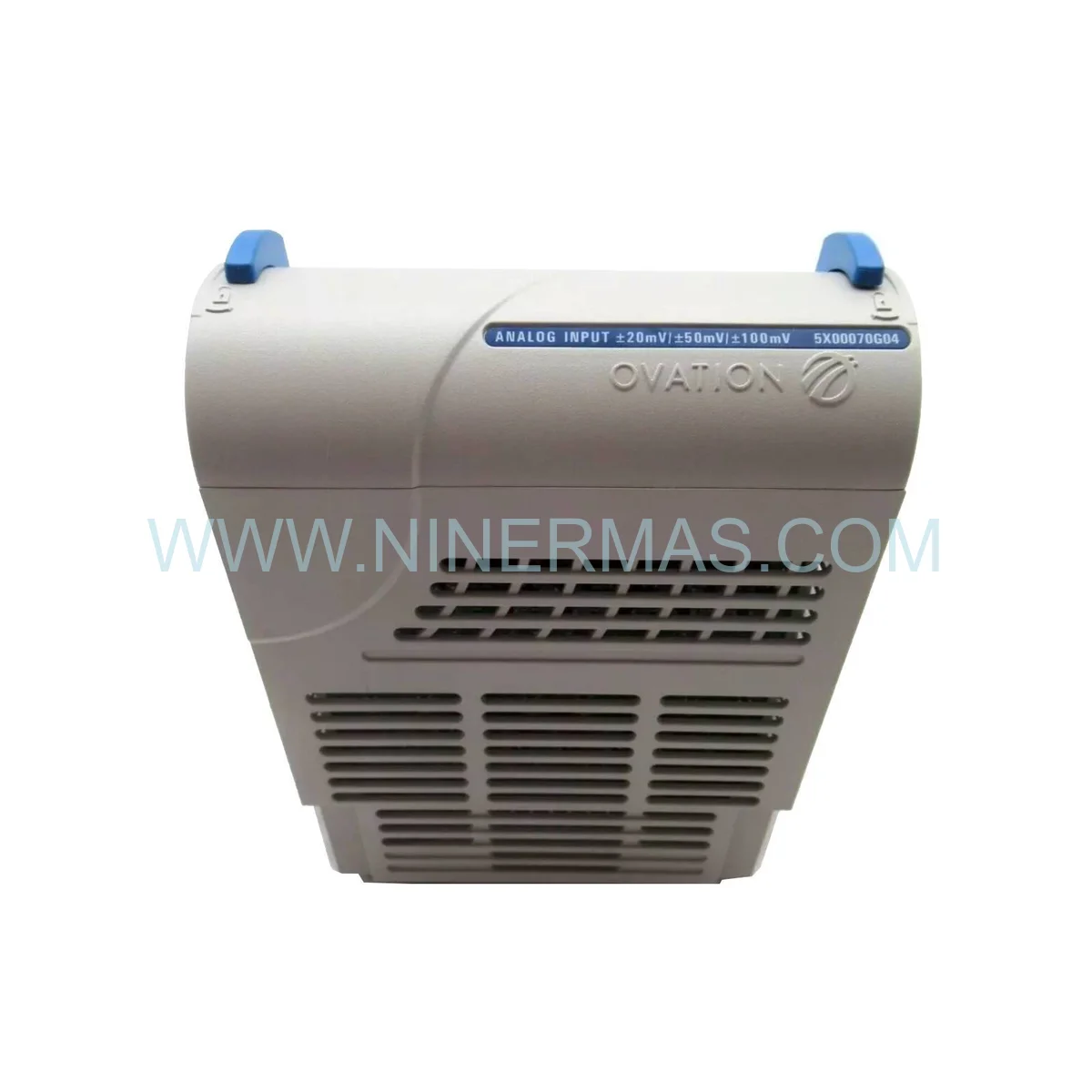

Emerson 5X00070G04 Ovation Analog Input Module — New & Original

Emerson Ovation Analog Input Module 5X00070G04 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Emerson 5X00070G04 stands as a cornerstone I/O module within Ovation distributed control architectures. Its role in sustaining system availability is unambiguous: by delivering continuous, high-fidelity signal acquisition across eight differential analog channels, the 5X00070G04 ensures that mission-critical process variables low, pressure, temperature, and level re translated into actionable digital data without interruption. In environments where unplanned downtime carries six-figure hourly costs, this level of measurement integrity is non-negotiable.

Engineered for operational excellence in demanding industrial settings, the 5X00070G04 withstands ambient temperatures from 0°C to 60°C and maintains ±0.1% span accuracy even under electromagnetic interference common to heavy manufacturing floors. Installation teams should note that the module’s hot-swap capability allows field replacement without controller shutdown critical advantage during live production cycles. Proper seating on the Ovation I/O backplane and verification of termination assembly torque values are essential commissioning steps to prevent intermittent signal faults.

As a strategic spare part, the 5X00070G04 is indispensable for any facility operating Emerson Ovation systems. Legacy module availability is increasingly constrained; maintaining certified stock ensures rapid restoration of control loop integrity following unexpected hardware failure, directly protecting production continuity and regulatory compliance posture.

Key Operational Features

High-Resolution Signal Acquisition: 16-bit delta-sigma A/D converters deliver 1-in-65,536 resolution for precise process optimization across all input types.
Multi-Signal Compatibility: Accepts 4-20 mA, 1-5 VDC, 0-10 VDC, RTD, and thermocouple inputs nabling seamless integration across heterogeneous field instrumentation.
Redundancy-Ready Architecture: Supports high-availability configurations within Ovation controller redundancy schemes, minimizing single-point failure risk.
Galvanic Isolation: 1500 VAC channel-to-bus and 250 VAC channel-to-channel isolation safeguards both the module and the broader control network.
Embedded Diagnostics: Continuous self-test routines monitor A/D converter health, loop integrity, and power rail stability nabling predictive maintenance before faults escalate.
Auto-Configuration via Ovation Developer Studio: Eliminates manual parameterization errors and accelerates system integration during commissioning or module swap-out.

Maintenance & Performance Benchmarks

The 5X00070G04 is architected to adapt across industrial network scales rom compact skid-mounted control panels to enterprise-wide distributed control systems spanning multiple process units. In small-scale deployments, a single I/O rack populated with 5X00070G04 modules can serve 8 to 64 analog points, sufficient for standalone compressor or heat exchanger control loops. In large refinery or power generation environments, multiple racks interconnect via the Ovation high-speed I/O bus, scaling analog input capacity beyond 128 channels while maintaining sub-100 ms update rates per channel.

Field MTBF data from refining, pharmaceutical, and metals processing installations consistently exceeds 200,000 hours, validating the module’s durability under continuous duty cycles. Firmware compatibility spans multiple Ovation controller generations, and backward compatibility with legacy backplane hardware reduces the capital expenditure associated with system upgrades. For SIL 2 functional safety applications per IEC 61508, the module can be configured within validated safety instrumented system architectures capability that distinguishes it within the broader landscape of automation components.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 5X00070G04 unit dispatched from our inventory is sourced directly from authorized distribution channels and ships in original factory packaging with full traceability documentation. For in-stock units, same-day dispatch is available upon order confirmation before the daily cut-off ritical for facilities managing unplanned outages where every hour of downtime compounds operational losses.

Our global supply network is specifically structured to support end-of-life (EOL) and legacy module procurement, addressing the growing challenge of sourcing discontinued Emerson Ovation components through conventional channels. Whether your facility requires a single replacement unit or a bulk strategic reserve, our logistics infrastructure supports worldwide express delivery to minimize mean-time-to-repair (MTTR) for mission-critical control systems. All shipments include commercial invoice, packing list, and certificate of conformance upon request.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 5X00070G04 on an Ovation I/O rack?
Power down the I/O rack segment if hot-swap is not required, align the module with the backplane guide rails, and seat firmly until the ejector levers click. Verify module LED status indicators show green within 30 seconds of power-up. Configure channel parameters via Ovation Developer Studio before enabling control loops.

Q2: Which Ovation controller firmware versions are compatible with the 5X00070G04?
The 5X00070G04 is compatible with Ovation controller firmware versions 3.x through the current release. For legacy systems running firmware below 3.0, consult Emerson’s compatibility matrix or contact our engineering team for version-specific guidance prior to installation.

Q3: Can the 5X00070G04 be used in SIL 2 safety instrumented system applications?
Yes. When configured in accordance with IEC 61508 guidelines and validated within an approved SIS architecture, the 5X00070G04 supports SIL 2 integrity levels. Safety manual documentation is available upon request for functional safety assessments.

Q4: What warranty coverage applies to this module?
All 5X00070G04 units carry a 1-year warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days; advance replacement units are available for critical applications to minimize downtime during the RMA process.

Q5: How do I verify the module’s signal accuracy after installation?
Use a calibrated loop calibrator to inject known 4-20 mA signals at 0%, 25%, 50%, 75%, and 100% of span. Compare Ovation HMI readings against injected values; deviations exceeding ±0.15% indicate recalibration or module replacement is required. Calibration records should be maintained per your facility’s instrument management system.

Q6: Is expedited shipping available for emergency procurement?
Yes. We offer same-day dispatch for in-stock units and worldwide express logistics via DHL, FedEx, and UPS Priority services. Emergency orders placed before 14:00 CST are typically dispatched the same business day, with delivery to major industrial hubs within 24-72 hours depending on destination.
