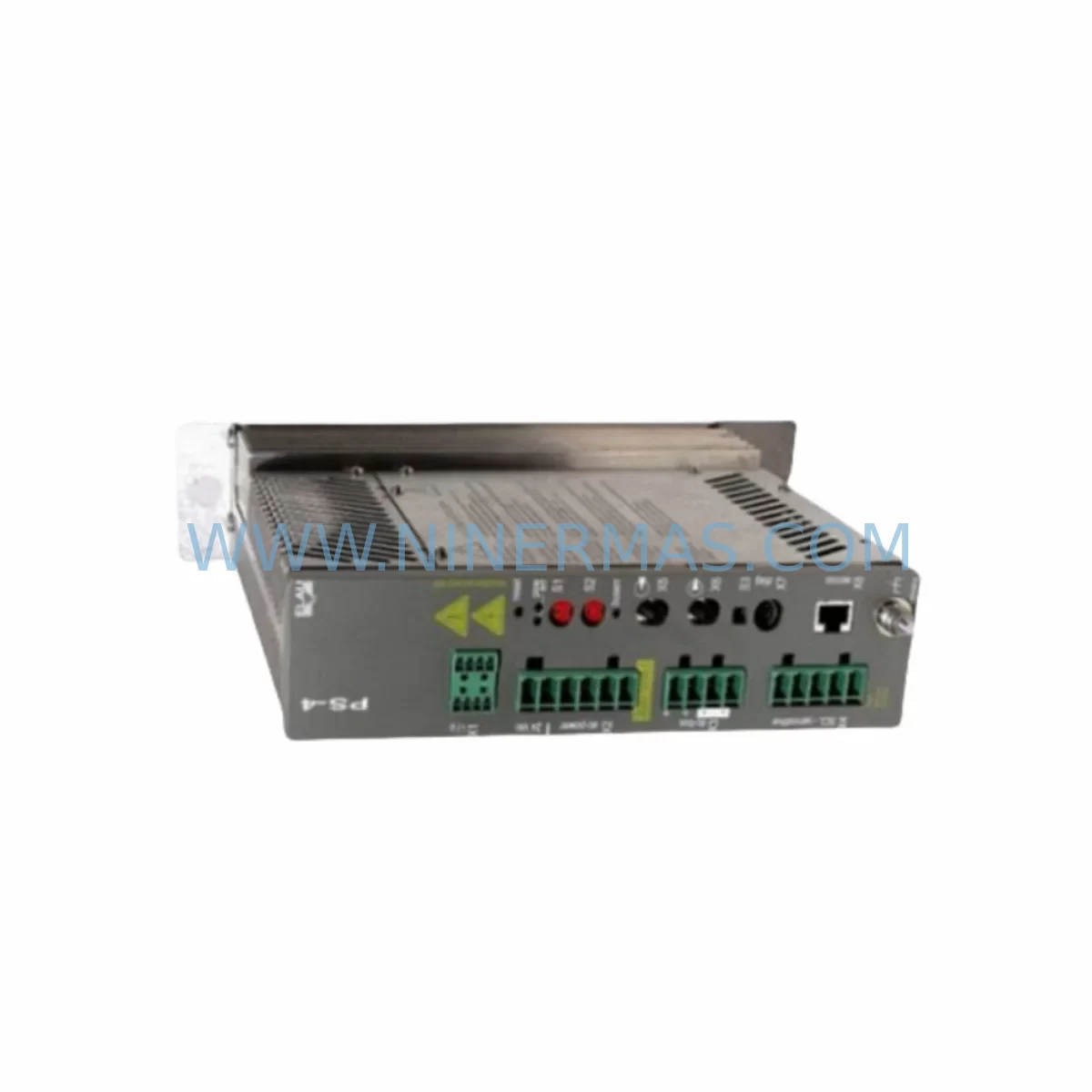

The ELAU VPM01D16AA00 (PS-4/10/16/230/00) is a servo drive power module designed for the PacDrive PS-4 series — a widely deployed motion control platform in packaging, printing, and food processing automation. When this module fails or degrades, the entire servo axis goes offline, halting production. Sourcing a verified, service-ready replacement from a reliable supplier is the fastest path to restoring uptime and protecting your maintenance budget.

At NINERMAS, every VPM01D16AA00 unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain long-term stock of PacDrive PS-4 series components to support both emergency breakdown replacements and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the VPM01D16AA00 is rarely an isolated task. In a PacDrive PS-4 cabinet, this servo power module works in close coordination with several other components that should be inspected or replaced simultaneously to prevent repeat failures and reduce future downtime.

Start with the PS-4 power supply unit — if the VPM01D16AA00 has failed due to overvoltage or ripple, the upstream DC bus power supply may be degraded and should be load-tested. Inspect the ELAU MC-4 motion controller (the PacDrive CPU module) for firmware version compatibility with the replacement drive module, as mismatched firmware can cause axis faults on startup.

Check all SERCOS fiber-optic ring cables connecting the MC-4 to each VPM drive node — a cracked or dirty fiber connector is a common cause of intermittent axis communication errors that are often misdiagnosed as drive failures. While the cabinet is open, inspect the 24 VDC auxiliary power supply that feeds the control logic of the PS-4 modules; a sagging auxiliary rail causes unpredictable enable/disable behavior across all axes.

On the motor side, verify the SH series servo motor encoder cable and connector integrity. ELAU SH motors use a proprietary encoder protocol, and a damaged cable can trigger overcurrent faults in the VPM module. If the motor has accumulated significant run hours, consider scheduling a bearing inspection alongside the drive replacement to avoid a second unplanned stop.

For I/O and safety circuits, review the PS-4 I/O expansion modules and any safety relay modules wired into the drive enable chain. A faulty safety relay or welded contact can prevent the replacement VPM01D16AA00 from enabling even after correct installation. Also inspect the terminal blocks and 24 V wiring harness inside the cabinet — loose terminals are a leading cause of intermittent faults in high-vibration environments such as packaging and printing lines.

If your system uses ELAU PacDrive HMI panels or a SCADA interface connected via the PacDrive network, confirm that the axis configuration parameters stored in the MC-4 controller match the replacement module’s rated current and encoder type before going live. Finally, keep a spare PS-4 backplane connector and a set of DC bus fuses in your local spare parts kit — these low-cost components are frequently overlooked but can extend the service life of the entire drive cabinet significantly.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the PS-4 cabinet following your site LOTO procedure. Discharge the DC bus capacitors (minimum 5 minutes after power-off) before touching any drive module. Confirm zero voltage on the bus bars with a calibrated meter.

Step 2 — Module Removal: Disconnect the SERCOS fiber-optic cables, motor power connector (U/V/W), encoder feedback connector, and 24 VDC auxiliary connector from the faulty VPM01D16AA00. Label each connector before removal. Release the module locking lever and slide the unit out of the backplane slot.

Step 3 — Compatibility Verification: Confirm the replacement VPM01D16AA00 carries the same hardware revision and firmware baseline as the removed unit, or verify with your MC-4 firmware release notes that the new revision is backward compatible. Check the motor nameplate data against the module’s rated current (16 A) and voltage (230 V).

Step 4 — Installation: Slide the replacement module into the backplane slot until the locking lever clicks. Reconnect all connectors in reverse order. Torque terminal screws to the specified value to ensure reliable contact.

Step 5 — Commissioning: Restore auxiliary 24 VDC power first and verify the MC-4 recognizes the new axis node on the SERCOS ring (check the node status LED). Then restore main AC power. Perform a low-speed jog test on the affected axis before returning the machine to automatic mode. Log the replacement in your maintenance management system with the module serial number and date.

This structured workflow minimizes re-work risk and ensures the replacement VPM01D16AA00 is fully validated before production resumes — typically allowing line recovery within 2–4 hours of receiving the spare part on site.

Spare Parts Support FAQ

Q1: Is the VPM01D16AA00 still available as a new original part, or only as refurbished?
ELAU was acquired by Schneider Electric, and the PS-4 series has reached end-of-life status. New original stock is extremely limited globally. NINERMAS supplies both new-old-stock (NOS) units where available and fully tested refurbished units that meet original electrical specifications. All units are function-tested under load before shipment and covered by a 12-month warranty regardless of condition grade.

Q2: How do I confirm compatibility with my existing PS-4 system before ordering?
Provide us with your MC-4 firmware version, the existing VPM module hardware revision (printed on the module label), and the connected SH motor model number. Our technical team will verify compatibility and advise on any firmware update requirements before the unit ships. You can reach us at sale@ninermas.com or +0086 187 5021 5667.

Q3: What is your lead time and how is the unit tested before shipping?
In-stock units ship within 2 business days. Each VPM01D16AA00 undergoes input/output voltage verification, insulation resistance testing, SERCOS communication handshake testing, and a dynamic load cycle before packaging. A test report is available on request. Units are packed in anti-static foam with moisture barrier bags for safe international transit.

Q4: Can NINERMAS support long-term supply for our annual maintenance program?
Yes. We offer blanket order agreements for maintenance teams that require guaranteed annual supply of PS-4 series components including VPM drive modules, MC-4 controllers, and associated power supply units. Contact our sales team to discuss volume pricing, reserved stock arrangements, and consignment options tailored to your planned maintenance schedule.
