ELAU MC-4/11/01/400 Service-Ready Spare Part for Industrial Maintenance

ELAU MC-4/11/01/400 Service-Ready Spare Part for Industrial Maintenance

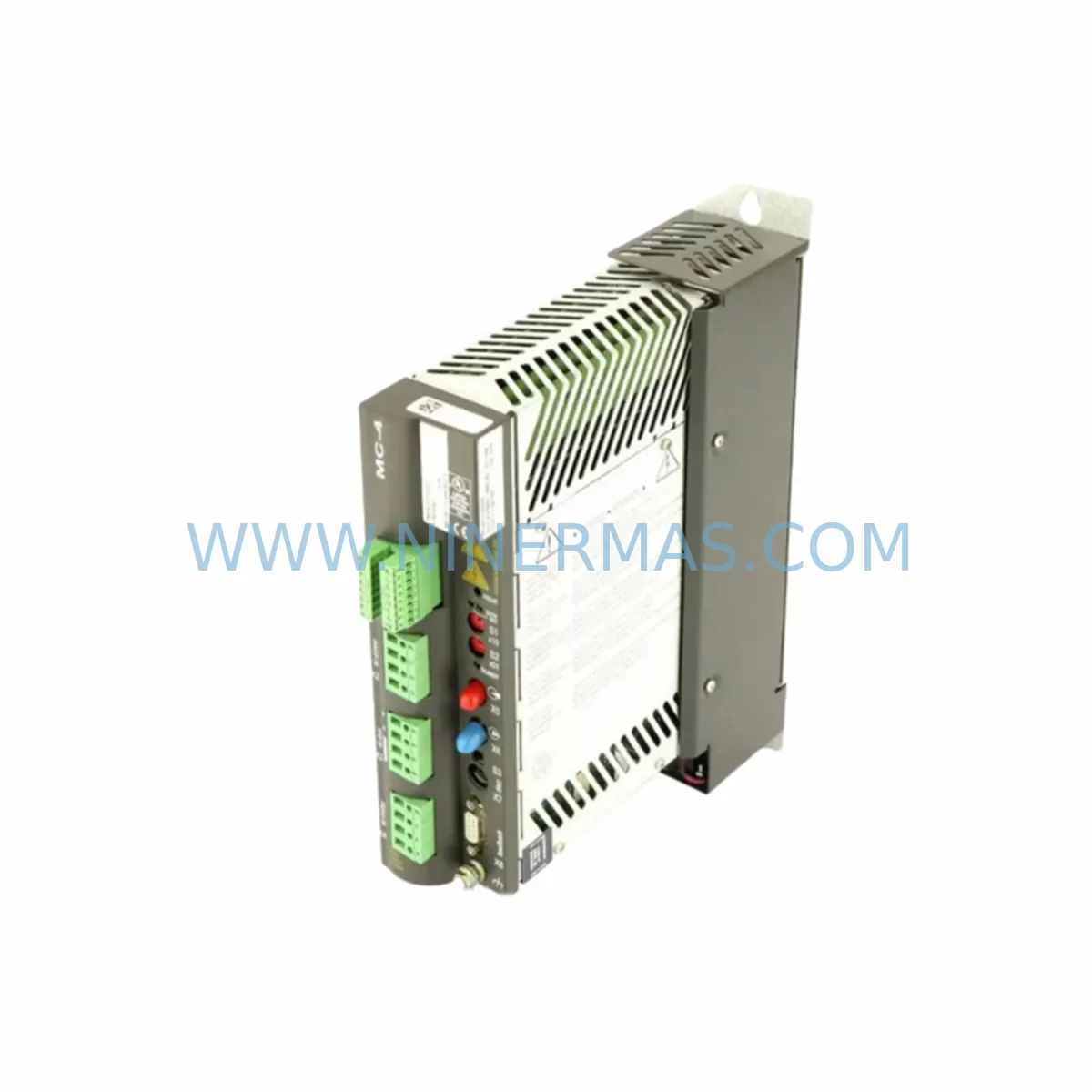

The ELAU MC-4/11/01/400 is a high-performance motion controller module designed for the PacDrive series — ELAU’s flagship multi-axis servo control platform widely deployed in packaging machinery, filling lines, labelling systems, and precision assembly equipment. As a service-ready original spare part, the MC-4/11/01/400 is stocked and tested to support rapid downtime recovery, planned annual overhauls, and long-term lifecycle extension of legacy PacDrive installations.

For maintenance engineers managing aging PacDrive systems, sourcing a verified replacement MC-4/11/01/400 is often the single most critical step in restoring production after an unplanned controller fault. This module handles real-time IEC 61131-3 motion sequencing, axis interpolation, and CANopen or SERCOS communication to servo drives — making it the computational heart of any PacDrive cabinet. Downtime caused by a failed MC-4 unit can cascade across an entire production line within minutes. Having a tested, shelf-ready spare eliminates that risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PacDrive MC-4/11/01/400 controller fails or shows intermittent axis faults, experienced maintenance engineers know that the fault rarely exists in isolation. A thorough site replacement workflow must account for the entire electrical and communication ecosystem surrounding the MC-4 module.

Begin by verifying the 24 VDC power supply rail feeding the PacDrive backplane — a degraded or undersized PSU is a common root cause of MC-4 resets and communication dropouts. ELAU-compatible 24 VDC DIN rail power supplies (such as those from the Schneider Electric Phaseo range or equivalent industrial PSUs) should be load-tested before the new MC-4 is installed. Simultaneously, inspect the PacDrive backplane itself: check for bent pins, oxidised contacts, and secure module seating, as backplane connector wear is a frequent secondary failure mode in high-vibration environments.

The MC-4/11/01/400 communicates with servo drives via CANopen or SERCOS II drive bus cables. These shielded communication cables should be inspected for continuity, shield integrity, and correct termination resistors at both ends of the bus. A damaged or improperly terminated drive bus cable will cause axis communication faults even with a brand-new MC-4 installed. If the system uses ELAU SH-series or MH-series servo drives (e.g., SH 1.17, SH 2.17, MH 3.17), verify that drive firmware versions are compatible with the MC-4 runtime version being restored.

For I/O integrity, check the digital I/O modules connected to the PacDrive system — particularly any safety-rated I/O handling E-stop, guard door interlocks, and axis enable signals. A faulty I/O module can prevent the MC-4 from completing its startup sequence, mimicking a controller fault. Safety relay modules and safety PLCs interfacing with the PacDrive E-stop chain should also be tested for correct response times and reset behaviour after the MC-4 replacement.

If the installation includes an ELAU C400 or C600 servo controller in a multi-cabinet configuration, verify that the inter-cabinet communication link (typically Ethernet or proprietary ELAU bus) is intact and that the C400/C600 firmware is compatible with the replacement MC-4 module version. Mismatched firmware between the MC-4 and servo controllers is a known cause of post-replacement commissioning delays.

Finally, review the HMI (Human-Machine Interface) connection — whether a Schneider Electric Magelis panel, a third-party SCADA terminal, or an embedded operator panel. After MC-4 replacement, HMI communication parameters (IP address, node ID, baud rate) may need to be re-confirmed, particularly if the replacement module carries a different firmware baseline. Signal isolators on analogue feedback channels and terminal block wiring on the I/O rail should be inspected for loose connections that may have contributed to the original fault.

Procurement engineers should note that the MC-4/11/01/400 is a legacy ELAU module with limited availability on the open market. Establishing a long-term spare parts agreement with a verified supplier — covering at minimum one shelf-ready MC-4 unit plus associated servo drive spares — is strongly recommended for any facility running more than two PacDrive cabinets. Combining the MC-4 spare with buffer stock of 24 VDC PSU modules, CANopen bus cables, backplane connectors, and safety relay modules creates a comprehensive first-response kit that can restore most PacDrive faults within a single shift.

Site Replacement Workflow

Step 1 — Isolate and de-energise: Follow your site LOTO (Lockout/Tagout) procedure. Isolate the PacDrive cabinet from mains supply and discharge the DC bus on all connected servo drives before opening the cabinet door.

Step 2 — Document current configuration: Before removing the faulty MC-4/11/01/400, photograph the backplane slot position, cable routing, and any visible DIP switch or jumper settings. If accessible, back up the PacDrive project from the MC-4 via the PacDrive Engineering Tool (PET) or retrieve the last known backup from your site documentation system.

Step 3 — Remove faulty module: Release the module locking mechanism, disconnect the drive bus and I/O connectors, and slide the MC-4 out of the backplane slot. Inspect the backplane connector for damage before inserting the replacement.

Step 4 — Install replacement MC-4/11/01/400: Seat the new module firmly into the backplane slot. Reconnect all drive bus cables, I/O connectors, and communication links. Verify that termination resistors are correctly positioned on the CANopen or SERCOS bus.

Step 5 — Restore and commission: Re-energise the cabinet in stages — 24 VDC control power first, then servo drive DC bus. Load the PacDrive project onto the replacement MC-4 via PET. Perform a controlled axis homing sequence before returning the machine to automatic mode. Confirm all safety functions (E-stop, guard interlocks, axis limits) are operational before resuming production.

Step 6 — Post-replacement verification: Run the machine through at least one full production cycle under supervision. Log the replacement in your maintenance management system (CMMS) and update the spare parts inventory record. Schedule a follow-up inspection of the replaced module’s root cause (PSU, backplane, cable, or firmware) to prevent recurrence.

Spare Parts Support FAQ

Q1: Is the ELAU MC-4/11/01/400 still available as a new or service-exchange unit?
The MC-4/11/01/400 is a legacy ELAU module that has been discontinued by the original manufacturer (now Schneider Electric). However, service-ready units — either new old stock (NOS) or professionally refurbished and tested — remain available through specialist industrial spare parts suppliers. Each unit supplied by NINERMAS is tested before shipment and covered by a 12-month warranty, giving maintenance teams confidence in the replacement’s reliability.

Q2: How do I verify compatibility between the replacement MC-4/11/01/400 and my existing PacDrive system?
Compatibility depends primarily on the PacDrive runtime firmware version and the servo drive types installed in your cabinet. Provide your existing MC-4 firmware version (visible on the module label or via PET software) and your servo drive model numbers (e.g., SH 1.17, C400) when enquiring. Our technical team will confirm firmware compatibility and advise on any update requirements before shipment.

Q3: What is included in the 12-month warranty and what does the pre-shipment test cover?
Every MC-4/11/01/400 unit is powered up and functionally tested prior to dispatch — verifying boot sequence, communication interface operation, and axis control output integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimise your downtime.

Q4: Can NINERMAS support long-term supply agreements for MC-4/11/01/400 and associated PacDrive spares?
Yes. For facilities operating multiple PacDrive systems or managing extended lifecycle programs for legacy packaging lines, NINERMAS offers long-term supply agreements covering the MC-4/11/01/400 alongside associated spares such as ELAU servo drives, 24 VDC PSU modules, CANopen cables, and safety relay components. Contact our team to discuss stock reservation, lead-time commitments, and multi-year procurement planning tailored to your maintenance schedule.
