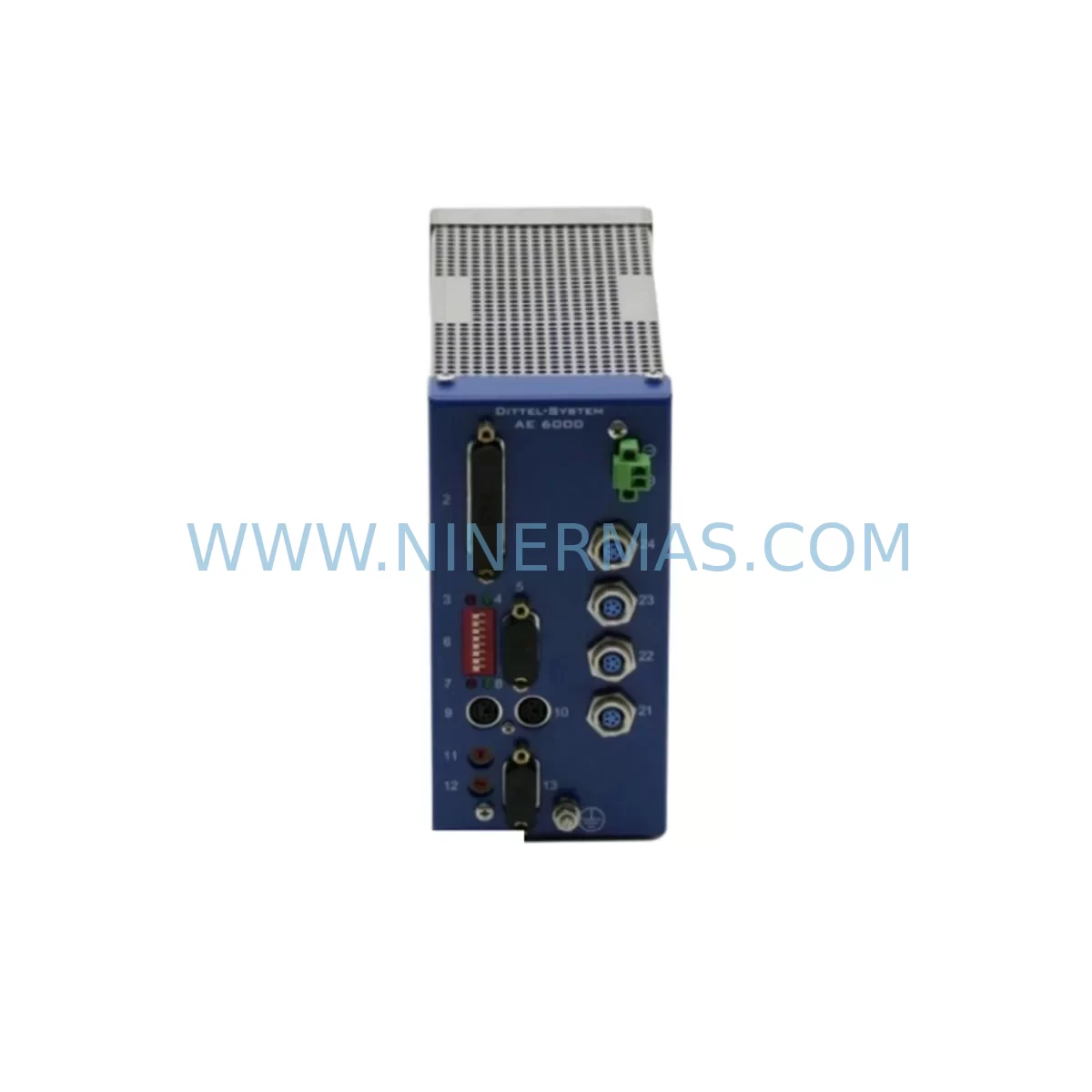

DITTEL-SYSTEM F62001 AE6000 Retrofit AE Monitor

DITTEL-SYSTEM F62001 AE6000: Retrofit-Compatible AE Monitor for Legacy Grinding Systems

The DITTEL-SYSTEM F62001 AE6000 is an acoustic emission (AE) monitoring module engineered for precision grinding machine control systems. As original DITTEL-SYSTEM AE Series hardware reaches end-of-life or becomes increasingly difficult to source, the F62001 AE6000 serves as a proven retrofit solution for facilities operating legacy CNC grinding lines, cylindrical grinders, surface grinders, and gear grinding centers. This module supports direct integration into existing DITTEL AE Series control architectures, enabling facilities to restore full AE monitoring capability without redesigning the machine control cabinet or replacing the host controller.

The F62001 AE6000 is designed to detect acoustic emission signals generated during the grinding process — including wheel-workpiece contact, wheel dress events, and crash detection — providing real-time feedback to the machine control system. Its compatibility with legacy DITTEL AE Series signal conditioning chains makes it a preferred choice for maintenance engineers managing aging grinding fleets where downtime must be minimized and original machine logic preserved.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the F62001 AE6000 into an existing grinding line requires a structured approach to avoid signal chain interruptions and unplanned downtime. Before installation, maintenance engineers should document the existing AE sensor wiring, confirm the sensor type (typically a piezoelectric AE sensor mounted on the grinding spindle housing or wheel guard), and verify the cable shielding continuity from the sensor to the monitoring module input terminals.

In many legacy DITTEL AE Series installations, the F62001 AE6000 is mounted within a dedicated control cabinet alongside the machine’s primary CNC controller — often a SIEMENS SINUMERIK 840D, FANUC Series 0i, or a proprietary grinding machine controller. When replacing the AE monitoring module, engineers must confirm that the host controller’s analog input card or digital I/O module is still functional and that the existing threshold relay wiring to the machine’s safety interlock circuit remains intact. In some installations, the AE output signal is routed through a signal isolator or signal conditioner before reaching the CNC I/O rack — these intermediate components should be inspected and tested during the retrofit.

For machines using a DITTEL AE Series rack-mounted architecture, the F62001 AE6000 typically occupies a dedicated slot in the AE monitoring rack. Engineers should confirm the rack backplane connector pinout, module address settings (if applicable via DIP switch or rotary selector), and power supply rail voltage — typically 24 VDC from a dedicated DIN rail power supply unit within the control cabinet. If the existing power supply unit shows signs of aging or voltage drift, replacement with a compatible 24 VDC DIN rail PSU is recommended as part of the retrofit scope.

Where the grinding machine uses a DITTEL AE system integrated with an HMI panel — such as a DITTEL KG3 or KG5 series operator panel — engineers should verify that the HMI screen pages referencing AE status, threshold values, and alarm outputs remain functional after module replacement. In some cases, HMI parameter screens may need to be re-validated against the new module’s output characteristics, particularly if sensitivity or gain settings differ from the original unit.

For facilities managing multiple grinding machines on a shared network, the AE monitoring data may be linked to a supervisory SCADA or DNC system via RS-232, RS-485, or Profibus DP communication links. During the retrofit, engineers should confirm that the communication link between the F62001 AE6000 and the host controller or network gateway remains active and that protocol settings (baud rate, parity, station address) are correctly configured. If the existing communication cable is routed through a cable duct shared with high-voltage spindle drive cables, additional shielding or cable separation may be required to prevent signal interference.

Additional components commonly involved in a DITTEL AE Series retrofit include: AE piezoelectric sensors (spindle-mount or coolant-proof variants), AE sensor cables with BNC or M12 connectors, signal preamplifiers, DIN rail terminal blocks for field wiring, 24 VDC DIN rail power supplies, analog signal isolators, Profibus DP network repeaters, and machine-side I/O expansion modules. Each of these components should be inspected and, where necessary, replaced as part of a comprehensive retrofit plan to ensure long-term system reliability.

Downtime Control During System Migration

Minimizing machine downtime during an AE monitoring module replacement is a primary concern for production facilities operating continuous grinding schedules. A well-planned replacement of the F62001 AE6000 can typically be completed within a scheduled maintenance window of two to four hours, provided that all replacement parts, wiring documentation, and calibration tools are prepared in advance.

Before beginning the physical replacement, engineers should back up all relevant machine parameters from the host CNC controller, including AE threshold values, alarm setpoints, and any custom grinding cycle parameters that reference AE feedback signals. For machines using a SINUMERIK 840D or similar CNC platform, this typically involves exporting the NC program archive and machine data backup via the CNC’s built-in data management functions. Preserving the original program logic ensures that the machine can be returned to production quickly after the AE module is replaced and calibrated.

During the physical replacement, the machine should be placed in a controlled stop state with all energy sources isolated in accordance with local lockout/tagout (LOTO) procedures. The AE sensor cable should be disconnected at the module input terminal, the module removed from its mounting position, and the replacement F62001 AE6000 installed in the same location. Terminal wiring should be reconnected according to the original wiring diagram, with particular attention to signal ground connections and cable shield termination points.

After installation, the AE system should be powered up and a functional test performed using a calibration pulse generator or by running a controlled dress cycle on the grinding wheel to verify that the AE signal is being detected and processed correctly. Threshold levels should be adjusted to match the original settings documented before the replacement. Once the AE system is confirmed operational, the machine can be returned to production with confidence that the original control logic and safety interlock functions are fully restored.

For facilities that cannot afford any unplanned downtime, maintaining a spare F62001 AE6000 module in the local spare parts inventory is strongly recommended. Given the long service life of DITTEL AE Series grinding systems — often 15 to 25 years — having a pre-tested replacement module available on-site can reduce unplanned downtime from days to hours in the event of an unexpected module failure.

Retrofit Support FAQ

Q1: Is the F62001 AE6000 a direct drop-in replacement for my existing DITTEL-SYSTEM AE monitoring module?
The F62001 AE6000 is designed as a compatible replacement for DITTEL-SYSTEM AE Series monitoring modules used in the same product family. Before installation, confirm the connector pinout, power supply voltage, and signal output type against your existing wiring documentation to ensure full compatibility with your specific machine configuration.

Q2: What commissioning steps are required after installing the F62001 AE6000?
After physical installation and wiring, perform a power-on check to confirm the module initializes correctly. Run a controlled dress cycle or use a calibration pulse to verify AE signal detection. Adjust sensitivity and threshold settings to match your original documented values. Confirm that all alarm outputs and interlock signals are functioning correctly before returning the machine to production.

Q3: Does the F62001 AE6000 undergo pre-shipment testing?
Yes. Every F62001 AE6000 unit is functionally tested prior to shipment to verify signal processing performance and output integrity. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability?
The F62001 AE6000 is maintained in stock for immediate dispatch. For volume orders or long-term supply agreements to support multi-machine fleets or planned maintenance programs, please contact our sales team to discuss inventory reservation and scheduled delivery options.
