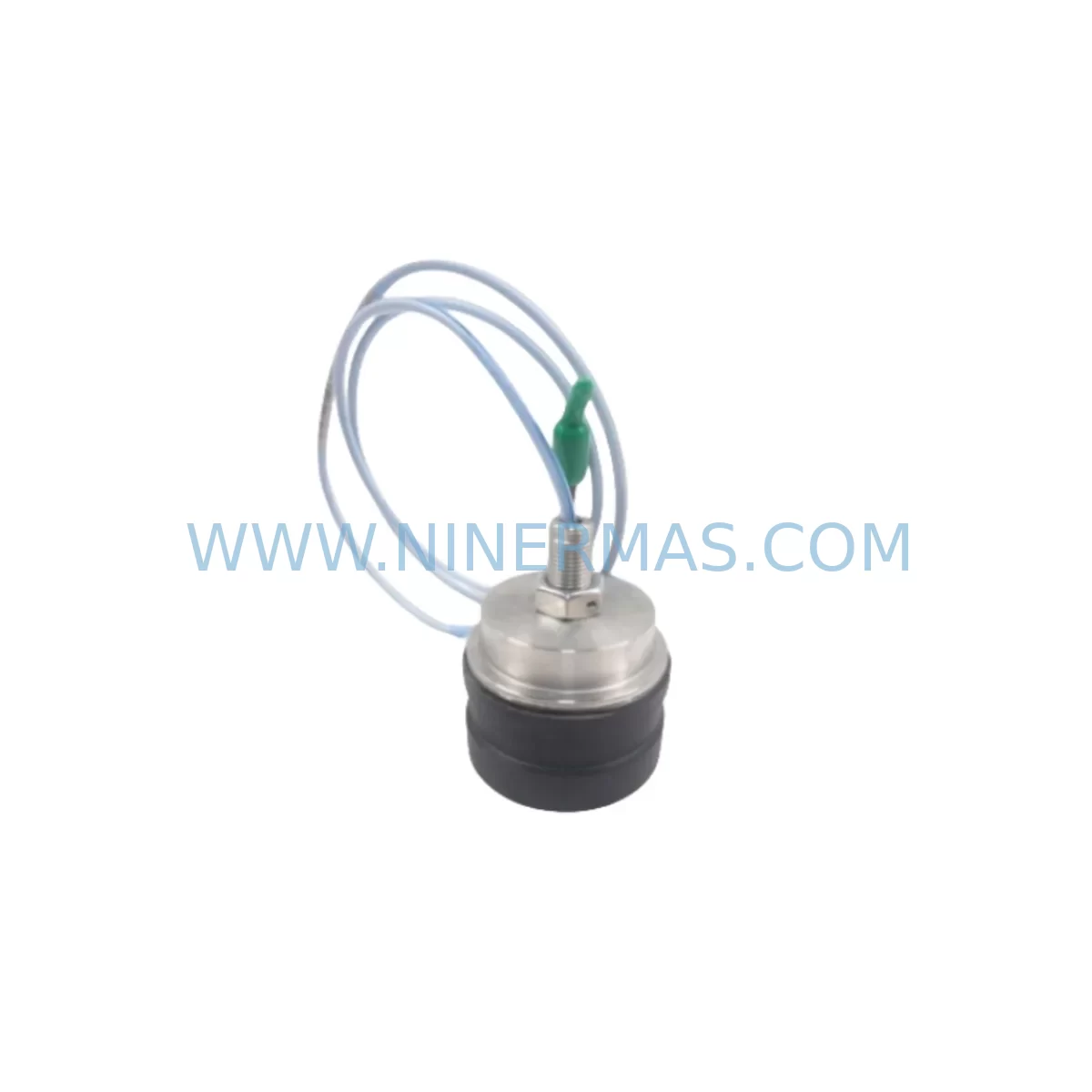

Bently Nevada 330876-02-10-00-00 Ruggedized Proximity Probe

Bently Nevada 330876-02-10-00-00 Ruggedized Proximity Probe: Legacy System Compatible Retrofit Upgrade

The Bently Nevada 330876-02-10-00-00 is a ruggedized proximity probe module engineered for continuous vibration and position monitoring in rotating machinery applications. Designed as part of the Bently Nevada 3300 Series proximity system, this probe delivers reliable eddy-current sensing performance in harsh industrial environments — including high-temperature, high-vibration, and chemically aggressive plant conditions. For facilities operating legacy turbomachinery protection systems, the 330876-02-10-00-00 represents a proven, drop-in-compatible replacement that eliminates the need for full system overhauls while restoring measurement integrity and API 670 compliance.

Whether you are managing a planned outage, responding to an unplanned probe failure, or executing a phased modernization of your machinery protection infrastructure, the 330876-02-10-00-00 is stocked and pre-shipment tested to minimize your exposure to extended downtime. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance, giving your maintenance team confidence in every installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant is rarely a standalone task. The 330876-02-10-00-00 is most commonly installed as part of a broader machinery protection upgrade that touches multiple interconnected components. Understanding the full signal chain is essential before committing to a replacement strategy.

The probe itself connects to a Bently Nevada 3300 XL Proximitor (typically the 330180-51-05 or equivalent 8mm model) via a coaxial extension cable such as the 330130-045-00-00 or 330130-080-00-00, depending on the distance between the probe tip and the proximitor enclosure. The proximitor converts the probe’s eddy-current signal into a calibrated DC voltage that feeds directly into a Bently Nevada 3500/42M Proximity Monitor or a legacy 3300/16 monitor card installed in a 3500 rack. If your facility is still running a 3300/16 rack-based system, this retrofit is an ideal opportunity to evaluate migration to the 3500 Series rack, which offers improved diagnostics, Modbus/TCP and PROFIBUS communication options, and a more sustainable spare parts supply chain.

During retrofit planning, your team should audit the existing 3500/01 rack power supply to confirm it can support the additional current draw if new monitor cards are being added alongside the probe replacement. Facilities that are simultaneously upgrading their control architecture may also be integrating a Bently Nevada 3500/22M transient data interface or a 3500/92 communication gateway to bridge legacy serial data to modern DCS or historian platforms. These additions require careful slot allocation within the 3500 rack and should be mapped before any physical installation begins.

For plants where the proximity system feeds a GE Mark VI or Emerson Ovation DCS, confirm that the analog input card scaling matches the 3300 system’s –24 VDC output range. Signal isolators — such as the MTL5541 or equivalent DIN-rail-mounted isolator — may be required if the existing I/O cards are not rated for the full voltage swing. Wiring terminations at the junction box should be inspected and re-torqued during the same outage window to eliminate latent connection faults that could trigger nuisance trips after the new probe is commissioned.

If your facility uses a Bently Nevada TDXnet or System 1 condition monitoring platform, the replacement probe will be automatically recognized once the gap voltage is verified and the channel is re-enabled in the software. No firmware changes are required for a like-for-like 330876-series swap. However, if the probe is being installed in a position that previously used a 5mm probe body, confirm that the proximitor model, extension cable, and gap setting are all updated to match the 8mm probe specification of the 330876-02-10-00-00.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement requires disciplined pre-outage preparation. Before the machine is taken offline, retrieve and archive the current gap voltage readings, alert setpoints, danger setpoints, and OK relay logic from the 3500/42M monitor or equivalent channel. These values must be re-entered or verified after the new probe is installed, and having them documented in advance eliminates the risk of incorrect setpoint entry under time pressure.

Where plant safety procedures permit, a temporary bypass of the OK relay output can be implemented in the 3500 rack to prevent a spurious trip during the physical swap. This bypass must be formally authorized, time-limited, and removed immediately after the new probe is commissioned and gap voltage is confirmed within specification. Coordinate with the control room to ensure that the DCS alarm suppression is active for the affected channel during the installation window.

For facilities running continuous processes where even a brief shutdown carries significant production cost, consider pre-staging the replacement probe, extension cable, and proximitor as a complete pre-tested assembly. Bench-testing the 330876-02-10-00-00 against a reference proximitor before the outage confirms that the probe is functional and within scale factor tolerance, reducing the risk of discovering a defective component after the machine is already offline. Our pre-shipment testing protocol covers gap voltage linearity, insulation resistance, and connector integrity — results are available upon request.

After installation, the commissioning sequence should follow Bently Nevada’s standard gap-setting procedure: position the probe tip at the nominal gap distance (typically 1.0 mm for 8mm probes), verify the output voltage reads –10.0 VDC ±0.2 V, then confirm the OK relay energizes and the channel displays a valid vibration reading in the monitor. Document the as-left gap voltage and store it with the equipment maintenance record for future reference.

Retrofit Support FAQ

Q1: Is the 330876-02-10-00-00 a direct replacement for other 330876-series part numbers?
The 330876 family uses a structured part number where the suffix encodes cable length, connector type, and temperature rating. The -02-10-00-00 variant specifies a 10 ft armored cable with standard connectors. Before substituting a different suffix, verify that the cable length and connector configuration match your installation. In most cases, the probe body and electrical characteristics are identical across the family, and the primary variable is cable length.

Q2: What commissioning steps are required after installing this probe?
After physical installation, set the probe gap to the OEM-specified nominal distance, verify the proximitor output voltage (–10 VDC ±0.2 V at nominal gap), confirm the OK relay status in the 3500/42M monitor, re-enter or verify alert and danger setpoints, and perform a functional test by observing the vibration reading during machine run-up. If the system uses System 1 software, confirm the channel is active and trending correctly before returning the machine to service.

Q3: Can this probe be used with a 3500/42M monitor and a legacy 3300 proximitor simultaneously?
The 330876-02-10-00-00 is compatible with both 3300-series and 3500-series proximitors, provided the proximitor is rated for 8mm probe bodies. Do not mix 5mm and 8mm components in the same signal chain, as the scale factors and gap voltage curves differ. If you are uncertain about your existing proximitor model, contact our technical team with the proximitor part number for confirmation before ordering.

Q4: What is the warranty coverage and what does pre-shipment testing include?
Every 330876-02-10-00-00 unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional performance under normal operating conditions. Pre-shipment testing includes gap voltage linearity verification, insulation resistance measurement, connector integrity check, and visual inspection of the cable armor and probe tip. Test records are available upon request. In-stock units are available for immediate dispatch to support urgent maintenance requirements.
