DEIF DU-2/MKIII Retrofit-Compatible Multi-Instrument for Legacy Systems

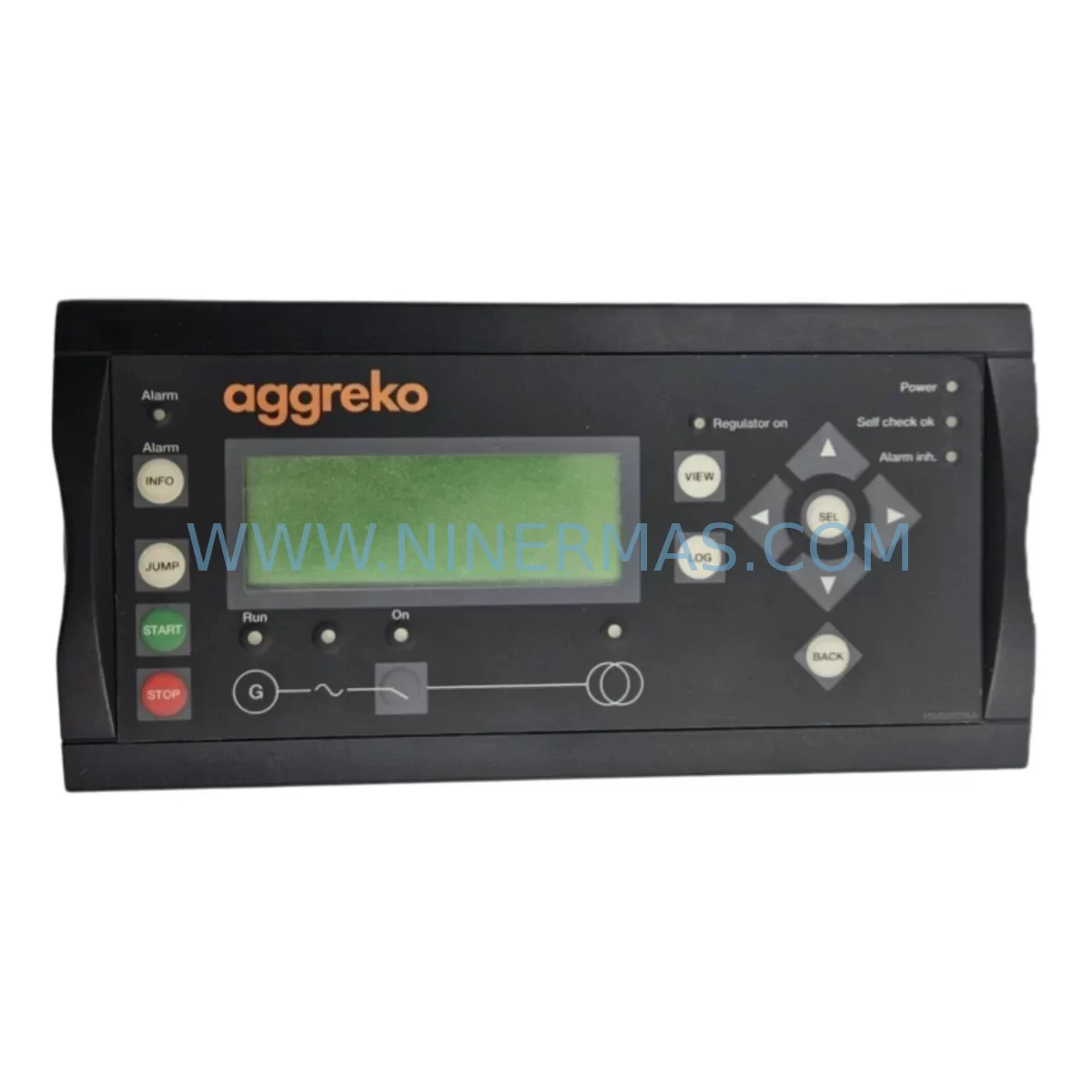

The DEIF DU-2/MKIII is a proven multi-instrument designed for seamless integration into aging automation infrastructure. As industrial facilities face increasing pressure to extend the operational life of legacy control systems — while managing tightening maintenance budgets and shrinking spare parts availability — the DU-2/MKIII stands out as a reliable retrofit solution. Whether you are replacing a discontinued panel meter, upgrading a generator control cabinet, or migrating from an obsolete DEIF DU-2/MKI or DU-2/MKII platform, this unit delivers the measurement accuracy, communication compatibility, and physical form factor required for a smooth, low-risk transition.

NINERMAS maintains verified stock of the DEIF DU-2/MKIII to support emergency replacements, planned shutdowns, and long-term spare parts programs. Every unit is subject to pre-shipment functional testing and ships with a 12-month warranty. Our technical team supports customers through wiring verification, address configuration, and communication link commissioning to minimize downtime during the retrofit process.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DEIF DU-2/MKIII into an existing control system requires a structured pre-retrofit assessment. Engineers should begin by auditing the existing cabinet layout to confirm available panel space, busbar clearance, and wiring duct capacity. In generator control panels where the DU-2/MKIII is commonly deployed alongside the DEIF GPC-3 generator protection controller or the DEIF AGC-4 automatic generator controller, it is essential to verify that the Modbus RTU communication chain — typically running over RS-485 — can accommodate the new unit’s device address without conflicts.

Terminal wiring is a critical step. The DU-2/MKIII uses a screw-terminal block layout that may differ from the pinout of earlier DEIF DU-2 variants. Before disconnecting the legacy unit, technicians should photograph and document all existing wiring connections, particularly the current transformer (CT) secondary circuits, potential transformer (PT) inputs, and auxiliary power supply terminals. Incorrect CT wiring can result in measurement errors or instrument damage. The auxiliary power supply — typically 85–265 V AC — should be confirmed against the available panel supply voltage before energizing the replacement unit.

For facilities running SCADA or DCS platforms that communicate with the DU-2/MKIII via Modbus RTU, the Modbus device address, baud rate (commonly 9600 or 19200 bps), and parity settings must be programmed to match the existing network configuration. If the legacy system used a DEIF PPM-3 power parameter module or a third-party RS-485 to Ethernet gateway, the communication chain should be tested end-to-end before the panel is returned to service. In some installations, a DEIF CU-3 control unit or a DEIF MIC-2 measuring and indicating controller may share the same RS-485 bus, requiring careful address management to avoid polling conflicts.

I/O expansion considerations are also relevant in larger retrofit projects. Where the DU-2/MKIII is installed as part of a broader control cabinet upgrade — for example, alongside DEIF PIC-200 power interface controllers or third-party signal isolators — engineers should verify that the analog output signals (if used) are correctly scaled and that any relay output contacts are wired to the correct PLC digital input modules. In systems using a DEIF WSO-2 wind system operator or similar supervisory platform, the measurement data from the DU-2/MKIII may feed into higher-level energy management logic, making accurate CT and PT ratio programming essential for system-wide data integrity.

Physical installation should also account for heat dissipation. The DU-2/MKIII should not be mounted directly adjacent to high-heat components such as power resistors or large contactors without adequate ventilation clearance. Where the original unit was secured with panel-mount clips, confirm that the MKIII’s mounting hardware is compatible or source appropriate adapters before the scheduled maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live system retrofit. For the DEIF DU-2/MKIII replacement, the recommended approach is to complete all pre-work — wiring documentation, parameter backup, address verification, and spare parts staging — during normal operation, so that the physical swap can be executed within a single planned maintenance window, typically 2–4 hours for a single instrument replacement.

Before powering down the panel, export or manually record all existing DU-2 parameter settings, including CT ratio, PT ratio, Modbus address, baud rate, and any alarm setpoints. If the legacy unit is still communicating, use the DEIF PC software or a Modbus polling tool to read and save the current register map. This data serves as the baseline for programming the replacement DU-2/MKIII and allows rapid verification after commissioning.

During the physical swap, isolate the CT secondary circuits using shorting links before disconnecting the instrument — open CT secondaries are a safety hazard and can damage connected equipment. Reconnect all terminals on the new DU-2/MKIII according to the documented wiring layout, then program the unit via the front panel keypad before restoring power to the communication bus. Perform a live reading comparison against a reference meter or the SCADA historian to confirm measurement accuracy before signing off on the retrofit.

For multi-instrument panel upgrades where several DU-2/MKIII units are being installed simultaneously — for example, in a switchgear room with multiple generator feeders — a phased approach is recommended: replace and commission one instrument at a time, restoring Modbus communication and verifying SCADA data for each unit before proceeding to the next. This approach protects the integrity of the overall control system and allows the operations team to maintain visibility of live electrical parameters throughout the migration.

Retrofit Support FAQ

Q1: Is the DEIF DU-2/MKIII a direct drop-in replacement for the DU-2/MKII?
In most cases, yes. The DU-2/MKIII shares the same 96 × 96 mm panel cutout and uses the same RS-485 / Modbus RTU communication protocol as the DU-2/MKII. However, customers should verify the terminal pinout and Modbus register map, as minor differences exist between firmware versions. NINERMAS provides pre-shipment configuration support to ensure the replacement unit is programmed to match your existing system before it leaves our warehouse.

Q2: Can the DU-2/MKIII be wired into a system that previously used the DU-2/MKI with RS-232 communication?
The DU-2/MKIII uses RS-485 / Modbus RTU and does not natively support RS-232. For systems originally using RS-232, an RS-232 to RS-485 converter or a communication protocol migration to Modbus RTU will be required. Our technical team can advise on suitable converter options and assist with the communication chain reconfiguration during the commissioning phase.

Q3: What pre-shipment testing does NINERMAS perform on the DU-2/MKIII?
Every DEIF DU-2/MKIII unit shipped by NINERMAS undergoes functional verification including power-on testing, display check, and Modbus communication response testing. Units are inspected for physical condition and packaged to prevent transit damage. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Q4: How quickly can NINERMAS ship the DU-2/MKIII for an emergency replacement?
NINERMAS maintains ready stock of the DEIF DU-2/MKIII to support urgent requirements. Standard lead time for in-stock units is 3–7 business days for international shipments, with expedited options available on request. Contact our sales team at sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability and arrange priority dispatch.
