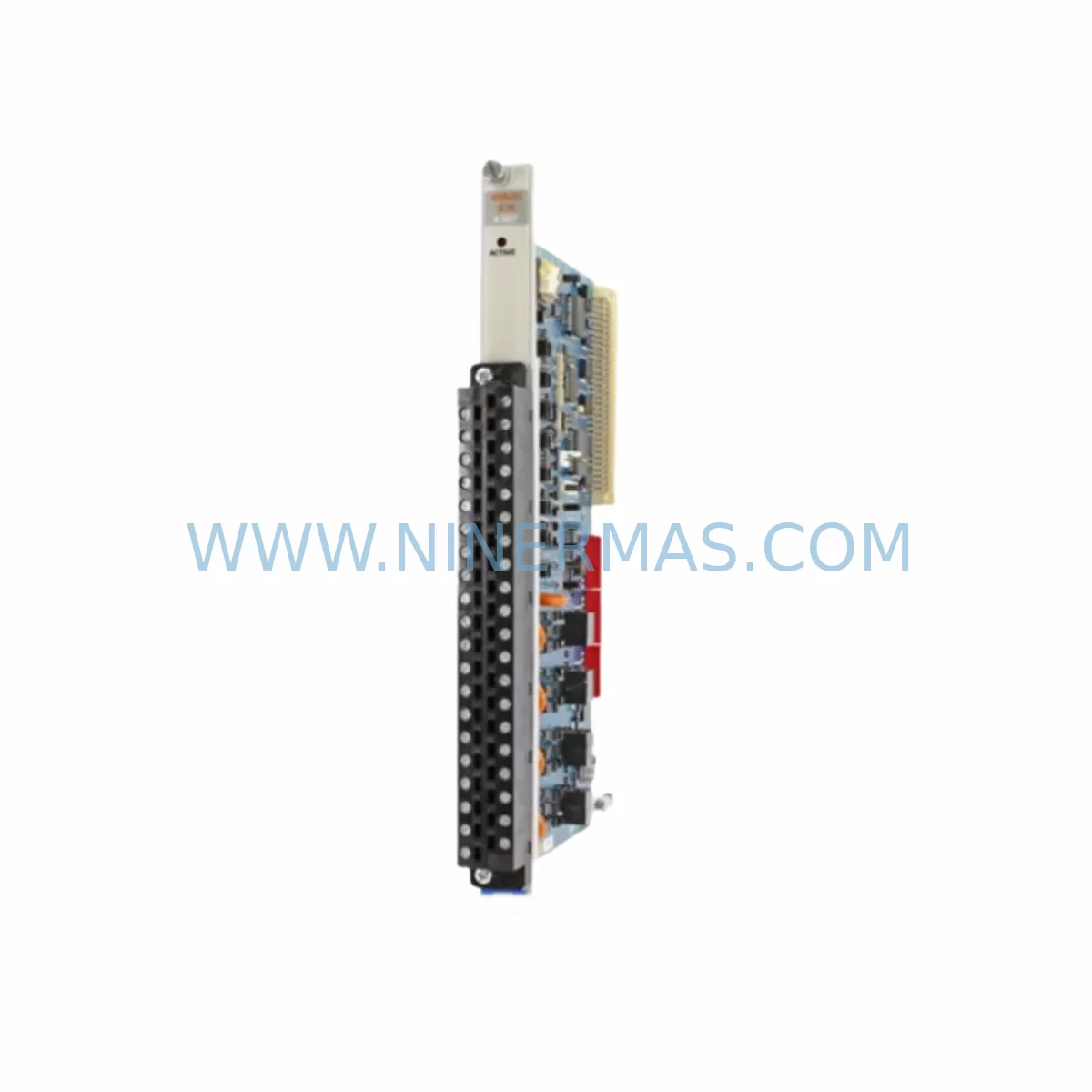

CTI 901C-2501 Safety-Reliable Analog Output Module

CTI 901C-2501 Safety-Reliable Analog Output Module for Critical Industrial Control Sites

The CTI 901C-2501 is a ruggedized analog output module engineered for mission-critical industrial automation environments where signal integrity, control loop stability, and uninterrupted operation are non-negotiable. Designed as a direct-fit replacement for legacy Series 505 PLC systems, the 901C-2501 delivers precision 4–20 mA and voltage analog outputs with robust immunity to the electrical noise, vibration, temperature extremes, and moisture conditions found in continuous process industries.

In high-stakes control cabinets — whether managing a refinery’s distillation column, a power plant’s turbine governor loop, or a water treatment facility’s dosing pump — analog output accuracy directly determines process safety. Signal drift, output freeze, or module failure in these applications can trigger emergency shutdowns, equipment damage, or hazardous material releases. The CTI 901C-2501 is built to eliminate these risks through hardened hardware design, tight output tolerance, and proven compatibility with CTI 2500 Series and legacy SIMATIC TI 505 control architectures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet, the CTI 901C-2501 analog output module does not operate in isolation — it is one node in a layered safety and reliability architecture. Its performance depends on, and contributes to, the integrity of every adjacent component in the control loop.

Starting at the power layer, the CTI 2500P-PS1 power supply provides the regulated 5 VDC backplane power that the 901C-2501 relies on for stable operation. Voltage sags or ripple from an undersized or aging power supply can introduce output jitter in analog channels, causing subtle process deviations that accumulate into larger control errors. Pairing the 901C-2501 with a properly rated CTI backplane power supply eliminates this upstream risk.

On the input side, the CTI 901C-2401 analog input module — the companion 4-channel analog input card — closes the control loop by reading process variables such as temperature, pressure, or flow. Together, the 901C-2401 and 901C-2501 form a matched analog I/O pair that ensures consistent signal scaling, identical backplane timing, and coordinated fault reporting to the CPU. In PID control loops governing critical processes, this matched pairing reduces loop tuning instability caused by mismatched scan rates or signal conditioning differences.

The CTI 2500 CPU module — whether the 2500-C10, 2500-C20, or 2500-C30 — orchestrates all I/O scanning, executes the control program, and monitors module health. The 901C-2501 reports per-channel fault status directly to the CPU, enabling the control program to implement safe-state logic: holding the last valid output, driving outputs to a defined fail-safe value, or triggering an alarm to the SCADA system. This closed-loop fault response is essential in applications where an open-circuit analog output could cause a valve to fail open or a drive to run at maximum speed.

For applications in electrically noisy environments — near variable frequency drives (VFDs), large motor starters, or high-current bus bars — the CTI 901C series discrete I/O modules (such as the 901C-1101 DC input and 901C-1601 DC output modules) share the same ruggedized backplane design philosophy as the 901C-2501. Using a consistent module family across the I/O chassis reduces the risk of cross-module interference and simplifies spare parts management.

Communication integrity is equally critical. The CTI 2572 Ethernet TCP/IP communication module enables the 2500 Series CPU to exchange data with SCADA systems, HMIs, and historian servers over standard industrial Ethernet. In plants where the analog output values from the 901C-2501 are monitored remotely, a reliable communication path ensures that operators receive accurate, real-time process data — and that remote setpoint changes reach the output module without delay or corruption.

Finally, surge and transient protection at the field wiring terminals — using DIN-rail mounted surge protection devices appropriate for 4–20 mA loops — protects the 901C-2501’s output circuitry from lightning-induced transients and switching surges that propagate through field cables. This is particularly important in outdoor installations, long cable runs to remote actuators, and sites with frequent thunderstorm activity. Combined with proper cable shielding and grounding practices, transient protection extends module service life and reduces unplanned replacement events.

Critical Industrial Safety Applications

Petrochemical and Refining: In distillation columns, reactor temperature control loops, and pressure letdown stations, the CTI 901C-2501 drives control valve positioners and variable speed pump drives via 4–20 mA signals. Precise, drift-free analog output is essential to maintain product quality specifications and prevent overpressure or thermal runaway conditions. The module’s optical isolation protects the control system from ground loops that are common in large process plants with extensive grounded metalwork.

Electric Power Generation and Transmission: Turbine governor systems, excitation control loops, and transformer cooling fan speed control all depend on stable analog output signals. In power plant control rooms, the CTI 901C-2501 supports legacy TI 505-based control systems that remain in service for decades due to the high cost and risk of full system replacement. NINERMAS maintains long-term stock of the 901C-2501 specifically to support these extended lifecycle applications.

Mining and Mineral Processing: Conveyor belt speed control, flotation cell level control, and crusher feed rate regulation in mining operations expose control hardware to extreme dust, vibration, and humidity. The ruggedized construction of the 901C-2501 — with conformal coating options and hardened backplane connectors — makes it suitable for these demanding environments where standard commercial-grade modules fail prematurely.

Water and Wastewater Treatment: Chemical dosing pumps, aeration blower speed control, and filter backwash valve positioning in water treatment plants require reliable 4–20 mA outputs that maintain accuracy over years of continuous operation. Regulatory compliance in water treatment depends on consistent chemical dosing — a drifting or failed analog output can result in under-dosing (public health risk) or over-dosing (chemical waste and regulatory violation). The 901C-2501’s ±0.1% full-scale accuracy and per-channel diagnostics support both operational reliability and compliance documentation.

Metallurgy and Steel Production: Electric arc furnace electrode positioning, rolling mill speed synchronization, and continuous casting mold level control are among the most demanding analog output applications in industry. These processes operate at high temperatures with intense electromagnetic interference from high-current furnace electrodes and large drive systems. The CTI 901C-2501’s EMI-hardened design and robust output drive capability make it a dependable choice for these high-consequence control loops.

Port and Marine Applications: Ship-to-shore crane drive control, bulk material conveyor speed regulation, and ballast pump control on vessels and offshore platforms require control hardware that tolerates salt air, humidity, and vibration. The 901C-2501’s operating temperature range and humidity tolerance align with the environmental conditions found in port machinery control panels and marine automation cabinets.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide on the CTI 901C-2501?
All CTI 901C-2501 modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with advance replacement options available for critical production sites to minimize downtime.

Q2: What pre-shipment testing is performed on the 901C-2501?
Every CTI 901C-2501 unit undergoes functional verification prior to shipment, including analog output accuracy testing across all four channels, backplane communication verification, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the CTI 901C-2501 a direct replacement for the original SIMATIC TI 505 analog output module?
Yes. The CTI 901C-2501 is designed as a form-fit-function replacement for the original Texas Instruments / Siemens SIMATIC TI 505 analog output module. It installs in the same I/O chassis slot, uses the same backplane connector, and is recognized by the original TI 505 CPU and CTI 2500 Series CPU without requiring program changes or hardware reconfiguration.

Q4: Can NINERMAS support long-term supply commitments for the CTI 901C-2501?
Yes. NINERMAS specializes in long-lifecycle spare parts programs for industrial automation systems. We maintain standing inventory of the CTI 901C-2501 and can support blanket purchase orders, annual supply agreements, and priority allocation for customers with critical production dependencies. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your long-term procurement requirements.
