COGNEX ISV2-01P-X Retrofit-Compatible Vision Controller for Legacy Systems

COGNEX ISV2-01P-X Retrofit-Compatible Vision Controller for Legacy Systems

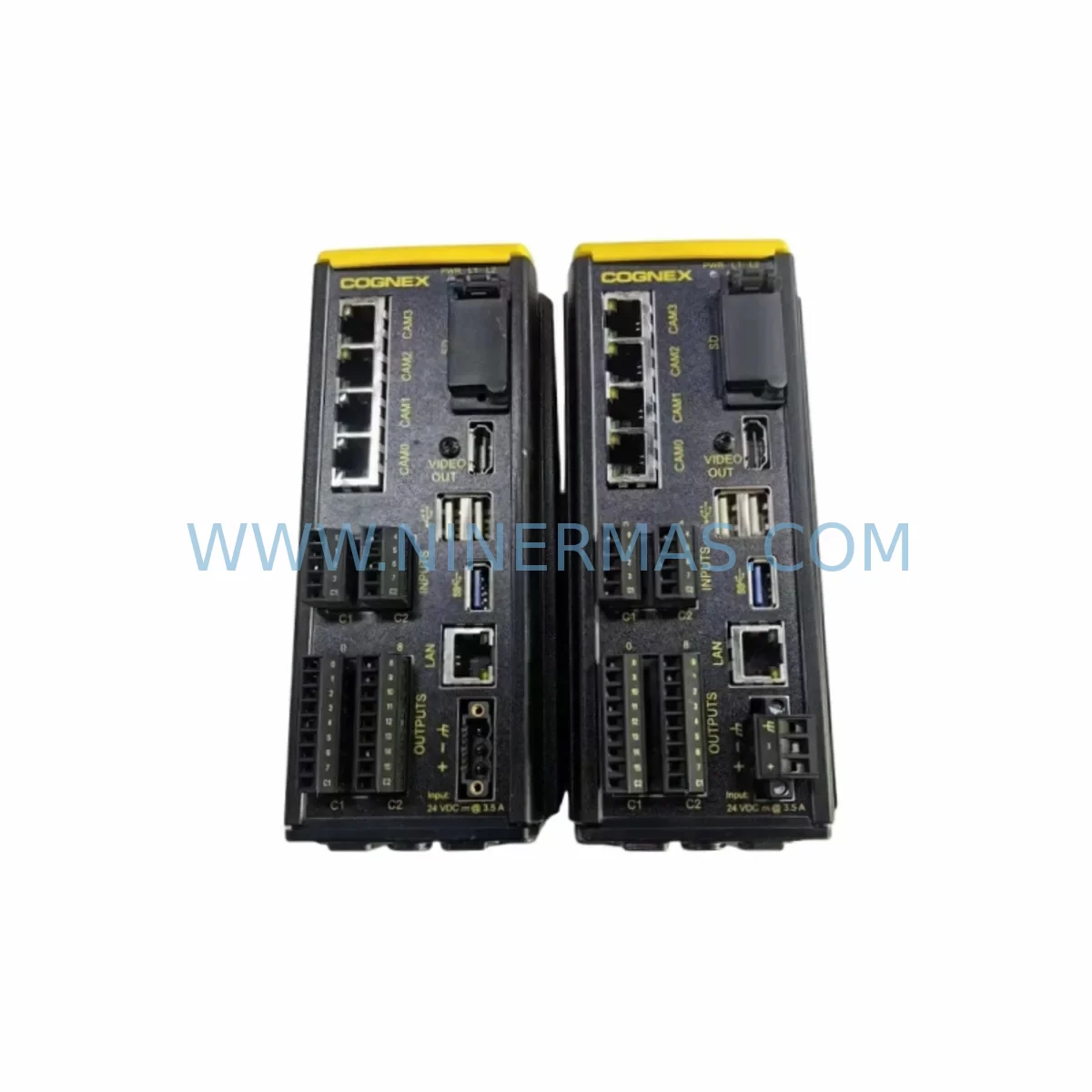

The COGNEX ISV2-01P-X (part numbers 825-10567-1R and 821-10005-1R) is a ruggedized In-Sight Vision Controller module engineered for demanding industrial environments. As production lines age and original COGNEX In-Sight 2000 and In-Sight 5000 series controllers reach end-of-life, the ISV2-01P-X has become a critical retrofit and replacement component for automation engineers tasked with maintaining machine vision continuity without full system overhauls. Its compact DIN-rail-compatible form factor, wide operating temperature range, and sealed enclosure make it equally suited for automotive body shops, semiconductor fabs, food and beverage lines, and heavy industrial assembly cells where vibration, dust, and moisture are constant concerns.

When planning a retrofit around the ISV2-01P-X, engineers must first audit the existing vision network topology. Legacy In-Sight systems typically communicate over 100BASE-TX Ethernet, and the ISV2-01P-X maintains this interface, allowing direct substitution into existing switch infrastructure without reconfiguring managed switches or VLAN assignments. However, if the plant network has migrated to Gigabit Ethernet backbones, a compatible 10/100/1000 industrial switch — such as those in the COGNEX In-Sight EtherNet/IP accessory family — should be verified for auto-negotiation compatibility to avoid link instability during commissioning.

Power supply compatibility is the first checkpoint in any ISV2-01P-X replacement project. The module operates on 24 VDC ±10%, drawing typically under 15 W at full processing load. Plants running legacy 24 VDC COGNEX power bricks (such as the 800-5765-1R power supply accessory) should verify output ripple and current headroom, particularly in control cabinets where multiple In-Sight sensors, I/O modules, and communication gateways share a single rail. Undersized or aging power supplies are a common root cause of intermittent vision faults after a controller swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ISV2-01P-X retrofit begins well before the maintenance window opens. The engineering team should export all existing In-Sight job files (.job) from the legacy controller using In-Sight Explorer and archive them with version notes. Job files created under In-Sight Explorer 4.x are generally importable into 5.x, but vision tools such as PatMax, Blob, and Edge tools should be individually validated after migration, as parameter scaling and coordinate reference frames can shift between software generations.

Terminal wiring is the most time-sensitive task during the physical swap. The ISV2-01P-X uses M12 circular connectors for discrete I/O, replacing the DB-15 pinout common on older In-Sight 5100 and 5400 units. Maintenance teams should prepare a pre-wired M12 breakout harness before the shutdown window to minimize re-termination time on the cabinet floor. Signal assignments — trigger input, strobe output, pass/fail discrete outputs, and ready signal — must be mapped from the old DB-15 pinout to the new M12 layout using the ISV2-01P-X hardware manual.

In control cabinets where the vision controller shares a backplane or DIN rail with Allen-Bradley 1734 POINT I/O modules, COGNEX In-Sight I/O expansion modules, or Turck BL20 gateway nodes, the ISV2-01P-X’s compact footprint typically allows direct rail mounting without cabinet modification. However, engineers should confirm minimum clearance requirements (typically 50 mm on each side for airflow) and verify that adjacent 24 VDC power distribution blocks do not introduce ground loops through shared cabinet metalwork.

For plants running Rockwell Automation ControlLogix or CompactLogix PLCs, the ISV2-01P-X communicates natively over EtherNet/IP using the COGNEX In-Sight EDS (Electronic Data Sheet) file. After installing the EDS in Studio 5000 Logix Designer, engineers add the ISV2-01P-X as a Generic Ethernet Module and map result data — inspection pass/fail, part presence, measurement values — to controller tags. If the legacy system used a serial RS-232 link to a SLC 500 or MicroLogix 1100, a protocol migration to EtherNet/IP is strongly recommended during the retrofit to eliminate serial polling latency and improve system diagnostics.

HMI screens built in FactoryTalk View SE or Weintek cMT series panels that previously displayed In-Sight result data via serial or legacy EtherNet/IP tags will require tag address updates. The ISV2-01P-X result registers follow the standard COGNEX In-Sight spreadsheet cell addressing convention (Row.Column), which should be cross-referenced against the existing HMI tag database to ensure pass/fail indicators, count displays, and alarm triggers remain correctly mapped after the swap.

Where the retrofit scope extends to communication protocol migration — for example, moving from a legacy Modbus RTU serial link to Modbus TCP over Ethernet — the ISV2-01P-X’s built-in Modbus TCP server simplifies the transition. The SCADA system or DCS historian (such as an Ignition gateway or Wonderware InTouch node) can be reconfigured to poll the ISV2-01P-X directly over the plant LAN, eliminating the RS-232/RS-485 converter hardware that often becomes a reliability bottleneck in aging vision installations.

Downtime Control During System Migration

Minimizing unplanned downtime during an ISV2-01P-X swap requires a structured pre-commissioning checklist executed before the production line stops. The replacement unit should be bench-tested with the migrated job file, a representative sample of known-good and known-bad parts, and the actual trigger and strobe signals from a test harness. This pre-validation step — typically 2 to 4 hours — catches job migration issues, I/O wiring errors, and network configuration problems before the maintenance window begins, compressing the on-line changeover to under 60 minutes in most installations.

Program logic protection is equally critical. Before powering down the legacy controller, the PLC program should be saved and the current tag values — particularly any accumulated counters, recipe index registers, and vision result history buffers — should be documented. If the PLC is a Siemens S7-300 or S7-400 communicating with the vision system via PROFINET or Industrial Ethernet, the network configuration in STEP 7 or TIA Portal should be exported and the ISV2-01P-X’s MAC address pre-registered in the PROFINET device table to allow automatic address assignment on first power-up.

Field continuity during the swap can be maintained by temporarily routing the trigger signal to a bypass relay that holds the downstream conveyor in a safe hold state rather than triggering a full line fault. This approach — combined with pre-positioning the ISV2-01P-X on the DIN rail and pre-routing the Ethernet cable before the shutdown — allows the physical swap to be completed in under 15 minutes, with the remaining maintenance window dedicated to job validation, I/O verification, and a supervised production trial run.

All ISV2-01P-X units supplied by NINERMAS undergo a pre-shipment functional test covering power-on self-test, Ethernet link establishment, I/O continuity, and basic vision acquisition. Units are shipped with original or equivalent packaging and include a 12-month warranty covering hardware defects. In-stock units are available for same-week dispatch to minimize production exposure during unplanned legacy controller failures.

Retrofit Support FAQ

Q: Is the ISV2-01P-X a direct drop-in replacement for the COGNEX In-Sight 5100 or 5400?
A: The ISV2-01P-X is functionally compatible as a replacement for legacy In-Sight 5000 series controllers in most applications, but it is not a mechanical drop-in due to differences in the I/O connector type (M12 vs. DB-15) and mounting bracket. A wiring adapter harness and DIN rail adapter are typically required. Job files must be migrated and validated in In-Sight Explorer before go-live.

Q: What commissioning steps are required after installing the ISV2-01P-X?
A: After physical installation and wiring, assign a static IP address via In-Sight Explorer, load and validate the migrated job file with production samples, verify all discrete I/O signals (trigger, strobe, pass/fail outputs), confirm EtherNet/IP or Modbus TCP communication with the PLC or SCADA system, and perform a supervised trial run of at least 50 production cycles before releasing the line.

Q: Does the ISV2-01P-X support both EtherNet/IP and Modbus TCP simultaneously?
A: Yes. The ISV2-01P-X supports concurrent EtherNet/IP and Modbus TCP communication, allowing result data to be consumed by a Rockwell ControlLogix PLC over EtherNet/IP while simultaneously being logged by a Modbus TCP-capable SCADA historian. RS-232 serial communication is also available for legacy HMI or barcode reader integration.

Q: What does the 12-month warranty cover, and is pre-shipment testing performed?
A: All ISV2-01P-X units supplied by NINERMAS include a 12-month warranty covering hardware defects under normal operating conditions. Each unit undergoes a pre-shipment functional test including power-on verification, Ethernet link test, and I/O continuity check. Units confirmed defective within the warranty period are replaced or repaired at no charge. Contact sale@ninermas.com for warranty claims and RMA processing.
