CHINT YBLX-JW2/11Z/3 Service-Ready Spare for Maintenance

CHINT YBLX-JW2/11Z/3 Service-Ready Spare Part for Industrial Maintenance

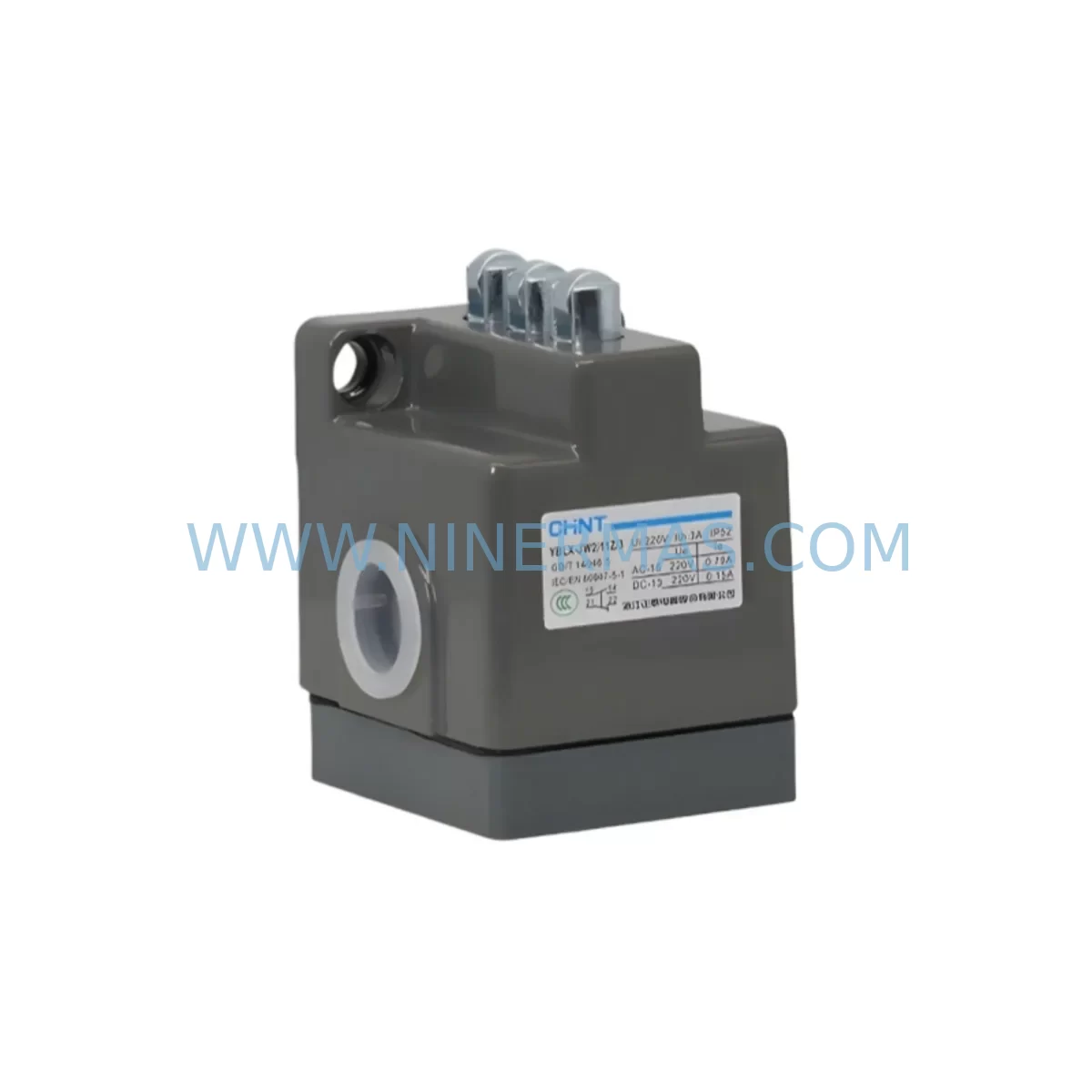

The CHINT YBLX-JW2/11Z/3 is a heavy-duty industrial travel limit switch from CHINT’s proven YBLX series, engineered for reliable position detection and mechanical interlock control in demanding industrial environments. For maintenance engineers managing aging control systems, conveyor lines, crane controls, or machine tool cabinets, keeping a verified stock of the YBLX-JW2/11Z/3 is a fundamental strategy for minimizing unplanned downtime and accelerating fault recovery.

This spare part is designed for direct replacement of worn or failed YBLX-JW2/11Z/3 units in the field. Its standardized mounting dimensions, terminal layout, and electrical ratings ensure drop-in compatibility with existing CHINT YBLX series installations, eliminating the need for wiring modifications or panel rework during emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CHINT YBLX-JW2/11Z/3 limit switch fails or shows signs of contact wear, the replacement process should be treated as an opportunity for a broader control cabinet inspection. Experienced maintenance engineers know that a single failed travel switch is rarely an isolated event — it often signals stress across adjacent components in the same control loop.

Before reinstalling a new YBLX-JW2/11Z/3, verify the condition of the CHINT NXC series contactor or NXR thermal overload relay that the switch feeds into. If the limit switch has been operating in a high-cycle conveyor or hoist application, the contactor coil and contact tips may show accelerated wear. Similarly, inspect the CHINT NXB-63 or DZ47 series miniature circuit breaker protecting the control circuit — a nuisance trip history may indicate upstream voltage fluctuation that contributed to the switch failure.

For systems using a CHINT NXM or NM1 series molded case circuit breaker as the main feeder protection, confirm that the breaker’s trip settings remain within calibration. In crane and hoist applications, the YBLX-JW2/11Z/3 often works in tandem with CHINT NXD3 or ND3 series pushbutton stations — inspect these for contact oxidation and mechanical binding during the same maintenance window.

In PLC-controlled systems, the limit switch signal typically feeds into a digital input module on a SIEMENS S7-300/400, Mitsubishi FX or Q series, or OMRON CJ/CS series PLC. Confirm that the input module’s LED indicator responds correctly after replacement, and check the 24VDC control power supply — such as a CHINT or MEAN WELL DIN-rail SMPS — for output voltage stability. A sagging 24V rail can cause intermittent input recognition even with a healthy new switch.

Where the YBLX-JW2/11Z/3 is part of a safety interlock circuit, also review the signal isolation relay or interposing relay module in the circuit. Brands such as CHINT NXJ or Phoenix Contact relay modules are commonly used in these configurations. Replacing the limit switch without verifying relay contact integrity can result in a repeat fault within weeks. Additionally, inspect terminal blocks and cable ferrules at the switch connection points — loose or corroded terminals are a leading cause of intermittent position signal faults that are often misdiagnosed as switch failure.

Site Replacement Workflow

Replacing the CHINT YBLX-JW2/11Z/3 on-site is straightforward when the correct spare is on hand. Follow this workflow to minimize downtime and ensure system compatibility:

Step 1 — Isolation and Lockout: Isolate the control circuit using the appropriate MCB or MCCB. Apply lockout/tagout (LOTO) per site safety procedures before accessing the switch mounting location.

Step 2 — Document Existing Wiring: Photograph or sketch the terminal connections of the failed YBLX-JW2/11Z/3 before removal. Note the NO/NC terminal assignments relative to the control circuit function (e.g., travel limit stop, interlock enable).

Step 3 — Mechanical Removal: Remove the mounting screws and detach the actuator arm or roller lever. Inspect the mounting bracket for deformation — a bent bracket can cause premature actuator wear on the replacement unit.

Step 4 — Install Replacement Unit: Mount the new YBLX-JW2/11Z/3 using the original fastener positions. Reconnect terminals per the documented wiring. Torque screw terminals to specification to prevent loose connections under vibration.

Step 5 — Functional Verification: Before restoring power, manually actuate the switch and verify continuity on NO and NC contacts with a multimeter. After power restoration, confirm correct PLC input response and observe one full machine cycle to validate travel limit behavior.

Step 6 — Update Maintenance Records: Log the replacement date, operating hours at failure, and any associated component inspections. This data supports predictive maintenance scheduling and spare parts procurement planning.

Maintaining a minimum stock of 2–3 units of the YBLX-JW2/11Z/3 per production line is recommended for facilities with high-cycle applications. NINERMAS maintains long-term inventory of this model to support emergency procurement and scheduled annual overhaul programs.

Spare Parts Support FAQ

Q1: Is this YBLX-JW2/11Z/3 an original CHINT product?
Yes. NINERMAS supplies genuine CHINT YBLX-JW2/11Z/3 limit switches sourced through authorized industrial distribution channels. Each unit is inspected and function-tested before shipment to ensure it meets CHINT’s original electrical and mechanical specifications.

Q2: What warranty is provided, and what does it cover?
All YBLX-JW2/11Z/3 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, contact failure under normal operating conditions, and mechanical actuator faults. Units damaged by incorrect installation, overvoltage, or environmental conditions outside the rated IP42 protection class are not covered. Our team provides technical support for warranty claims and replacement coordination.

Q3: How do I confirm compatibility with my existing YBLX series installation?
The YBLX-JW2/11Z/3 is a direct replacement for any existing installation using the same model number. Verify the contact configuration (1NO+1NC), actuator type (roller/rotary lever, Type 3), and rated voltage before installation. If your system uses a different actuator variant or contact arrangement, contact NINERMAS at sale@ninermas.com with your existing switch label or wiring diagram — our technical team will confirm compatibility or recommend the correct YBLX variant.

Q4: Can NINERMAS support long-term and bulk procurement for annual maintenance programs?
Yes. NINERMAS maintains standing inventory of the CHINT YBLX-JW2/11Z/3 and other YBLX series variants to support both emergency single-unit orders and bulk procurement for annual overhaul programs. We offer pre-shipment testing, packing list documentation, and flexible lead times to align with planned maintenance schedules. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing and supply agreements.

—
