CCC MCP-1004 Service-Ready Spare Part for Industrial Maintenance

CCC MCP-1004 Service-Ready Spare Part for Industrial Maintenance

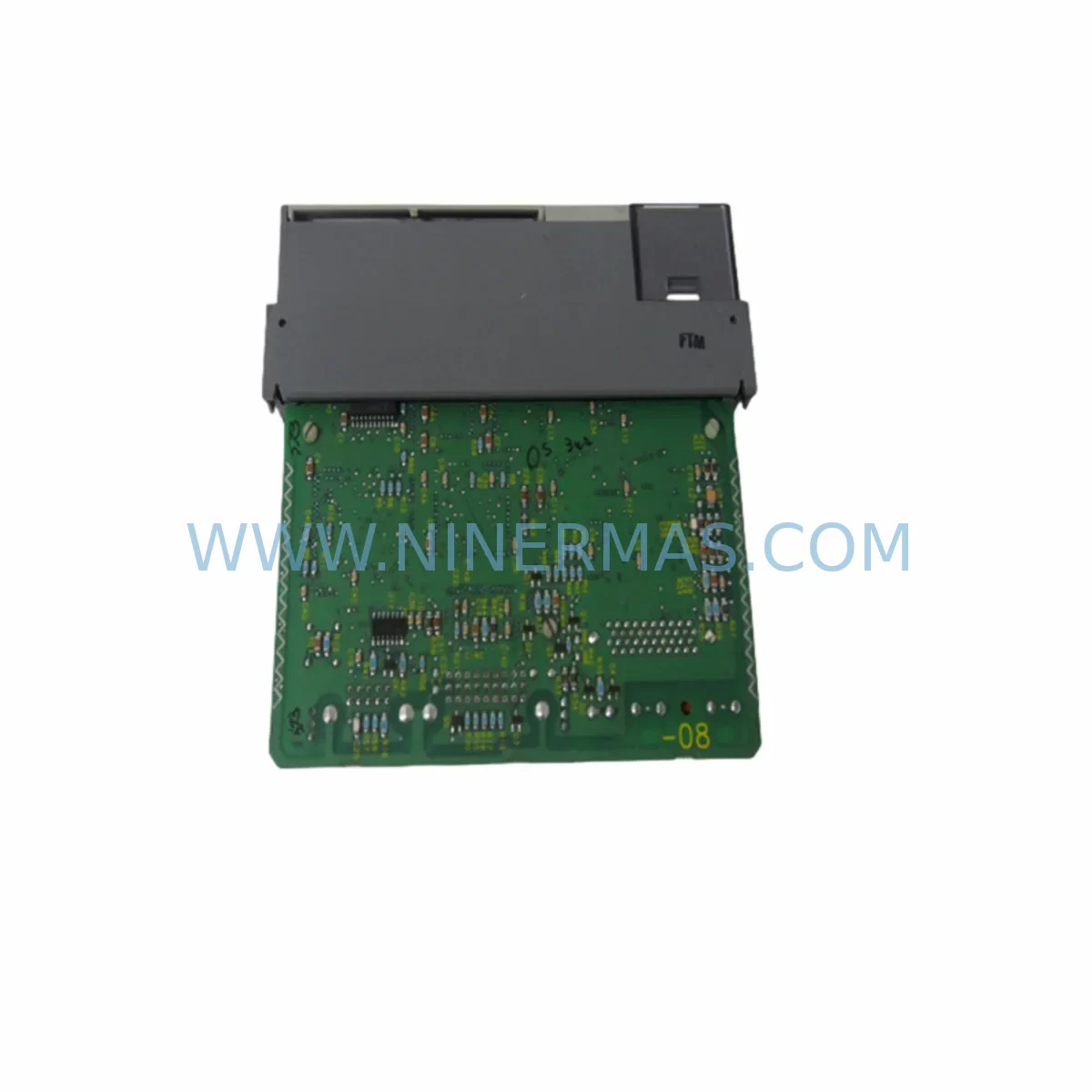

The Compressor Controls Corp (CCC) MCP-1004 is a ruggedized compressor control module engineered for continuous operation in harsh industrial environments. As a critical component within CCC turbomachinery control systems, the MCP-1004 governs compressor surge protection, anti-surge control logic, and process variable monitoring — functions that are indispensable to safe and efficient plant operation. When this module fails or degrades, the consequences extend far beyond a single loop: entire compressor trains can trip, production lines halt, and unplanned downtime costs escalate rapidly. Maintaining a verified, service-ready MCP-1004 spare in your critical spares inventory is not optional — it is a fundamental element of any responsible maintenance strategy for facilities running CCC-based turbomachinery control architectures.

NINERMAS supplies the CCC MCP-1004 as an original spare part, pre-tested and shipped with a 12-month warranty. Each unit undergoes functional verification prior to dispatch to ensure it meets the electrical and operational specifications required for direct field replacement. Whether you are managing a planned annual turnaround, responding to an emergency compressor trip, or building out a long-term critical spares program, the MCP-1004 available through NINERMAS is sourced, inspected, and documented to support your maintenance and procurement requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MCP-1004 in isolation rarely resolves the root cause of a compressor control fault. Experienced maintenance engineers understand that the MCP-1004 operates within a tightly integrated control cabinet ecosystem, and a thorough site replacement should be accompanied by a systematic inspection of all associated components. Begin with the 24VDC power supply module feeding the MCP-1004 rack — voltage sag or ripple is a common but overlooked cause of intermittent module faults. Verify the power distribution terminal blocks and fuse holders within the control cabinet for signs of overheating, loose connections, or blown protection elements.

Next, audit the analog input signal conditioners and signal isolators connected to the MCP-1004’s process variable inputs. Degraded isolation barriers can introduce ground loops that corrupt pressure, temperature, and flow readings, leading to false surge detection or missed protection events. Inspect the I/O wiring harnesses and field terminal strips for insulation breakdown, especially in high-vibration compressor environments where conductor fatigue is accelerated.

The communication backplane and inter-module connectors within the CCC control rack should be cleaned and re-seated during any MCP-1004 replacement. Oxidized backplane contacts are a frequent source of intermittent communication faults that are misdiagnosed as module failures. If the system includes a CCC operator interface or HMI panel, verify that firmware and configuration files are backed up before the replacement procedure begins — module swaps can trigger configuration mismatches if the replacement unit carries different firmware revisions.

For facilities running extended compressor trains, also inspect the anti-surge valve positioners and solenoid drivers connected to the MCP-1004 output channels. A faulty positioner can mask a correctly functioning control module and vice versa. Similarly, review the relay output modules and digital output cards that interface between the MCP-1004 and field actuators — contact wear and coil degradation in these components are common in high-cycle compressor applications. Finally, confirm that the surge detection pressure transmitters and differential pressure sensors feeding the MCP-1004 are within calibration — out-of-tolerance transmitters will undermine the performance of even a brand-new control module.

Site Replacement Workflow

A structured replacement workflow minimizes downtime and eliminates the risk of configuration errors during MCP-1004 changeout. Before beginning, obtain the current system configuration backup from the CCC engineering workstation or DCS historian. Document the existing module’s firmware version, parameter set, and I/O assignment table — this data is essential for commissioning the replacement unit to the same functional state as the original.

Isolate the compressor train per your site’s lockout/tagout procedure. Remove the MCP-1004 from the rack only after confirming that all associated control loops are in manual or safe state. Inspect the rack slot and backplane connector for contamination or physical damage before inserting the replacement unit. After installation, restore power incrementally and verify that the module initializes correctly against the system’s expected configuration checksum.

Perform a functional loop check on all analog inputs and outputs before returning the compressor to automatic control. Confirm anti-surge response by simulating a surge approach condition in accordance with your site’s commissioning procedure. Document the replacement in your maintenance management system with the new module’s serial number and the date of installation to maintain warranty traceability and support future lifecycle planning. The MCP-1004 supplied by NINERMAS includes shipment documentation to support this record-keeping requirement.

For aging CCC systems where the MCP-1004 is approaching end-of-support status, NINERMAS can support long-term spare parts programs with committed stock agreements, ensuring that critical replacement units remain available beyond the manufacturer’s standard supply window. This is particularly valuable for facilities operating legacy turbomachinery control architectures where OEM support has been discontinued.

Spare Parts Support FAQ

Q: Is the MCP-1004 supplied by NINERMAS an original CCC spare part?
A: Yes. NINERMAS supplies the CCC MCP-1004 as an original spare part. Each unit is sourced through established industrial supply channels, functionally tested prior to shipment, and accompanied by shipment documentation. A 12-month warranty is provided from the date of dispatch.

Q: How do I confirm compatibility between the MCP-1004 and my existing CCC control system?
A: Compatibility is determined by your system’s rack configuration, firmware revision, and I/O assignment. Provide NINERMAS with your system model, existing module part number, and firmware version, and our technical team will confirm compatibility before shipment. We recommend cross-referencing the module’s label against your CCC system documentation prior to installation.

Q: What is the lead time for the MCP-1004, and can NINERMAS support long-term supply commitments?
A: Lead time varies based on current stock levels. Contact NINERMAS directly for real-time availability. For facilities requiring guaranteed long-term supply, we offer committed spare parts programs with reserved stock agreements — particularly suited for critical compressor applications where supply disruption carries significant operational risk.

Q: What testing is performed on the MCP-1004 before shipment?
A: Each MCP-1004 unit undergoes functional verification testing at NINERMAS prior to dispatch. Testing confirms module initialization, I/O channel integrity, and communication interface function. Units that do not meet specification are not shipped. Test records are available upon request for quality assurance documentation purposes.
