Bosch Rexroth PL10 0811405061 Service-Ready Spare Part

Bosch Rexroth PL10 0811405061 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

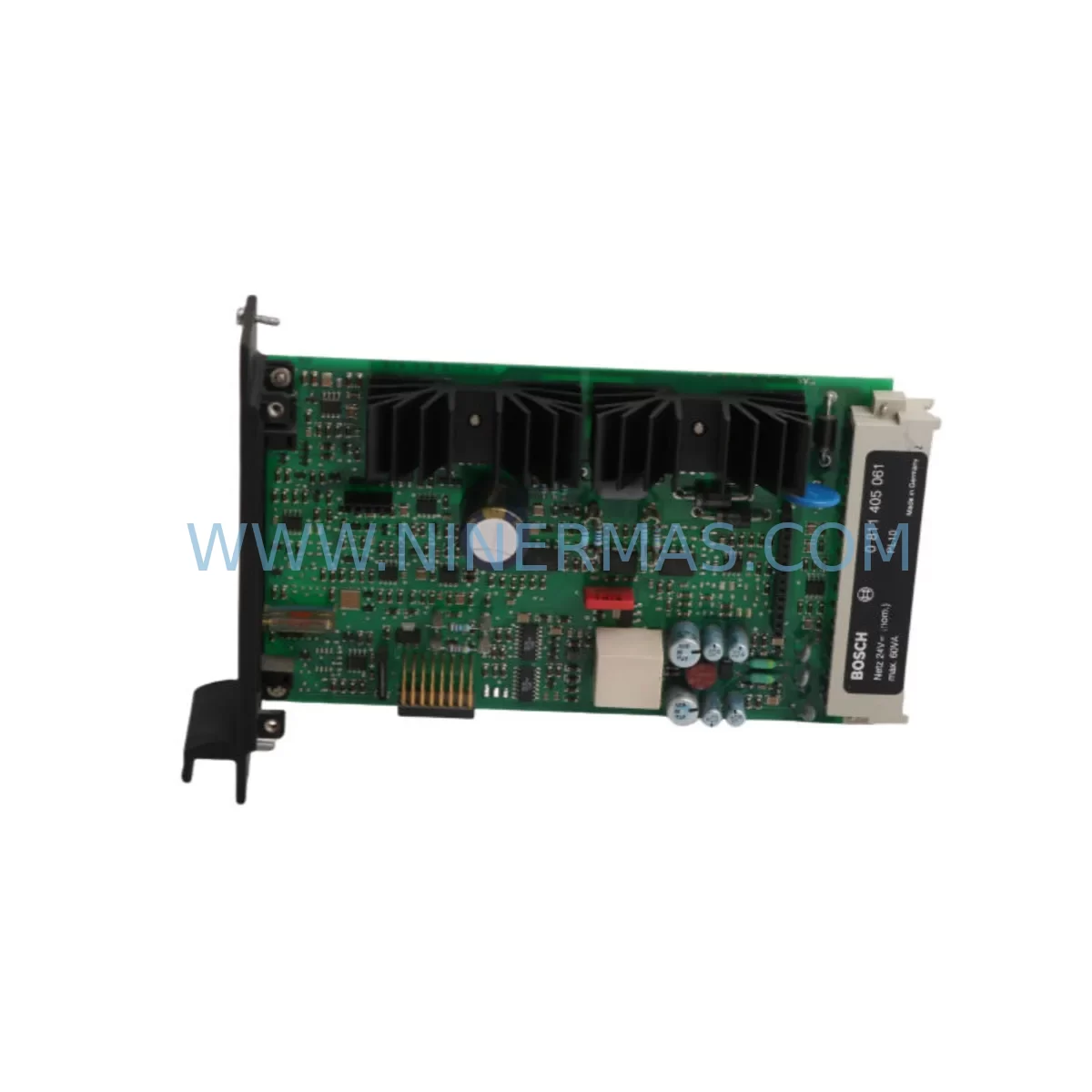

The Bosch Rexroth PL10 0811405061 is a ruggedized rule card module engineered for demanding industrial environments where control reliability and uptime are non-negotiable. Designed as an integral component of the Bosch Rexroth PL10 programmable logic controller series, this module governs rule-based logic execution within hydraulic and electro-hydraulic control systems. For maintenance engineers managing aging automation infrastructure, sourcing a verified, pre-tested replacement for the 0811405061 is a critical step in any planned or emergency maintenance cycle.

At NINERMAS, every PL10 0811405061 unit is sourced from authorized supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our long-term spare parts program ensures continued availability for systems that may no longer be supported by the OEM’s standard distribution network — a common challenge in lifecycle extension projects for legacy Bosch Rexroth PL10 installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Bosch Rexroth PL10 0811405061 rule card module, a thorough site inspection of the surrounding control cabinet is strongly recommended. Maintenance engineers should treat this replacement as an opportunity to audit the full PL10 rack assembly. Begin by verifying the condition of the PL10 power supply module (e.g., Bosch Rexroth 0811405010 or equivalent series PSU), as an aging or under-spec power supply is a leading cause of premature rule card failure. Inspect the PL10 backplane and rack housing for corrosion, loose card guides, or damaged bus connectors that could compromise signal integrity after the new module is installed.

Next, review the I/O modules connected to the PL10 system — both digital input cards and analog output cards should be checked for contact oxidation and correct terminal torque. If the system interfaces with proportional valves or servo drives, confirm that the proportional amplifier cards (such as Bosch Rexroth VT-VSPA or VT-HACD series) are within calibration tolerance, as rule card logic errors are sometimes misdiagnosed when the root cause lies in a drifting amplifier stage.

For systems with fieldbus communication, inspect the PROFIBUS DP or DeviceNet communication interface modules installed in the PL10 rack. A degraded communication card can cause intermittent rule execution faults that mimic rule card hardware failure. Similarly, check signal isolation modules between the PLC and field instrumentation — particularly where 4–20 mA analog loops feed into the PL10 analog input cards.

Terminal blocks and DIN rail wiring harnesses within the control cabinet should be inspected for insulation cracking, especially in high-temperature zones near drive components. Fuse holders and miniature circuit breakers (MCBs) protecting the PL10 power rail should be tested for correct trip characteristics. If the installation includes an HMI panel (such as a Bosch Rexroth IndraControl or a third-party operator terminal), verify that the communication link to the PL10 CPU module remains stable after the rule card swap.

For annual maintenance schedules, consider stocking a minimum of one spare 0811405061 rule card alongside a PL10 CPU module and at least one PL10 analog output card to cover the most failure-prone components in a typical hydraulic press or injection molding control cabinet. NINERMAS offers multi-unit procurement packages and fixed lead-time agreements to support planned maintenance budgets.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing 0811405061, document the current rule card configuration using the Bosch Rexroth PL10 programming software. Back up all logic programs and parameter sets to a secure location. Confirm that the replacement unit’s firmware revision is compatible with your PL10 CPU module version.

Step 2 — Safe Isolation: De-energize the PL10 rack following your site’s lockout/tagout (LOTO) procedure. Allow capacitors in the power supply module to discharge fully before handling any card. Use an ESD wrist strap and anti-static mat when handling the 0811405061 rule card.

Step 3 — Module Swap: Release the card ejector levers on the PL10 rack, extract the faulty module, and insert the replacement 0811405061 into the correct slot. Ensure the card is fully seated and the ejector levers are locked. Re-energize the rack and observe the module status LEDs for normal initialization behavior.

Step 4 — Functional Commissioning: Reload the backed-up rule program via the PL10 programming interface. Execute a dry-run cycle without hydraulic pressure to verify logic execution. Gradually restore system pressure and confirm that all proportional valve outputs and feedback signals respond correctly.

Step 5 — Documentation & Spare Stock Update: Record the replacement date, new module serial number, and any observed anomalies in your maintenance log. Update your spare parts inventory to reflect the consumed unit and initiate a reorder to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the PL10 0811405061 still available as a new OEM part, or is this surplus stock?
The Bosch Rexroth PL10 series is a mature product line. NINERMAS supplies both original surplus and tested refurbished units sourced from verified channels. Each unit undergoes pre-shipment functional testing. A 12-month warranty is provided regardless of stock origin, giving maintenance teams confidence in long-term reliability.

Q2: How do I confirm compatibility with my existing PL10 rack before ordering?
Provide your PL10 rack model number, CPU module part number, and current firmware version when contacting NINERMAS. Our technical team will cross-reference the 0811405061 revision history to confirm compatibility. In most cases, the rule card is backward-compatible across PL10 rack generations, but firmware alignment should always be verified for safety-critical applications.

Q3: What is the typical lead time, and do you offer long-term supply agreements?
Standard lead time is 3–7 business days from order confirmation, subject to stock availability. NINERMAS offers Spare Parts Commitment Programs with fixed lead times and reserved stock allocations for customers managing multi-year maintenance contracts or large installed bases of PL10 systems. Contact our sales team to discuss volume pricing and supply terms.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Each PL10 0811405061 unit is powered up and subjected to functional logic execution tests prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental specifications. Warranty claims are supported by NINERMAS’s technical team with replacement or repair options.

—
