Rexroth 3842547991 Retrofit Drive Motor for Legacy Systems

Rexroth 3842547991 Retrofit Drive Motor for Legacy Systems: Seamless Compatibility for Aging Transfer Lines

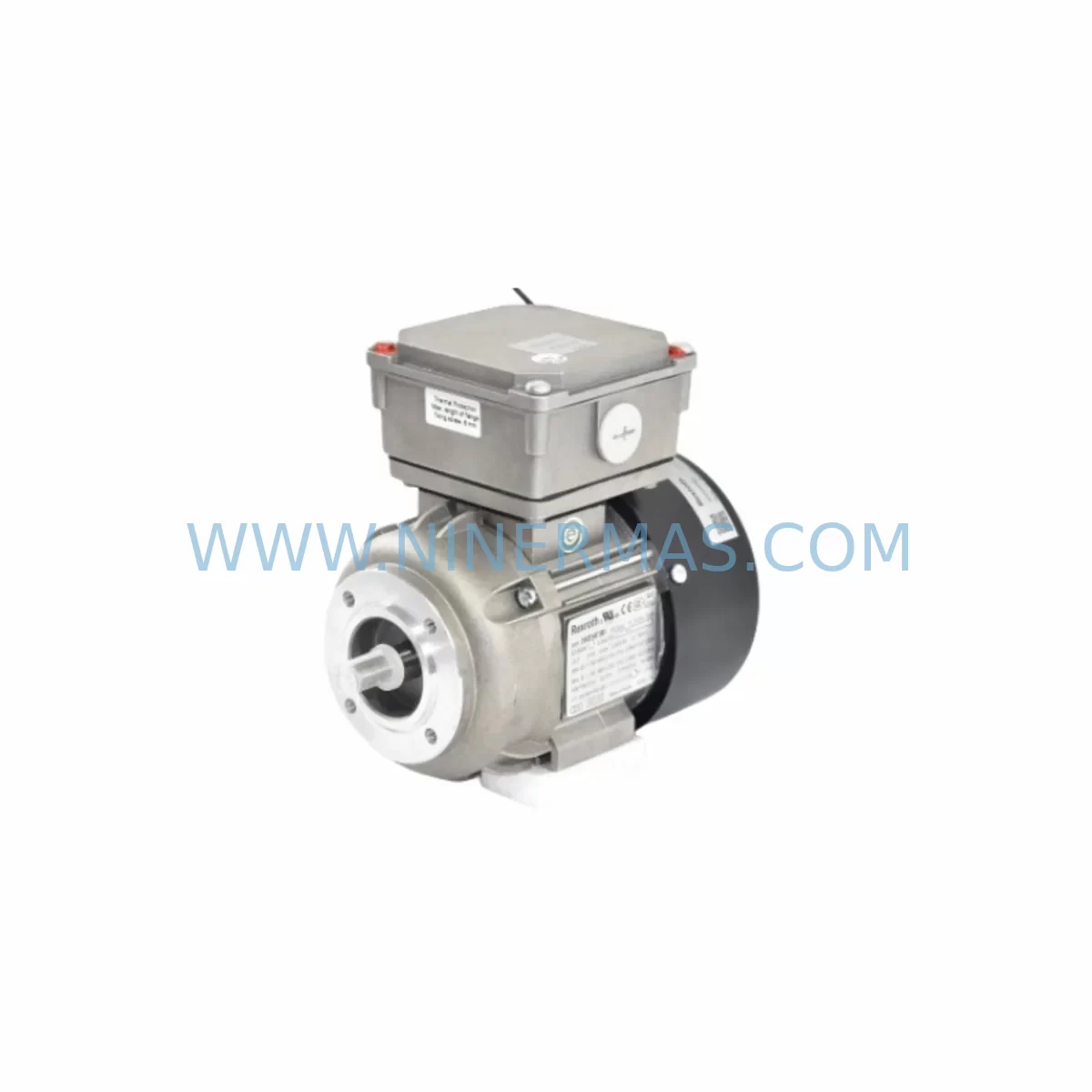

The Rexroth 3842547991 is a compact conveyor drive motor engineered for Bosch Rexroth’s 3842 Series transfer and assembly line systems. As production facilities face increasing pressure to extend the operational life of legacy automation infrastructure, this motor serves as a critical retrofit-compatible replacement for discontinued or end-of-life drive units embedded in existing conveyor frames, pallet transfer modules, and rotary indexing tables. Whether your facility is managing a phased modernization or responding to an unplanned motor failure, the 3842547991 is designed to restore system continuity with minimal engineering intervention.

Procurement teams and maintenance engineers working with Bosch Rexroth TS 2plus, TS 4plus, or VarioFlow conveyor platforms will recognize the 3842547991 as a direct-fit replacement for aging drive assemblies. Its compact form factor, standardized mounting interface, and compatibility with existing wiring harnesses make it a preferred choice for facilities that cannot afford extended downtime or full-line redesign. Pre-shipment functional testing is performed on every unit, and each motor ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Rexroth 3842547991 into a legacy transfer line requires a structured pre-installation review. Maintenance teams should begin by auditing the existing conveyor segment’s power supply capacity. The drive motor draws from the same 24 VDC or AC bus as adjacent modules, and adding a replacement unit without verifying available current headroom can cause nuisance tripping on the Rexroth 3842530309 frequency converter or the associated power distribution module feeding that conveyor zone.

Terminal wiring is the next critical checkpoint. The 3842547991 uses a standard Rexroth terminal block layout, but field installations often accumulate non-standard conductor modifications over years of maintenance. Before reconnecting, verify conductor cross-section, insulation rating, and phase sequence against the original wiring diagram. If the conveyor segment uses a Rexroth 3842532421 gearbox unit coupled to the drive motor, inspect the coupling interface for wear before reinstalling — a worn coupling will transfer vibration loads back to the new motor and reduce service life.

For facilities running Rexroth TS 2plus or TS 4plus pallet transfer systems, the 3842547991 typically operates alongside a Rexroth 3842532125 conveyor drive variant and a Rexroth 3842547990 motor unit in adjacent conveyor zones. When replacing one motor in a multi-zone line, it is advisable to inspect neighboring drive units for early signs of wear — bearing noise, elevated operating temperature, or intermittent speed variation — to avoid a secondary failure shortly after the primary repair.

Control system integration requires confirming the motor’s logical address in the PLC program. Rexroth conveyor systems managed by a Rexroth 3842524973 drive controller or a third-party Siemens S7 or Allen-Bradley ControlLogix PLC will have motor status tags mapped to specific I/O addresses. After physical installation, verify that the PLC program correctly reads the motor’s run, fault, and speed feedback signals. If the conveyor segment uses a Rexroth 3842530287 transfer module with integrated I/O, confirm that the module’s address configuration has not shifted due to rack changes during the maintenance window.

HMI screen validation is often overlooked during motor replacement. If the facility uses a Siemens TP700, TP900, or equivalent operator panel connected to the conveyor control network, verify that the motor’s status display on the HMI reflects the correct operational state after commissioning. Communication link integrity between the HMI and the PLC should be confirmed before returning the line to production. For conveyor segments using a Rexroth 3842530310 VFD unit for variable-speed control, verify that the VFD’s motor parameters — rated current, voltage, and frequency — are updated to match the 3842547991 nameplate data.

Finally, confirm installation space within the conveyor frame bay. The 3842547991 shares the same physical envelope as original 3842 series drive motors, but accumulated cable management additions, sensor brackets, or guard modifications may reduce available clearance. A Rexroth 3842998070 mounting bracket or equivalent adapter may be required if the original bracket was damaged or modified during previous maintenance cycles.

Downtime Control During System Migration

Minimizing production downtime during a motor replacement on a live transfer line requires advance preparation and a disciplined changeover sequence. The recommended approach is to pre-stage the replacement 3842547991 unit with all required hardware — terminal connectors, mounting fasteners, and coupling components — before initiating the line stop. A well-prepared technician team can complete a direct motor swap on a Rexroth 3842 conveyor segment in under two hours when all components are on hand and the PLC program backup is current.

Before powering down the affected conveyor zone, export a current backup of the PLC program from the controlling Rexroth 3842524973 drive controller or host PLC. This backup preserves the original motor address assignments, I/O mappings, and conveyor sequencing logic. If the program has been modified since the last documented backup, the live program export is the authoritative reference for post-installation verification.

During the physical swap, isolate only the affected conveyor zone using the zone’s dedicated safety relay or lockout/tagout point. Adjacent conveyor zones can remain operational if the control architecture supports zone-level isolation — a common feature in Rexroth TS 2plus and TS 4plus segmented conveyor designs. This approach limits the production impact to the specific zone under maintenance rather than requiring a full-line shutdown.

After installation, perform a controlled jog test at reduced speed before returning the conveyor to full production rate. Monitor motor current draw, bearing temperature, and conveyor belt tracking during the initial run-in period. Confirm that all PLC fault flags are cleared and that the HMI displays the correct motor status before releasing the zone to the production schedule. Document the replacement in the facility’s maintenance log, including the new motor’s serial number and installation date, to support future warranty claims and spare parts lifecycle planning.

Retrofit Support FAQ

Q1: Is the Rexroth 3842547991 a direct replacement for my existing conveyor drive motor?
A: The 3842547991 is designed as a retrofit-compatible replacement for Bosch Rexroth 3842 series conveyor drive motors. Before ordering, verify the nameplate voltage, frequency, and mounting flange dimensions against your existing unit. Sub-references 02112-AA44-0001 and 0190-24640 can assist in cross-referencing against your original bill of materials or maintenance records.

Q2: What commissioning steps are required after installation?
A: After physical installation and terminal reconnection, verify the motor’s logical address in the PLC program, confirm I/O tag mapping, and perform a controlled jog test at reduced speed. If the conveyor uses a VFD for variable-speed control, update the VFD motor parameters to match the 3842547991 nameplate data. Validate HMI status displays before returning the zone to production.

Q3: Has the unit been tested before shipment?
A: Yes. Every Rexroth 3842547991 unit undergoes full functional pre-shipment testing before dispatch. This includes electrical continuity verification, no-load run testing, and insulation resistance checks. A 12-month warranty covers manufacturing defects and operational failures under standard industrial conditions from the date of delivery.

Q4: What is the lead time and inventory availability?
A: We maintain reserved inventory of the Rexroth 3842547991 to support urgent replacement requirements and planned maintenance schedules. Contact our team for current stock levels and lead time confirmation. For facilities managing multi-unit conveyor lines, we recommend discussing a long-term supply agreement to ensure consistent availability and avoid unplanned production stoppages caused by spare parts shortages.
