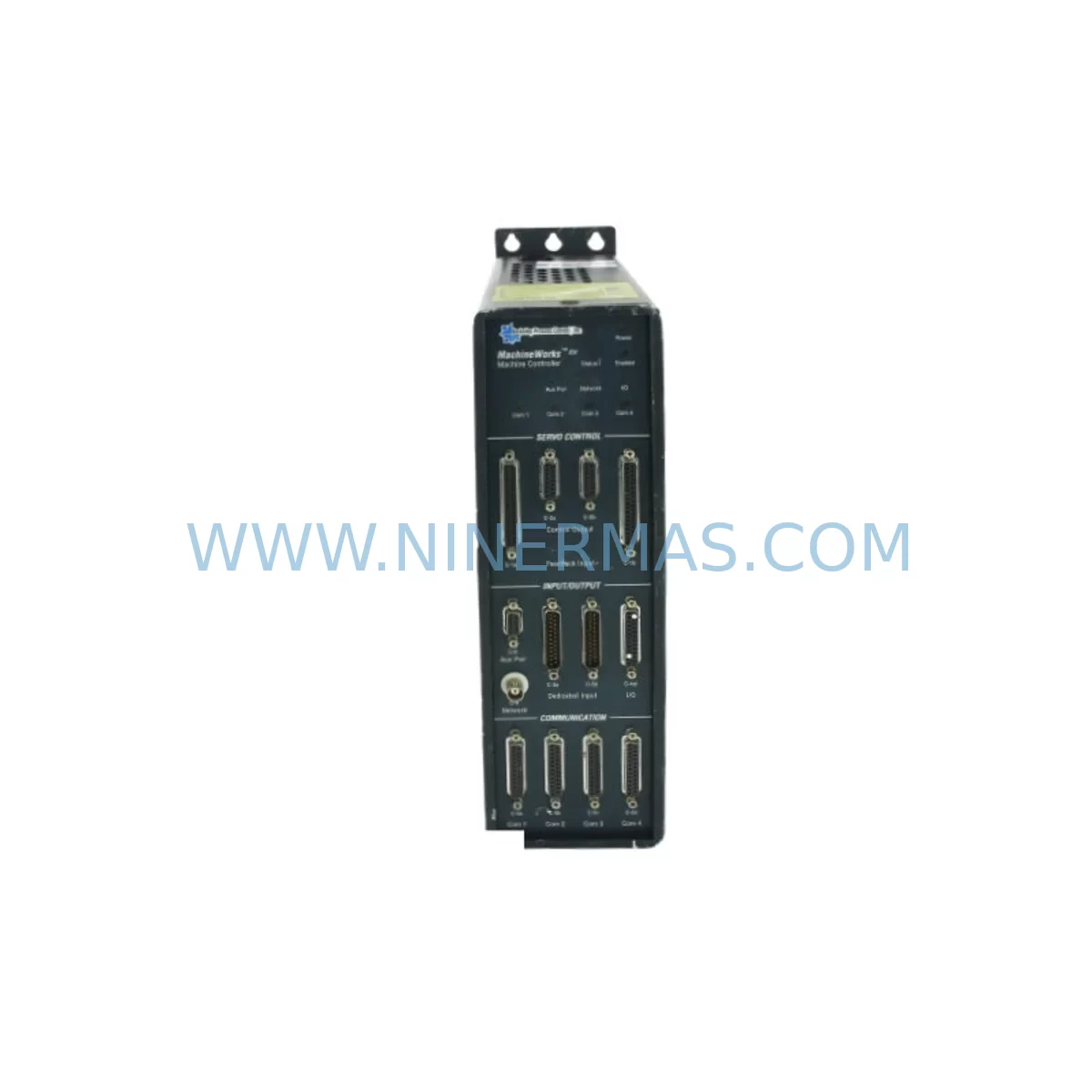

The Berkeley MWTX-8 MNET PIO (810-800056-010 / 0100-00548) is a ruggedized machine controller engineered for demanding industrial environments where legacy automation infrastructure must be preserved, extended, or modernized without full system replacement. As a retrofit-compatible drop-in solution for aging Berkeley MWTX-series platforms, this controller addresses the critical challenge faced by maintenance engineers and system integrators: how to restore or upgrade a production line’s control architecture when the original hardware is discontinued, obsolete, or no longer supported by the original manufacturer.

Whether you are managing a multi-axis motion control cabinet, a distributed I/O network, or a legacy MNET-based communication backbone, the MWTX-8 MNET PIO provides a verified upgrade path that minimizes engineering risk and reduces total downtime during migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MWTX-8 MNET PIO into an existing control system begins well before the unit arrives on-site. Retrofit planning must account for every layer of the automation stack — from the power supply rail to the HMI operator panel — to ensure that the replacement controller slots into the existing architecture without triggering cascading compatibility failures.

Start with the power supply capacity. The MWTX-8 MNET PIO draws regulated DC power from the control cabinet’s power distribution rail. Before installation, verify that the existing Berkeley PSU module or third-party 24 VDC power supply can sustain the combined load of the replacement controller plus any co-installed I/O expansion modules. Undersized power supplies are a leading cause of intermittent faults during post-retrofit commissioning.

Next, review the terminal wiring. The PIO interface on the MWTX-8 uses a parallel I/O architecture that connects directly to field devices — sensors, actuators, solenoid valves, and relay outputs. When replacing an older MWTX-4 MNET PIO or MWTX-6 MNET PIO unit, the terminal block layout may differ. Always compare the original wiring diagram against the replacement unit’s I/O terminal map before disconnecting any field cables. Label every wire before removal to prevent miswiring during reinstallation.

The backplane interface and rack slot assignment are equally critical. In Berkeley MWTX-series control cabinets, the backplane assembly carries both power and communication signals between the controller and co-installed modules. If the existing rack includes MNET communication adapter cards, analog input/output modules, or digital I/O expansion units, confirm that the MWTX-8 MNET PIO’s backplane connector is physically and electrically compatible with the installed rack generation. In some legacy installations, a backplane revision upgrade may be required alongside the controller replacement.

Module address configuration must be completed before the unit is powered on in a live network. The MWTX-8 MNET PIO uses rotary or DIP-switch node addressing to identify itself on the MNET communication bus. Duplicate node addresses will cause network conflicts and may prevent the PLC master from polling the replacement unit correctly. Cross-reference the node address map in the existing PLC program — typically documented in the hardware configuration section of the programming software — and set the replacement controller’s address to match the original unit exactly.

Program compatibility is a frequent concern during MWTX-series retrofits. If the original controller was programmed using Berkeley’s proprietary programming cable and software environment, verify that the replacement unit accepts the same program image without requiring recompilation or I/O remapping. In cases where the original program file is unavailable, a signal trace of the existing I/O states during normal operation can serve as a baseline for reconstructing the control logic.

HMI screen bindings must also be validated. In systems where a touch panel HMI communicates with the MWTX-8 MNET PIO over the MNET network, every screen tag that references a controller register address must be verified against the replacement unit’s memory map. Mismatched register addresses will cause HMI display errors or incorrect operator feedback during post-retrofit operation. Update the HMI project file and download the revised screen configuration before restarting the production line.

Communication link integrity should be tested end-to-end using a programming cable or MNET diagnostic tool before the system is returned to automatic mode. Verify that the PLC master can read and write to all I/O points on the MWTX-8 MNET PIO, and that the response time on the MNET bus remains within the original system’s scan cycle tolerance. If signal isolators are installed between the controller and field devices, confirm that the isolator output voltage and current ratings are compatible with the replacement unit’s input specifications.

Finally, confirm the physical installation space. The MWTX-8 MNET PIO’s enclosure dimensions must fit within the existing control cabinet cutout or DIN rail section. In compact cabinets, the addition of a programming cable connector or MNET termination resistor may require minor panel modifications. Plan for these adjustments during the pre-shutdown preparation phase to avoid extending the maintenance window.

Downtime Control During System Migration

Minimizing production downtime during a MWTX-8 MNET PIO replacement requires a structured migration sequence that protects the original program logic, maintains field control continuity, and reduces the risk of unplanned extended outages.

Begin by scheduling the replacement during a planned maintenance window — ideally during a shift change or scheduled production break. Before powering down the existing controller, capture a full backup of the PLC program, HMI project files, and any parameter sets stored in the original MWTX-8 MNET PIO. If the original unit is still partially functional, use the programming cable to extract the program image directly from the controller’s memory.

During the physical swap, keep the control cabinet powered where safe to do so, and use a temporary I/O bypass or manual override to maintain critical field outputs — such as safety interlocks, conveyor drives, or process valves — in a known safe state. This approach prevents uncontrolled process shutdowns that can damage equipment or create safety hazards.

After installing the replacement MWTX-8 MNET PIO, perform a cold-start sequence: power on the controller without enabling field outputs, download the program, verify the MNET communication link, and confirm all I/O point states before releasing the system to automatic mode. This staged restart sequence allows the maintenance team to catch wiring errors or address conflicts before they affect the production process.

Document every step of the migration — including pre-swap I/O states, node address settings, program version numbers, and post-swap test results — to support future maintenance activities and warranty claims.

Retrofit Support FAQ

Q: Is the Berkeley MWTX-8 MNET PIO (810-800056-010) a direct replacement for the original discontinued unit?
A: Yes. The MWTX-8 MNET PIO supplied by NINERMAS is cross-referenced against part numbers 810-800056-010 and 0100-00548. Each unit undergoes pre-shipment functional testing to verify MNET communication, PIO interface operation, and power supply compatibility before dispatch.

Q: What wiring changes are required when replacing an older MWTX-series controller?
A: In most cases, the terminal block layout is identical to the original unit. However, we recommend comparing the replacement unit’s wiring diagram against your existing field wiring documentation before disconnecting any cables. Our technical team can provide wiring comparison support upon request.

Q: How is MNET communication compatibility verified before shipment?
A: Each MWTX-8 MNET PIO is bench-tested using a Berkeley-compatible MNET test fixture that simulates a live network environment. Communication response, node addressing, and I/O point mapping are all verified as part of the pre-shipment test protocol. Test records are available upon request.

Q: What does the 12-month warranty cover, and what is the stock availability?
A: The 12-month warranty covers manufacturing defects, communication failures, and I/O interface faults under normal operating conditions. NINERMAS maintains reserved inventory of MWTX-8 MNET PIO units to support urgent replacement requirements. Contact our team for current stock levels and lead time confirmation.
