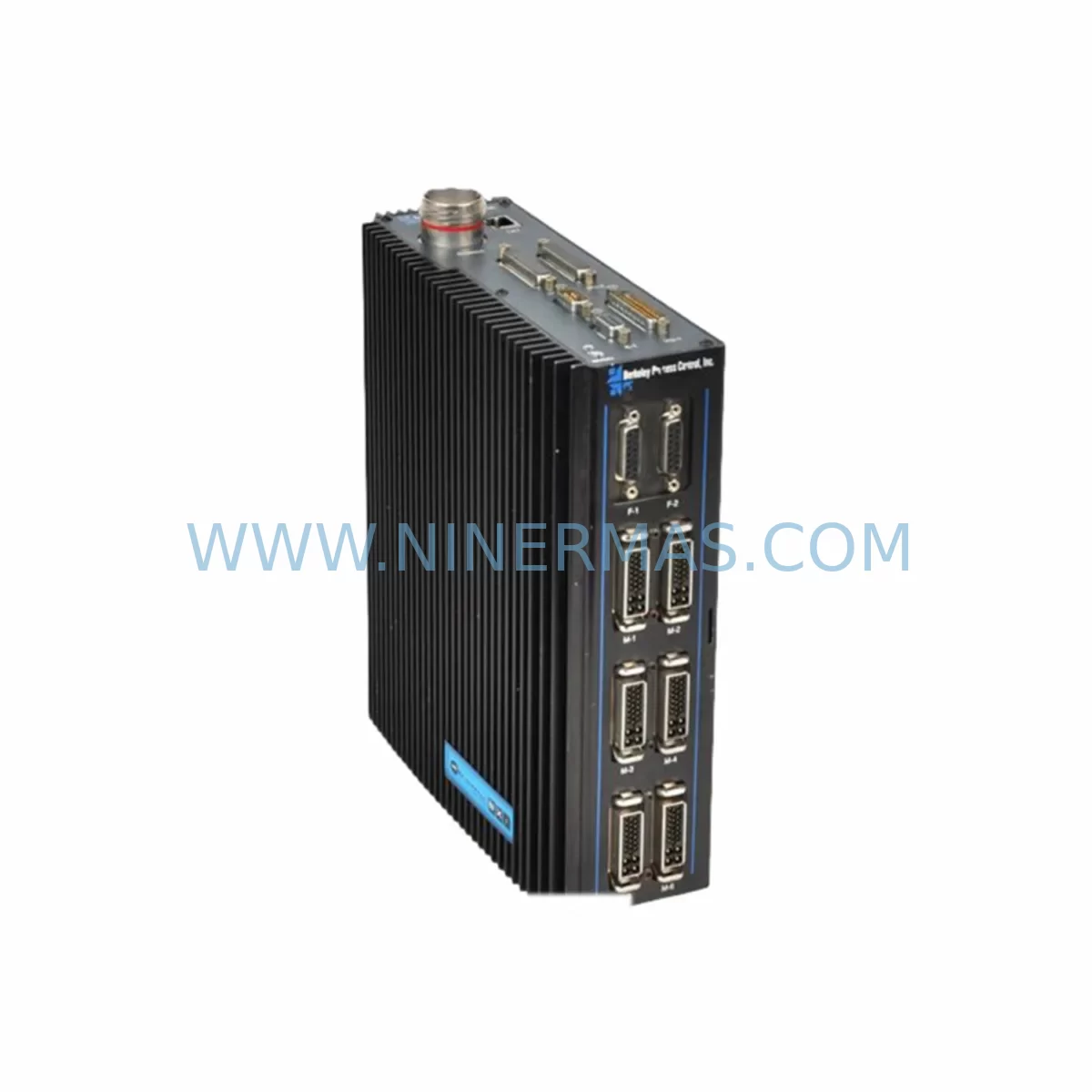

BERKELEY BXI4/2-01-B Retrofit-Compatible Motion Controller

BERKELEY BXI4/2-01-B Retrofit-Compatible Motion Controller for Legacy System Modernization

The BERKELEY BXI4/2-01-B is a ruggedized 4-axis motion controller engineered for demanding industrial environments and purpose-built to support seamless retrofit integration into aging automation platforms. As legacy motion control systems approach end-of-life and OEM spare parts become increasingly scarce, the BXI4/2-01-B provides a proven, field-tested replacement path that preserves existing machine logic, minimizes downtime, and extends the operational lifespan of capital equipment without requiring a full system overhaul.

Designed for compatibility with legacy Berkeley motion control architectures, the BXI4/2-01-B supports 4-axis coordinated motion with ruggedized construction suitable for high-vibration, high-temperature, and electrically noisy environments common in discrete manufacturing, heavy process industries, and automated assembly lines. Its robust design makes it a preferred choice for engineers managing long-lifecycle machinery where replacement parts must meet or exceed the original specification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the BERKELEY BXI4/2-01-B into an existing control cabinet begins with a thorough pre-retrofit audit. Engineers should document the current wiring scheme, including all terminal block assignments for encoder feedback lines, servo drive enable signals, and limit switch inputs. In many legacy Berkeley installations, the BXI4/2-01-B shares a rack with companion modules such as Berkeley analog I/O expansion cards, digital I/O modules, and dedicated axis drive interface boards — all of which must remain undisturbed during the controller swap to avoid disrupting the broader machine sequence.

Power supply capacity is a critical checkpoint. The existing Berkeley DC power supply module feeding the motion controller rack must be verified to deliver sufficient current headroom for the BXI4/2-01-B under full 4-axis load. If the original PSU is also approaching end-of-life, a concurrent replacement with a compatible Berkeley or equivalent industrial power supply module is strongly recommended to avoid a secondary failure shortly after the motion controller retrofit.

Communication link integrity is equally important. Many legacy systems using the BXI4/2-01-B rely on RS-232 or RS-485 serial links to a supervisory PLC or SCADA host — for example, a Siemens S7-300 series controller or a GE Fanuc Series 90 PLC acting as the motion coordinator. Before powering up the replacement module, the communication cable pinout, baud rate, parity settings, and station address must be confirmed and documented. Where the legacy system uses a proprietary Berkeley motion bus, the bus termination resistors and cable shielding should be inspected and replaced if degraded.

For systems that include an HMI panel — such as a Schneider Electric Magelis terminal or a Siemens TP series touch panel — the axis status display screens and alarm message tables should be reviewed to confirm that tag names and data register addresses remain consistent with the replacement BXI4/2-01-B firmware. Any discrepancies in axis numbering or status word bit mapping will require HMI screen updates before the machine can be returned to production.

Where the retrofit involves I/O expansion, engineers should audit the existing Berkeley I/O modules connected to the backplane. Adding or replacing I/O modules — such as Berkeley digital input cards, analog output modules, or signal isolator boards — during the same maintenance window can reduce total downtime by consolidating multiple upgrade tasks into a single planned outage. Signal isolators and loop-powered transmitters connected to the analog I/O channels should also be checked for compatibility with the replacement module’s input impedance specifications.

Finally, the programming cable and software environment must be prepared in advance. A Berkeley-compatible programming cable and the appropriate motion programming software version should be staged and tested on a laptop before the retrofit begins. Backing up the existing motion program, axis parameter tables, and cam profiles to a secure location is non-negotiable — this backup serves as the recovery baseline if commissioning reveals unexpected behavior after the swap.

Downtime Control During System Migration

Minimizing production downtime during a BXI4/2-01-B replacement requires disciplined pre-planning and a structured commissioning sequence. The recommended approach is to complete all preparatory work — wiring documentation, program backup, spare parts staging, and communication parameter verification — during normal production hours, reserving the actual hardware swap for a planned maintenance window.

Before removing the failed or end-of-life BXI4/2-01-B, photograph all wiring connections and label every terminal to ensure accurate reconnection. If the machine uses a multi-axis coordinated motion sequence, the axis homing offsets and servo tuning parameters (proportional gain, integral gain, velocity feedforward) should be recorded from the existing controller before power-down, as these values will need to be re-entered or verified in the replacement unit.

During the swap, the E-stop circuit and safety relay chain should remain active and verified throughout the installation process. After physical installation of the replacement BXI4/2-01-B, a cold-start commissioning sequence should be followed: power up without enabling servo drives, verify communication link establishment, confirm axis addressing, load the backed-up motion program, and perform a slow-speed jog test on each axis before returning to full production speed. This staged approach protects the original program logic, maintains field control continuity, and significantly reduces the risk of a secondary fault during the first production run after retrofit.

For facilities with strict uptime requirements, maintaining a pre-tested spare BXI4/2-01-B unit in the on-site spare parts inventory is strongly recommended. NINERMAS supplies the BXI4/2-01-B with a 12-month warranty and pre-shipment functional testing, enabling rapid swap-out with confidence in the replacement unit’s operational status before it enters the cabinet.

Retrofit Support FAQ

Q1: Is the BERKELEY BXI4/2-01-B a direct drop-in replacement for the original module?
The BXI4/2-01-B is designed as a form-fit-function replacement for the original Berkeley BXI4/2-01-B. However, engineers should verify the firmware revision, backplane connector pinout, and axis parameter defaults before assuming a zero-configuration swap. In most cases, the existing motion program can be reloaded without modification, but axis tuning parameters should be re-verified after installation.

Q2: What commissioning steps are required after installing the replacement controller?
After physical installation, the recommended commissioning sequence includes: (1) verify communication link to host PLC or SCADA, (2) confirm axis addressing and I/O mapping, (3) reload and verify the motion program, (4) perform a slow-speed jog test on all 4 axes, (5) verify encoder feedback and limit switch inputs, and (6) run a full production cycle at reduced speed before returning to normal operation.

Q3: Does NINERMAS provide pre-shipment testing and warranty coverage?
Yes. Every BERKELEY BXI4/2-01-B supplied by NINERMAS undergoes pre-shipment functional testing to verify axis control outputs, communication interfaces, and power supply compatibility. All units are covered by a 12-month warranty from the date of shipment. Replacement or repair support is available through sale@ninermas.com.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of the BERKELEY BXI4/2-01-B to support urgent retrofit and breakdown replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For long-term spare parts programs or bulk stock commitments, contact NINERMAS to discuss reserved inventory arrangements and fixed lead-time agreements.
