Bently Nevada TM0180-A08-B00-C02-D10 Retrofit Proximity Probe

Bently Nevada TM0180-A08-B00-C02-D10 Retrofit Proximity Probe for Legacy System Modernization

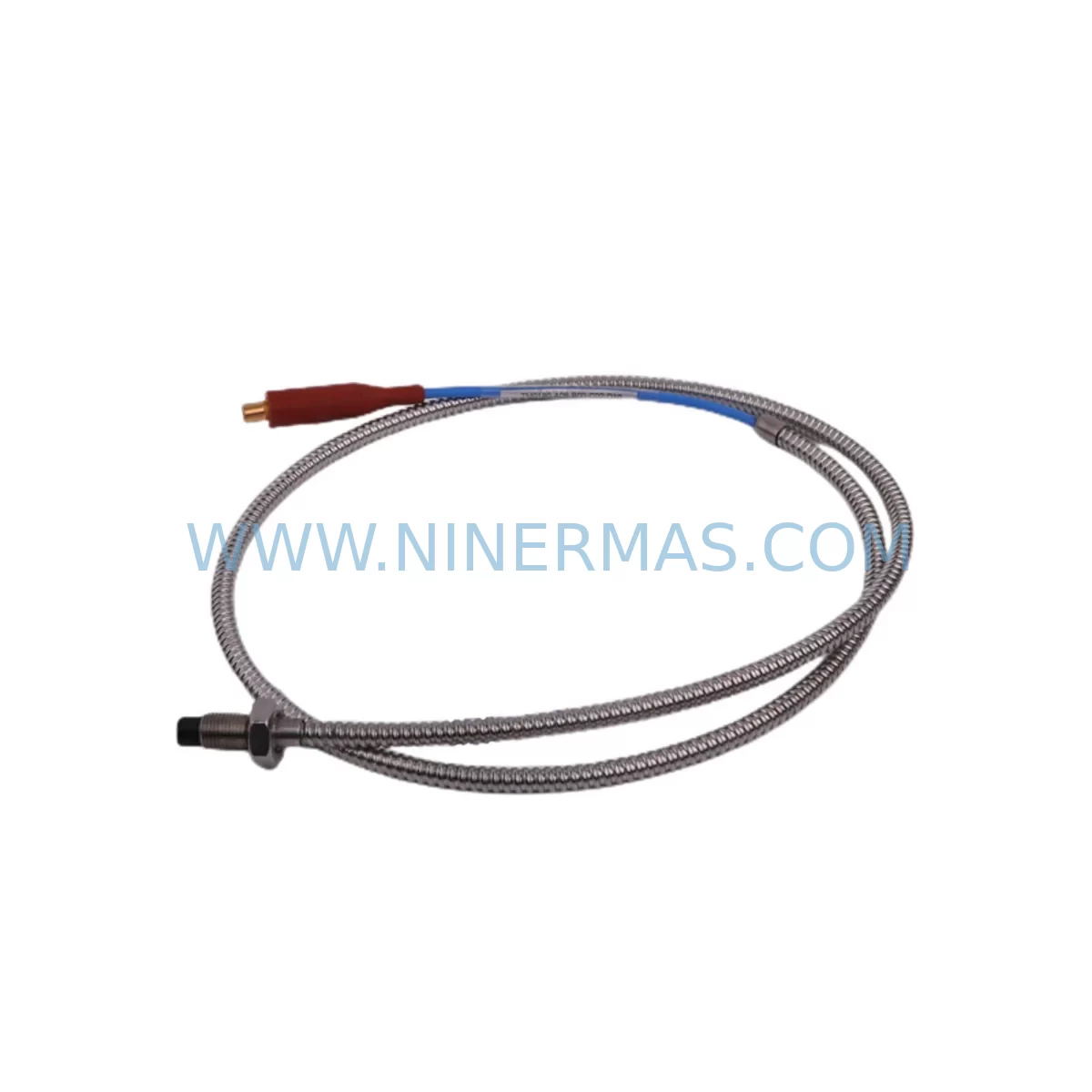

The Bently Nevada TM0180-A08-B00-C02-D10 is an eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As a retrofit-compatible replacement unit, it is widely deployed in legacy system modernization projects where original OEM components have reached end-of-life or have been discontinued. Whether you are upgrading an aging turbine protection panel, replacing a failed probe in a compressor train, or migrating from an obsolete monitoring platform, the TM0180-A08-B00-C02-D10 delivers the dimensional accuracy, cable length, and sensitivity range required to restore system integrity without redesigning the entire measurement chain.

This probe is part of the Bently Nevada TM0180 series, which is fully compatible with the 3300 Series monitoring system infrastructure. Engineers performing panel retrofits frequently pair this probe with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to maintain the original signal conditioning architecture. When the existing Proximitor housing is retained but the probe itself has degraded, the TM0180-A08-B00-C02-D10 can be installed as a direct mechanical and electrical substitute, provided the gap voltage is re-verified during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TM0180-A08-B00-C02-D10 into an existing machinery protection system begins well before the probe arrives on site. Retrofit planning must account for the full signal path from the probe tip to the monitoring rack. In a typical 3300 Series installation, the probe connects through an extension cable — commonly the Bently Nevada 3300 XL 5m or 9m Extension Cable — to a 3300 XL Proximitor Sensor mounted outside the bearing housing. The Proximitor then feeds a conditioned voltage signal to a 3300/16 Dual Voting Logic Monitor or a 3500/42M Proximitor Seismic Monitor housed in the 3500 Series rack. If the existing rack is a legacy 3300 Series chassis, engineers should verify whether the backplane connectors and I/O termination boards are still serviceable before committing to a probe-only swap.

Terminal wiring is a critical checkpoint. The TM0180-A08-B00-C02-D10 uses a standard coaxial connector at the probe body and a MIL-spec connector at the Proximitor interface. When replacing a probe in a live panel, technicians should document the existing gap voltage — typically between -10 VDC and -18 VDC at the Proximitor output — before disconnecting the old unit. After installing the new probe and setting the mechanical gap to the manufacturer-specified range (usually 1.0 mm to 2.5 mm for an 8 mm probe), the gap voltage must be re-measured and recorded. Any deviation outside the linear range of the Proximitor indicates a gap error or a cable mismatch that must be resolved before returning the machine to service.

For plants migrating from older Bently Nevada 7200 Series or 9000 Series monitoring systems to the current 3500 platform, the TM0180-A08-B00-C02-D10 is frequently specified as the probe of choice because its dimensional envelope matches the original probe brackets. However, the signal conditioning electronics differ between generations, so the Bently Nevada 3500/22M Transient Data Interface or the 3500/40M Proximitor Monitor may need to be added to the rack to support the new probe’s output characteristics. HMI screens configured in System 1 Condition Monitoring Software will also require tag remapping if the channel addresses change during the rack upgrade.

I/O expansion is another common requirement during control cabinet modernization. If the existing DCS or safety system receives vibration trip signals from the 3300 Series monitor via hardwired relay outputs, the retrofit team must confirm that the new 3500 Series monitor’s relay card — such as the 3500/32 Relay Module — is configured to replicate the original trip logic. Failure to verify relay polarity and trip setpoints before energizing the new rack is one of the most common causes of nuisance trips during commissioning. A pre-shipment functional test, included with every TM0180-A08-B00-C02-D10 unit supplied by NINERMAS, confirms probe sensitivity and cable continuity before the unit leaves the warehouse.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or monitoring system upgrade requires a structured migration strategy. For critical rotating equipment — gas turbines, steam turbines, centrifugal compressors, and large motors — the preferred approach is a parallel installation: the new probe and Proximitor are mounted and wired while the machine remains in service, with the new signal path verified against the existing one before the cutover. This technique is only possible when a spare probe port or an adjacent bracket position is available on the bearing housing.

Where parallel installation is not feasible, the retrofit team should prepare a detailed cutover procedure that includes: locking out the machine and confirming zero energy state; removing the old probe and extension cable as a single assembly; installing the new TM0180-A08-B00-C02-D10 with the correct extension cable; setting and verifying the gap voltage; confirming monitor channel status in the 3500 rack; and releasing the machine for restart. The entire sequence, when performed by an experienced technician with all materials on hand, typically takes less than two hours per probe point.

Protecting the original control program logic is equally important. If the vibration monitor interfaces with a Rockwell Automation ControlLogix or Siemens S7-400 safety PLC via hardwired I/O or a Modbus RTU communication link, the PLC program should not require modification as long as the monitor’s output signal format and trip setpoints are preserved. However, if the migration involves replacing the monitor rack entirely, the PLC engineer must verify that the new rack’s communication module — for example, a 3500/92 Ethernet Communication Module — is configured with the correct IP address, port, and register map before the DCS operator stations are updated. Keeping a backup of the original PLC program and HMI configuration on a separate engineering workstation throughout the migration period is a non-negotiable risk control measure.

Retrofit Support FAQ

Q1: Is the TM0180-A08-B00-C02-D10 a direct drop-in replacement for other TM0180 suffix variants?
A: The TM0180 series uses a suffix coding system where each segment defines cable length, connector type, temperature rating, and sensitivity. The -A08-B00-C02-D10 configuration specifies an 8 mm probe with a 1.0 m integral cable, standard temperature rating, and 200 mV/mil sensitivity. Before substituting a different suffix variant, confirm that the replacement unit’s cable length and sensitivity match the existing Proximitor calibration. If the suffix differs, a Proximitor recalibration or replacement may be required.

Q2: What commissioning steps are required after installing this probe?
A: After mechanical installation, set the probe gap to the specified range using a non-conductive feeler gauge or a calibrated gap-setting tool. Connect the extension cable and measure the Proximitor output voltage with a calibrated digital multimeter. Confirm the voltage falls within the linear range specified on the Proximitor label. Log the as-found and as-left gap voltages in the maintenance record. Finally, verify that the monitor channel displays a valid vibration reading and that no alert or danger alarms are active before releasing the machine.

Q3: Does NINERMAS provide a functional test certificate with each unit?
A: Yes. Every TM0180-A08-B00-C02-D10 unit shipped by NINERMAS is tested for probe sensitivity, cable continuity, and connector integrity prior to dispatch. A functional test certificate is included in the shipment documentation. Units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the TM0180-A08-B00-C02-D10 to support urgent replacement and planned maintenance schedules. Standard orders are dispatched within 3–5 business days. For large-quantity orders or projects requiring multiple probe points, contact our sales team to confirm stock levels and arrange consolidated shipment. Emergency orders for critical machinery protection applications are handled on a priority basis.
