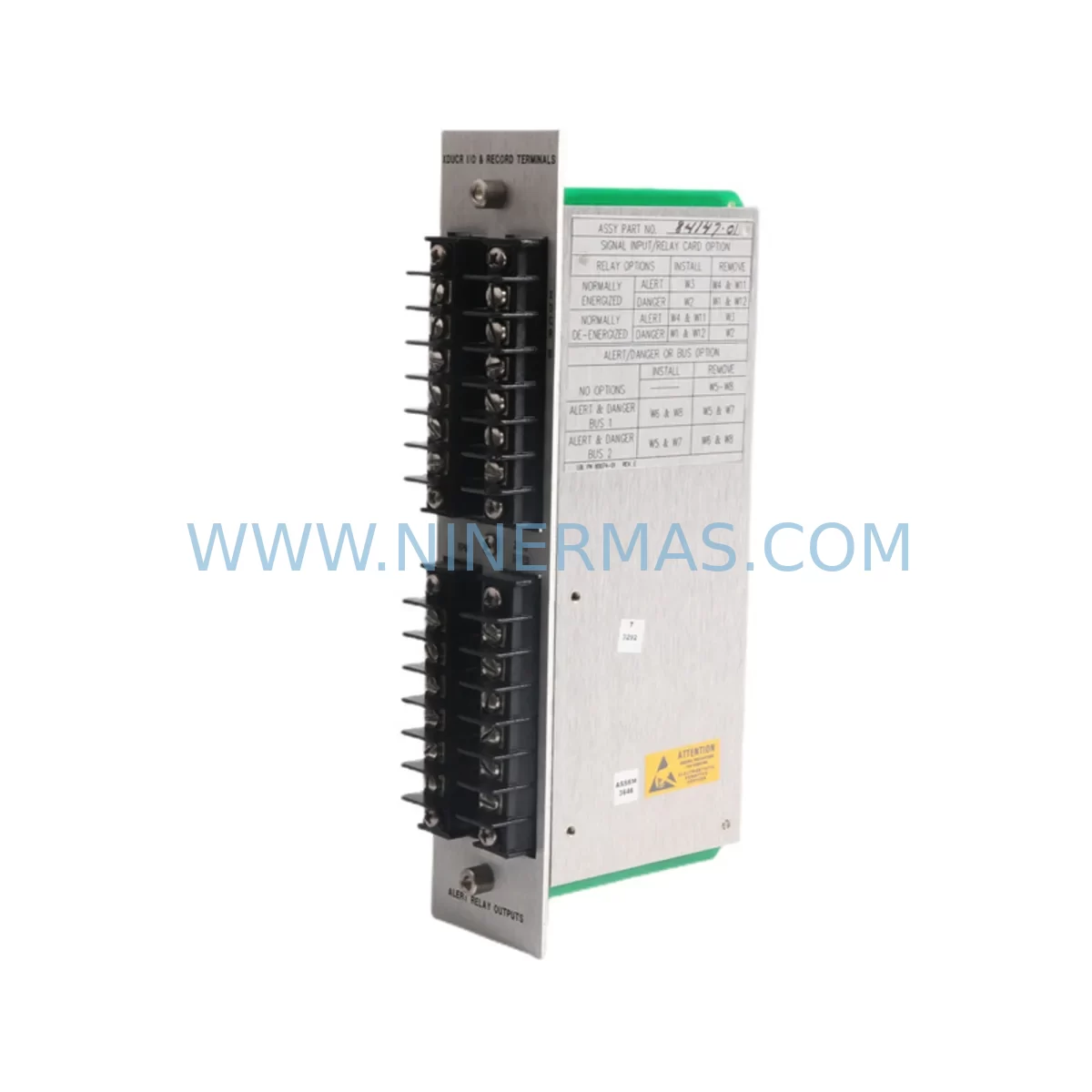

Bently Nevada 84147-01 Retrofit-Compatible XDCR I/O Terminal

Bently Nevada 84147-01 Retrofit-Compatible XDCR I/O Terminal: Legacy System Compatibility & Smooth Upgrade

The Bently Nevada 84147-01 is a retrofit-compatible XDCR I/O Record Terminal engineered for seamless integration into existing 3300 Series and 3500 Series vibration monitoring platforms. As legacy Bently Nevada systems age and original spare parts reach end-of-life, the 84147-01 serves as a reliable drop-in replacement that preserves your existing wiring infrastructure, backplane architecture, and signal conditioning logic — minimizing retrofit risk and dramatically reducing planned downtime.

For facilities operating aging turbomachinery protection systems, the 84147-01 addresses one of the most common field challenges: sourcing a verified, tested replacement for a discontinued I/O terminal module without triggering a full system overhaul. Whether you are maintaining a petrochemical plant, power generation facility, compressor station, or offshore platform, this module supports your continuity of protection without requiring reprogramming of the host 3500/20 Rack Interface Module or reconfiguration of the 3500/22M Transient Data Interface.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 84147-01 into a live plant environment requires a structured pre-retrofit assessment. Engineers should begin by auditing the existing 3500 Series rack configuration — identifying occupied slots, verifying available backplane power capacity from the 3500/15 Power Supply Module, and confirming that the rack’s total current draw remains within specification after module substitution.

Field wiring connected to the original XDCR I/O terminal should be documented before removal. In most 3300/3500 installations, transducer cables — typically carrying signals from proximity probes, velocity sensors, or accelerometers — terminate at the I/O module’s front-panel terminal block. The 84147-01 preserves this terminal layout, allowing technicians to reconnect existing cables without cutting or re-labeling conductors, provided the original wiring follows Bently Nevada’s standard color-coding and shielding practices.

Before powering the replacement module, engineers should verify the 3500/20 Rack Interface Module firmware version to ensure compatibility with the 84147-01’s channel configuration. In systems where the rack communicates upstream via a 3500/92 Ethernet Communication Module or a 3500/05 System Display and Reset Module, no communication reconfiguration is typically required — the replacement module inherits the slot address and channel identity of its predecessor.

For plants that have integrated the 3500 platform with a DCS or SCADA system via Modbus RTU or OPC-DA, the 84147-01 replacement does not alter the data map or register assignments, preserving historian continuity and alarm annunciation logic at the control room level. If the facility uses a 3500/32 4-Channel Relay Module for trip output, relay wiring and setpoint logic should be re-verified post-installation to confirm that OK relay states and danger relay outputs are correctly mapped to the new module.

In applications where the 3300 Series is being migrated toward the 3500 platform, the 84147-01 can serve as an interim I/O bridge, allowing phased migration without full rack replacement. During this transition, engineers often simultaneously source the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor to replace legacy 3300/16 and 3300/20 monitor cards, maintaining channel-for-channel signal coverage throughout the migration window.

Signal isolators and barriers installed upstream of the original I/O terminal — particularly in hazardous area installations — should be inspected for compatibility with the 84147-01’s input impedance specifications. Zener barriers or galvanic isolators protecting IS-rated transducer loops must be verified to maintain correct loop current and voltage compliance after module substitution.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a critical vibration monitoring I/O module in a live production environment. The 84147-01 is pre-tested and function-verified prior to shipment, which eliminates the most common source of extended downtime: receiving an untested or improperly configured replacement module that requires bench calibration before installation.

A recommended migration sequence begins with a scheduled maintenance window — ideally aligned with a planned turbine or compressor outage. During this window, the original module is removed, the 84147-01 is installed into the vacated slot, and field wiring is reconnected using the pre-documented terminal map. The rack is then powered, and the 3500/05 System Display and Reset Module is used to confirm that all channels report OK status and that no latched alarms are present from the installation process.

Where a maintenance window cannot be scheduled, a hot-swap strategy may be considered in racks equipped with redundant power and communication paths. In this scenario, the replacement module is staged adjacent to the rack, field wiring is pre-terminated on a spare terminal block, and the swap is executed during a brief controlled bypass of the affected monitoring channels — with the plant’s safety instrumented system (SIS) team notified and bypass authorization documented per MOC procedures.

Original PLC or DCS program logic does not require modification when replacing the 84147-01 on a like-for-like basis. HMI faceplate displays referencing the affected channels will resume normal operation once the replacement module confirms OK status, without requiring screen reconfiguration or tag remapping. This preserves operator familiarity and eliminates the risk of control room confusion during the post-installation verification period.

For facilities maintaining a spare parts inventory, stocking one or two 84147-01 units as critical spares extends the operational life of the 3500 platform by an additional 5–10 years beyond the original manufacturer’s support window, deferring the capital expenditure associated with a full platform migration to a newer architecture such as the System 1 condition monitoring platform.

Retrofit Support FAQ

Q1: Is the 84147-01 a direct drop-in replacement for the original Bently Nevada XDCR I/O Record Terminal in 3300/3500 Series racks?
A: Yes. The 84147-01 is designed as a form-fit-function replacement for the original module. It occupies the same rack slot, uses the same backplane connector, and retains the same terminal wiring layout. In most installations, no rewiring, reprogramming, or rack reconfiguration is required. Engineers should verify jumper settings and slot address assignments before installation to confirm alignment with the existing rack configuration file.

Q2: What commissioning steps are required after installing the 84147-01?
A: After installation, power the rack and observe the System Display and Reset Module for channel OK status. Verify that all transducer channels report within expected gap voltage ranges, confirm that alarm and danger setpoints are correctly loaded from the rack’s non-volatile configuration memory, and test OK relay and danger relay outputs against the plant’s SIS or DCS input cards. Document all post-installation readings per your site’s MOC and commissioning checklist requirements.

Q3: Does the 84147-01 ship tested, and what warranty coverage is provided?
A: Every 84147-01 unit shipped by NINERMAS undergoes functional testing prior to dispatch, including channel continuity verification, backplane interface check, and power consumption measurement. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS provides advance replacement support to minimize plant downtime.

Q4: Can you supply multiple units for a plant-wide spare parts program or system-wide retrofit?
A: Yes. NINERMAS maintains inventory of the 84147-01 and related 3300/3500 Series components to support both single-unit emergency replacements and bulk procurement for planned retrofit programs. Lead times for standard orders are 3–5 business days from confirmed stock. For project-based procurement requiring multiple modules, contact our technical sales team to discuss availability, staging, and project scheduling.
