Bently Nevada 3500/60 Retrofit-Compatible Keyphasor Module

Bently Nevada 3500/60 Retrofit-Compatible Keyphasor Module: Legacy System Compatibility & Smooth Upgrade

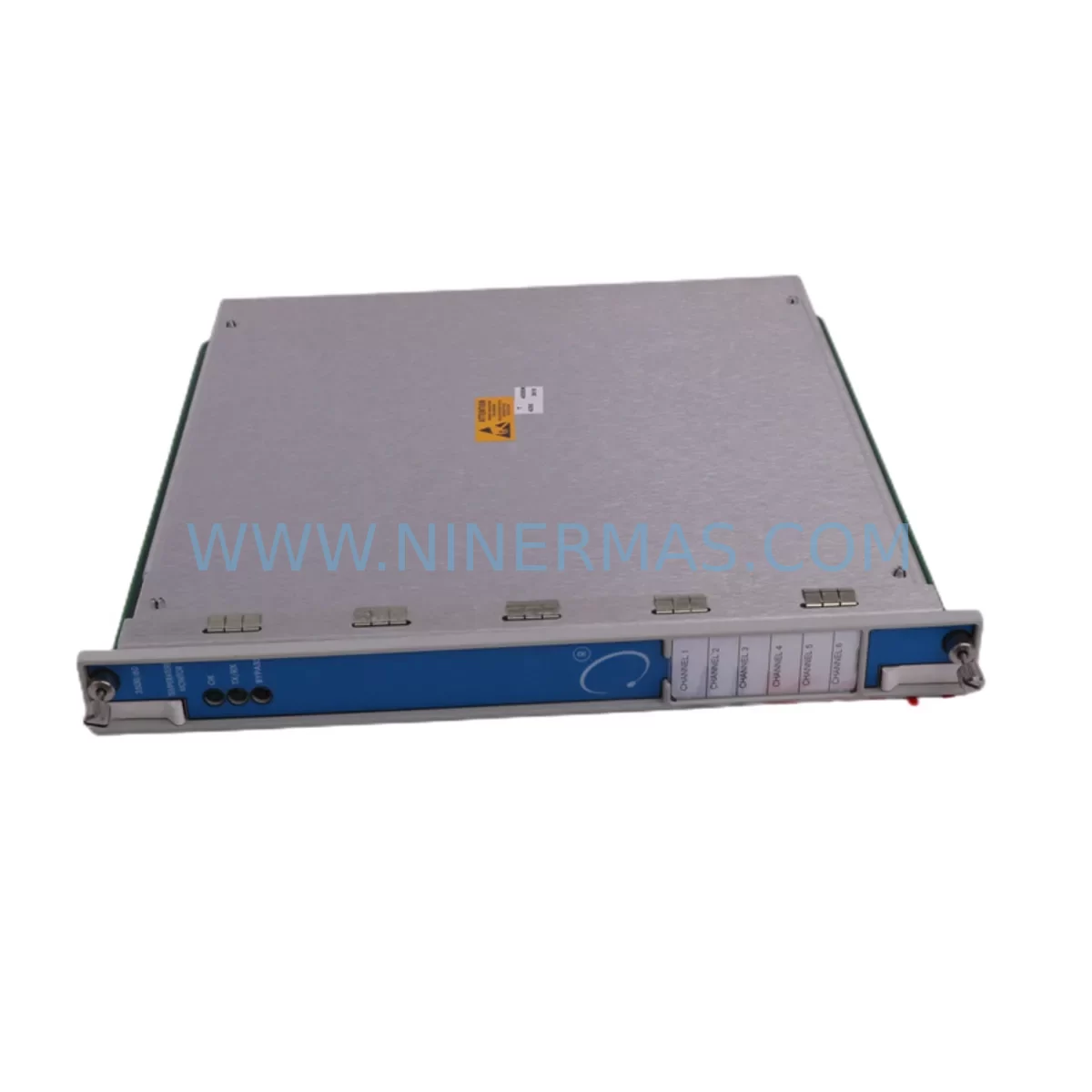

The Bently Nevada 3500/60 Keyphasor Module is a critical component within the Bently Nevada 3500 Series machinery protection system, widely deployed across rotating equipment monitoring applications in power generation, oil & gas, petrochemical, and heavy industrial environments. As original equipment reaches end-of-life or becomes discontinued, the 3500/60 remains one of the most sought-after retrofit and replacement modules for engineers tasked with sustaining legacy control infrastructure without full system overhaul.

NINERMAS maintains verified inventory of the 3500/60 to support planned maintenance shutdowns, emergency spare requirements, and phased system modernization programs. Each unit is subject to pre-shipment functional testing and ships with a 12-month warranty, giving procurement and maintenance teams confidence in both availability and reliability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3500/60 within an operational 3500 Series rack requires careful pre-engineering to avoid disrupting adjacent monitoring channels. The 3500 Series rack architecture uses a shared backplane bus, meaning the Keyphasor signal generated by the 3500/60 is distributed to multiple monitor modules — including vibration monitors such as the 3500/42M and 3500/45 position monitors — that rely on the phase reference for vector and dynamic measurements. Before removal of the existing module, engineers should document all active channel assignments, confirm the rack’s power supply module (typically the 3500/15 or 3500/20 power supply) has sufficient capacity to support the replacement unit, and verify that the 3500/01 rack interface module firmware is compatible with the replacement 3500/60 revision.

Terminal wiring on the I/O module connected to the 3500/60 must be carefully labeled and photographed prior to disconnection. Field cables carrying Keyphasor sensor signals — typically from proximity probes or magnetic pickups — should be tested for continuity and shielding integrity before reconnection. Where the existing installation uses a 3500/05 I/O module or a dedicated terminal block assembly, confirm that the replacement 3500/60 uses the same I/O module variant to avoid rewiring.

In systems where the 3500 Series rack communicates upstream to a DCS or SCADA platform via a 3500/92 communication gateway or a 3500/93 Ethernet module, the Keyphasor channel data mapping should be verified in the communication configuration after module replacement. Any changes to module slot position or channel numbering will require corresponding updates to the Modbus register map or OPC tag database to prevent data loss at the supervisory level.

For facilities running System 1 Evolution software, the 3500/60 replacement should be followed by a rack re-scan and channel verification within the software to confirm that all Keyphasor-dependent measurements — including 1X and 2X vibration vectors on connected 3500/42M or 3500/40M monitor modules — are reading correctly. Where HMI screens display phase angle or speed data derived from the Keyphasor signal, operators should confirm that display values are within expected operating ranges before returning the machine to service.

In multi-rack installations, where a single Keyphasor signal is distributed across multiple 3500 Series racks via a Keyphasor distribution module, the replacement sequence should be coordinated to maintain signal continuity to all dependent racks. Signal isolation and loop checking between racks should be completed before final commissioning sign-off.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/60 replacement is achievable through structured pre-outage preparation. The most effective approach is to complete all pre-engineering — including slot identification, wiring documentation, firmware version confirmation, and spare parts staging — during normal operation, so that the physical swap can be executed within a planned maintenance window.

Where the process cannot tolerate a full monitoring blackout, consider temporarily routing the Keyphasor signal through a portable signal conditioner or a bypass arrangement to maintain speed and phase reference to critical protection channels during the swap interval. This is particularly important in applications where the 3500 Series system is configured for automatic machine trip on loss of Keyphasor signal.

After physical installation of the replacement 3500/60, the rack should be powered up in a controlled sequence. The 3500/15 or 3500/20 power supply module should be confirmed as stable before the new module is inserted. Once inserted, the rack configuration software should be used to verify module recognition, channel assignment, and alarm setpoint retention. Original program logic and setpoint configurations stored in the rack’s non-volatile memory are typically preserved across module swaps, but this should be confirmed against the site’s configuration backup before returning to automatic protection mode.

NINERMAS supports customers with pre-shipment configuration verification and can provide documentation of tested output parameters to reduce on-site commissioning time. All units are dispatched with test records, and the 12-month warranty covers both component and functional performance from the date of shipment.

Retrofit Support FAQ

Q1: Is the 3500/60 a direct drop-in replacement for my existing Keyphasor module?
In most cases, yes — provided the replacement unit matches the original module’s I/O variant and firmware revision. NINERMAS recommends confirming the module part number suffix and I/O module type (e.g., 3500/05 I/O) against your rack configuration drawing before ordering. Our team can assist with compatibility verification based on your rack serial number or system configuration file.

Q2: What wiring checks are required before installing the replacement 3500/60?
Field wiring should be checked for continuity, correct shielding, and correct polarity before reconnection. The Keyphasor sensor — whether a proximity probe or magnetic pickup — should be verified for correct gap voltage and signal amplitude. Terminal block labeling should be confirmed against the original I/O wiring diagram to prevent miswiring of the phase reference signal.

Q3: Will my existing alarm setpoints and channel configuration be retained after the swap?
The 3500 Series rack stores configuration data in the rack interface module (3500/01), not in the individual monitor or Keyphasor modules. In most installations, setpoints and channel configurations are preserved after a module swap. However, NINERMAS strongly recommends downloading and backing up the current rack configuration using System 1 or the rack configuration software before beginning any module replacement.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?
All 3500/60 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional performance from the date of shipment. In-stock units are typically dispatched within 1–3 business days following order confirmation and pre-shipment testing. For urgent requirements, expedited dispatch can be arranged. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for current stock status and lead time confirmation.
