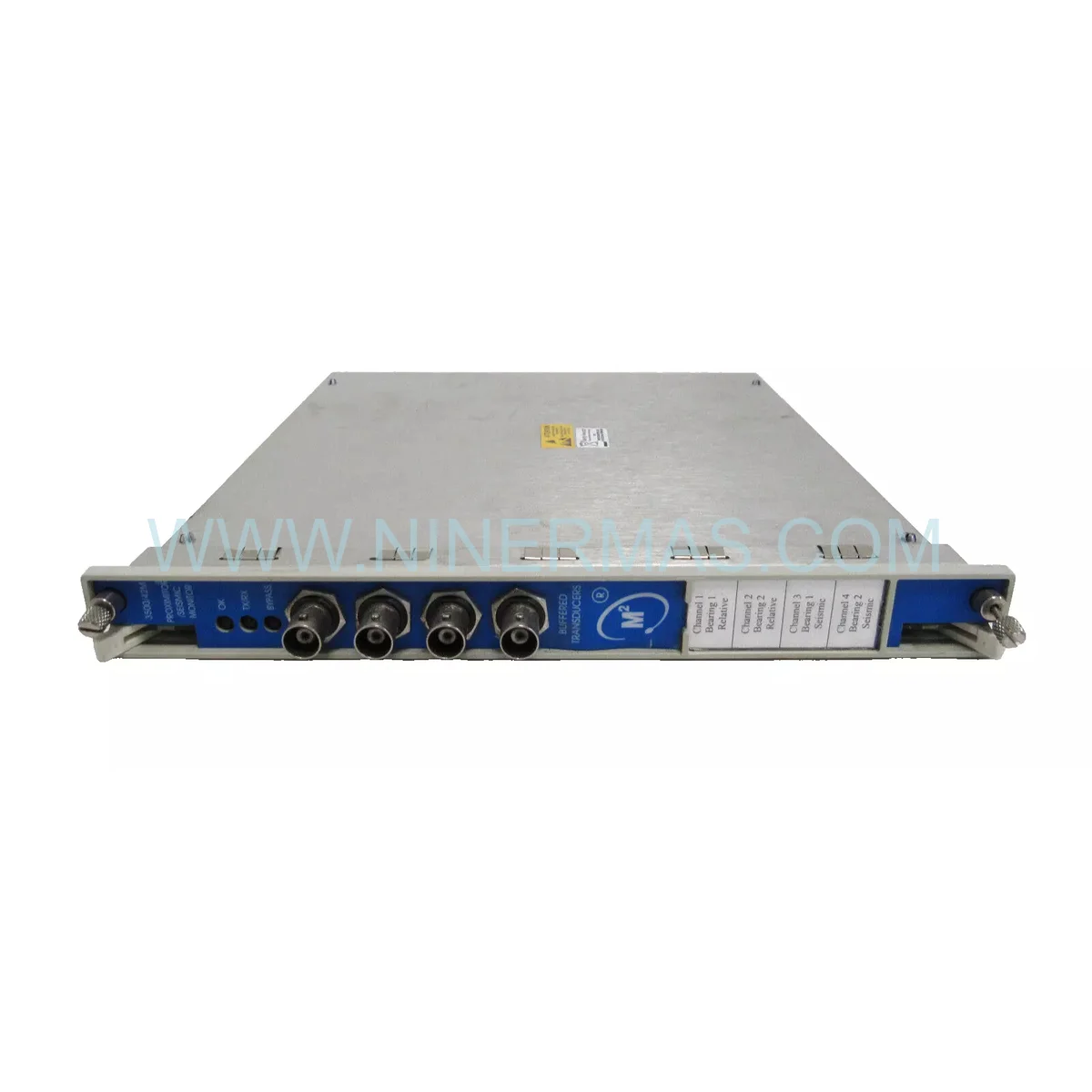

Bently Nevada 3500/42M 176449-02U Proximitor/Seismic Monitor — Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a precision vibration monitor embedded within a Distributed Control System framework. The Bently Nevada 3500/42M 176449-02U is a 4-channel Proximitor/Seismic Monitor Module engineered for the 3500 Series Rack Monitoring System — a platform that has defined the standard for machinery protection in Process Control environments for decades. Whether deployed in a greenfield refinery or a legacy upgrade project, this module delivers the measurement accuracy and alarm reliability that critical rotating equipment demands. The Bently Nevada 3500/42M 176449-02U accepts inputs from both eddy-current proximity probes and seismic transducers (accelerometers/velocity sensors), making it one of the most versatile DCS Hardware solutions available for multi-sensor vibration architectures. Its dual-input capability eliminates the need for separate monitor cards per sensor type — a significant advantage in space-constrained rack configurations. Original Factory Sealed inventory of this model is increasingly scarce. As a Legacy Component that remains deeply embedded in operating plants worldwide, sourcing a genuine, untouched unit is a critical procurement challenge that our global supply chain is specifically positioned to solve.

Key Technical Highlights

Dual-Mode Input Architecture: Simultaneously supports proximity probes (eddy current, -24V DC nominal) and seismic sensors (accelerometers/velocity, ±10V DC) across 4 independent channels — no external signal conditioner required for standard configurations.
Broad Frequency Coverage: Proximity mode: 0.1 Hz — 10 kHz; Seismic mode: 1 Hz — 10 kHz. Dynamic range exceeds 80 dB, capturing both low-speed machinery anomalies and high-frequency bearing defects within a single module.
Multi-Parameter Measurement: Computes Overall Vibration (True RMS), 1 Filtered, 2 Filtered, Smax (Spectral Maximum), and band-pass filtered values — all processed independently per channel for maximum diagnostic resolution.
Redundancy-Ready Alarm Logic: Configurable voting logic (1oo2, 2oo2, 1oo3, 2oo3) across channels prevents spurious shutdowns while maintaining full protection integrity — essential for Fieldbus-integrated SIS architectures.
Hardwired Relay Outputs: Four programmable Form-C relays (5A @ 250V AC) deliver alarm signals directly to DCS, PLC, or Emergency Shutdown Systems, independent of any communication network.
High-Stability Signal Processing: Notch filtering, configurable hysteresis (1-99% of setpoint), and time delays (0-60 seconds) eliminate nuisance trips caused by transient vibration spikes during process upsets.
Compact Industrial Form Factor: 24.4 mm W — 241.8 mm H — 241.3 mm D; 0.91 kg. Fits any slot in the 3500/05 system rack (2-slot through 17-slot). Power draw: 7.5W from rack supply.

Vertical Industry Applications

The 3500/42M 176449-02U is deployed across the most demanding industrial environments, where unplanned downtime carries seven-figure consequences:

Petrochemical & Refining: Protects centrifugal compressors, charge pumps, and steam turbine-generators in API 670-compliant installations. Proximity probe channels monitor shaft displacement at journal bearings; seismic channels track casing vibration on non-critical bearing housings — all within a single module, reducing rack slot consumption and wiring complexity.

Oil & Gas Upstream/Midstream: Deployed on gas injection compressors, pipeline booster stations, and LNG liquefaction trains. The module’s -30°C to +65°C operating range and Class I Division 2 certification make it suitable for offshore platforms and arctic pipeline facilities where environmental extremes are routine.

Power Generation: Monitors journal bearing vibration on 50-500 MW steam turbine-generator sets. The 1 and 2 filtered measurement capability — synchronized via Keyphasor input from the 3500/25 module — enables early detection of rotor unbalance and misalignment before they escalate to forced outages.

Mining & Minerals Processing: Protects large induction motors (>1000 HP), gearboxes, and induced draft fans in ore processing plants. Seismic sensor channels detect gear tooth wear and bearing spalling on gearbox housings, providing maintenance teams with actionable lead time before catastrophic failure.

Marine & Offshore: DNV GL Type Approved for shipboard machinery monitoring. Installed on main propulsion turbines, auxiliary generators, and cargo pump drives aboard LNG carriers and FPSOs, where system redundancy and compact form factor are non-negotiable design constraints.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Bently Nevada 3500/42M 176449-02U supplied through our inventory undergoes a rigorous multi-stage verification process before dispatch. We source exclusively from authorized distribution channels and decommissioned plant inventories with full traceability documentation — no gray-market refurbished units, no remarked components.

100% Original OEM Hardware: Each module is verified against Bently Nevada’s original part numbering schema. Factory Sealed Condition is confirmed by intact OEM packaging with unbroken tamper-evident seals. Batch and date codes are cross-referenced against manufacturer records where available.

12-Month Comprehensive Warranty: All units carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical applications to minimize plant downtime.

Emergency Global Delivery: We understand that a failed vibration monitor in a running plant is not a procurement event — it is a production crisis. Our logistics team maintains active accounts with DHL Express, FedEx International Priority, and UPS Worldwide Express, enabling same-day dispatch for in-stock units. Customs documentation, including commercial invoices, packing lists, and HS code declarations, is prepared concurrently with shipment booking to eliminate clearance delays at destination ports.

Emergency Repair Scenario — Maintenance Stock Strategy: For plant maintenance managers operating aging 3500 Series installations, the 3500/42M 176449-02U represents a Critical Part for Industry Safety. A single failed monitor module can force a protective shutdown of an entire compressor train, with restart costs that dwarf the cost of maintaining a spare on the shelf. We recommend stocking a minimum of one spare module per operating rack for any facility where the 3500/42M is installed in a safety-critical role. Our team can assist with spare parts rationalization studies and consignment stock arrangements for high-volume maintenance programs.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How do I verify that a 3500/42M 176449-02U unit is genuinely original and not a counterfeit or refurbished module?
Authentic units carry the Bently Nevada (Baker Hughes) logo with consistent font and color on the front panel label. The part number 176449-02U is laser-etched or printed on a secondary label on the module body — not just on the packaging. Factory Sealed units will have intact OEM anti-static bags with unbroken heat seals. Request a high-resolution photo of the module’s front panel, side label, and original packaging before purchase. If the seller cannot provide these, treat the unit as suspect.

Q2: Where can I obtain the official datasheet and configuration manual for the 3500/42M 176449-02U?
The official Bently Nevada 3500/42M Installation and Operation Manual (part number 129768-01) and the 3500 Rack Configuration Software User Guide are available through Baker Hughes’s official technical documentation portal. Contact our technical team at sale@ninermas.com and we will provide direct links to the relevant documentation along with application notes for your specific sensor configuration.

Q3: Is the 3500/42M 176449-02U compatible with all versions of the 3500 rack system?
The 176449-02U revision is compatible with 3500/05 system racks running firmware version 3.xx and above. It interfaces with the 3500/92 Communication Gateway for Modbus TCP/RTU integration and works with the 3500/22M Transient Data Interface for System 1 condition monitoring. Verify your rack’s firmware version using the 3500 Rack Configuration Software before installation. If your rack runs an earlier firmware version, a firmware upgrade may be required — contact us for compatibility assessment.

Q4: Can the 3500/42M 176449-02U replace an older 3500/42 (without the ‘M’ suffix) module in an existing rack?
The 3500/42M is the enhanced successor to the original 3500/42, adding seismic sensor input capability. It is backward-compatible with existing proximity probe wiring and configuration files created for the 3500/42. However, the configuration software will detect the new module type and may prompt for re-validation of channel assignments. A brief commissioning check is recommended after any module swap, even in like-for-like replacements.

Q5: What is the typical lead time for emergency orders, and do you offer expedited customs clearance support?
In-stock units are dispatched within 24 hours of order confirmation. DHL Express and FedEx International Priority typically deliver to major industrial hubs in Europe, the Middle East, and Southeast Asia within 2-4 business days. We prepare all export documentation — including commercial invoices with accurate HS codes, certificates of origin, and MSDS where required — simultaneously with shipment booking. For destinations with complex import regulations (e.g., India, Brazil, Russia), we recommend contacting us in advance to discuss documentation requirements and avoid customs delays.

Q6: Is this module classified as an End-of-Life (EOL) component, and what are the long-term supply implications?
Bently Nevada has transitioned the 3500 Series to a managed lifecycle status, meaning new production runs are limited and focused on current-generation variants. The 176449-02U revision is no longer in active mass production, making existing inventory — particularly Factory Sealed units — a finite and diminishing resource. Plants operating 3500 Series systems should treat this as a Legacy Component procurement priority and secure adequate maintenance stock before market availability further contracts. Our global sourcing network actively monitors decommissioning projects and authorized distributor liquidations to maintain supply continuity for our clients.
