Bently Nevada 3500/42M-09-00 Seismic Monitor | 176449-02+140471-01

Bently Nevada 3500/42M-09-00 – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

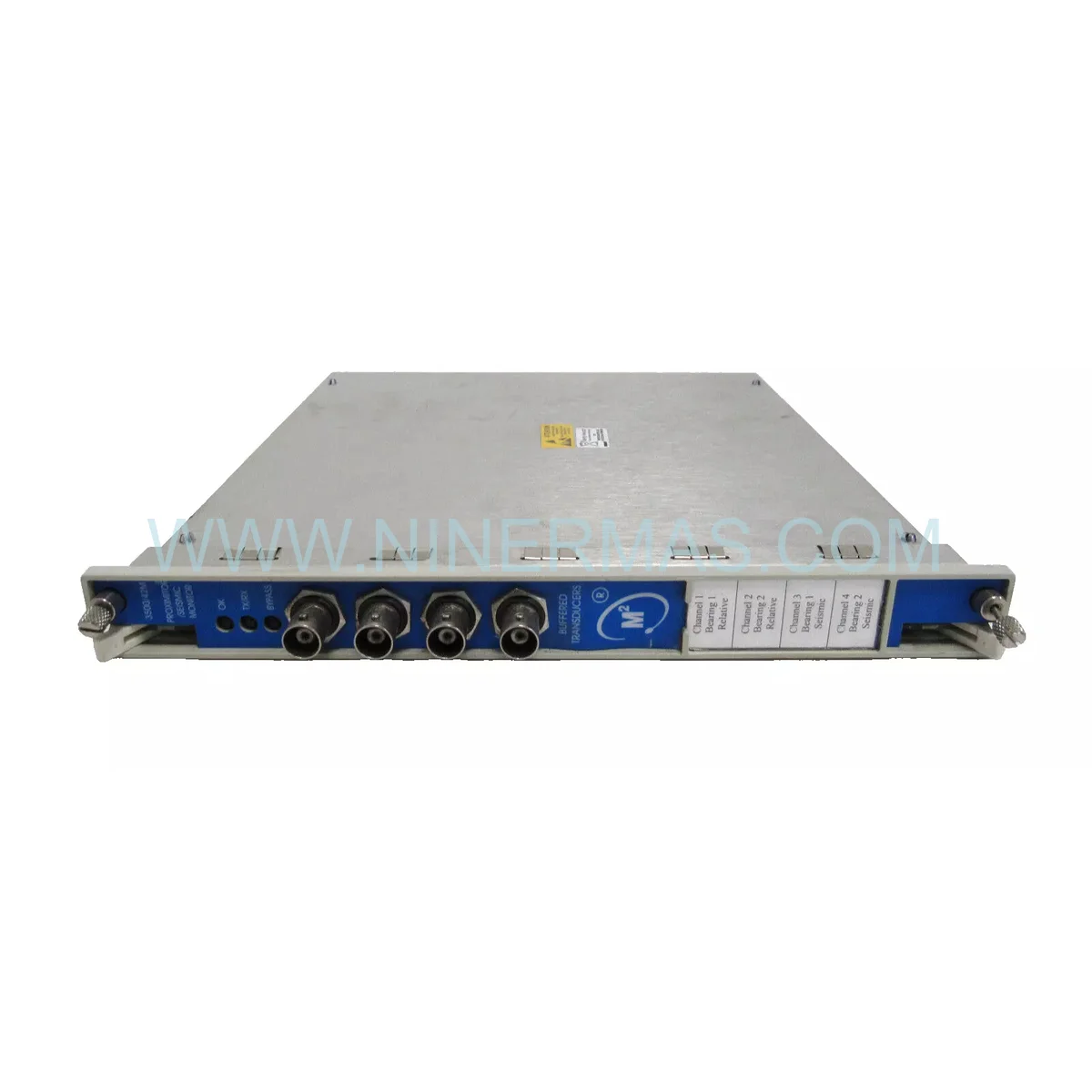

From the perspective of an Industrial Compliance Consultant, the Bently Nevada 3500/42M-09-00 (P/N: 176449-02 + 140471-01) represents a cornerstone asset in the maintenance of industrial system integrity. As a four-channel Proximitor/Seismic Monitor engineered to API 670 and ISO 20816 standards, the 3500/42M-09-00 delivers uninterrupted condition surveillance for rotating machinery operating in safety-critical environments — from petrochemical processing units to power generation turbines. Its role extends beyond mere measurement; it functions as a systemic guardian, ensuring that deviations in shaft displacement, bearing vibration, and seismic activity are detected, classified, and acted upon within defined safety integrity thresholds.

Within the framework of Industry 4.0 architecture, the 3500/42M-09-00 demonstrates exceptional long-term compatibility. Its Modbus communication interface enables seamless integration with distributed control systems (DCS), SCADA platforms, and predictive maintenance ecosystems, ensuring that asset optimization strategies remain viable across extended operational lifecycles. The monitor’s configurable alarm architecture — spanning OK, Alert, and Danger relay outputs — supports automated protective shutdown sequences aligned with IEC 61511 functional safety requirements.

As a certified Original Equipment Manufacturer (OEM) component, the 3500/42M-09-00 carries the full weight of Bently Nevada’s quality control heritage. Each unit undergoes factory calibration with traceable documentation, ensuring that system safety is never compromised by counterfeit or non-conforming substitutes. Original Documentation accompanies every shipment, providing engineers with the compliance evidence required for regulatory audits and insurance assessments.

Compliance & Safety Benchmarks

✅ API 670 Conformity: Fully compliant with the American Petroleum Institute’s machinery protection standard, ensuring suitability for upstream and downstream oil & gas applications.

✅ ISO 20816 Alignment: Meets international mechanical vibration measurement standards for rotating machinery, supporting global deployment without re-certification.

IEC 61511 Functional Safety: Alarm relay architecture supports Safety Instrumented System (SIS) integration, contributing to defined Safety Integrity Levels (SIL).

✅ Factory Calibration with Traceable Documentation: Every unit ships with OEM-issued calibration certificates, satisfying audit requirements under ISO 9001 quality management frameworks.

Environmental Durability: Rated for operation from -30°C to +65°C (-22°F to +149°F), ensuring Standard Adherence across extreme industrial thermal environments.

✅ Rack-Level System Certification: Designed exclusively for the Bently Nevada 3500 Series rack infrastructure, preserving system-level certification integrity and eliminating compatibility risk.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: Ultra-precision vibration thresholds protect sensitive fabrication equipment from micro-vibration events that could compromise wafer yield. The 3500/42M-09-00’s high-resolution channel configuration enables sub-micron displacement tracking, supporting cleanroom process optimization.

Pharmaceutical & Life Sciences: In GMP-regulated environments, continuous machinery health data from the 3500/42M-09-00 feeds directly into electronic batch records, enabling compliance with FDA 21 CFR Part 11 documentation requirements and reducing unplanned downtime that could compromise product sterility.

Chemical & Petrochemical Processing: Compressor trains and reactor agitators operating in ATEX/IECEx hazardous zones rely on the 3500/42M-09-00’s certified relay outputs to initiate emergency shutdown sequences before catastrophic bearing failure occurs, directly reducing process safety incident risk.

Power Generation: Steam and gas turbine operators leverage the monitor’s seismic transducer compatibility to detect structural resonance events, enabling condition-based maintenance scheduling that extends turbine overhaul intervals by up to 30%.

Pulp & Paper / Heavy Industry: High-inertia rotating equipment such as refiners and large fans benefit from the monitor’s configurable setpoints, allowing Asset Optimization strategies tailored to each machine’s unique vibration signature and operational duty cycle.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 3500/42M-09-00 unit is dispatched in its original OEM packaging with tamper-evident seals intact, ensuring that the component arrives in a verifiably pristine state. Anti-static protective measures and shock-absorbent packaging conform to IEC 60068 transportation standards.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, the Americas, and the Middle East, standard international delivery is achieved within 5-10 business days. Expedited air freight options are available for emergency plant maintenance scenarios requiring immediate component replacement.

12-Month Quality Guarantee for Legacy Systems: Recognizing that many 3500 Series installations represent long-term capital investments, our 12-Month Quality Guarantee covers manufacturing defects and component failures under normal operating conditions. This extended assurance is specifically structured to support legacy system operators who require long-term supply chain reliability without forced platform migration.

Technical Support: Post-delivery support includes configuration guidance, firmware compatibility verification, and integration troubleshooting provided by certified instrumentation specialists with direct experience in Bently Nevada 3500 Series deployments.

Expert Technical FAQ

Q1: What installation compliance requirements must be met when integrating the 3500/42M-09-00 into an existing 3500 Series rack?
A: The 3500/42M-09-00 must be installed in a compatible 3500 Series rack slot with the appropriate I/O module (140471-01) correctly seated. Rack configuration software (Rack Configuration Utility) must be used to define channel parameters, alarm setpoints, and relay logic. All wiring must comply with the rack’s installation manual and applicable local electrical codes (e.g., NEC, IEC 60364) to maintain system-level certification integrity.

Q2: How does the 3500/42M-09-00 perform in high-temperature or high-humidity industrial environments?
A: The monitor is rated for continuous operation between -30°C and +65°C with a relative humidity tolerance of up to 95% non-condensing, making it suitable for tropical, desert, and sub-arctic industrial installations. For environments exceeding these parameters, supplementary rack enclosure climate control is recommended to preserve Compliance Standards adherence and component longevity.

Q3: Which firmware versions are compatible with the 3500/42M-09-00, and how does firmware affect system certification?
A: Firmware compatibility is governed by the Bently Nevada 3500 Rack Configuration Utility version in use. It is critical that firmware upgrades are performed only using OEM-approved update packages, as unauthorized firmware modifications can void API 670 compliance certification and invalidate SIS safety function validation records. Always consult Original Documentation before initiating any firmware change.

Q4: Can the 3500/42M-09-00 simultaneously monitor both proximity probe and seismic transducer inputs?
A: Yes. Each of the four channels is independently configurable, allowing mixed-input configurations within a single monitor module. This flexibility supports complex machinery protection architectures where both shaft displacement (proximity) and structural vibration (seismic) data are required from a single rack slot, optimizing rack space utilization without compromising System Performance.

Q5: What documentation is provided to support regulatory audits and insurance assessments?
A: Each unit is accompanied by a factory calibration certificate with full traceability to national measurement standards, a declaration of conformity referencing applicable API and ISO standards, and the complete OEM installation and operation manual. This Original Documentation package is specifically structured to satisfy the evidentiary requirements of third-party safety audits, insurance underwriters, and regulatory inspections.

Q6: Is the 3500/42M-09-00 backward compatible with legacy 3300 Series transducer infrastructure?
A: The 3500/42M-09-00 is designed for the 3500 Series rack architecture. While it accepts input from a wide range of Bently Nevada proximity probes and seismic transducers — many of which were also used with legacy 3300 Series systems — direct rack-level backward compatibility with 3300 Series hardware is not supported. A rack migration assessment should be conducted by a qualified Lifecycle Asset Manager to evaluate transducer reuse feasibility and ensure uninterrupted Safety Integrity during the transition.
